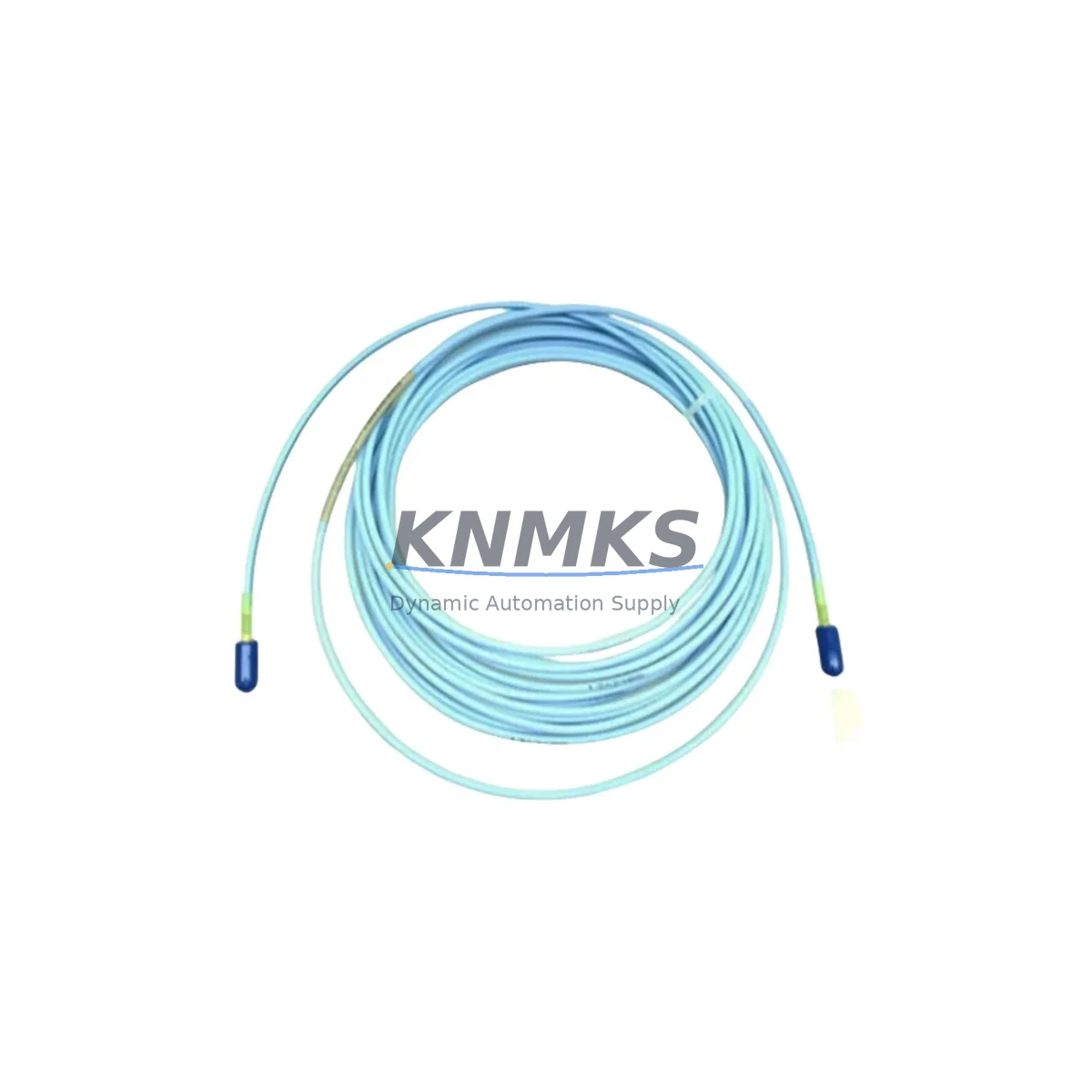

Bently Nevada 330130-085-02-CN Migration-Ready Proximity Cable: Legacy System Upgrade & Retrofit Guide

The Bently Nevada 330130-085-02-CN is an 8-metre proximity extension cable engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy 3300 XL installations approach end-of-support milestones, maintenance engineers and reliability teams are increasingly sourcing verified replacement cables to sustain vibration and position monitoring loops without interrupting production. This cable serves as a direct, migration-ready substitute for worn, damaged, or discontinued extension cable assemblies within existing 3300 XL probe-driver circuits, preserving signal integrity across the full Bently Nevada proximity system chain.

The 330130-085-02-CN is designed to interface with standard Bently Nevada 3300 XL proximitor/driver modules and is dimensionally and electrically compatible with the original factory specification. When planning a cable replacement or control cabinet retrofit, engineers must confirm the probe tip clearance gap, driver module input impedance, and cable routing path before installation. The -CN suffix designates the connector configuration; verify that the mating connector on the proximitor module matches before ordering. In multi-channel monitoring racks, replacing a single extension cable without verifying the adjacent channel’s cable condition is a common oversight that leads to repeat downtime events.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL cable retrofit begins well before the maintenance window opens. Start by auditing the full proximity measurement chain: the eddy-current probe (such as a Bently Nevada 330101 or 330103 series tip), the 330130 extension cable, and the 3300 XL proximitor/driver module. Each element must be confirmed as electrically compatible before the replacement cable is installed. If the proximitor module itself is showing drift or intermittent faults, consider replacing it alongside the cable to avoid a second outage within the same maintenance cycle.

In control cabinets housing multiple 3300 XL monitor cards — for example, a 3300/16 or 3300/20 rack — cable replacement work must be sequenced carefully to avoid disturbing adjacent channel wiring. Label every cable before disconnection, photograph the terminal block layout, and use a continuity tester to verify the replacement cable before routing it through the conduit. If the cabinet also contains a 3500 Series rack as part of a phased migration from 3300 XL to 3500 architecture, ensure that the extension cable specification matches the target platform’s proximitor requirements, as the 3500 Series uses a different driver module family.

For plants running Bently Nevada System 1 software for condition monitoring, the cable replacement itself does not require any software reconfiguration, but the gap recalibration value must be updated in the System 1 database to reflect the new installation. Similarly, if the monitoring output feeds into a DCS historian — such as a Honeywell Experion PKS or Emerson DeltaV node — verify that the analog input card scaling remains valid after the cable swap. Power supply modules feeding the proximitor rack should also be checked: a 3300 XL rack typically draws from a dedicated 24 VDC bus, and any voltage sag during the replacement window can trigger spurious alarms on adjacent channels.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity cable replacement requires a structured pre-outage checklist. Before isolating the measurement channel, capture the current gap voltage reading and vibration baseline from the 3300 XL monitor card display or System 1 trend screen. This baseline serves as the acceptance criterion after reinstallation. If the machine cannot be taken offline, coordinate with operations to place the affected channel in bypass mode on the monitor card — most 3300 XL cards support a maintenance bypass that suppresses the trip output without disabling the measurement circuit entirely.

During the cable swap, protect the probe tip from mechanical damage and avoid contaminating the probe face with grease or metallic particles, as this will shift the gap calibration. Once the 330130-085-02-CN is installed and routed, reconnect at the proximitor module first, then at the probe end, and restore power to the rack. Allow the proximitor a 30-second warm-up period before reading the gap voltage. If the gap voltage falls outside the acceptable window (typically −10 VDC ±0.5 VDC for standard 8mm probes), adjust the probe tip position mechanically before releasing the channel from bypass. Document the final gap reading, the cable serial number, and the installation date in the equipment maintenance record to support future reliability analysis and support requests.

Retrofit Support FAQ

Q1: Is the 330130-085-02-CN a direct replacement for the original Bently Nevada cable in my 3300 XL system?
Yes. The 330130-085-02-CN is a migration-ready, specification-matched replacement for the original OEM cable assembly used in 3300 XL proximity measurement loops. Confirm the cable length (8 m) and connector configuration (-CN) match your existing installation before ordering. No firmware or software changes are required on the proximitor module or monitor card.

Q2: What pre-shipment testing is performed on each cable?
Every 330130-085-02-CN unit undergoes electrical continuity testing and insulation resistance verification before dispatch. Units that fail either test are quarantined and not shipped. A support terms confirmed by quotation cover manufacturing defects from the date of delivery, providing assurance for both emergency replacements and planned maintenance stock.

Q3: Can this cable be used during a phased migration from the 3300 XL to the Bently Nevada 3500 Series?
The 330130-085-02-CN is specified for the 3300 XL proximitor family. If your migration plan involves transitioning to 3500 Series monitor cards and proximitor modules, verify the target proximitor’s cable specification, as the 3500 platform may require a different extension cable part number. We recommend confirming compatibility with your system documentation before committing to bulk stock for a 3500 migration project.

Q4: What is the typical lead time and stock availability?
The 330130-085-02-CN is maintained in multi-region inventory to support emergency dispatch requirements. Standard orders ship within 1–3 business days. For urgent plant shutdowns or unplanned outages, contact the sales team directly to confirm same-day or next-day dispatch availability. Bulk orders for planned turnaround maintenance are accommodated with advance notice.
