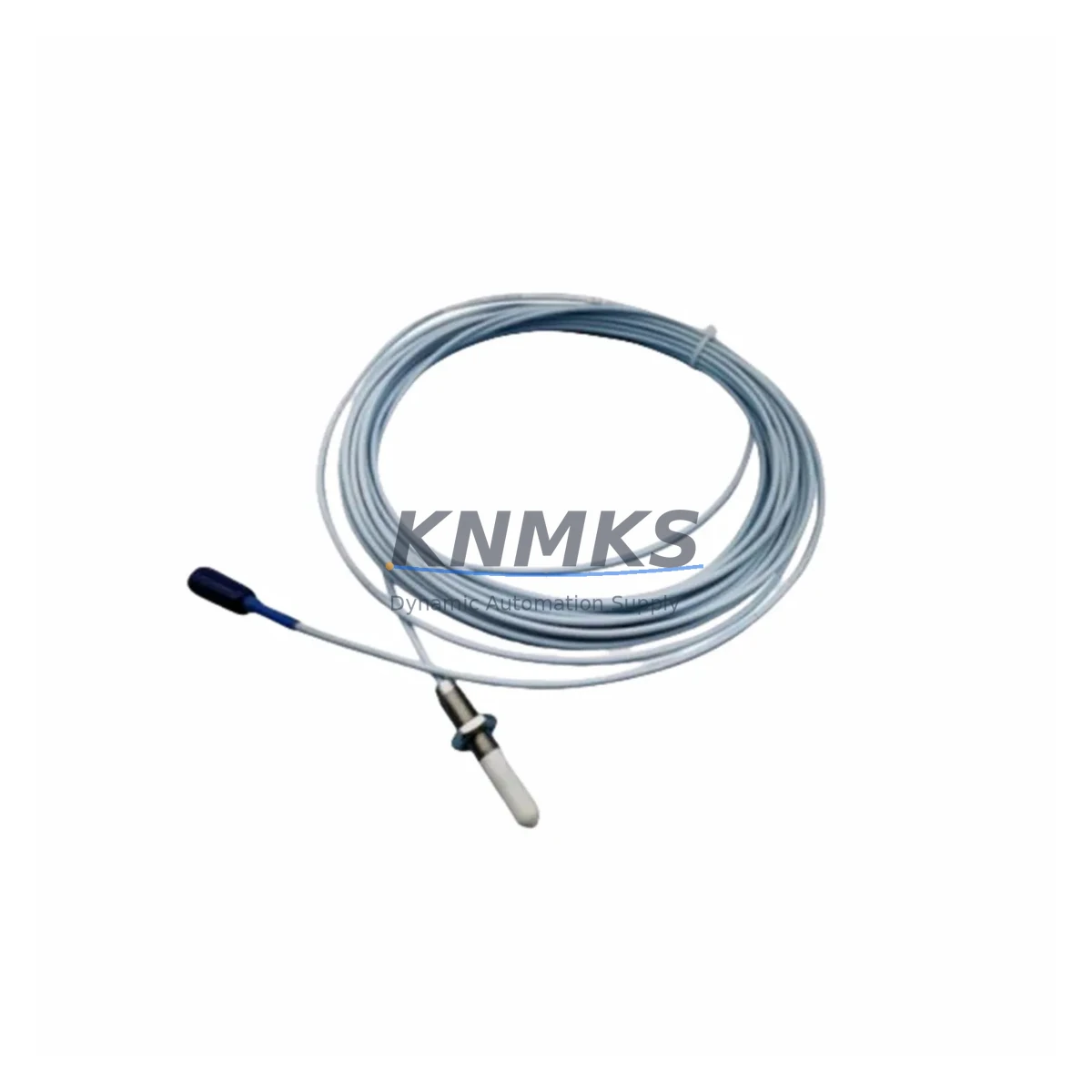

Bently Nevada 330130-085-02-05 Fail-Safe Extension Cable

Overview

Bently Nevada 330130-085-02-05 Fail-Safe Extension Cable for Industrial Control Reliability

The Bently Nevada 330130-085-02-05 is a precision-engineered proximity extension cable purpose-built for the 3300 XL Series vibration monitoring and machinery protection platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, offshore platforms, and continuous process manufacturing — this extension cable forms a critical link in the eddy-current proximity measurement loop between the 3300 XL proximitor/oscillator and the field-mounted proximity probe.

In safety-critical machinery protection applications, signal integrity across the extension cable is non-negotiable. Any degradation in the cable’s shielding, impedance matching, or connector integrity can introduce signal drift, false trips, or missed alarms — all of which carry severe consequences in rotating equipment protection. The 330130-085-02-05 is factory-calibrated and impedance-matched to the 3300 XL system, ensuring that the proximity loop maintains its specified sensitivity and linearity across the full operating range, even under sustained mechanical vibration, thermal cycling, and high electromagnetic interference (EMI) environments.

KNMKS maintains verified in-stock inventory of the 330130-085-02-05, pre-tested prior to shipment and backed by a support terms confirmed by quotation. Each unit undergoes continuity, insulation resistance, and impedance verification before dispatch, supporting both emergency replacement and planned outage schedules.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated 3300 XL machinery protection system, the extension cable does not operate in isolation — it is one component in a carefully coordinated signal chain that must remain stable under all operating conditions. When specifying or replacing the 330130-085-02-05, engineers should consider the complete loop architecture to ensure fail-safe performance.

The Bently Nevada 3300 XL Proximitor/Oscillator (e.g., 330180-X1-05) drives the eddy-current field at the probe tip and conditions the raw proximity signal before it travels through the extension cable to the monitor rack. Any impedance mismatch between the proximitor and the extension cable will introduce measurement error — making the 330130-085-02-05’s factory-matched impedance a critical reliability feature, not merely a convenience.

At the monitor rack, the 3300/16-02-01-01-00-00-00 Dual Voting Logic Monitor or equivalent 3300 XL monitor module receives the conditioned signal and applies the configured alarm and danger setpoints. These monitors rely on a clean, drift-free signal from the extension cable to correctly evaluate shaft position, radial vibration, and axial thrust — all of which are primary trip parameters in turbomachinery protection.

For installations in high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large motor starters, or high-current bus bars — the double-shielded construction of the 330130-085-02-05 provides a critical barrier against induced noise. Complementing this, the Bently Nevada 3500/15 Power Supply Module should be verified for stable, clean DC output, as power supply ripple is a known source of proximity loop noise that can mask real vibration signals or generate spurious alarms.

In safety instrumented systems (SIS) where the proximity loop feeds a Safety Instrumented Function (SIF), the extension cable’s integrity is part of the overall SIL (Safety Integrity Level) assessment. Pairing the 330130-085-02-05 with a Bently Nevada 3500/22M Transient Data Interface allows continuous loop health monitoring, enabling predictive maintenance before cable degradation causes a spurious trip or a dangerous missed alarm. Additionally, the 3300 XL Proximity Probe (e.g., 330104-00-06-10-02-00) at the field end of the loop must be verified for compatibility with the extension cable length to maintain the system’s calibrated gap voltage range.

Critical Industrial Safety Applications

The Bently Nevada 330130-085-02-05 extension cable is deployed across a wide range of critical industrial sectors where rotating equipment protection is essential to operational safety and continuity.

In petrochemical and refinery environments, this cable supports continuous shaft monitoring on centrifugal compressors, pumps, and expanders operating in explosive atmospheres. The cable’s robust shielding and temperature rating make it suitable for installation in classified hazardous areas where signal reliability directly impacts process safety and SIL compliance.

In power generation — including gas turbines, steam turbines, and large hydro generators — the 330130-085-02-05 forms part of the primary overspeed and vibration protection loop. A failed or degraded extension cable in this application can result in either a spurious unit trip (costly unplanned outage) or a missed alarm (catastrophic equipment failure). Pre-tested, support terms-backed replacement stock is therefore a standard requirement for power plant spare parts programs.

In mining and mineral processing, large rotating mills, crushers, and conveyor drive systems operate under extreme vibration and dust loading. The extension cable’s mechanical durability and ingress resistance make it a reliable choice for these high-abuse environments, where cable replacement during unplanned downtime carries significant production cost.

In water and wastewater treatment facilities, large pump and blower trains rely on proximity-based vibration monitoring to detect bearing wear and rotor imbalance before catastrophic failure. The 330130-085-02-05 supports long-term, maintenance-free operation in humid, chemically aggressive environments.

In metallurgical and steel plant applications — including rolling mills, continuous casters, and large induction furnace drives — the cable’s EMI shielding is particularly valuable, as these environments generate intense electromagnetic interference that can corrupt proximity signals and trigger false machinery trips.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the Bently Nevada 330130-085-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Each cable is individually tested for continuity, insulation resistance, and impedance before shipment, with test records available upon request.

Q2: Is the 330130-085-02-05 compatible with all 3300 XL proximitor models?
Yes. The 330130-085-02-05 is designed and factory-calibrated for use with the full range of Bently Nevada 3300 XL Proximitor/Oscillator modules. The cable’s impedance and connector specifications are matched to the 3300 XL system architecture, ensuring correct loop gain and linearity without field recalibration.

Q3: Can this extension cable be used in SIL-rated safety instrumented systems?
The 330130-085-02-05 is a Bently Nevada OEM-specification component suitable for use in SIL-assessed machinery protection loops. For formal SIL certification documentation, consult the system integrator’s SIL assessment report and verify that the cable’s failure mode data is included in the overall SIF reliability calculation. KNMKS can provide component traceability documentation to support SIL assessments.

Q4: What is KNMKS’s lead time and long-term supply commitment for this part?
KNMKS maintains multi-region stock of the 330130-085-02-05 to support both emergency replacements and planned outage schedules. Standard orders ship within 1–3 business days. For long-term supply agreements or scheduled outage kitting, contact our team at [email protected] to discuss volume pricing and reserved stock arrangements.
