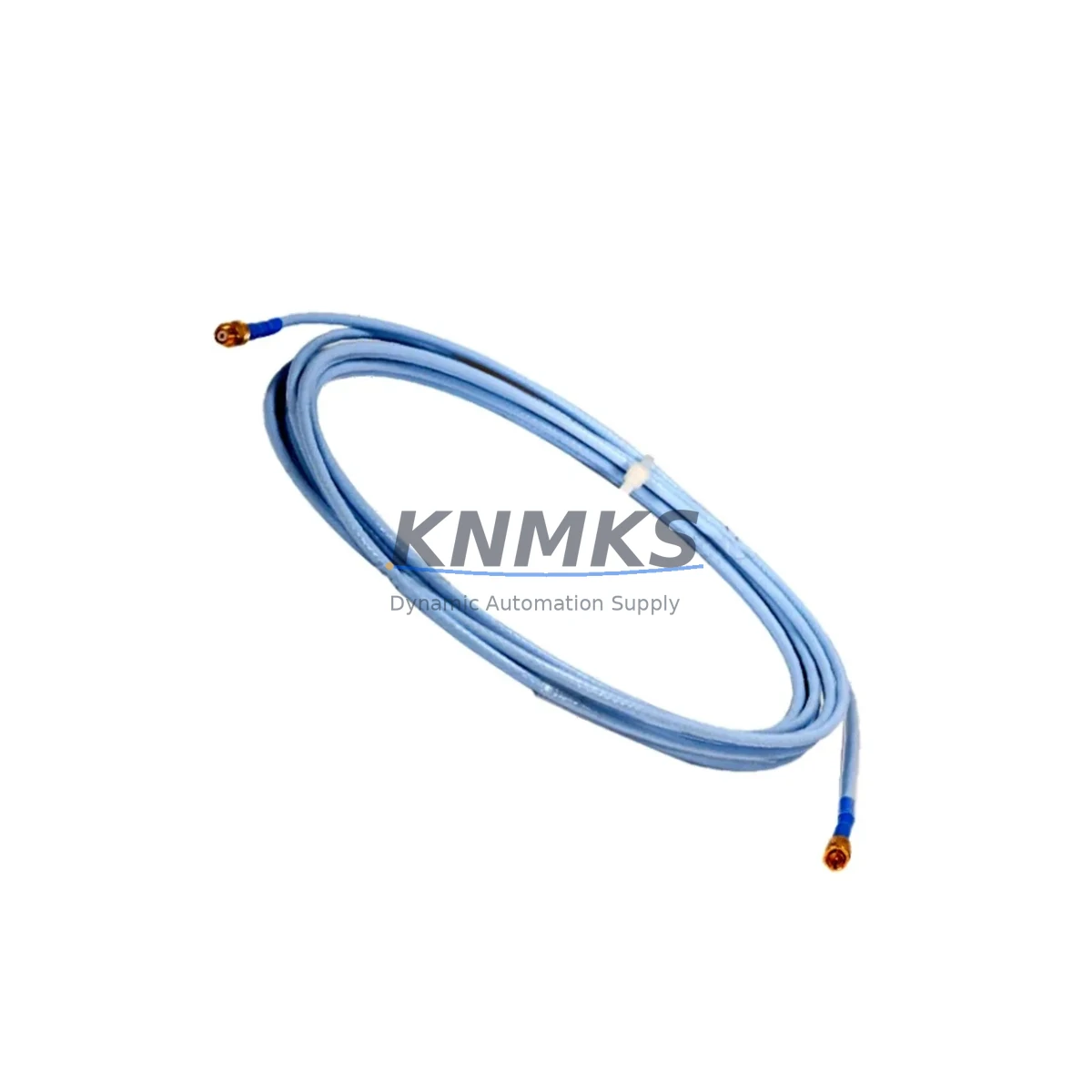

Bently Nevada 330130-085-02-00 Fail-Safe Proximity Extension Cable: Fault Protection for Critical Industrial Vibration Monitoring

The Bently Nevada 330130-085-02-00 is a 9-metre (30-foot) proximity extension cable engineered for the 3300 XL Series vibration monitoring system. Designed to operate in safety-critical rotating machinery protection circuits, this cable forms the signal transmission backbone between the proximity probe and the Bently Nevada 3300 XL proximitor/driver module. In continuous production environments — petrochemical compressor trains, power generation turbines, mining mill drives, and metallurgical process lines — signal integrity across the probe-to-monitor loop is not a convenience; it is a plant safety requirement.

The 330130-085-02-00 is factory-terminated and impedance-matched to the 3300 XL system architecture, eliminating field-assembly errors that can introduce signal offset, phase distortion, or gap voltage drift. Each cable is manufactured to Bently Nevada’s exacting specifications for capacitance, resistance, and shielding continuity — parameters that directly affect the accuracy of radial vibration, axial position, and differential expansion measurements used in turbomachinery protection logic.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered turbomachinery protection cabinet, the 330130-085-02-00 extension cable does not operate in isolation. It is one link in a chain of interdependent components, each of which must maintain its rated performance under the same harsh field conditions. The Bently Nevada 330104-01 3300 XL 8mm proximity probe is the upstream sensor whose output the extension cable carries; any impedance mismatch between probe, extension cable, and proximitor will corrupt the gap voltage reading and trigger false shutdowns or — more dangerously — mask a genuine rotor excursion event.

The proximitor driver module, such as the Bently Nevada 3300/16-14-01-01-00-00, converts the probe oscillator signal into a DC voltage proportional to rotor-to-probe gap. This module must receive a clean, low-noise signal from the extension cable to maintain the ±0.5% linearity required for API 670 compliance. In cabinets where variable-frequency drives or high-current motor starters are installed in adjacent compartments, the double-shielded construction of the 330130-085-02-00 is the primary defence against capacitively coupled interference that would otherwise appear as spurious vibration amplitude on the monitor display.

Power supply stability within the protection cabinet is equally critical. The Bently Nevada 3500/15-05-05-00 power supply module provides the regulated –24 VDC rail that energises the proximitor. Voltage ripple or transient dips on this rail — caused by inrush from contactors or switching noise from nearby SMPS units — can shift the proximitor’s operating point and introduce a DC offset indistinguishable from a real gap change. Pairing a stable power supply with a correctly specified extension cable eliminates two of the most common sources of nuisance trips in rotating machinery protection systems.

For installations where the 3300 XL monitor rack communicates shaft data to a plant DCS or safety instrumented system, the Bently Nevada 3500/92-04-01-00 communication gateway and associated fieldbus cabling must also be shielded and routed away from power conductors. Signal chain integrity from probe tip to control room display depends on every component in the loop meeting its specification — the 330130-085-02-00 extension cable is the field-side element most exposed to mechanical abuse, chemical contamination, and electromagnetic interference, making its quality and correct installation the most frequent determinant of system reliability.

Critical Industrial Safety Applications

The 330130-085-02-00 proximity extension cable is deployed across the full spectrum of rotating machinery protection applications where API 670 or equivalent safety standards govern instrumentation selection.

In petrochemical and refinery environments, it connects radial vibration probes on centrifugal compressors and steam turbines driving critical process trains. A signal interruption or drift event in these loops can trigger an emergency shutdown that costs tens of thousands of dollars per hour in lost production — or, if the protection system fails to respond to a genuine fault, result in catastrophic machinery failure and personnel injury. The cable’s oil-resistant jacket and double-shielded construction are specifically suited to the hydrocarbon-laden, high-EMI atmosphere of a compressor house.

In power generation facilities — gas turbines, steam turbines, and large hydro units — the extension cable carries axial position and differential expansion signals that protect against rotor-stator contact during thermal transients. These measurements feed directly into the turbine protection logic; cable degradation that introduces signal noise can cause the protection system to interpret thermal growth as a fault condition, forcing an unplanned outage during peak demand periods.

In mining and mineral processing operations, large SAG mill and ball mill drives operate in environments of extreme dust loading, moisture ingress, and structural vibration. The 330130-085-02-00’s robust jacket and secure factory terminations resist the connector loosening and insulation breakdown that field-assembled cables suffer under continuous vibration exposure.

In water and wastewater treatment plants, large pump and blower trains run continuously with minimal maintenance access. Early detection of bearing wear or rotor imbalance through reliable vibration monitoring — enabled by a correctly specified extension cable — allows condition-based maintenance scheduling that prevents unplanned failures in critical pumping infrastructure.

In metallurgical and steel plants, rolling mill main drives and ID fan trains operate under severe thermal and vibration loads. The extension cable’s rated operating temperature range and vibration-resistant construction ensure continuous signal transmission even when the cable is routed through hot, vibrating ductwork or cable trays adjacent to furnace structures.

Safety and Quality FAQ

Q1: What support terms does the 330130-085-02-00 carry?
This cable is supplied with a support terms confirmed by quotation covering manufacturing defects, connector integrity, and signal performance. If the cable fails to meet its specified impedance or continuity parameters within the confirmed support period under normal operating conditions, we will replace it at no charge. Support terms documentation is provided with each shipment.

Q2: Is the cable tested before shipment?
Yes. Every 330130-085-02-00 unit undergoes 100% pre-shipment testing including DC continuity verification, insulation resistance measurement, and coaxial impedance confirmation. Test records are available on request. This ensures that the cable performs to specification from the moment it is installed, eliminating the risk of commissioning delays caused by a defective cable discovered only after the machine is reassembled.

Q3: Is this cable compatible with all 3300 XL proximity probes and proximitors?
The 330130-085-02-00 is designed and factory-terminated for use within the Bently Nevada 3300 XL system, and is compatible with 3300 XL 8mm and 11mm proximity probe assemblies and their corresponding proximitor/driver modules. It is not interchangeable with 7200 Series or 3500 Series probe cables, which use different impedance specifications and connector configurations. If you are unsure of compatibility with your specific probe and proximitor combination, contact us with your full system part numbers before ordering.

Q4: Can you support long-term or scheduled spare parts supply for this cable?
Yes. We maintain standing inventory of the 330130-085-02-00 and can support scheduled spare parts programmes, annual blanket orders, and emergency same-day dispatch requirements. For plants operating multiple 3300 XL-equipped machines, we recommend holding at least one spare extension cable per monitored shaft as a minimum critical spare. Contact our team to discuss a supply agreement tailored to your maintenance schedule and site inventory policy.
