Bently Nevada 330130-085-01-05 Migration-Ready Extension Cable

Overview

Bently Nevada 330130-085-01-05 Migration-Ready Extension Cable for Legacy Control Systems

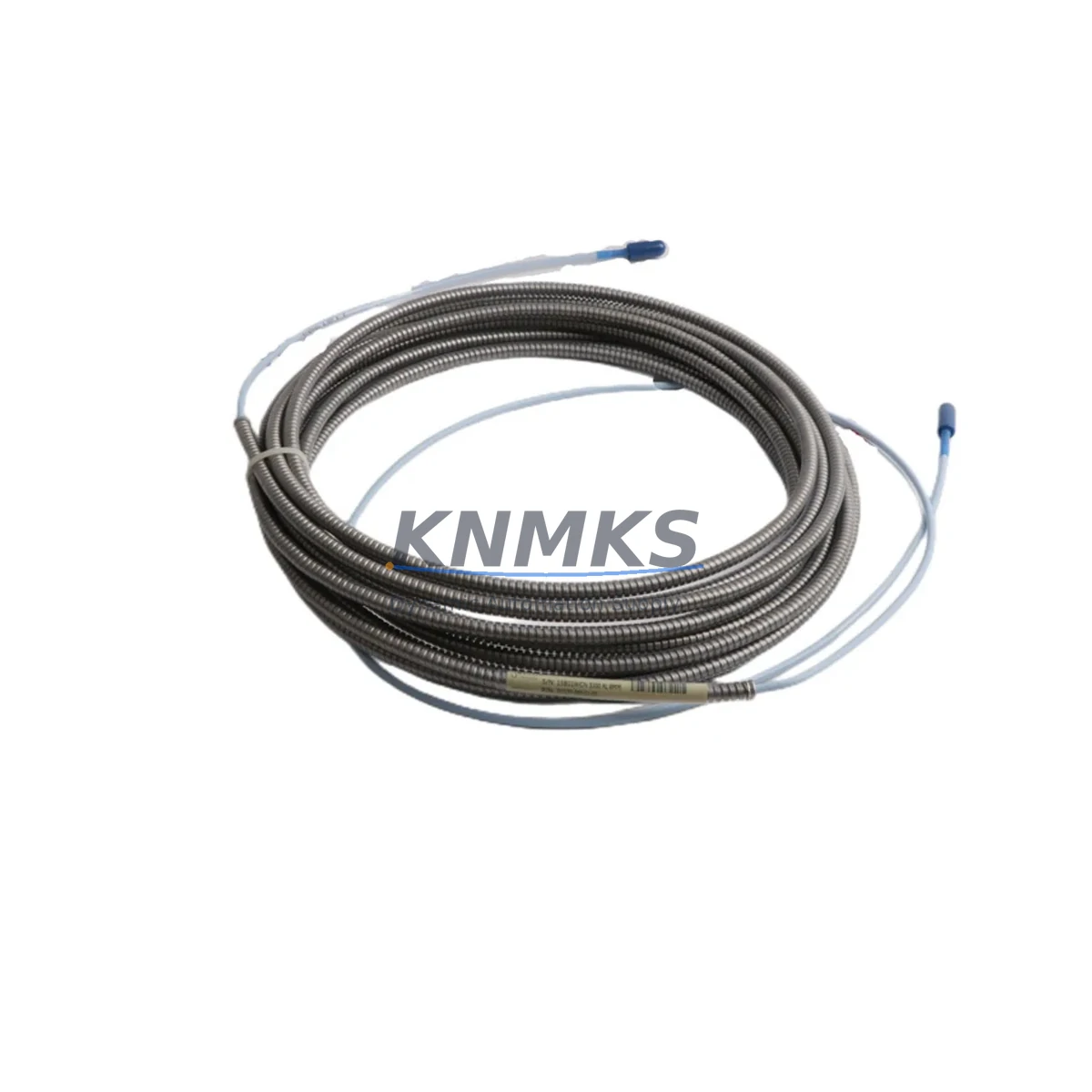

The Bently Nevada 330130-085-01-05 is an 8.5-meter proximity extension cable engineered for the 3300 XL Series vibration monitoring system. As legacy machinery protection platforms approach end-of-life or require spare parts replenishment, this cable serves as a validated, drop-in replacement that preserves signal integrity across the full sensor-to-monitor chain. Whether you are executing a planned refurbishment of a rotating equipment protection loop or responding to an unplanned cable failure in a petrochemical or power generation facility, the 330130-085-01-05 provides the dimensional and electrical compatibility required to restore system operation without modifying existing conduit runs, junction boxes, or monitor rack wiring.

This extension cable is designed to interface directly between the 3300 XL proximitor/sensor and the 3300 XL monitor module, maintaining the 200 mV/mil (7.87 V/mm) scale factor that the monitor expects. Replacement planning should confirm the existing cable length against the 8.5-meter specification, verify that the proximitor output voltage at the monitor input falls within the –10 VDC to –18 VDC operating window, and check that the armored jacket and connector terminations are compatible with the existing conduit entry fittings. When replacing cables in hazardous-area installations, confirm that the intrinsic safety barriers or Zener barriers in the loop remain rated for the updated cable capacitance and resistance values.

For facilities managing a broader 3300 XL system upgrade, the 330130-085-01-05 is typically deployed alongside the 330130-040-00-00 (4-meter extension cable) for shorter sensor-to-proximitor runs, the 330180-91-05 proximitor/sensor assembly for complete transducer replacement, and the 3300/16 monitor module when the existing monitor card has reached its service life. In rack-level refurbishments, the 3500/42M proximitor I/O module and the 3500/22M transient data interface are commonly addressed in the same work order to consolidate downtime and avoid repeat outages. Ensuring that all cable assemblies, proximitor housings, and monitor cards share compatible firmware and hardware revisions is essential before returning the protection loop to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL cable replacement begins with a complete loop audit. Before removing the failed or degraded 330130-085-01-05, document the existing bias voltage reading at the monitor input, the gap voltage at the proximitor, and the overall vibration reading to establish a pre-replacement baseline. This baseline is critical for post-installation verification and for confirming that the new cable has not introduced additional resistance or capacitance that shifts the operating point outside the monitor’s acceptance window.

In installations where the 3300 XL monitor rack also houses a 3300/20 power supply module or a 3300/46 keyphasor module, coordinate the cable replacement with a visual inspection of the backplane connectors and rack power distribution. Corroded or intermittent backplane contacts are a common secondary failure mode in aging racks and should be addressed during the same maintenance window to avoid a repeat outage. If the facility is also evaluating a migration from the 3300 XL platform to the 3500 Series, note that the 3500 Series uses a different proximitor family and a different cable impedance specification; the 330130-085-01-05 is not forward-compatible with 3500 monitor inputs without a complete transducer chain substitution.

For installations in rotating equipment protection applications — including steam turbines, compressors, pumps, and fans — the cable routing path should be inspected for mechanical wear, heat exposure, and chemical contamination. High-temperature environments may require the use of additional thermal sleeving over the cable jacket. Confirm that the replacement cable’s armored jacket is intact and that the shield drain wire is terminated correctly at the proximitor end only, following Bently Nevada’s single-point grounding recommendation, to avoid ground loop interference in the vibration signal.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL cable replacement requires pre-staging the 330130-085-01-05 on-site before the maintenance window opens. Confirm cable continuity, insulation resistance, and connector integrity at the warehouse or staging area before the technician enters the field. This pre-shipment verification step, which is included with every unit shipped from our inventory, eliminates the risk of discovering a defective replacement cable after the machine has already been taken offline.

During the replacement, the existing monitor channel should be placed in bypass mode — using the 3300 XL monitor’s front-panel bypass switch or the System 1 software interface — to prevent a spurious trip signal from propagating to the machine protection relay while the cable is disconnected. After the new cable is installed and the connectors are torqued to specification, restore the channel from bypass and verify the bias voltage, gap voltage, and vibration reading against the pre-replacement baseline before releasing the machine to operations. If the readings deviate by more than the monitor’s acceptance tolerance, re-inspect the proximitor gap setting and the cable connector seating before escalating to a full transducer replacement.

For facilities with redundant protection loops, the cable replacement can be performed on one channel at a time while the redundant channel remains active, further reducing the risk of an unprotected operating condition. Document the as-left readings in the plant maintenance management system and update the loop calibration record to reflect the replacement date and the technician’s verification sign-off.

Retrofit Support FAQ

Q: Is the 330130-085-01-05 a direct drop-in replacement for the original Bently Nevada cable?
A: Yes. The 330130-085-01-05 is manufactured to the original Bently Nevada dimensional and electrical specification. It is a direct replacement for the same part number in 3300 XL Series installations. No wiring modifications, re-termination, or monitor reconfiguration are required when replacing a like-for-like cable of the same length.

Q: What pre-shipment testing is performed before the cable is shipped?
A: Every 330130-085-01-05 unit undergoes continuity testing across the full cable length, insulation resistance measurement between the center conductor and shield, and a visual inspection of both connector assemblies before shipment. A test record is available upon request and can be included with the shipping documentation for your maintenance records.

Q: Can this cable be used in a 3500 Series monitor installation?
A: No. The 3300 XL and 3500 Series use different proximitor families with different impedance and bias voltage specifications. The 330130-085-01-05 is designed exclusively for 3300 XL Series installations. If you are migrating from the 3300 XL to the 3500 Series, a complete transducer chain replacement — including the proximitor, extension cable, and monitor I/O module — is required.

Q: What is the support terms coverage and what does it include?
A: The 330130-085-01-05 carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects in materials and workmanship, including connector assembly integrity and cable jacket continuity. Units that fail within the confirmed support period will be replaced or credited at no charge. Contact our technical support team with the shipment date and failure description to initiate a support terms claim.

—
