Bently Nevada 330130-085-00-05 Migration-Ready Extension Cable

Overview

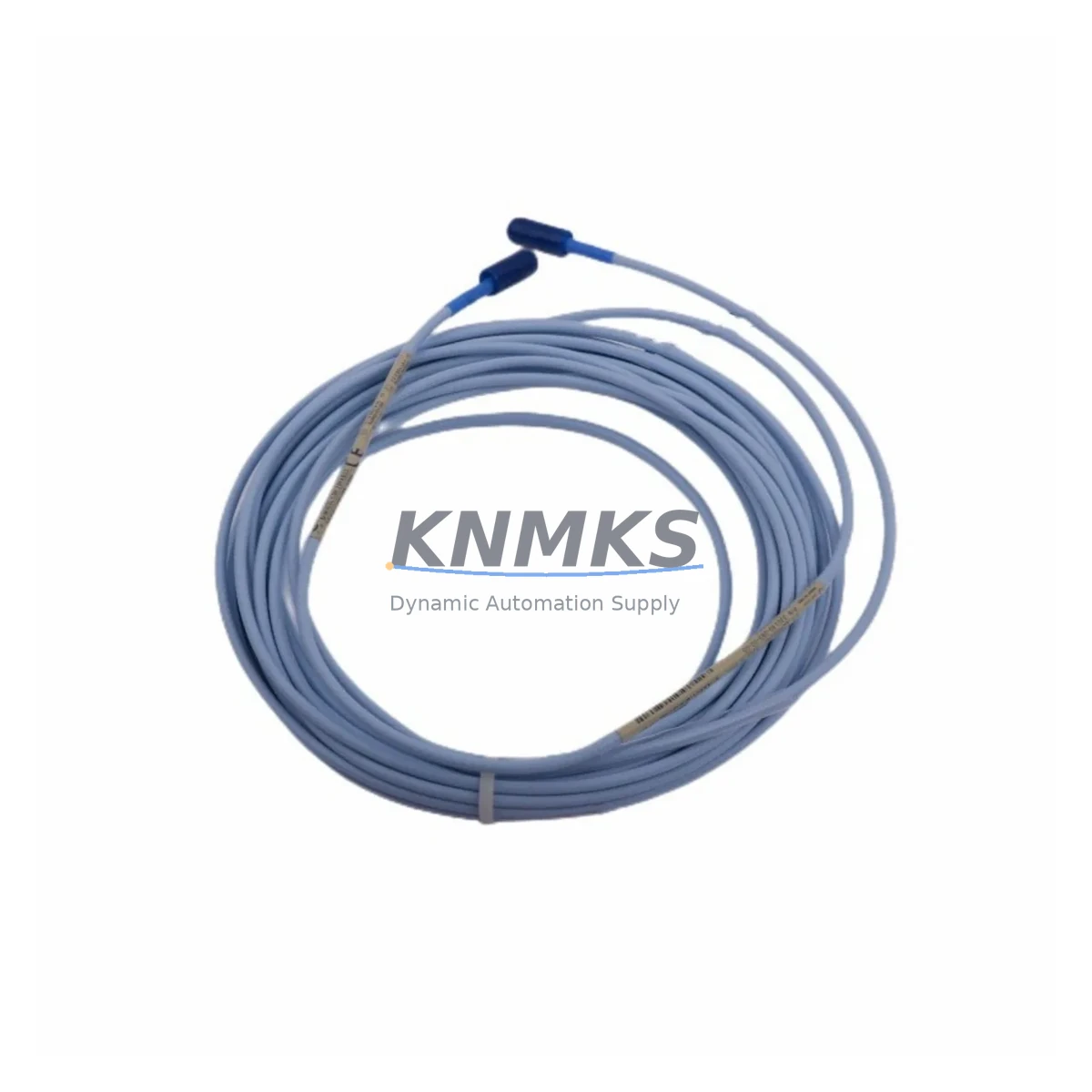

Bently Nevada 330130-085-00-05 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-085-00-05 is an 8.5-meter (5-meter driver cable equivalent) coaxial extension cable engineered for the 3300 XL proximity probe measurement system. As legacy vibration monitoring infrastructure reaches end-of-support cycles, this cable serves as a direct, drop-in replacement for aging or damaged extension cables in rotating machinery protection panels, turbine control cabinets, and compressor monitoring racks. Whether you are executing a full DCS migration, replacing a failed cable in a critical loop, or retrofitting an older 3300 Series installation to current 3300 XL standards, the 330130-085-00-05 provides the electrical continuity, impedance matching, and connector compatibility required to restore or maintain system integrity without reprogramming the host monitor.

Before installing this extension cable into an existing loop, engineers should verify the total system scale factor by confirming the matched set: the probe (typically a 330103 or 330104 series), the driver (such as a 330180 or 330190 series proximitor), and this extension cable must be selected as a calibrated combination. Mismatched cable lengths or impedance values will shift the gap voltage output and introduce measurement error at the 3500/40M or 3500/42M monitor cards. If the existing installation uses a 3300/16 or 3300/20 monitor, confirm that the new cable set is compatible with the legacy monitor’s input range before commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

In a typical turbine or compressor protection retrofit, the 330130-085-00-05 extension cable is one component in a coordinated replacement sequence. The proximitor driver — commonly a 330180-51-05 or 330190-51-05 — must be mounted within the specified distance from the probe tip, and the extension cable bridges the gap between the probe armored cable and the driver housing. When upgrading from an older 3300/16 monitor rack to a current 3500 Series rack, the 3500/20 rack power supply module and 3500/22M transient data interface should be staged alongside the cable replacement to avoid a second outage window.

For installations where the 3500/40M or 3500/42M monitor cards are already in service, replacing only the extension cable is often sufficient to restore a degraded measurement loop. However, if the existing 330104-00-10-10-02-00 probe shows wear or the proximitor output is drifting, a matched probe-and-cable set replacement is recommended to maintain calibration traceability. In multi-channel racks, the 3500/01 rack interface module configuration should be reviewed to confirm channel addressing has not shifted after hardware changes.

Where communication protocol migration is also underway — for example, transitioning from a legacy Modbus RTU loop to a FOUNDATION Fieldbus or Profibus DP architecture — the 3500/92 communication gateway module should be configured before the cable replacement outage to minimize total downtime. Signal isolators installed between the proximitor output and the DCS analog input card should be verified for input impedance compatibility with the new cable set’s output characteristics.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe cable replacement requires pre-staging all components, verifying the replacement cable against the original part number, and confirming gap voltage at the proximitor output before closing the control cabinet. The original PLC or DCS program logic does not require modification when replacing a like-for-like extension cable; the monitor card continues to receive the same analog voltage signal within the same engineering unit range.

To protect existing program logic during the outage window, place the affected monitor channel in bypass mode using the 3500/40M front-panel keyswitch or via the System 1 configuration software before disconnecting the cable. This prevents a spurious trip signal from propagating to the turbine protection relay or ESD system. After reconnecting the 330130-085-00-05 and confirming gap voltage, release the bypass and verify that the channel alarm setpoints — typically configured in the 3500 Rack Configuration Software — are still active and within specification. HMI screens displaying vibration trend data should be checked for correct engineering unit scaling after the cable swap to confirm no offset has been introduced.

For sites operating continuous processes where a cold outage is not feasible, a hot-swap procedure using a temporary jumper cable and a portable proximitor can maintain loop continuity during the cable replacement. This approach requires coordination with the site safety officer and confirmation that the temporary cable set is calibrated to the same scale factor as the permanent installation.

Retrofit Support FAQ

Q1: Is the 330130-085-00-05 a direct replacement for the original Bently Nevada part?
Yes. The 330130-085-00-05 is an OEM-equivalent replacement for the original Bently Nevada part of the same number. It is manufactured to the same electrical and mechanical specification and is compatible with all 3300 XL and 3500 Series monitor installations that specify an 8.5-meter extension cable. All units are pre-tested before shipment and include a support terms confirmed by quotation from the date of delivery.

Q2: What commissioning steps are required after installation?
After routing and connecting the new extension cable, measure the DC gap voltage at the proximitor output terminal with the probe positioned at the nominal gap distance specified on the probe datasheet (typically 1.0 mm for standard 8 mm probes). The output should read −10 VDC ± 0.5 V. If the reading is outside this range, adjust the probe gap mechanically until the correct voltage is achieved. Record the as-found and as-left gap voltage in the site maintenance log before returning the channel to service.

Q3: Can this cable be used with both 3300 XL and 3500 Series monitors?
Yes, provided the complete probe system (probe + extension cable + proximitor driver) is selected as a calibrated matched set for the target monitor type. The 3300 XL and 3500 Series monitors use the same Bently Nevada proximity system architecture and accept the same cable sets. Confirm the monitor card’s input range and scale factor setting in the rack configuration software match the calibrated output of the matched set.

Q4: What is the lead time and support terms coverage?
In-stock units ship within 1–3 business days. Each unit undergoes functional verification testing before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and electrical performance. A pre-shipment test report is available on request. For long-term spare parts planning, multi-unit inventory agreements covering 12–36 months of supply are available — contact [email protected] for volume pricing and consignment options.
