Bently Nevada 330130-085-00-00 Migration-Ready Extension Cable

Overview

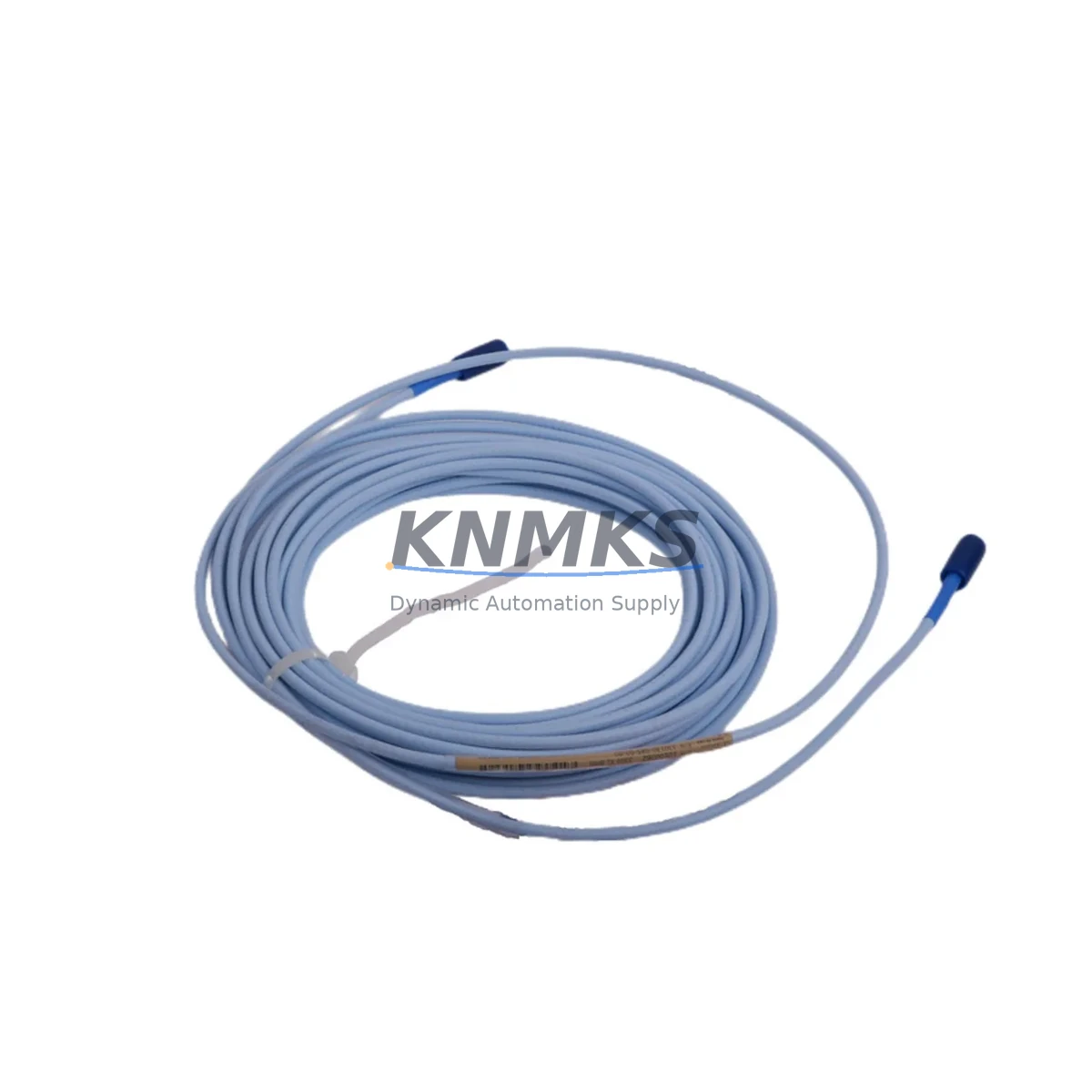

Bently Nevada 330130-085-00-00 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-085-00-00 is an 8.5-metre (28-foot) extension cable engineered for the 3300 XL Proximity Transducer System. As rotating machinery protection programs move away from end-of-life instrumentation, this cable serves as a direct, drop-in replacement for legacy extension cable assemblies that are no longer manufactured or supported. Whether you are restoring a turbine protection loop, upgrading a compressor monitoring rack, or consolidating spare-parts inventory ahead of a planned outage, the 330130-085-00-00 delivers the electrical characteristics and connector geometry required to maintain signal integrity without rewriting probe-to-Proximitor wiring schedules.

Facilities running Bently Nevada 3300 or early System 1 architectures frequently encounter situations where the original extension cable has degraded shielding, corroded BNC-style connectors, or physical jacket damage from years of exposure to heat, vibration, and process fluids. Replacing only the extension cable — rather than the entire transducer chain — is the most cost-effective path to restoring measurement accuracy. The 330130-085-00-00 is manufactured to the same impedance, capacitance-per-metre, and connector-torque specifications as the original Bently Nevada factory cable, ensuring that the Proximitor sensor gap voltage and scale factor remain within calibrated limits after installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful cable retrofit begins well before the maintenance window opens. Start by auditing the full transducer chain: confirm that the 330104 proximity probe (or its current equivalent) is within its service life and that the mating Proximitor sensor — typically a 330180 or 330185 — shows stable bias voltage and has not exceeded its recommended calibration interval. If the Proximitor itself is flagged for replacement, coordinate both the cable and sensor swap in the same outage to avoid a second forced shutdown.

On the rack side, inspect the 3300 XL monitor module that receives the Proximitor output. Modules such as the 3300/16 radial vibration monitor or the 3300/55 position monitor have defined input impedance windows; a degraded cable with elevated capacitance can shift the apparent gap voltage and trigger nuisance alerts or, worse, mask real machinery faults. Replacing the 330130-085-00-00 cable restores the designed cable capacitance budget and eliminates this source of measurement error.

For facilities that are simultaneously migrating from a standalone 3300 rack to a Bently Nevada 3500 series rack, note that the 3500 system uses the same 3300 XL transducer family. The 330130-085-00-00 extension cable is therefore forward-compatible with 3500 monitor cards, provided the probe and Proximitor are also 3300 XL-rated. This compatibility significantly reduces the transducer-chain cost of a rack migration and allows the cable infrastructure to remain in place while the monitoring electronics are upgraded.

Where control-cabinet space is constrained — a common challenge in older turbine control rooms — confirm that the replacement cable’s routing path maintains the minimum bend radius and that the connector bodies clear adjacent terminal blocks and signal isolator modules. If the existing conduit was sized for a single cable run, verify that adding a replacement cable alongside any retained signal wiring does not exceed conduit fill limits per local electrical codes.

Finally, if the plant’s DCS or safety instrumented system (SIS) receives vibration data from the 3300 XL rack via a System 1 Evolution data gateway or a hardwired 4–20 mA output, confirm that the gateway’s channel configuration and the SIS’s input range are not affected by the cable swap. In most cases, a like-for-like cable replacement is transparent to the higher-level control system, but a post-installation functional test — including a simulated high-vibration trip — is best practice before returning the machine to service.

Downtime Control During System Migration

Minimising unplanned downtime is the primary driver behind stocking certified replacement cables before they are needed. The 330130-085-00-00 is a passive assembly with no firmware, no configuration, and no software licensing — installation is limited to disconnecting the old cable at both the probe and Proximitor ends, routing the new cable through the existing conduit, and re-torquing the connectors to the specified value. Total hands-on time for an experienced instrumentation technician is typically under 30 minutes per channel.

To protect the original program logic and control continuity during a broader rack migration, isolate the affected monitor channel in bypass mode before disconnecting the transducer chain. Most 3300 XL monitor modules support a hardware bypass jumper or a software inhibit via the rack’s configuration interface. Engaging bypass prevents a spurious trip signal from propagating to the turbine control system or the emergency shutdown device while the cable is open-circuit.

After the new cable is installed and connectors are secured, remove the bypass, allow the Proximitor bias voltage to stabilise (typically 5–10 seconds), and verify the gap voltage reading at the monitor module’s front-panel test point or via the System 1 software interface. Compare the reading against the pre-outage baseline recorded in the machinery history file. A gap voltage within ±0.5 VDC of the baseline confirms correct installation. Document the as-left gap voltage, connector torque, and cable serial number in the plant’s maintenance management system before closing the work order.

Retrofit Support FAQ

Q1: Is the 330130-085-00-00 a direct replacement for all 330130-series extension cables?
The 330130-085-00-00 is the 8.5 m variant of the 330130 series. It is a direct replacement for any 330130-085 cable regardless of the last two suffix digits, which denote jacket and connector options that do not affect electrical performance. If your existing cable is a different length (e.g., 330130-045 for 4.5 m or 330130-125 for 12.5 m), you must select the matching length variant to maintain the system’s calibrated scale factor.

Q2: What commissioning checks are required after installation?
After installation, measure the Proximitor output voltage with the probe at its normal operating gap. The nominal output for a standard 3300 XL 8 mm probe at 1.0 mm gap is –10 VDC ± 0.5 VDC. Also verify that the monitor module’s OK relay is energised and that no fault or not-OK condition is displayed. If gap voltage is outside tolerance, check connector seating, probe gap dimension, and Proximitor supply voltage (–24 VDC nominal) before suspecting the cable.

Q3: Has this cable been tested before shipment?
Yes. Each 330130-085-00-00 unit shipped from our inventory undergoes continuity, insulation resistance, and connector-integrity verification before dispatch. A test record is available upon request. Units are packaged in anti-static, moisture-resistant packaging suitable for long-term storage in a controlled environment.

Q4: What support terms and supply lead time should I expect?
All units carry a support terms confirmed by quotation covering manufacturing defects in materials and workmanship. In-stock units are dispatched within 1–3 business days. For projects requiring multiple cables or scheduled outage kits, contact our sales team to confirm available inventory and arrange priority allocation ahead of your maintenance window.
