Bently Nevada 330130-080-13-00 Migration-Ready Extension Cable

Overview

Bently Nevada 330130-080-13-00 Migration-Ready Extension Cable: Legacy System Retrofit and 3300 XL Compatibility Upgrade

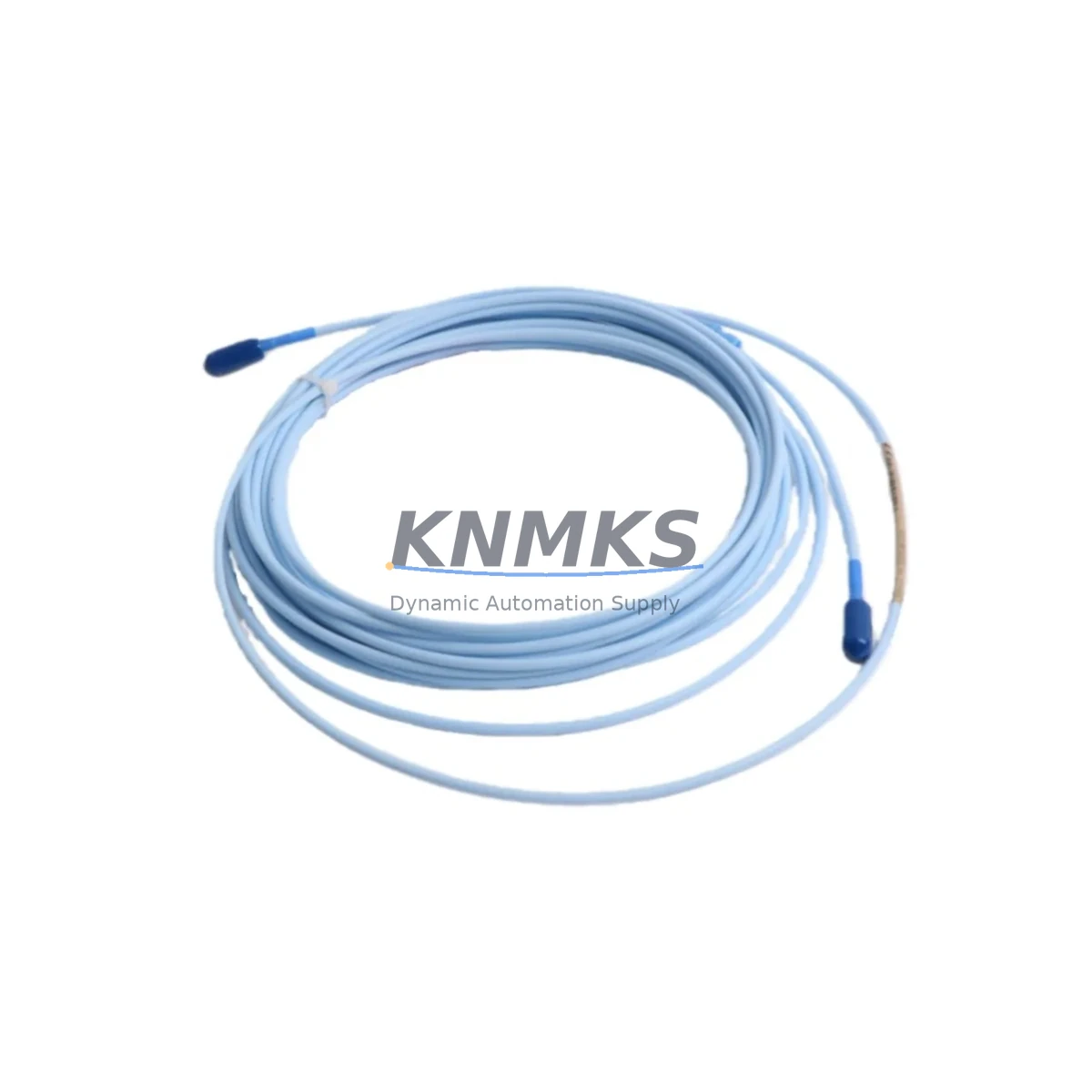

The Bently Nevada 330130-080-13-00 is an 8-meter proximity extension cable engineered for the 3300 XL vibration monitoring platform. As legacy Bently Nevada systems approach end-of-support milestones, maintenance engineers and reliability teams face increasing pressure to source verified replacement cables that maintain signal integrity across the full sensor-to-monitor chain. This cable serves as a direct, migration-ready replacement for aging or failed extension cables in 3300 XL installations, enabling facilities to extend system life without committing to a full platform overhaul.

The 330130-080-13-00 is designed to interface between the 3300 XL proximitor/sensor and the monitoring rack, preserving the -24 VDC bias voltage and eddy-current signal characteristics required by the 3300 XL monitor cards. When replacing a failed or degraded extension cable, engineers must confirm that the replacement cable length matches the original calibrated system length — in this case, 8 meters (080 designation) — since total system cable length directly affects the gap voltage calibration and overall measurement accuracy. Substituting a different cable length without recalibration will introduce offset errors in the vibration and position readings.

Before installation, verify the connector type at both the proximitor end and the junction box or field barrier end. The 330130-080-13-00 uses the standard Bently Nevada armored coaxial construction with the appropriate field connector termination for 3300 XL proximitors such as the 330180 series. If the existing installation uses a 330130-040-13-00 (4-meter) or 330130-050-13-00 (5-meter) cable, a direct swap is not recommended without recalibrating the monitor channel. Confirm the gap voltage at the proximitor output after installation using a calibrated voltmeter before returning the channel to service.

In control cabinet retrofit projects, the extension cable routing path must also be assessed. Cables should be separated from high-voltage power conductors and routed through dedicated cable trays to prevent electromagnetic interference on the low-level eddy-current signal. Where the original cable conduit is damaged or undersized, plan for conduit replacement as part of the retrofit scope to avoid signal noise issues post-commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL retrofit begins well before the maintenance window opens. Start by auditing the full sensor chain: the proximity probe (typically a 330103 or 330104 series tip), the 330130-080-13-00 extension cable, and the 330180 proximitor. All three components must be calibrated as a matched system. If the proximitor has also degraded, replace it simultaneously to avoid a second outage. The 330180-X1-05 proximitor is the standard companion unit for 8-meter cable systems and should be on hand as a staged spare before the retrofit begins.

At the rack level, confirm that the 3300 XL monitor card — such as the 3300/16-02-01-00 dual-channel vibration monitor — is functional and that its terminal block wiring matches the replacement cable’s connector pinout. If the rack has been in service for more than ten years, inspect the backplane connectors for corrosion or fretting, which can cause intermittent signal loss that mimics a cable fault. In some aging installations, the 3300 XL rack power supply module may also require replacement to ensure stable -24 VDC bias delivery to the new cable and proximitor assembly.

For facilities migrating from older Bently Nevada 7200 series systems to the 3300 XL platform, note that the cable and proximitor systems are not cross-compatible. The 7200 series uses a different cable impedance and connector standard. A full sensor chain replacement — probe, extension cable, and proximitor — is required when crossing platform generations. In these cases, the 330130-080-13-00 is the correct extension cable for the new 3300 XL installation, but the probe tips and proximitors from the 7200 system cannot be reused.

Where DCS or safety system integration is involved, confirm that the 4–20 mA or voltage output from the 3300 XL monitor card is correctly mapped to the control system I/O module after the cable replacement. Signal scaling and alarm setpoints should be verified against the original commissioning records. If the original records are unavailable, perform a full gap calibration and alarm verification as part of the retrofit acceptance test before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable replacement requires pre-staging all replacement components and completing as much preparation work as possible during normal operation. Before the maintenance window, pull the replacement 330130-080-13-00 cable through the conduit path and terminate the field end connector, leaving the proximitor end disconnected. This allows the cable routing work — often the most time-consuming step — to be completed without taking the machine offline.

During the outage window, the sequence should be: isolate the monitor channel at the rack, disconnect the old cable at both ends, connect the pre-staged replacement cable at the proximitor, verify the gap voltage at the monitor card terminal, confirm the bias current is within specification, and restore the channel to service. With components pre-staged and the conduit work completed in advance, the active outage time for a single channel cable replacement can typically be reduced to under two hours.

To protect the original program logic and HMI displays, do not modify any monitor card configuration or DCS tag assignments during a cable-only replacement. The 3300 XL monitor card retains its configuration in non-volatile memory, so a power cycle during the replacement will not cause configuration loss. However, confirm that the HMI alarm display returns to normal after the channel is restored and that no latched alarms remain active from the fault condition that prompted the replacement.

All units supplied are functionally tested prior to shipment. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency breakdown situations. A support terms confirmed by quotation cover the replacement cable from the date of shipment.

Retrofit Support FAQ

Q: Is the 330130-080-13-00 a direct replacement for my existing 3300 XL extension cable?
A: Yes, provided your existing cable is also an 8-meter (080) unit with the 13-00 connector suffix. Confirm the cable length and connector type from your existing installation records or the label on the cable before ordering. Substituting a different cable length requires recalibration of the monitor channel.

Q: Can I use this cable with a Bently Nevada 7200 series proximitor?
A: No. The 330130-080-13-00 is designed for the 3300 XL platform and is not compatible with 7200 series proximitors. The two platforms use different cable impedance standards and connector types. If you are migrating from a 7200 series system, a full sensor chain replacement is required.

Q: What testing is performed before shipment?
A: Each unit undergoes functional verification including continuity, insulation resistance, and connector integrity checks before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: How quickly can this cable be shipped, and is stock available?
A: Stock is maintained for immediate dispatch to support both planned retrofit projects and emergency breakdown requirements. Contact our team to confirm current availability and lead time for your location.
