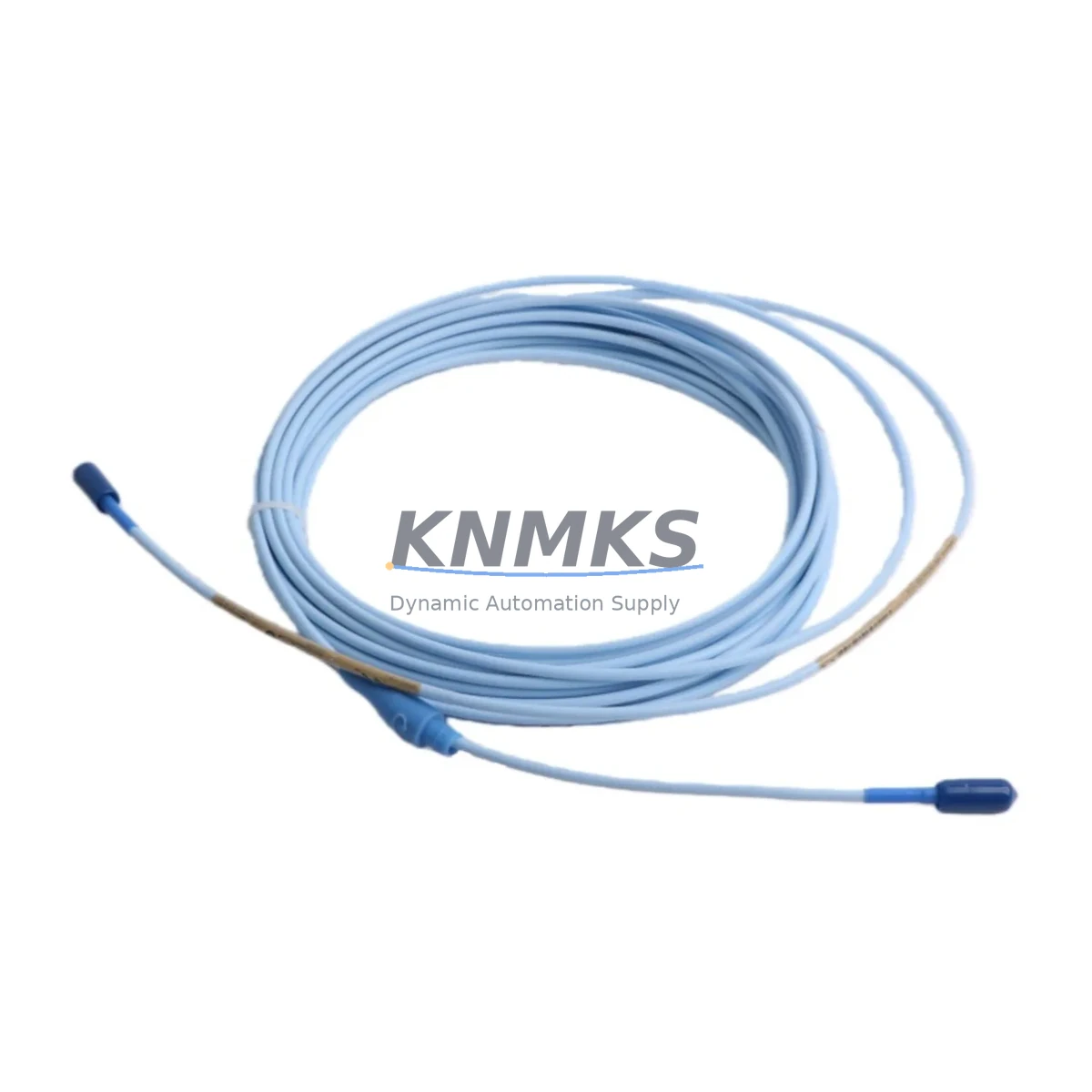

Bently Nevada 330130-080-12-CN Fail-Safe Extension Cable

Overview

Bently Nevada 330130-080-12-CN Fail-Safe Extension Cable: Fault-Protected Vibration Signal Integrity for Critical Industrial Sites

The Bently Nevada 330130-080-12-CN is a ruggedized proximity transducer extension cable engineered for continuous, fail-safe operation within the 3300 XL Proximitor® System. Designed to bridge the gap between the proximity probe and the Proximitor sensor in high-demand rotating machinery environments, this cable delivers uncompromised signal fidelity even under severe electromagnetic interference, mechanical vibration, thermal cycling, and moisture ingress — conditions routinely encountered in petrochemical plants, power generation facilities, offshore platforms, and heavy manufacturing lines.

In critical machinery protection circuits, a degraded or intermittent extension cable is one of the most common root causes of false trips, missed alarms, and unplanned shutdowns. The 330130-080-12-CN eliminates this risk through its precision-matched impedance, double-shielded coaxial construction, and corrosion-resistant connector terminations — ensuring that the vibration signal reaching the Bently Nevada 3300 XL Proximitor remains clean, stable, and within the system’s calibrated gap voltage range at all times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins long before the signal reaches the control room — it starts at the cable run. In a well-engineered machinery protection cabinet, the 330130-080-12-CN extension cable works in concert with a complete chain of Bently Nevada components to form a fully validated signal path. The Bently Nevada 330101-00-08-10-02-00 proximity probe initiates the eddy-current measurement at the shaft, while the extension cable carries that signal with minimal attenuation to the 3300 XL Proximitor sensor mounted in the junction box or local panel.

Within the control cabinet itself, the Proximitor output feeds directly into the Bently Nevada 3500/42M Proximitor I/O Module, which performs real-time gap, 1X, and 2X vibration processing. To protect the entire measurement loop from power-line transients and surge events — particularly in substations, motor control centers, and variable-frequency drive environments — a dedicated Bently Nevada 3500/15 Power Supply Module with built-in surge suppression is recommended. For installations where the control cabinet is located more than 30 meters from the machinery, the Bently Nevada 330130-080-CN series of extension cables in various lengths can be daisy-configured to maintain signal integrity across the full run.

In high-EMI environments such as arc furnace bays, large motor rooms, or offshore topsides, additional ferrite chokes and cable segregation from power conductors are standard practice. The double-shielded construction of the 330130-080-12-CN is specifically rated for these conditions, reducing common-mode noise pickup that could otherwise cause the 3500 Series rack to generate nuisance alarms or, worse, mask genuine shaft displacement events. Pairing this cable with the Bently Nevada 330180 Proximitor extension cable armored variant in exposed outdoor conduit runs further enhances mechanical protection against rodent damage, crush loads, and UV degradation.

Critical Industrial Safety Applications

The 330130-080-12-CN is deployed across the most demanding rotating machinery protection applications in global industry:

Petrochemical & Refinery: Installed on compressor trains, reactor charge pumps, and crude distillation column overhead compressors where API 670 machinery protection standards mandate continuous shaft vibration monitoring. Any signal interruption in these loops can trigger a spurious shutdown of an entire process unit, costing hundreds of thousands of dollars per hour. The fail-safe cable construction ensures the protection system remains armed and responsive at all times.

Power Generation: Used on steam turbine-generator sets, boiler feed pumps, and induced draft fans in coal, gas, and nuclear power plants. In these applications, the extension cable must survive steam impingement, thermal cycling from cold start to full load, and the intense electromagnetic fields generated by large generators and excitation systems. The 330130-080-12-CN’s rated temperature range and shielding performance make it the preferred choice for turbine supervisory instrumentation (TSI) loops.

Mining & Mineral Processing: Applied to SAG mill pinion bearings, slurry pump drives, and conveyor head pulley shafts in open-pit and underground mining operations. Dust, moisture, and mechanical shock are constant threats. The sealed connector system and robust cable jacket of the 330130-080-12-CN maintain measurement continuity even during high-pressure washdown cycles and in areas classified as Zone 2 hazardous locations.

Water & Wastewater Treatment: Fitted to large vertical turbine pumps, blower trains, and centrifugal dewatering equipment. In these facilities, the combination of high humidity, chemical exposure, and 24/7 continuous operation demands a cable that will not degrade over multi-year service intervals without requiring recalibration or replacement.

Metallurgy & Steel: Deployed on rolling mill main drives, continuous caster pinch rolls, and blast furnace top gas compressors. The extreme vibration levels and thermal radiation in these environments make cable selection critical — a standard instrumentation cable would fail within weeks, while the 330130-080-12-CN is rated for indefinite service in these conditions.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330130-080-12-CN?
The support terms confirmed by quotation cover all manufacturing defects, connector integrity failures, shield continuity faults, and signal attenuation outside the specified range. Each cable undergoes 100% outgoing inspection — including continuity testing, insulation resistance measurement, and shield coverage verification — before shipment. If a fault is confirmed within the confirmed support period, we provide direct replacement with no additional freight charge.

Q2: Is the 330130-080-12-CN compatible with all Bently Nevada 3300 XL Proximitor configurations?
Yes. The 330130-080-12-CN is designed and impedance-matched for the full range of Bently Nevada 3300 XL Proximitor sensors and is compatible with 330101, 330103, and 330104 series proximity probes. It integrates directly into 3500 Series rack I/O modules without requiring any additional signal conditioning or calibration adjustment, provided the total system cable length remains within the Proximitor’s specified gap range.

Q3: Can this cable be used as a direct drop-in replacement for a failed unit in a live plant?
Yes. The 330130-080-12-CN is a form-fit-function replacement for the original Bently Nevada part. No re-calibration of the Proximitor is required if the replacement cable is the same length and part number. We recommend performing a gap voltage verification check after installation to confirm the measurement loop is within the ±0.5 V calibrated window before returning the machinery protection system to service.

Q4: What is the long-term supply commitment for this part?
KNMKS maintains standing inventory of the 330130-080-12-CN to support emergency breakdown, planned maintenance, and annual shutdown requirements. We offer long-term supply agreements for customers requiring guaranteed stock allocation across multi-year maintenance programs. Lead times for standard orders are typically 3–7 business days from confirmed payment, with expedited same-day dispatch available for critical breakdown situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-080-12-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-080-12-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
