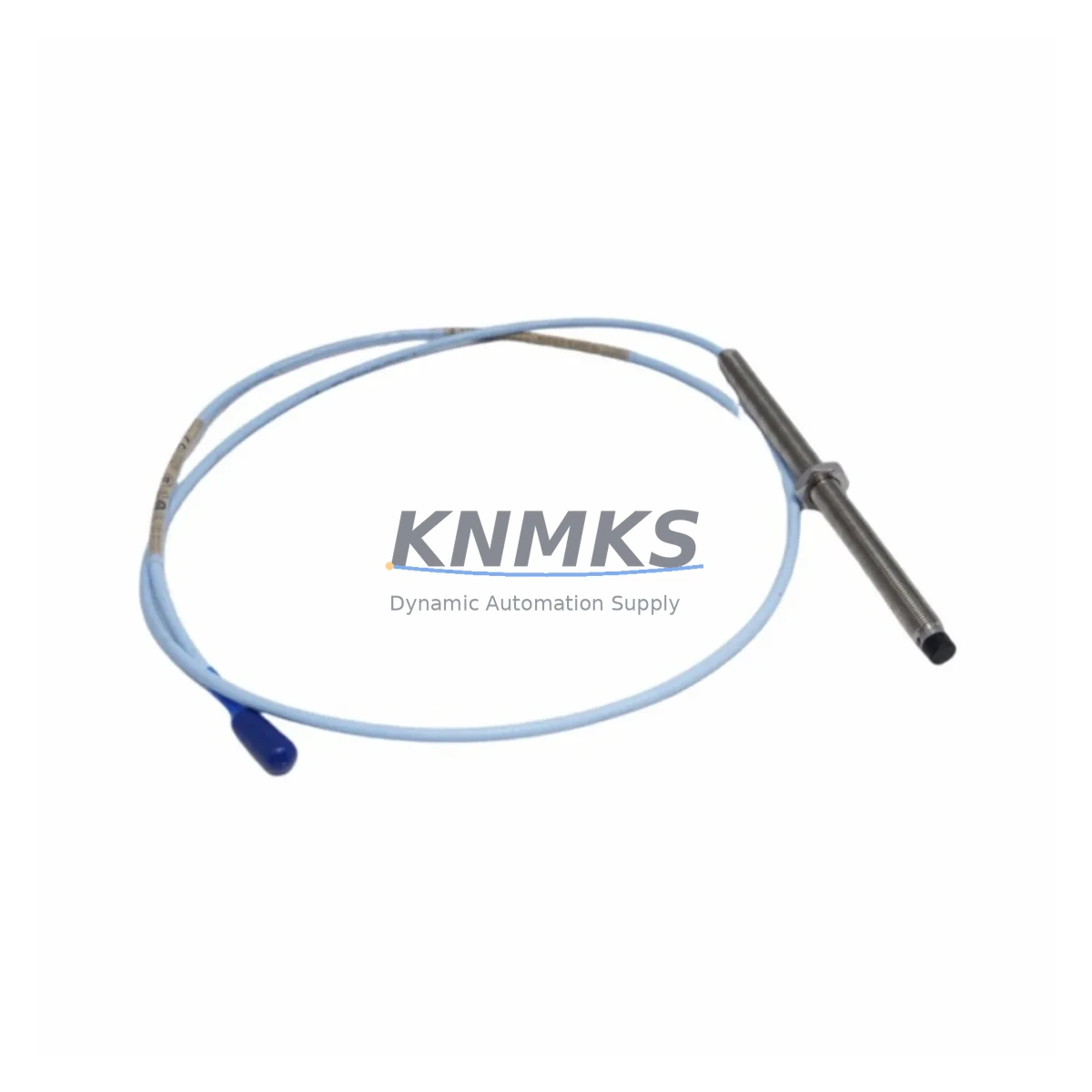

Bently Nevada 330130-080-12-00 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330130-080-12-00 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330130-080-12-00 is an 8mm proximity transducer from the 3300 XL Series, engineered for continuous vibration monitoring in rotating machinery applications including turbines, compressors, pumps, and gearboxes. As original equipment reaches end-of-life and spare parts become increasingly scarce, this unit serves as a direct drop-in replacement for legacy 3300 Series installations, enabling facilities to extend the operational life of their existing monitoring infrastructure without requiring a full system overhaul.

Whether you are managing a planned retrofit, responding to an unplanned failure, or building a strategic spare parts inventory, the 330130-080-12-00 is stocked and ready to ship from Xiamen with full pre-shipment testing and a support terms confirmed by quotation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330130-080-12-00, the scope of work typically extends beyond the transducer itself. In most legacy 3300 Series installations, the transducer works in conjunction with a 330180 extension cable and a 330100 proximitor/oscillator driver, both of which should be inspected and replaced if they show signs of wear, signal drift, or connector corrosion. If the existing proximitor driver is no longer serviceable, the 330101-00-00 or 330104-00-00 driver modules are common substitutes within the same signal chain.

For facilities running a 3500 Series machinery protection system in parallel, the 330130-080-12-00 can be integrated with the 3500/42M Proximitor Monitor card, provided the driver output and gap voltage are correctly configured. Engineers should verify the rack backplane slot assignments and confirm that the monitor card firmware supports the transducer sensitivity range before commissioning.

In control cabinet upgrades where space is constrained, confirm the probe cable routing and conduit entry points before ordering. The 8mm probe body requires a minimum bracket clearance, and in some legacy installations the original bracket may need to be re-machined or replaced to accommodate the new probe geometry. Signal isolation between the transducer loop and the DCS or PLC I/O card should also be verified — in high-noise environments, a signal isolator or barrier may be required to maintain measurement integrity.

Where the existing HMI displays vibration trend data sourced from the 3300 monitor, no changes to the HMI screen configuration are typically required after a like-for-like transducer replacement, as the output signal characteristics remain identical. However, if the retrofit is part of a broader migration from a 3300 to a 3500 Series platform, HMI tag mapping and alarm setpoint configurations will need to be reviewed and updated accordingly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any proximity transducer replacement on critical rotating equipment. For planned maintenance windows, the recommended approach is to pre-configure and bench-test the replacement 330130-080-12-00 alongside its associated proximitor driver before the machine is taken offline. This includes verifying the gap voltage output, confirming the sensitivity calibration, and checking the coaxial cable continuity end-to-end.

During the physical swap, the original wiring terminations at the monitor chassis should be photographed and documented before disconnection. Terminal block labeling in legacy 3300 Series panels is not always consistent with current documentation, and field verification prevents wiring errors that could extend the outage. Once the new transducer is installed and the gap is set, the monitor card should be powered up in bypass mode where possible, allowing the gap voltage to be confirmed before the machine is restarted.

For facilities where continuous operation is required, a hot-standby or redundant monitoring channel may allow the transducer to be replaced without a full machine shutdown — consult the 3300 or 3500 Series system documentation to confirm whether your monitor configuration supports channel bypass during live operation. After restart, allow sufficient run time to confirm stable vibration baseline readings before returning the machine to full load. All post-installation readings should be logged and compared against the pre-replacement baseline to confirm successful commissioning.

Retrofit Support FAQ

Q1: Is the 330130-080-12-00 a direct replacement for my existing 3300 Series proximity transducer?
Yes. The 330130-080-12-00 is a direct drop-in replacement for units of the same part number within the Bently Nevada 3300 XL Series. It uses the same M10 × 1.0 mounting thread, the same coaxial connector standard, and produces the same –24 VDC bias / 200 mV/mil output signal. No modifications to the monitor card or wiring are required for a like-for-like swap.

Q2: What pre-shipment testing is performed, and what documentation is provided?
Every unit undergoes a full functional test prior to dispatch, including output signal verification and connector integrity check. A test report is available upon request. Units are shipped with standard packaging suitable for international freight, and all orders include a support terms confirmed by quotation from the date of shipment.

Q3: How do I confirm the correct gap setting after installation?
After mounting the probe and securing the locknut, power the proximitor driver and measure the DC gap voltage at the monitor card input terminals. For the 330130-080-12-00 with standard 200 mV/mil sensitivity, the target gap voltage at the recommended 1.0–1.5 mm air gap is approximately –10 to –11 VDC. Adjust the probe position until the gap voltage falls within the monitor card’s specified linear range, then lock the probe in place and record the final gap voltage in the maintenance log.

Q4: What is the lead time and do you maintain stock for emergency orders?
We maintain ready stock of the 330130-080-12-00 in Xiamen for immediate dispatch. Standard orders ship within 1–3 business days. For emergency requirements, contact our sales team directly to confirm current inventory availability and expedited shipping options. All units carry a support terms confirmed by quotation and are supported by our technical team for installation and commissioning queries.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-080-12-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-080-12-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
