Bently Nevada 330130-080-10-CN Spare Part for Factory Uptime

Overview

Bently Nevada 330130-080-10-CN Spare Part for Factory Uptime

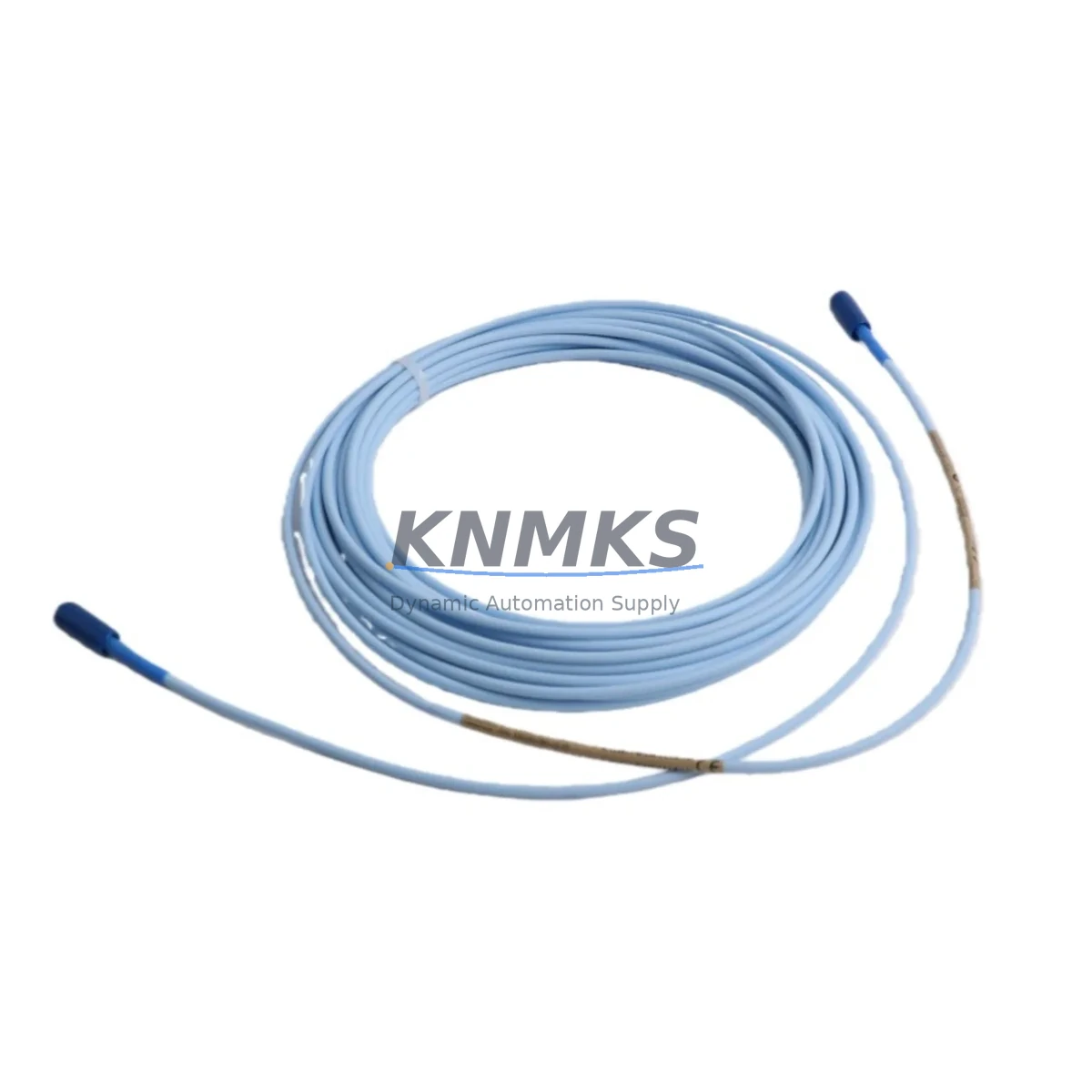

The Bently Nevada 330130-080-10-CN is an 8-meter (80-inch) proximity extension cable engineered for the 3300 XL Series continuous vibration monitoring system. As a critical signal-path component between the proximity probe and the Proximitor® sensor, this cable directly affects the accuracy of shaft displacement and vibration measurements on rotating machinery — including turbines, compressors, pumps, and gearboxes. Maintaining a verified spare of the 330130-080-10-CN in your parts inventory is a fundamental requirement for any maintenance program targeting zero unplanned downtime.

This listing supplies an original, OEM-compatible 330130-080-10-CN cable, individually tested prior to shipment, backed by a support terms confirmed by quotation, and available for fast global dispatch. Each unit is verified for signal integrity, connector condition, and cable jacket continuity before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330130-080-10-CN extension cable is the electrical bridge between the proximity probe tip and the Proximitor® sensor electronics. Any degradation in this cable — whether from mechanical abrasion, connector corrosion, oil ingress, or thermal cycling — will introduce measurement error or complete signal loss, triggering spurious machinery trips or, worse, masking genuine vibration faults.

During scheduled outages or annual turbine inspections, maintenance engineers should treat the extension cable as a consumable-class item and inspect it alongside the full proximity loop. When replacing the 330130-080-10-CN, the following associated components should be checked or replaced as part of the same work order:

• 3300 XL Proximity Probe (330780-50-00 / 330730-080-00-CN): Inspect probe tip for wear, pitting, or contamination. A degraded probe will produce erroneous gap voltage even with a new cable.
• 3300 XL Proximitor® Sensor (330180-51-00): Verify output voltage at nominal gap (typically -10 VDC ± 0.5 V). Replace if sensitivity is out of specification.
• 3300/16 Monitor or 3500/40M Proximitor Monitor: Confirm channel calibration after cable swap. A new cable may shift the system scale factor slightly, requiring re-zeroing.
• Terminal Block and Field Wiring: Inspect the junction box terminal strip for corrosion, loose ferrules, and moisture ingress. Poor terminations are a leading cause of intermittent vibration alarms.
• Power Supply Module (3300 or 3500 rack): Confirm the -24 VDC bias supply rail is within tolerance. An out-of-spec supply will affect all proximity channels in the rack simultaneously.
• Cable Conduit and Armoring: Check conduit entry seals and cable armor for mechanical damage, especially in high-vibration zones near bearing housings.

For facilities operating multiple rotating machines on a single 3500 monitoring rack, maintaining at least two spare 330130-080-10-CN cables per rack is recommended. This supports immediate swap-out during a machinery trip without waiting for procurement lead times, which can extend to 4–8 weeks for OEM channels.

Site Replacement Workflow

Replacing the 330130-080-10-CN in the field is a straightforward procedure when the correct spare is on hand, but requires disciplined execution to avoid introducing new faults:

1. Isolate and document: Record the existing gap voltage (typically -10 VDC at nominal gap) before disconnecting. This baseline is essential for post-installation verification.
2. Disconnect at both ends: Unscrew the MIL-style connector at the probe end and the Proximitor® sensor end. Inspect both mating connectors for corrosion or bent pins before installing the new cable.
3. Route and secure the new cable: Follow the original cable routing. Avoid sharp bends (minimum bend radius: 50 mm). Secure with cable ties at the same intervals as the original to prevent vibration-induced fatigue.
4. Reconnect and verify gap voltage: Power up the Proximitor® sensor and measure output voltage. Adjust probe gap if the reading deviates more than ±0.5 V from the pre-removal baseline.
5. Confirm alarm setpoints: Check that the 3300 or 3500 monitor channel alarm and danger setpoints are correctly configured and have not been inadvertently reset during the maintenance window.
6. Return to service and log: Document the replacement in the equipment maintenance record, including the new cable serial number, installation date, and post-installation gap voltage reading.

This workflow is compatible with both hot-standby and cold-standby replacement scenarios and supports the transition from legacy 3300 Series installations to the current 3300 XL platform without requiring rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330130-080-10-CN compatible with both the 3300 and 3300 XL Series Proximitor® sensors?
The 330130-080-10-CN is designed and rated for the 3300 XL Series. It is mechanically and electrically compatible with earlier 3300 Series Proximitor® sensors in most installations; however, we recommend confirming the system’s scale factor specification before installation, as the XL Series uses a revised sensitivity curve compared to the original 3300 platform.

Q2: How do you verify the cable before shipment, and what does the support terms confirmed by quotation cover?
Each 330130-080-10-CN unit undergoes pre-shipment testing including coaxial signal continuity, insulation resistance measurement, and physical connector inspection. The support terms confirmed by quotation cover manufacturing defects and verified signal performance failures under normal operating conditions. It does not cover damage resulting from improper installation, mechanical abuse, or chemical exposure beyond the rated environment.

Q3: What is the recommended spare inventory strategy for facilities with multiple 3300 XL monitoring loops?
For facilities with 4 or more proximity monitoring loops, we recommend maintaining a minimum of 2 spare extension cables per cable length variant in use. Given that the 330130-080-10-CN (8 m) is the most common length in turbine and compressor applications, it should be the primary stocking priority. Pair this with at least one spare Proximitor® sensor (330180 series) and one spare probe per critical machine to enable full-loop replacement within a single shift.

Q4: Can you support long-term supply agreements for the 330130-080-10-CN?
Yes. KNMKS supports blanket purchase orders and long-term supply commitments for the 330130-080-10-CN and related 3300 XL Series components. Long-term agreements include priority allocation, fixed pricing for the contract period, and dedicated stock reservation. Contact our team to discuss volume requirements and delivery schedules tailored to your annual maintenance plan.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-080-10-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-080-10-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
