Bently Nevada 330130-080-10-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330130-080-10-05 Spare Part for Factory Uptime

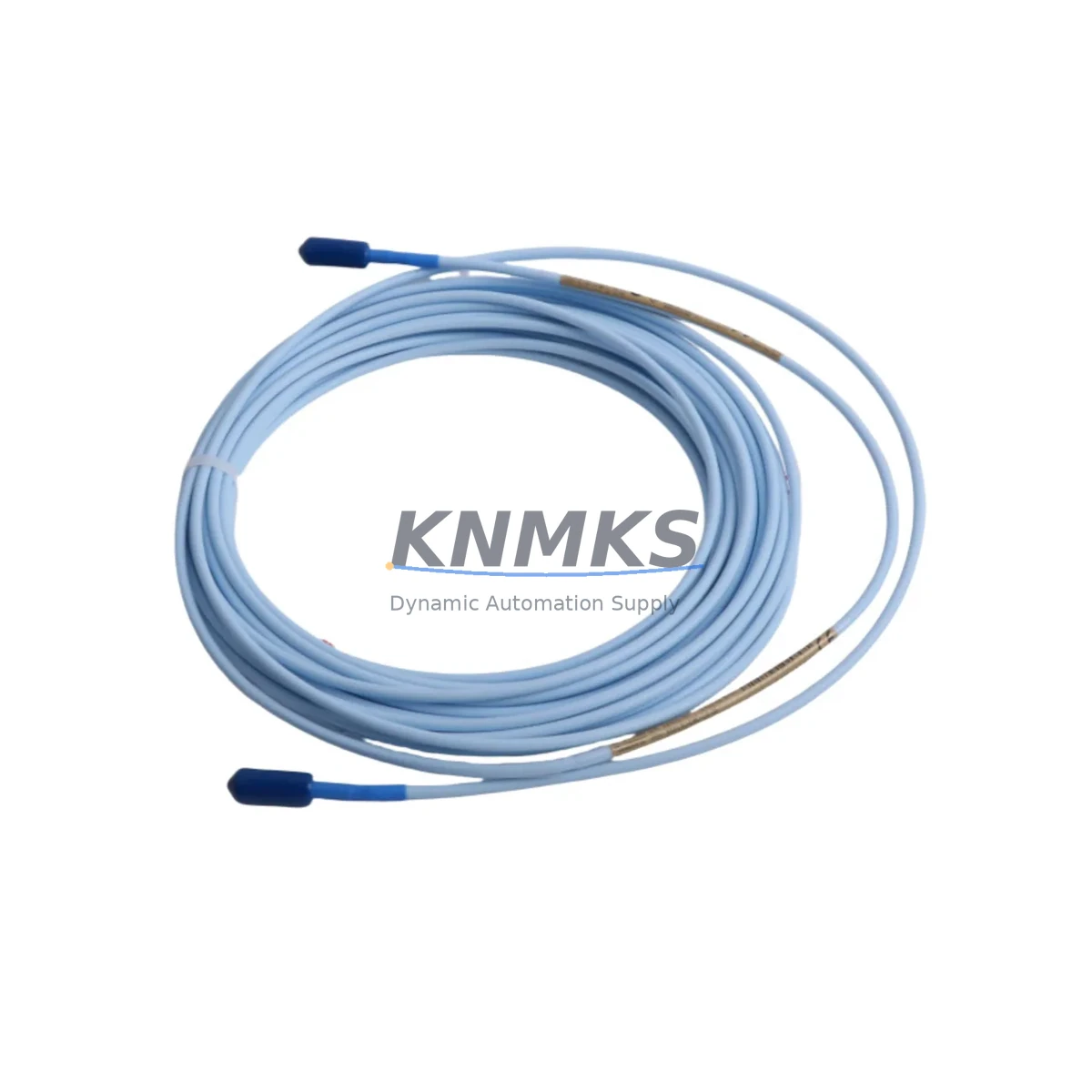

The Bently Nevada 330130-080-10-05 is an 8-metre proximity extension cable engineered for the 3300 XL continuous vibration monitoring system. As a direct original spare, it maintains the signal integrity required between the 3300 XL proximitor/driver and the eddy-current probe, ensuring uninterrupted shaft-vibration and position data on rotating machinery — turbines, compressors, pumps, and gearboxes — where unplanned downtime carries severe operational and financial consequences.

Maintenance engineers working on legacy and modern 3300 XL installations rely on this cable to preserve the calibrated signal chain. The 330130-080-10-05 is factory-tested prior to shipment and backed by a support terms confirmed by quotation, giving procurement teams the confidence to stock it as a long-term spare without risk of receiving untested or counterfeit components. KNMKS maintains ready inventory to support emergency call-outs, scheduled turnarounds, and multi-site blanket purchase agreements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-080-10-05 extension cable on a 3300 XL monitoring loop, a disciplined maintenance engineer will treat the cable swap as an opportunity to audit the entire signal chain and associated cabinet components. The extension cable sits between the proximity probe and the proximitor/driver module; any degradation in adjacent components will negate the benefit of installing a new cable.

Begin by inspecting the 3300 XL proximitor/driver (e.g., 330180 or 330181 series) for housing cracks, connector corrosion, and correct bias voltage output (typically −18 VDC to −24 VDC at the OK relay threshold). Verify that the 3300 XL proximity probe (330101 or 330103 series) tip is free from mechanical damage and that the gap voltage is within the calibrated linear range. A worn probe paired with a new cable will still produce erroneous readings.

Check the 3300 XL monitor module — such as the 3300/16 or 3300/20 — for alarm setpoint integrity and relay output continuity. Confirm that the I/O terminal blocks and field wiring within the machinery protection cabinet show no signs of loose terminations, oxidation, or insulation breakdown. Loose terminals are a leading cause of intermittent vibration alarms that are misdiagnosed as probe or cable faults.

Review the power supply module feeding the 3300 XL rack — typically a dedicated 24 VDC industrial DIN-rail supply — for output voltage stability and ripple within specification. An under-voltage condition will shift the proximitor’s linear range and invalidate calibration. Where redundant power feeds are installed, test the changeover relay and verify both supply rails independently.

For installations integrated with a System 1 Evolution or third-party DCS/SCADA, confirm that the 4–20 mA or digital output from the monitor module is reaching the historian correctly after the cable replacement. Signal isolation barriers or signal conditioners in the loop should be inspected for drift, particularly in high-temperature or high-humidity environments. Finally, check any surge protection devices or transient voltage suppressors on the field cable entry points — these are frequently overlooked during routine cable replacements but are critical for protecting the proximitor from lightning-induced transients in outdoor or semi-outdoor installations.

Site Replacement Workflow

Step 1 — Permit and isolation: Obtain a work permit and confirm the machinery is in a safe state. For online replacement on a redundant monitoring channel, coordinate with the control room to bypass the affected channel alarm before disconnecting.

Step 2 — Document existing configuration: Record the current gap voltage, bias voltage, and OK relay status from the 3300 XL monitor display or System 1 historian before disconnecting the old cable. This baseline is essential for post-installation verification.

Step 3 — Cable removal: Disconnect the 330130-080-10-05 at both the probe end and the proximitor end. Inspect the connectors on the probe and proximitor for pin damage or contamination before installing the new cable.

Step 4 — New cable installation: Route the replacement 330130-080-10-05 following the original cable path, maintaining separation from high-voltage power cables. Torque connectors to the manufacturer’s specification and secure the cable with appropriate clamps to prevent vibration-induced connector wear.

Step 5 — Verification: Restore power and confirm gap voltage returns to the pre-documented value (±0.5 VDC tolerance is typical). Verify the OK relay energises and that the vibration reading on the monitor is stable and consistent with historical baseline data. Clear the channel bypass and restore normal alarm status.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, noting the new cable serial number, installation date, and post-installation gap voltage. Update the spare parts inventory to trigger a replenishment order for the next 330130-080-10-05 unit.

Spare Parts Support FAQ

Q1: Is the 330130-080-10-05 compatible with both 8 mm and 11 mm 3300 XL probe systems?
The 330130-080-10-05 is a standard 3300 XL series extension cable and is compatible with the full range of 3300 XL proximitor/driver and probe combinations, including 8 mm and 11 mm configurations, provided the total system cable length (probe + extension) matches the proximitor’s calibrated range. Always verify the total cable length specification on the proximitor datasheet before installation.

Q2: How should I store the 330130-080-10-05 as a long-term spare?
Store in the original packaging in a dry, temperature-controlled environment (0 °C to +50 °C), away from direct sunlight and electromagnetic sources. Inspect connectors annually for oxidation. KNMKS recommends maintaining a minimum of one unit per monitored machine train for critical rotating equipment, with a review cycle aligned to your annual shutdown schedule.

Q3: What pre-shipment checks does KNMKS perform on the 330130-080-10-05?
Every unit undergoes continuity testing, insulation resistance measurement, and signal-path verification before dispatch. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and are traceable to original Bently Nevada production records where documentation is available.

Q4: Can KNMKS support long-term or blanket purchase agreements for the 330130-080-10-05?
Yes. KNMKS supports 12–36 month supply agreements for the 330130-080-10-05 and related 3300 XL spare parts, including proximity probes, proximitor/driver modules, and monitor cards. Blanket orders provide price stability, guaranteed allocation, and priority dispatch for emergency call-outs. Contact our team to discuss volume requirements and delivery schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-080-10-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-080-10-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
