Bently Nevada 330130-080-02-05 Migration-Ready Proximity Cable

Overview

Bently Nevada 330130-080-02-05 Migration-Ready Proximity Extension Cable for Legacy Control Systems

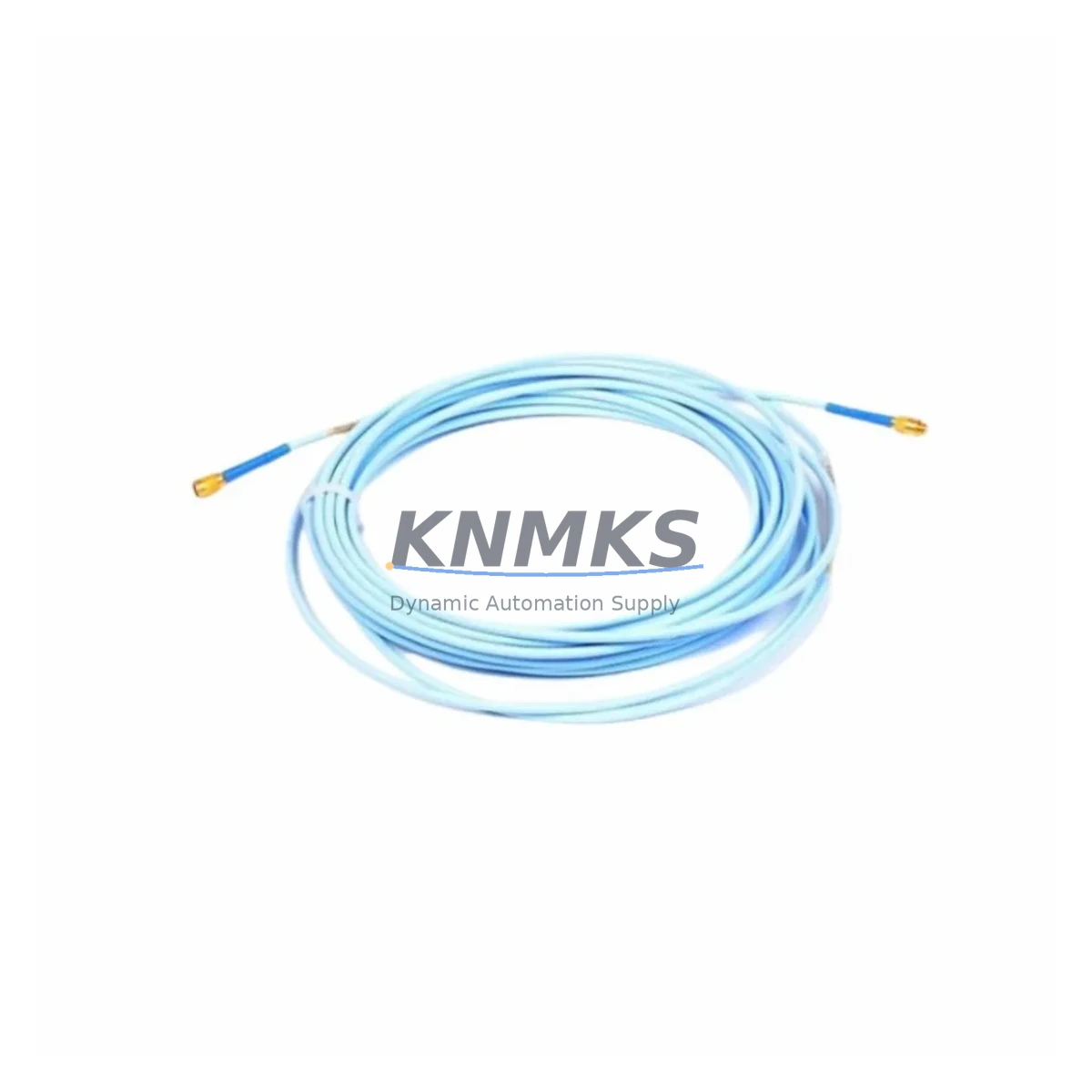

The Bently Nevada 330130-080-02-05 is an 8-meter armored proximity extension cable engineered for direct integration with the Bently Nevada 3300 XL continuous machinery monitoring system. Designed as a migration-ready replacement for aging or discontinued cable assemblies, this unit supports seamless retrofit of legacy vibration monitoring loops without requiring changes to the existing transducer or monitor wiring architecture. For plants running end-of-life 3300 Series or early 3500 Series infrastructure, the 330130-080-02-05 provides a verified drop-in path that preserves signal integrity, reduces installation risk, and eliminates the need for custom cable fabrication on-site.

In legacy turbomachinery protection systems, proximity extension cables are a critical link between the eddy-current probe and the signal conditioning module housed in the monitor rack. The 330130-080-02-05 is rated for use with Bently Nevada 3300 XL proximitor/seismic transducers and is compatible with the standard -24 VDC bias voltage supply used across the 3300 XL and 3500 Series monitor platforms. When planning a control system upgrade or partial rack replacement, engineers must confirm that the cable length, connector type, and shielding specification of the replacement cable match the original installation — this unit’s 8-meter armored construction addresses the most common field configurations in compressor trains, steam turbines, and pump skids.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity extension cable in an operating plant requires careful coordination across the monitoring loop. The 330130-080-02-05 interfaces directly with the Bently Nevada 330500 or 330900 Series proximitor/seismic transducer at the field end, and terminates at the monitor rack input — typically a 3500/42M velocity and acceleration monitor card or a 3500/40M proximitor power supply card. Before disconnecting the existing cable, engineers should document the current gap voltage reading at the proximitor test point, record the vibration baseline (direct, 1X, 2X amplitude and phase), and note the alert and danger setpoints configured in the System 1 or Rack Configuration Software.

In installations where the 3300 XL rack is being partially upgraded to 3500 Series architecture, the 330130-080-02-05 can bridge the transition period by maintaining the existing field wiring while new monitor cards are commissioned in parallel. This approach is particularly effective in compressor trains where continuous monitoring cannot be interrupted. The cable’s armored construction also makes it suitable for re-routing through existing conduit when the original cable jacket has degraded due to heat, chemical exposure, or mechanical abrasion — a common finding in plants with 15+ years of continuous operation.

For systems incorporating a Bently Nevada 3500/20 rack interface module or a 3500/22M transient data interface, the extension cable replacement should be coordinated with a review of the Modbus or Ethernet/IP communication link to the DCS or historian. If the plant uses a Honeywell Experion PKS or Yokogawa CENTUM VP as the host control system, confirm that the monitor rack’s communication module (3500/92 or 3500/93) remains online during the cable swap to avoid spurious trip signals being transmitted to the safety system. A temporary bypass or inhibit in the SIS logic may be required during the 15–30 minute replacement window.

Downtime Control During System Migration

Proximity extension cable replacement is one of the lowest-risk interventions in a vibration monitoring retrofit, but it must be executed with a structured plan to protect the original program logic and maintain field control continuity. The recommended sequence is: (1) inhibit the affected channel in the monitor rack using the rack keyswitch or System 1 software; (2) document gap voltage and vibration baseline; (3) disconnect and replace the 330130-080-02-05; (4) verify gap voltage at the proximitor test point (-10 to -18 VDC); (5) confirm signal continuity at the monitor card input terminal; (6) restore the channel inhibit and observe live vibration data for a minimum of 10 minutes before returning to normal monitoring mode.

This sequence ensures that the DCS alarm management system does not generate false trip events during the replacement, and that the historian (PI, Aspen IP.21, or equivalent) does not record a data gap that could be misinterpreted during the next scheduled machinery health review. For plants using a Bently Nevada System 1 Evolution software platform, the channel inhibit and restore actions are logged automatically, providing a complete audit trail for the maintenance record.

All 330130-080-02-05 units supplied by KNMKS are pre-tested for continuity, insulation resistance (≥ 100 MΩ at 500 VDC), and connector integrity before shipment. Multi-region stock is maintained to support emergency dispatch within 24–48 hours for unplanned outages. The support terms confirmed by quotation cover all manufacturing defects identified during installation or commissioning.

Retrofit Support FAQ

Q1: Is the 330130-080-02-05 a direct replacement for the original Bently Nevada cable in a 3300 XL installation?
Yes. The 330130-080-02-05 is a direct drop-in replacement for the standard 8-meter proximity extension cable used in Bently Nevada 3300 XL monitoring loops. No adapter, re-termination, or wiring modification is required for standard installations. Verify connector type and cable length against the original bill of materials before ordering.

Q2: What commissioning checks are required after replacing the extension cable?
After installation, verify the proximitor gap voltage at the test point (target: -10 to -18 VDC for standard 5 mm probes), confirm signal continuity at the monitor card input terminal, and observe live vibration amplitude and phase data for at least 10 minutes. Recalibrate alert and danger setpoints if the gap voltage differs from the pre-replacement baseline by more than 0.5 VDC.

Q3: Can this cable be used in a partial migration from 3300 XL to 3500 Series architecture?
Yes. The 330130-080-02-05 is compatible with both 3300 XL and 3500 Series monitor platforms, making it suitable for phased migration projects where field wiring is retained while monitor rack cards are upgraded. This approach minimizes installation risk and allows the new rack to be commissioned and verified before the old rack is decommissioned.

Q4: What is the support terms coverage and how is pre-shipment testing conducted?
All units carry a support terms confirmed by quotation covering manufacturing defects in materials and workmanship. Pre-shipment testing includes continuity verification, insulation resistance measurement (≥ 100 MΩ at 500 VDC), and connector integrity inspection. Test records are available upon request. KNMKS maintains multi-region stock for rapid dispatch to support both planned outages and emergency replacements.
