Bently Nevada 330130-080-01-CN Maintenance-Proven Spare for Factory Uptime

Overview

Bently Nevada 330130-080-01-CN Maintenance-Proven Spare for Factory Uptime

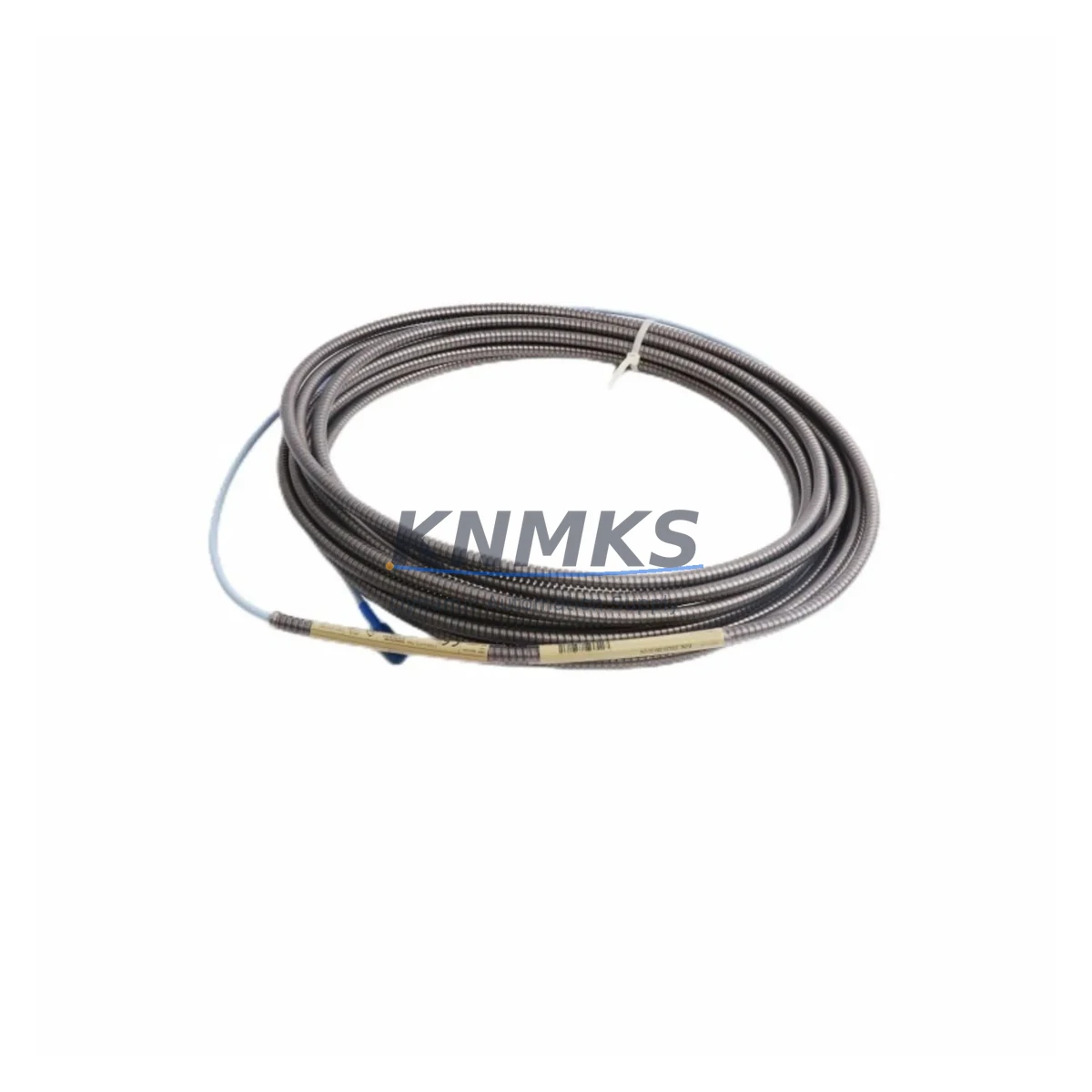

The Bently Nevada 330130-080-01-CN is an armored extension cable engineered for use within the 3300 XL Series proximity measurement system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Designed to connect the proximity probe to the proximitor/extension driver, this cable is a critical link in the signal chain for turbines, compressors, pumps, and other high-value rotating assets where continuous uptime is non-negotiable.

For maintenance engineers managing legacy and active 3300 XL installations, the 330130-080-01-CN represents a direct OEM-equivalent replacement that eliminates the risk of signal degradation, impedance mismatch, or connector incompatibility that can arise from non-original substitutes. The armored construction provides mechanical protection against abrasion, crush loads, and chemical exposure in harsh plant environments — making it suitable for installation in cable trays, conduit runs, and exposed machinery housings.

Procurement engineers sourcing spare parts for planned shutdowns, annual overhauls, or emergency stock replenishment will find the 330130-080-01-CN a reliable, long-lead-time-safe component. Stocking this cable alongside your proximitor/extension driver inventory — such as the 3300 XL 8mm Proximitor Sensor and associated junction boxes — ensures that a single cable failure does not cascade into an extended outage. Given the criticality of vibration monitoring in API 670-compliant machinery protection systems, maintaining at least one spare cable per monitored shaft position is a widely accepted best practice.

From a site replacement perspective, the 330130-080-01-CN is a plug-and-play replacement for worn, kinked, or damaged armored extension cables in existing 3300 XL installations. When replacing this cable, maintenance teams should simultaneously inspect the proximity probe tip for wear or contamination, verify the proximitor output voltage at the monitor input card, and confirm that the 3300 XL monitor module — including associated I/O cards and power supply modules — is operating within specification. Signal integrity checks using a calibrated oscilloscope or the system’s built-in diagnostics should be performed after installation to confirm gap voltage and sensitivity are within the ±0.5 V tolerance band.

For control cabinet inspections, technicians should also verify the condition of terminal blocks connecting the extension cable to the proximitor, check for corrosion or loose terminations at the BNC or TNC connectors, and confirm that cable shielding is properly grounded at a single point to prevent ground loop interference. In multi-channel monitoring racks, it is advisable to replace extension cables in matched sets to maintain consistent signal characteristics across all monitored positions.

KNMKS maintains stock of the 330130-080-01-CN with pre-shipment electrical testing, ensuring each unit meets OEM specifications before dispatch. All units are supplied with a support terms confirmed by quotation and can be sourced under long-term supply agreements to support 12–36 month maintenance planning cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for 3300 XL proximity measurement systems requires a holistic view of the signal chain. When scheduling replacement of the 330130-080-01-CN extension cable, maintenance engineers should treat the exercise as an opportunity to audit the entire measurement loop. The 3300 XL 8mm Proximity Probe at the machine end should be inspected for tip damage, thread wear, and contamination from process fluids or lubricating oil. The proximitor/extension driver — typically a 3300 XL 8mm Proximitor Sensor — should be checked for output voltage stability and housing integrity.

At the monitor rack level, the 3300 XL Monitor Module and its associated power supply module should be verified for alarm setpoint integrity and relay output function. In installations where the 3300 XL system interfaces with a DCS or safety instrumented system, the 4–20 mA output signal and relay contacts should be tested end-to-end after any cable replacement. Terminal blocks and cable glands at the junction box should be inspected for corrosion, and the junction box itself should be checked for ingress protection compliance.

For facilities running parallel monitoring on multiple shaft positions, it is advisable to maintain a minimum stock of two 330130-080-01-CN cables per machine train, supplemented by a matched set of proximity probes and at least one spare proximitor. This approach supports rapid swap-out during unplanned outages and reduces mean time to repair (MTTR) for vibration monitoring faults. Procurement teams should also consider stocking spare BNC/TNC connector assemblies and cable gland fittings to support field termination if a cable is damaged mid-run.

Site Replacement Workflow

Replacing the 330130-080-01-CN in the field follows a straightforward procedure that minimizes downtime when executed by a trained instrumentation technician. Begin by isolating the affected monitoring channel at the 3300 XL monitor module and confirming that the machinery protection system is in bypass or that the plant control room has been notified of the temporary monitoring gap. Disconnect the existing extension cable at both the probe end and the proximitor end, noting the connector orientation and any cable routing constraints.

Route the new 330130-080-01-CN along the same cable path, ensuring the armored jacket is not kinked or bent beyond the minimum bend radius. Reconnect at both ends, verifying that BNC or TNC connectors are fully seated and locked. Restore the monitoring channel and confirm gap voltage at the proximitor output — typically in the range of -10 VDC to -18 VDC for an 8mm system at nominal gap. Compare the reading against the pre-replacement baseline recorded in the maintenance log. If gap voltage is outside tolerance, inspect probe tip position and re-gap as required before returning the channel to service.

This workflow is compatible with both hot-standby and single-channel monitoring configurations and does not require recalibration of the 3300 XL monitor module provided the replacement cable is an OEM-equivalent unit with matched electrical characteristics.

Spare Parts Support FAQ

Q: Is the 330130-080-01-CN compatible with all 3300 XL proximity probe configurations?
A: The 330130-080-01-CN is designed for use with Bently Nevada 3300 XL 8mm proximity probe systems. Compatibility should be verified against the specific probe part number and proximitor model in your installation. KNMKS can provide compatibility confirmation based on your system documentation prior to order.

Q: What pre-shipment testing is performed on each unit?
A: Every 330130-080-01-CN supplied by KNMKS undergoes electrical continuity testing, coaxial impedance verification, and shielding integrity checks before dispatch. A test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can KNMKS support long-term supply agreements for this part?
A: Yes. KNMKS supports 12–36 month blanket purchase agreements for the 330130-080-01-CN and related 3300 XL spare parts. This is particularly suited to facilities with annual or biennial overhaul schedules that require guaranteed stock availability without repeated spot-market sourcing.

Q: What is the recommended inventory strategy for this cable?
A: For critical rotating machinery monitored under API 670, we recommend maintaining a minimum of one spare 330130-080-01-CN per monitored shaft position, with an additional buffer unit per machine train for emergency response. For facilities with extended lead-time risk or remote locations, a 2–3 unit per position buffer is advisable to cover both planned and unplanned replacement scenarios.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-080-01-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-080-01-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
