Bently Nevada 330130-080-01-00 Migration-Ready Extension Cable

Overview

Bently Nevada 330130-080-01-00 Migration-Ready Extension Cable for Legacy Control Systems

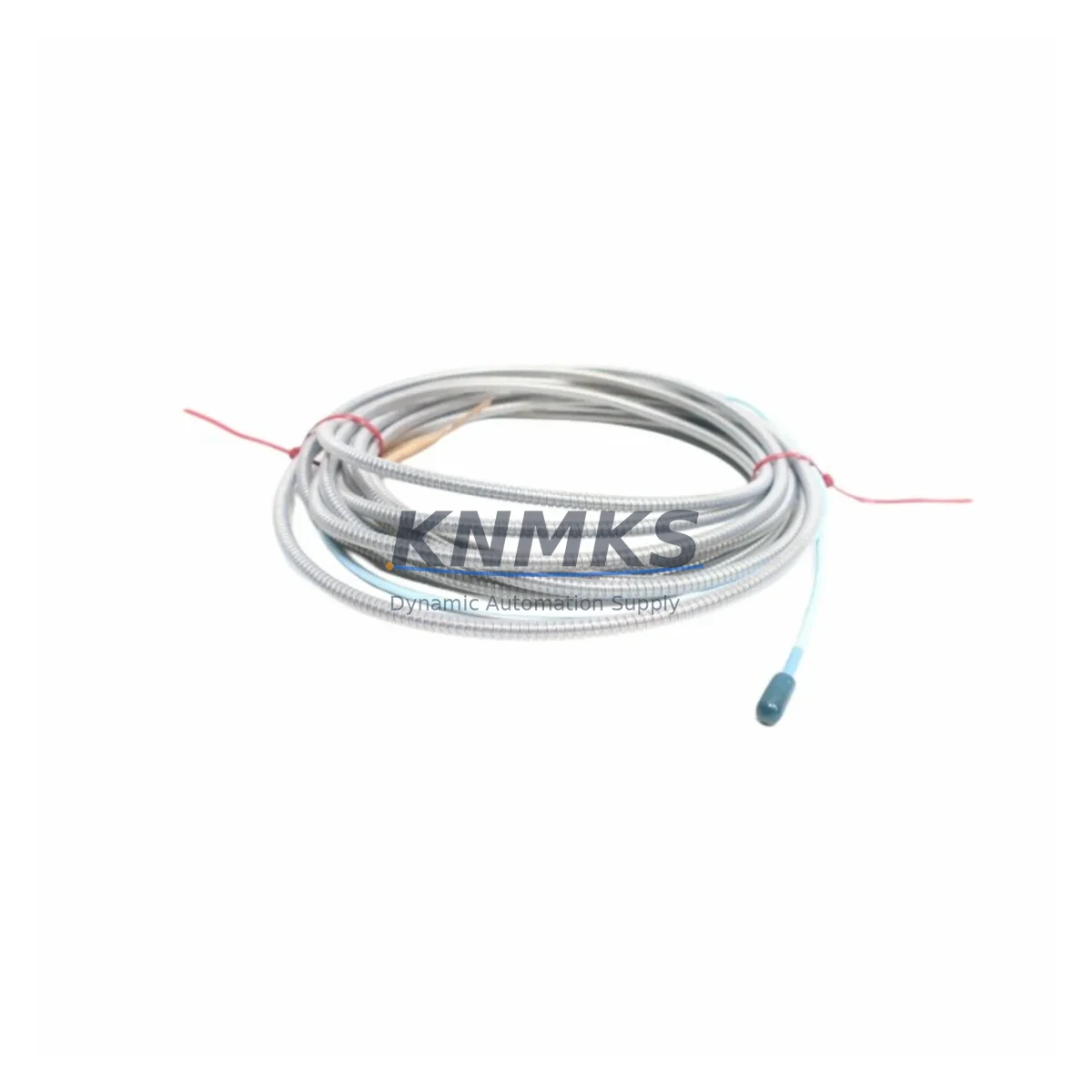

The Bently Nevada 330130-080-01-00 is an 8-metre proximity transducer extension cable engineered for the 3300 XL series vibration monitoring platform. As legacy machinery protection systems approach end-of-support milestones, maintenance engineers and reliability teams increasingly rely on verified, drop-in replacement cables to sustain continuous monitoring without triggering a full system overhaul. This cable maintains the original signal path between the 3300 XL proximitor/oscillator and the field-mounted transducer, preserving loop integrity during partial-panel retrofits, control cabinet consolidations, and I/O migration projects.

When planning a retrofit around the 330130-080-01-00, the first checkpoint is power supply capacity within the existing control cabinet. The 3300 XL proximitor draws a regulated –24 VDC bias voltage; any replacement power supply module introduced during a cabinet upgrade must sustain this rail under full channel load. Engineers migrating from older Bently Nevada 3300 series racks to current 3500 series rack architecture should confirm that the new 3500/22M transducer interface module accepts the same cable connector pinout before reusing field wiring runs. In many brownfield installations, the extension cable routing passes through conduit shared with 4–20 mA signal cables and discrete I/O wiring; verifying shield continuity and drain wire termination at the proximitor end is essential to prevent ground loop interference after the retrofit is complete.

Backplane and rack compatibility is a second critical dimension. The 3300 XL monitor rack uses a dedicated backplane slot assignment for each channel pair; when the rack is replaced with a 3500 series frame, the channel addressing scheme changes and the PLC or DCS tag database must be updated accordingly. If the site runs a Rockwell Automation ControlLogix or CompactLogix controller reading vibration data over a 3500/92 communication gateway, the EDS file and I/O tree must be revised to reflect the new module addresses before the new rack is energised. Retaining the original 330130-080-01-00 extension cable during this transition eliminates one variable from the commissioning checklist and reduces the risk of introducing wiring faults at the transducer junction box.

For installations where the HMI screens display real-time vibration trend data sourced from the Bently Nevada system, the migration plan should include a screen-by-screen review of tag bindings. Operators familiar with the 3300 XL alarm setpoints — typically expressed in mils peak-to-peak for radial vibration — need to confirm that the replacement monitor module applies identical engineering unit scaling. Retaining the original cable assembly preserves the transducer sensitivity factor (V/mil) and gap voltage calibration, which directly affects the accuracy of the HMI display and the reliability of the trip logic downstream.

Communication protocol migration is another area where the 330130-080-01-00 plays a supporting role. Sites transitioning from legacy serial Modbus RTU links to Ethernet-based Modbus TCP or PROFINET architectures often stage the migration channel by channel to maintain production uptime. During this staged approach, the extension cable remains in service on channels that have not yet been migrated, while newly commissioned channels use updated wiring. This parallel-run strategy limits the scope of each maintenance window and allows the reliability team to validate alarm response on the new architecture before decommissioning the legacy path.

Installation space confirmation is straightforward for the 330130-080-01-00: the cable occupies the same conduit fill as the original factory assembly, and the armoured jacket construction is rated for the temperature and chemical exposure typical of turbine bearing pedestals and compressor seal housings. When the proximitor is relocated during a cabinet redesign, the 8-metre length provides sufficient slack for most standard machine-to-panel distances without requiring a field splice. If the distance exceeds 8 metres, the 330130-040-01-00 (4 m) and 330130-085-01-00 (8.5 m) variants are available to build a compliant series extension within Bently Nevada’s approved cable length budget.

Firmware compatibility is not a concern for passive cable assemblies; however, the proximitor/oscillator module connected to this cable — typically a 330180 series or 330101 series proximitor — must carry a firmware revision that matches the monitor card’s expected signal conditioning range. Confirming the proximitor part number and revision level before the retrofit window opens prevents a last-minute parts substitution that could extend downtime. All units supplied by KNMKS are subject to pre-shipment functional testing against Bently Nevada factory acceptance criteria, and each assembly ships with a support terms confirmed by quotation covering manufacturing defects and connector integrity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 330130-080-01-00 typically involves coordinating several interdependent components within the same control cabinet or machinery protection panel. The proximitor module — most commonly a Bently Nevada 330180-X1-05 or 330101-00-06-10-02-00 — must be confirmed as compatible with the replacement monitor card before the cable is ordered. If the site is migrating to a 3500/40M proximitor I/O module, the backplane wiring between the I/O module and the 3500 rack must be laid out before the maintenance window to avoid improvised field modifications.

Power distribution within the panel is equally important. A Bently Nevada 3500/15 power supply module or an equivalent regulated DC supply must be sized to support all active channels simultaneously. During a phased migration where some channels remain on the legacy 3300 XL rack and others have been moved to the new 3500 frame, both power rails must be active and monitored. The 330130-080-01-00 cable does not introduce additional power draw, but the proximitor it feeds does, and the aggregate load calculation must account for every channel in the new configuration.

For sites using a Bently Nevada 3500/92 communication gateway to relay vibration data to a DCS or safety PLC, the gateway configuration file must be updated to include the new channel addresses after the rack migration. If the DCS is a Honeywell Experion or an Emerson DeltaV system, the I/O assignment change will require a controller download during the commissioning window. Scheduling this download during the same maintenance window as the cable replacement minimises the number of separate outages required.

Signal isolators installed between the proximitor output and the DCS analogue input card should be inspected during the retrofit. Older galvanic isolators may introduce a frequency roll-off that affects the dynamic vibration signal above 1 kHz; replacing them with modern signal conditioners rated for the full 3300 XL bandwidth ensures that the new cable assembly delivers its full performance benefit. Programming cables used to configure the 3500 series monitor cards — such as the Bently Nevada 330130 series interface kit — should be on-site before the maintenance window begins to avoid delays during firmware verification.

Downtime Control During System Migration

Minimising unplanned downtime during a machinery protection system retrofit requires a structured pre-outage preparation sequence. Before the maintenance window opens, the original program logic — including alarm setpoints, trip multipliers, and time-delay settings stored in the 3300 XL monitor cards — should be documented and archived. This record serves as the baseline for validating the replacement configuration and provides a recovery reference if the new monitor card requires a factory reset during commissioning.

The 330130-080-01-00 cable can be pre-staged in the control cabinet before the outage begins. Routing the cable through the conduit, labelling both ends, and verifying connector seating while the machine is still running eliminates the most time-consuming mechanical tasks from the critical path. When the machine is taken offline, the technician only needs to disconnect the legacy cable at the proximitor and transducer ends, connect the replacement assembly, and verify gap voltage — a sequence that typically takes under 30 minutes per channel when the pre-staging work has been completed.

Protecting the original control logic during the transition is equally important. If the site uses a Rockwell Automation PLC to process the vibration trip signal, the PLC program should be placed in a monitored bypass mode — not disabled — during the cable swap. This approach maintains the safety interlock chain while allowing the technician to verify the new signal path without triggering a spurious trip. Once gap voltage and sensitivity factor have been confirmed, the bypass is removed and the channel is returned to normal protection service. This sequence keeps the total exposure window — the period during which the machine runs without full vibration protection — to the minimum necessary for commissioning.

Retrofit Support FAQ

Q1: Is the 330130-080-01-00 a direct drop-in replacement for the original Bently Nevada cable on a 3300 XL system?
Yes. The 330130-080-01-00 is manufactured to the original Bently Nevada specification and uses the same connector pinout, cable construction, and shield termination as the factory-installed assembly. No wiring modifications are required at the proximitor or transducer ends when replacing a like-for-like cable on a 3300 XL system.

Q2: Can this cable be used with a 3500 series monitor rack during a migration project?
The cable itself is passive and electrically compatible with the 3500 series signal path. However, the interface between the 3300 XL proximitor and the 3500/22M transducer interface module must be verified for connector compatibility. In some configurations, an adapter or a new proximitor assembly is required. Confirm the proximitor part number and the 3500 module input specification before finalising the bill of materials for the migration.

Q3: What pre-shipment testing is performed on each unit?
Every 330130-080-01-00 supplied by KNMKS undergoes functional testing that verifies connector continuity, shield integrity, and insulation resistance before dispatch. Units that do not meet Bently Nevada factory acceptance criteria are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
The support terms confirmed by quotation cover manufacturing defects, connector integrity failures, and cable assembly faults under normal operating conditions. Units currently availability confirmed by RFQ at KNMKS are available for same-week dispatch. For urgent retrofit projects, contact the sales team to confirm real-time inventory availability and expedited shipping options.
