Bently Nevada 330130-080-00-05 Migration-Ready Proximity Cable

Overview

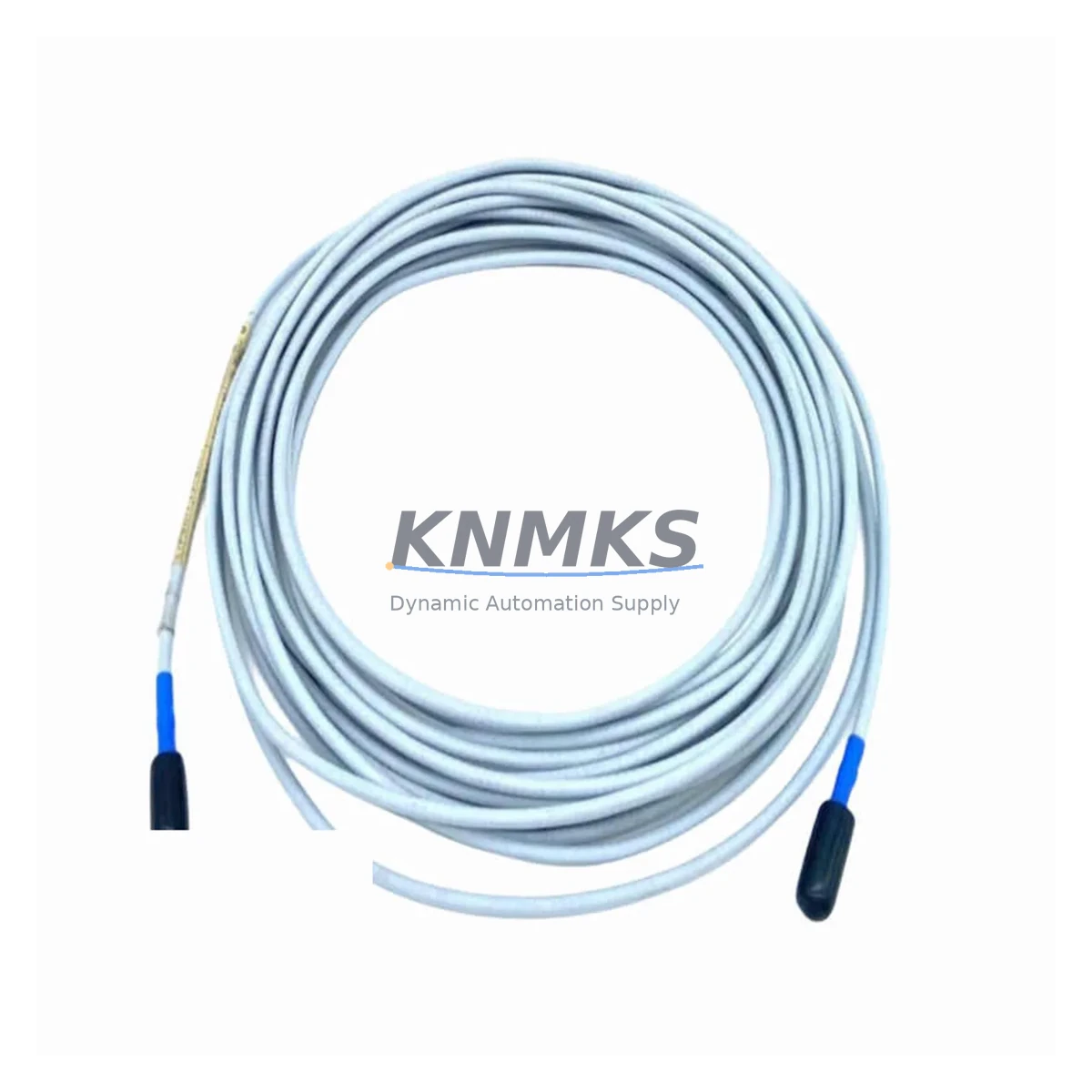

Bently Nevada 330130-080-00-05 Migration-Ready Proximity Cable Extension for Legacy 3300 XL Control Systems

The Bently Nevada 330130-080-00-05 is a precision-engineered proximity cable extension designed for direct integration with the 3300 XL Series continuous vibration monitoring platform. As legacy machinery protection systems approach end-of-service milestones, this cable extension serves as a critical migration-ready component for facilities undertaking rotor dynamics monitoring upgrades, control cabinet retrofits, and spare parts lifecycle extension programs. With a verified drop-in form factor and signal-path compatibility, the 330130-080-00-05 enables maintenance teams to restore or extend system uptime without requiring full sensor chain replacement or PLC reprogramming.

This proximity cable extension is engineered to interface directly with Bently Nevada 3300 XL proximitor/seismic transducer assemblies, maintaining the required -18 VDC bias voltage range and output sensitivity specifications consistent with the broader 3300 XL ecosystem. When replacing aging or damaged cable extensions in the field, engineers must confirm terminal block wiring polarity, shield grounding continuity, and connector seating torque to prevent signal drift or false trip conditions at the 3500 Series rack or legacy 3300 Series monitor cards.

For facilities migrating from older Bently Nevada 3300 NSv or 7200 Series transducer assemblies to the current 3300 XL platform, the 330130-080-00-05 provides a standardized cable interface that reduces field adaptation time. During retrofit planning, engineers should verify the proximitor housing mounting thread compatibility, available conduit routing space within the control cabinet, and the armored cable jacket rating against ambient temperature and chemical exposure conditions at the installation site.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330130-080-00-05 into an active machinery protection system requires a structured retrofit plan that accounts for the full sensor chain from the probe tip to the monitor rack. In a typical 3300 XL installation, the sensor chain consists of the proximity probe (such as the 330101 or 330103 series), the proximitor housing (3300 XL Proximitor), the extension cable (330130 series), and the monitor card within a 3500 Series rack or legacy 3300 rack assembly. Each component in this chain must be verified for mutual compatibility before the extension cable is replaced.

When planning a cable extension swap during a scheduled outage, maintenance engineers should begin by documenting the existing wiring at the junction box terminal block, noting the signal (center conductor), shield, and drain wire assignments. The 330130-080-00-05 uses a coaxial construction with an outer armor jacket; the shield must be grounded at one end only — typically at the monitor rack — to prevent ground loop interference that can corrupt vibration amplitude readings and trigger nuisance alarms on the 3500/42M or 3500/45 position monitor cards.

For control cabinets undergoing broader modernization, the 330130-080-00-05 is commonly installed alongside the Bently Nevada 3500/20 rack power supply module, which provides the regulated -24 VDC supply rail required by the proximitor. Engineers should also confirm the 3500 Series I/O module terminal assignments and verify that the Keyphasor signal from the 3500/25 Keyphasor module is correctly routed if phase-referenced vibration analysis is part of the monitoring strategy. In systems where the HMI display is provided by a System 1 Evolution workstation, the cable replacement should be followed by a channel verification step within the System 1 software to confirm that the new cable extension does not introduce additional signal attenuation beyond the acceptable threshold defined in the monitor configuration.

Where communication protocol migration is also underway — for example, transitioning from a hardwired relay output scheme to a Modbus TCP or OPC-DA data acquisition architecture — the cable extension replacement should be completed and signal-verified before any changes are made to the 3500 rack communication gateway module. This sequencing ensures that baseline vibration data is available for comparison before and after the protocol migration, supporting commissioning documentation and regulatory compliance records.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity cable extension replacement requires pre-staging all replacement components, including the 330130-080-00-05 extension cable, connector tools, and a calibrated signal simulator, before the maintenance window begins. Where possible, the replacement should be performed during a planned shutdown rather than a forced outage, allowing the original program logic in the 3500 Series rack to remain intact and the monitor configuration to be preserved without requiring a full re-commissioning cycle.

To protect existing control logic continuity, the 3500 rack should be placed in bypass mode for the affected channel prior to cable disconnection. This prevents the monitor from generating a false trip signal to the machinery protection relay output, which could initiate an unintended machine shutdown or trigger an alarm in the DCS or SCADA system. After the 330130-080-00-05 is installed and the connector is fully seated, the channel should be brought out of bypass incrementally, with the output signal verified against the expected gap voltage range before the bypass is fully removed.

Field commissioning of the replacement cable extension should include a static gap voltage check at the proximitor output, a dynamic signal check during machine coast-down or slow-roll, and a comparison of the new channel’s vibration trend against adjacent channels to confirm that the replacement has not introduced any signal anomalies. All commissioning results should be recorded in the site maintenance log to support the support terms confirmed by quotation claim process and to provide a baseline for future predictive maintenance intervals.

Retrofit Support FAQ

Q1: Is the 330130-080-00-05 a direct drop-in replacement for older 3300 Series cable extensions?
A: Yes, the 330130-080-00-05 is designed as a direct replacement for compatible 3300 XL extension cable assemblies of equivalent length. For installations originally using 3300 NSv or 7200 Series cable extensions, a connector adapter may be required. Confirm the connector type at both the proximitor and junction box ends before ordering.

Q2: What pre-shipment testing is performed on the 330130-080-00-05?
A: Each unit undergoes factory continuity testing, connector seating verification, and shield integrity checks prior to shipment. A test record is available upon request. The support terms confirmed by quotation cover manufacturing defects identified during installation and normal service conditions.

Q3: Can this cable extension be used with the Bently Nevada 3500 Series rack without modification?
A: Yes, the 330130-080-00-05 is compatible with the 3500 Series rack input channel specifications. No firmware changes or hardware modifications to the rack are required. Verify total cable system length (probe + extension) remains within the proximitor’s specified operating range.

Q4: What is the lead time and inventory availability?
A: Units are maintained availability confirmed by RFQ to support urgent replacement and planned maintenance schedules. Standard lead time is confirmed at order placement. For critical spares programs requiring guaranteed stock reservation, contact our sales team directly to arrange a dedicated inventory allocation under the support terms confirmed by quotation terms.
