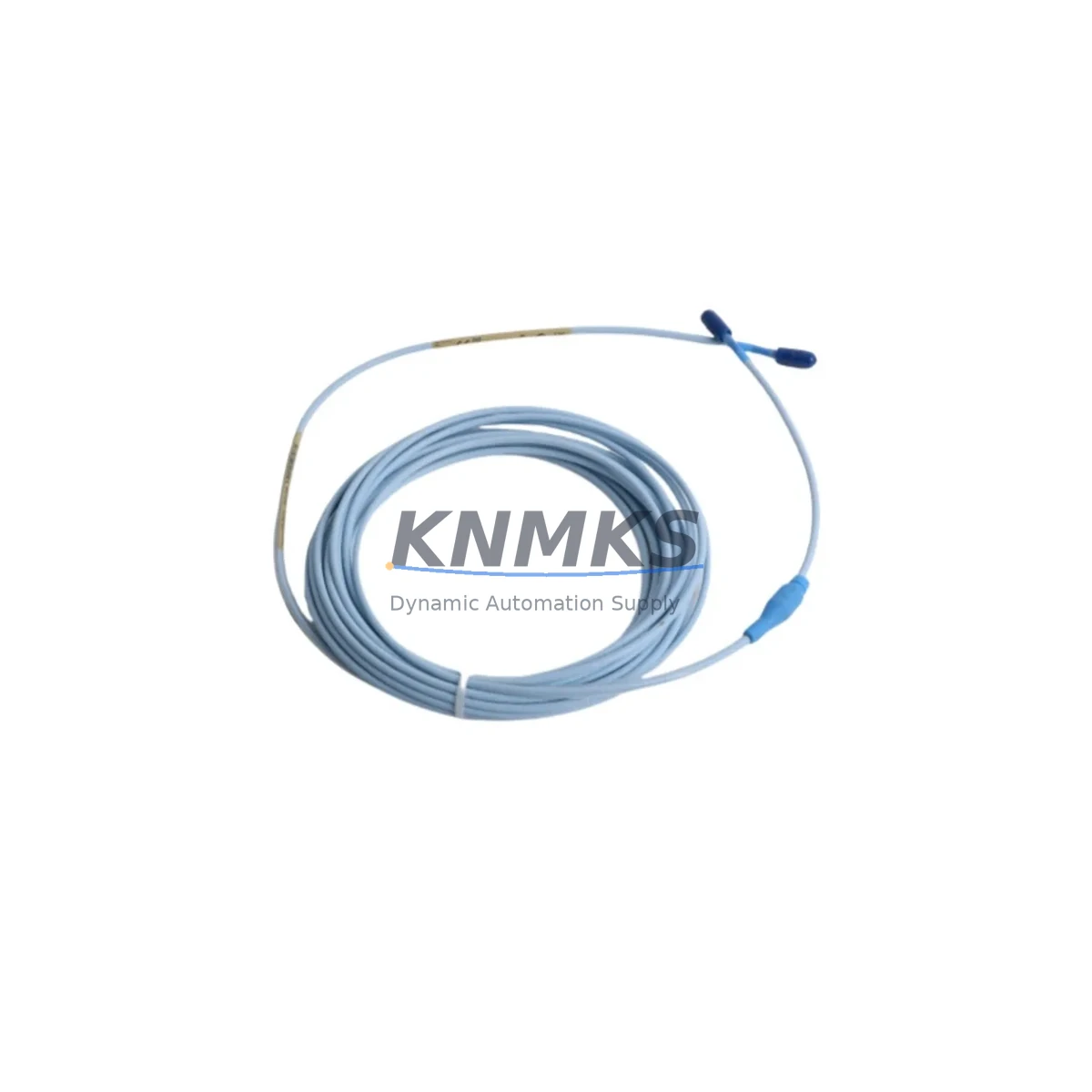

The Bently Nevada 330130-075-02-05 is a 7.62-metre (25-foot) proximity extension cable engineered for the 3300 XL Series vibration monitoring system. As a critical signal-path component between the proximitor/driver and the eddy-current probe, this cable directly determines the accuracy of shaft displacement and vibration data fed into your condition-monitoring loop. Sourced as an original spare, every unit is inspected and tested prior to shipment, ensuring that the cable you install on a live machine train meets the same electrical specifications as the factory-fitted assembly. A support terms confirmed by quotation cover each unit against manufacturing defects, giving maintenance planners the confidence to stock this part as a long-term inventory asset rather than a one-time emergency purchase.

For rotating-machinery maintenance teams operating turbines, compressors, pumps, or gearboxes under API 670 protection schemes, cable integrity is non-negotiable. Signal attenuation, shield discontinuity, or connector oxidation in the extension cable can produce false high-vibration trips or, worse, mask a genuine fault. Replacing the 330130-075-02-05 on a scheduled basis—or immediately after any cable-routing disturbance—eliminates one of the most common sources of spurious alarms in 3300 XL installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity extension cable does not operate in isolation. When a maintenance engineer schedules replacement of the 330130-075-02-05, the surrounding signal chain and power infrastructure should be audited at the same time to prevent a second unplanned outage shortly after the cable swap.

Begin with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05 series) at the driver end of the cable. Verify that the proximitor output voltage sits within the −10 VDC to −18 VDC window under no-load conditions; a reading outside this range after a cable replacement points to a failing proximitor rather than a cable fault. Next, inspect the 3300 XL I/O module in the monitor rack—connector pins corrode in humid environments, and a freshly installed cable will not recover signal quality if the rack-side termination is degraded.

Check the 3300 XL power supply module (typically a 24 VDC or 28 VDC unit) for output ripple and voltage stability. An under-voltage condition stresses the entire measurement loop and can shorten cable and proximitor service life. If the installation includes a Bently Nevada 3500 Series rack for higher-channel-count protection, confirm that the backplane connectors and the 3500/22M transient data interface are seated correctly—backplane contact resistance is a frequent source of intermittent channel faults that are misdiagnosed as cable problems.

For sites running System 1 Evolution condition-monitoring software, validate that the channel configuration reflects the new cable’s exact length; the software uses cable-length data to apply the correct scale factor for gap voltage-to-displacement conversion. A mismatch here produces systematic measurement error that persists even with a perfect cable. Finally, review the barrier or isolator modules (such as Bently Nevada 3300 XL galvanic isolators) in any intrinsically safe zone installations—these components age alongside the cable and should be tested for leakage current whenever the cable is renewed.

Procurement engineers should note that the 330130-075-02-05 is frequently ordered alongside 3300 XL eddy-current probe assemblies and proximitor mounting hardware as part of a complete sensor-chain kit. Consolidating these items into a single purchase order reduces freight costs and ensures that all components in the signal path share the same replacement date, simplifying future maintenance scheduling.

Site Replacement Workflow

1. Pre-work verification. Confirm the replacement cable part number against the machine train’s instrument index. The 330130-075-02-05 is a 25-foot armoured cable; substituting a different length (e.g., a 50-foot 330130-150-02-05) without updating the System 1 channel configuration will introduce a scale-factor error. If the existing installation uses an older 3300 RAM (non-XL) cable, verify connector compatibility before proceeding—the XL series uses a revised connector body that is not mechanically interchangeable with legacy 3300 RAM assemblies without an adapter.

2. Safe isolation. Place the affected monitor channel in bypass mode via the 3300 XL front-panel or System 1 software to suppress spurious trips during the swap. Document the pre-removal gap voltage and vibration baseline for post-installation comparison.

3. Cable removal and routing inspection. Remove the old cable and inspect the conduit or cable tray for sharp edges, moisture ingress, or heat sources that may have contributed to the original failure. Dress the new cable with a minimum bend radius of 50 mm to protect the coaxial core.

4. Installation and termination. Hand-tighten connectors to the specified torque (typically 1.1 N·m for MIL-C-5015 style fittings) and apply anti-corrosion compound to outdoor or high-humidity terminations. Restore the channel from bypass and verify gap voltage within the −10 V to −18 V window. Compare live vibration readings against the pre-removal baseline; a deviation of more than 0.5 mil pk-pk at the same operating speed warrants further investigation before returning the machine to service.

5. Documentation. Update the CMMS work order with the new cable serial number, installation date, and post-installation readings. Set the next inspection interval to 12 months or the site’s standard PM cycle, whichever is shorter.

Spare Parts Support FAQ

Q1: How long is the support terms on the 330130-075-02-05, and what does it cover?
Each unit carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects in materials and workmanship, including connector integrity, shield continuity, and insulation resistance. Units that fail within the confirmed support period due to a verified manufacturing defect are replaced at no charge. Damage caused by incorrect installation, over-bending, or chemical exposure is not covered.

Q2: How do I confirm compatibility with my existing 3300 XL installation before ordering?
The 330130-075-02-05 is compatible with all standard 3300 XL 8 mm, 11 mm, and 14 mm eddy-current probe systems using the MIL-C-5015 connector interface. To confirm fit, check your machine train’s instrument index for the existing cable part number and match the length suffix (-075 = 7.62 m). If your installation uses a non-standard probe driver or a legacy 3300 RAM rack, contact [email protected] with your existing part number for a compatibility check before ordering.

Q3: What pre-shipment testing is performed, and can I receive a test report?
Every 330130-075-02-05 unit undergoes continuity testing, insulation resistance measurement (minimum 100 MΩ at 500 VDC), and characteristic impedance verification (95 Ω ± 5%) before dispatch. A test report is available on request; please specify this requirement at the time of order so the report can be included with the shipment documentation.

Q4: Can KNMKS support long-term or blanket-order supply for this part?
Yes. KNMKS maintains stock of the 330130-075-02-05 and can support blanket purchase orders, scheduled releases, and annual maintenance contracts. Long-term supply agreements are available for customers who require guaranteed lead times and fixed pricing across a 12- to 36-month horizon. Contact [email protected] or call +86 18359268345 to discuss volume pricing and delivery scheduling.
