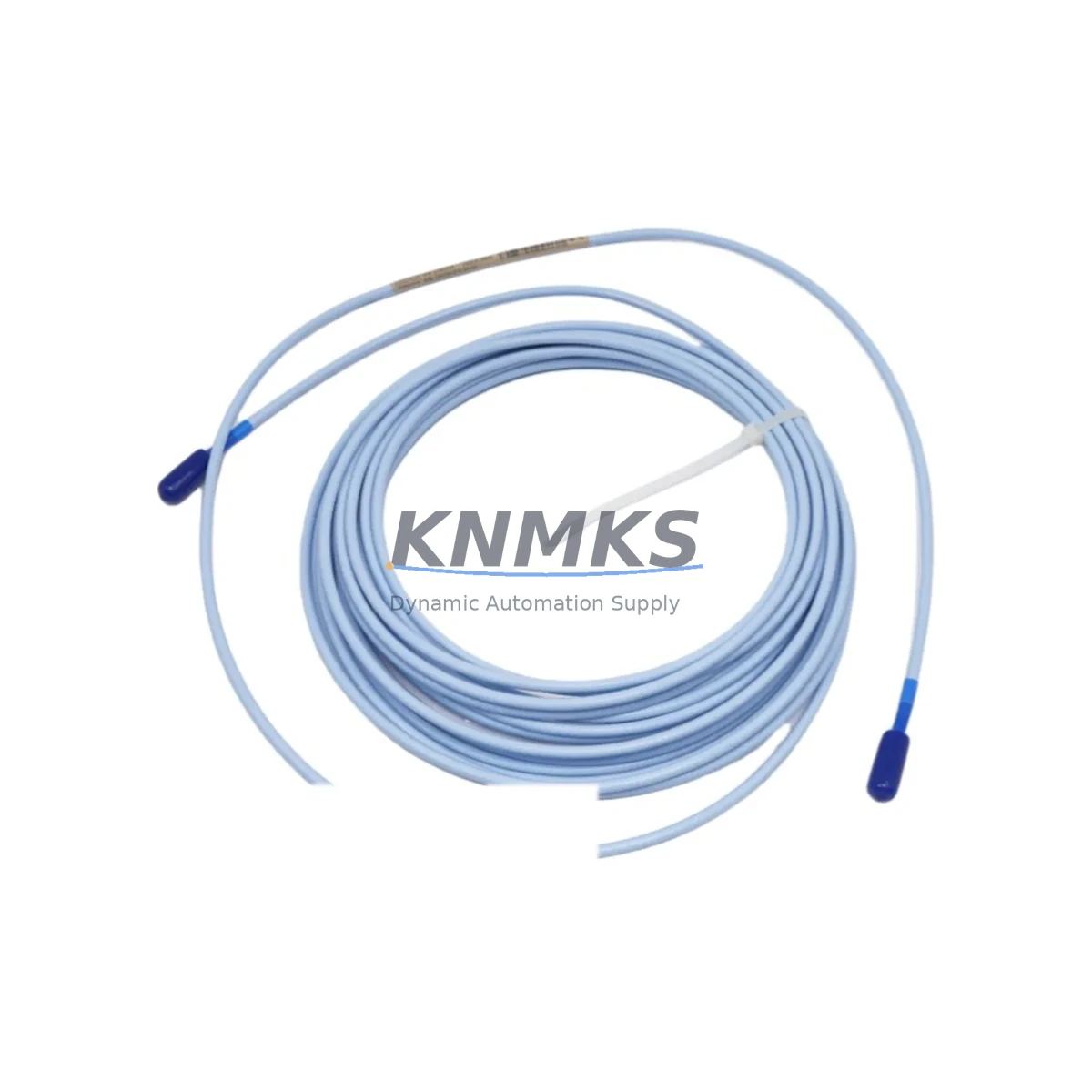

The Bently Nevada 330130-075-01-05 is an original eddy-current proximity transducer engineered for the 3300 XL Machinery Monitoring System — a platform widely deployed for continuous protection of turbines, compressors, pumps, and gearboxes in oil & gas, petrochemical, power generation, and heavy manufacturing facilities. With an 8 mm probe tip diameter and a 7.5 m armored cable, this transducer measures radial vibration, axial position, and differential expansion with the precision required by API 670 machinery protection standards.

Maintaining a verified on-site stock of the 330130-075-01-05 is a proven strategy for reducing mean time to repair (MTTR) during unplanned shutdowns. When a proximity channel trips or degrades, having a tested replacement unit available eliminates lead-time exposure and allows maintenance teams to restore the machine to service within a single shift. Each unit supplied by KNMKS is sourced as an original Bently Nevada component, functionally tested prior to dispatch, and covered by a support terms confirmed by quotation from the shipment date.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330130-075-01-05 transducer is rarely an isolated task. A disciplined maintenance engineer treats each proximity channel replacement as an opportunity to audit the entire signal chain — from probe tip to control room display — to prevent repeat failures and ensure the monitoring loop is restored to full accuracy before the machine returns to service.

Start at the 330180-series 3300 XL 8 mm Proximitor® sensor mounted in the field junction box. The Proximitor converts the raw eddy-current signal into a calibrated DC voltage; a degraded or moisture-contaminated Proximitor will produce erratic gap readings even with a brand-new probe installed. If the Proximitor has been in service for more than five years or shows signs of connector corrosion, replace it as a matched set with the transducer.

Inspect the 330130-series extension cable for jacket cracking, connector pin damage, and shield continuity. Cable faults — particularly at the probe-to-extension connector — are a leading cause of intermittent vibration alarms and should be replaced whenever physical damage is visible or cable age exceeds the site’s preventive maintenance interval. A mismatched or damaged extension cable will shift the system’s gap calibration curve and introduce measurement error that is difficult to diagnose remotely.

At the rack level, verify the 3300 XL rack power supply module is delivering a stable –24 VDC bus. Voltage sag or ripple corrupts proximity output and can trigger nuisance OK relay dropouts. If the rack includes a 3300/25 or 3300/55 monitor card, confirm that the OK setpoint, gap voltage thresholds, and full-scale vibration range are correctly configured after the transducer swap — incorrect gap settings are the most common commissioning error following a field replacement.

Where the 330130-075-01-05 feeds a DCS or safety PLC via 4–20 mA or relay output, confirm that the I/O card at the control system end is receiving a valid, in-range signal before releasing the machine. In installations where ground loops have historically caused baseline noise, inserting a signal isolator between the Proximitor output and the DCS analog input card is a cost-effective long-term fix. Annual control cabinet inspections should also include the terminal strips and field junction boxes associated with each proximity channel — loose terminations introduce resistance that shifts the gap calibration curve and can mask real vibration events.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and place the affected proximity channel into bypass mode at the monitor card. Isolate only the affected channel — do not defeat the entire rack — to maintain machinery protection on adjacent measurements during the repair window.

Step 2 — Baseline Gap Recording: Before removing the old transducer, record the existing gap voltage (target: –10.0 VDC ± 0.5 VDC for standard 8 mm probes at a 2.0 mm gap). A reading outside this range confirms the previous unit had drifted and validates the replacement decision.

Step 3 — Transducer Removal & Target Inspection: Unscrew the probe from the bracket using the correct spanner. Inspect the probe tip for impact damage and examine the target surface for pitting or scoring — surface irregularities will appear as once-per-revolution vibration components and must be addressed before installing the replacement unit.

Step 4 — Installation of 330130-075-01-05: Thread the replacement transducer into the bracket and adjust the gap to the specified value. Torque the locknut to the manufacturer’s specification. Route the cable away from hot surfaces, high-voltage conductors, and sources of mechanical vibration that could fatigue the cable jacket over time.

Step 5 — System Verification: Restore the channel from bypass, confirm the OK relay energizes, and verify gap voltage and vibration baseline against historical trend data stored in the machinery monitoring system. Document the replacement with the new unit’s serial number, installation date, and gap voltage reading.

Step 6 — Spare Stock Replenishment: Log the consumed unit and initiate a replenishment order immediately. For critical rotating machinery, a minimum of two 330130-075-01-05 units per train is recommended to support back-to-back emergency replacements without lead-time exposure during peak turnaround seasons.

Spare Parts Support FAQ

Q1: Is the 330130-075-01-05 a direct drop-in replacement for earlier 330130-series transducers?
Yes. The 330130-075-01-05 is dimensionally and electrically compatible with earlier 330130-series proximity transducers used in 3300 XL systems. The -075 suffix denotes 7.5 m cable length and the -05 suffix indicates the armored cable jacket variant. Confirm that the cable length and connector type match your existing installation before placing an order. If your installation uses a different cable length suffix (e.g., -050 for 5.0 m), contact our team to confirm the correct part number.

Q2: How is each unit tested before shipment?
Every 330130-075-01-05 unit dispatched from KNMKS inventory undergoes a functional output test using a calibrated driver/extension/probe system. The test confirms linear voltage output across the full gap range and verifies insulation resistance on the cable assembly. A test report is available upon request. On-site, use a calibrated gap simulator or a precision micrometer stage to confirm –10 VDC ± 0.5 VDC output at the nominal 2.0 mm gap before final installation.

Q3: What is the long-term supply outlook, and how should we plan our spare parts inventory?
Bently Nevada 3300 XL components remain in active use across thousands of installed machinery protection systems globally. The installed base is large and long-lived, and demand for original spare parts remains consistent. KNMKS maintains a dedicated stock of 330130-075-01-05 units to support long-term maintenance requirements. For critical rotating machinery, we recommend holding a minimum two-unit on-site buffer and placing an annual blanket order to lock pricing and ensure availability during peak turnaround seasons.

Q4: What support terms and return policy applies to this spare part?
All 330130-075-01-05 units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and confirmed performance non-conformance under normal operating conditions. Units that fail within the confirmed support period will be replaced or credited at our discretion. Support requests require the original invoice number, a description of the failure mode, and return of the defective unit for inspection. Contact [email protected] or +86 18359268345 to initiate a claim.
