Bently Nevada 330130-075-00-CN Migration-Ready Extension Cable

Overview

Bently Nevada 330130-075-00-CN Migration-Ready Extension Cable for Legacy Control Systems

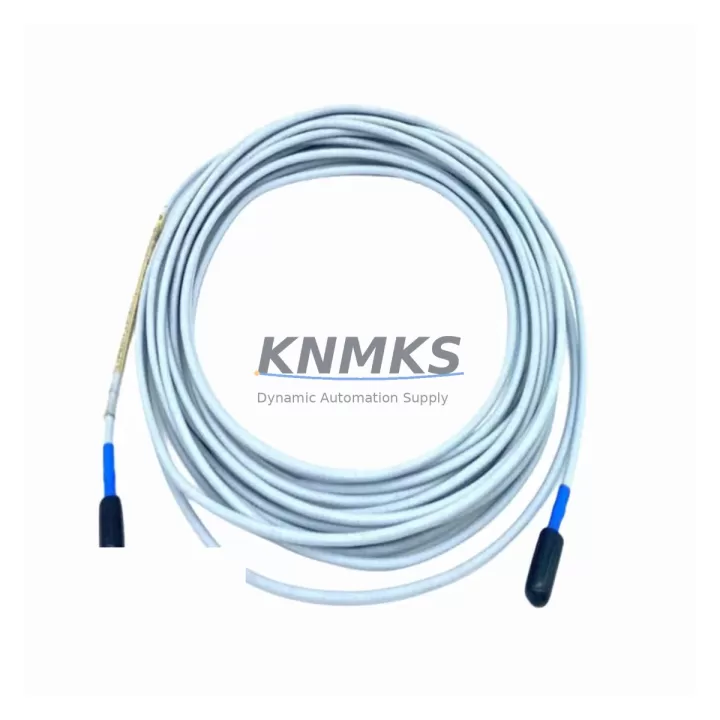

The Bently Nevada 330130-075-00-CN is a 7.5-meter (25-foot) extension cable engineered for the 3300 XL Proximity Transducer System. As legacy vibration monitoring infrastructure ages and OEM support windows close, this cable serves as a direct, migration-ready replacement that preserves signal integrity across existing sensor loops without requiring rewiring of the field transducer or driver electronics. For plants operating Bently Nevada 3300 XL proximity probes alongside the 3300 XL 8mm Proximitor Sensor or the 3300 XL 11mm Proximitor Sensor, the 330130-075-00-CN maintains the calibrated gap voltage and sensitivity curve established during original commissioning, eliminating the need for full recalibration during a cable swap.

In retrofit scenarios where the control cabinet has been relocated or the machinery train has been repositioned, cable length mismatches are among the most common causes of unplanned downtime. The 330130-075-00-CN resolves this by providing a standardized 7.5m run that bridges the transducer and the Proximitor driver without introducing impedance discontinuities. When used in conjunction with the Bently Nevada 3300 XL Proximitor Sensor (330180 series), the cable’s shielded construction suppresses electromagnetic interference from adjacent VFDs, servo drives, and high-current bus bars — a critical requirement in modernized control cabinets where legacy analog loops coexist with new digital infrastructure.

During system migration, engineers must confirm that the total cable system length — the combined run of the probe cable, extension cable, and any field junction — remains within the Proximitor’s specified range. For the 3300 XL platform, this is typically 5m, 9m, or 15m total system length depending on the Proximitor model selected. The 330130-075-00-CN is calibrated for use in the 9m total system configuration, pairing with a standard 1.5m probe cable. Before installation, verify the existing 330130 series probe cable length and confirm the Proximitor driver’s system length setting matches the new total. Failure to align these parameters will result in a DC gap voltage offset that may trigger false vibration alarms or mask genuine shaft displacement events.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330130-075-00-CN begins with a structured audit of the existing sensor loop. Start by documenting the current probe model, extension cable part number, and Proximitor driver configuration. In many legacy installations, the original extension cable has been spliced or field-repaired, introducing resistance variations that corrupt the gap voltage reading. Replacing the entire extension cable run with a factory-terminated 330130-075-00-CN eliminates these variables and restores the loop to a known-good baseline.

For plants migrating from older Bently Nevada 7200 series proximity systems to the 3300 XL platform, the cable replacement is one step in a broader upgrade that typically also involves swapping the Proximitor driver module, updating the rack I/O card in the Bently Nevada 3500 Machinery Protection System rack, and reconfiguring the associated channel in the monitoring software. The 3500 rack’s I/O module accepts the analog output from the 3300 XL Proximitor directly, but the channel configuration — including full-scale range, alert setpoints, and danger setpoints — must be re-entered after the hardware swap. Coordinate with the DCS or safety system engineer to ensure that the new setpoints are reflected in the HMI faceplate and historian tags before returning the machine to service.

Where the control cabinet upgrade also involves adding new I/O for condition monitoring expansion, consider the routing of the new 330130-075-00-CN alongside existing signal cables. Maintain a minimum separation of 150mm from power cables and VFD output conductors. If the cable must cross power conductors, do so at 90 degrees to minimize inductive coupling. In cabinets where a signal isolator or barrier is installed between the Proximitor output and the DCS analog input card, verify that the isolator’s input impedance is compatible with the Proximitor’s output drive capability — typically greater than 10 kΩ for voltage outputs.

For sites using a Bently Nevada TK3 programming cable or laptop-based configuration tool to access the 3500 rack, the cable replacement can be performed without taking the rack offline if the channel is placed in bypass mode prior to disconnection. This approach preserves the protection function on adjacent channels and avoids a full rack power cycle, significantly reducing the risk window during the retrofit.

Downtime Control During System Migration

Minimizing downtime during a proximity cable replacement requires pre-staging all materials and completing the loop verification procedure before the maintenance window opens. Prior to shutdown, use the Proximitor’s test output or a portable oscilloscope to record the baseline gap voltage and AC vibration signal amplitude. These reference values allow the commissioning technician to confirm that the new 330130-075-00-CN has restored the loop to its pre-outage condition without requiring a full vibration survey.

During the cable swap, protect the original program logic in the 3500 rack by placing the affected channel in bypass rather than removing power from the entire rack. This preserves the configuration data stored in the rack’s non-volatile memory and avoids the risk of a configuration loss that would require a full re-download from the System 1 or Rack Configuration Software. If the site uses a Bently Nevada System 1 Evolution software platform for online monitoring, confirm that the channel bypass is acknowledged in the software before proceeding — an unacknowledged bypass may generate a spurious alarm in the control room.

After the new cable is installed and the connectors are torqued to specification, restore the channel from bypass and allow a 5-minute stabilization period before recording the post-installation gap voltage. Compare this value against the pre-outage baseline. A deviation of more than ±0.5 VDC indicates a wiring error, connector seating issue, or total system length mismatch that must be resolved before the machine is returned to service. Document the as-found and as-left gap voltages in the maintenance record to support future troubleshooting and audit compliance.

Retrofit Support FAQ

Q1: Is the 330130-075-00-CN a direct drop-in replacement for the original Bently Nevada extension cable?
Yes. The 330130-075-00-CN is manufactured to the original Bently Nevada specification for the 3300 XL proximity system. It uses the same connector interface, cable impedance, and shielding construction as the factory-original part, making it a direct drop-in replacement without modification to the probe, Proximitor, or monitoring rack.

Q2: What commissioning checks are required after installation?
After installation, measure the DC gap voltage at the Proximitor output with the probe positioned at the manufacturer-specified gap distance (typically –10.0 VDC ± 0.5 VDC for a mid-range gap). Verify the AC vibration signal is present and within expected amplitude for the machine’s normal operating condition. Confirm that no alarms are active in the 3500 rack or monitoring software before releasing the machine to operations.

Q3: Can this cable be used with non-Bently Nevada proximity systems?
The 330130-075-00-CN is calibrated specifically for the Bently Nevada 3300 XL Proximitor system. Use with third-party proximity drivers is not recommended without independent verification of cable impedance compatibility, as mismatched cable parameters will affect the gap voltage calibration and may produce inaccurate vibration readings.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time?
The support terms confirmed by quotation cover manufacturing defects, connector integrity, and shield continuity from the date of shipment. Units are pre-tested prior to dispatch. Stock is maintained for immediate shipment; lead time for in-stock units is typically 3–7 business days to major industrial regions. Contact [email protected] or +86 18359268345 for current stock status and expedited shipping options.
