Bently Nevada 330130-075-00-05 Maintenance-Proven Spare Part

Overview

Bently Nevada 330130-075-00-05 Maintenance-Proven Spare Part for Factory Uptime

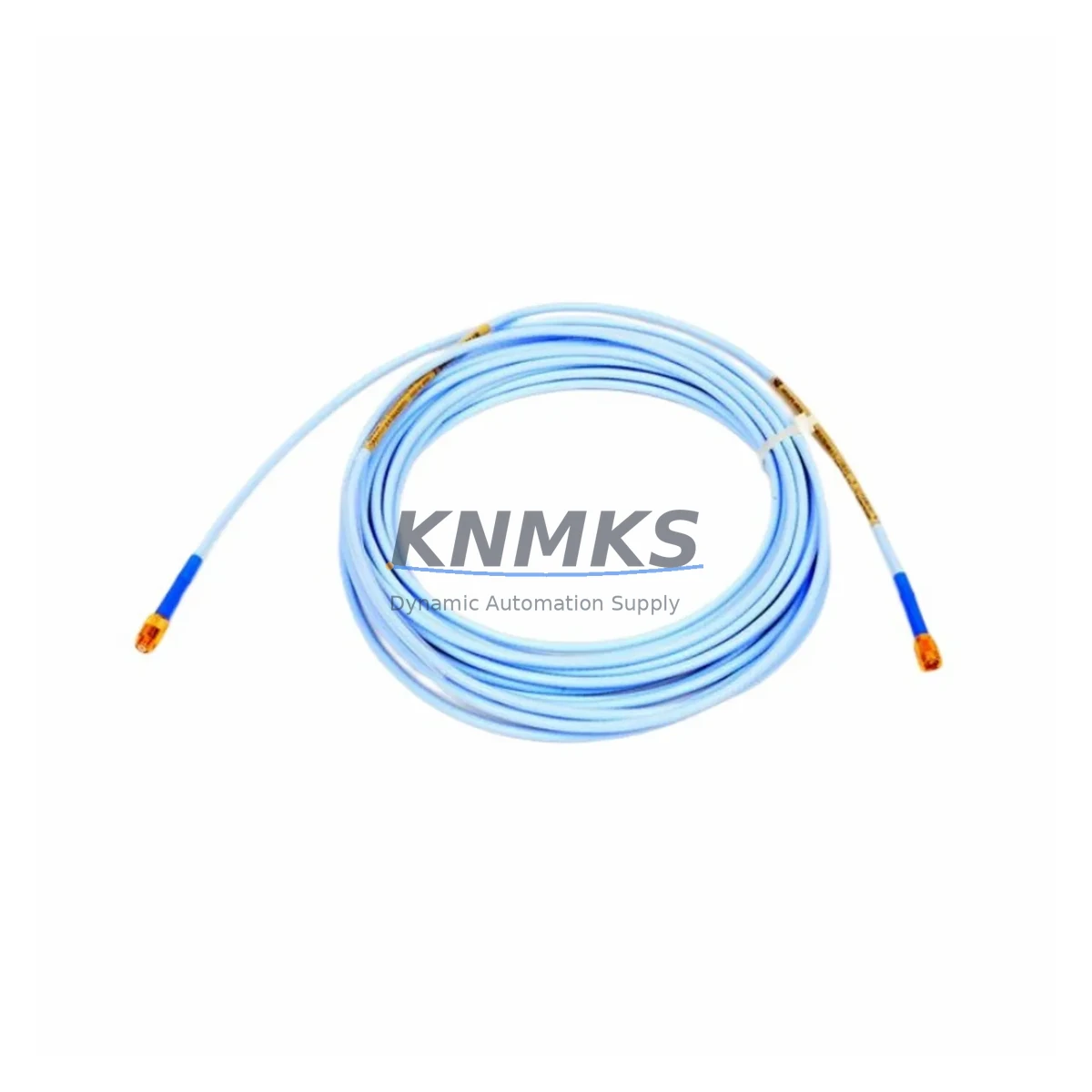

The Bently Nevada 330130-075-00-05 is a 7.5-metre (25-foot) extension cable engineered for use within the 3300 XL Series proximity transducer system — one of the most widely deployed continuous vibration monitoring platforms in rotating machinery protection. Designed to bridge the gap between the proximity probe and the proximitor/driver module, this extension cable is a precision-matched, impedance-controlled component that directly affects the accuracy of radial vibration, axial position, and differential expansion measurements on turbines, compressors, pumps, and gearboxes.

For maintenance engineers managing aging machinery protection systems, the 330130-075-00-05 represents a critical link in the signal chain. A degraded or failed extension cable introduces measurement error, false alarms, or — more dangerously — missed trip conditions. Stocking this cable as a verified OEM spare eliminates the risk of extended downtime caused by sourcing delays. Each unit shipped by KNMKS has been inspected and tested prior to dispatch, with a support terms confirmed by quotation covering manufacturing defects and electrical performance.

Procurement engineers sourcing for planned turnarounds or emergency stock replenishment will find this cable available for fast global dispatch. KNMKS maintains inventory of the 330130-075-00-05 alongside complementary 3300 XL system components, enabling consolidated spare parts orders that reduce lead time and freight cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-075-00-05 extension cable during a scheduled outage or emergency intervention, maintenance engineers should treat the replacement as an opportunity to audit the full proximity measurement loop. The extension cable does not operate in isolation — its performance is directly coupled to the probe at one end and the proximitor/driver module at the other. A common oversight is replacing the cable while leaving a worn or contaminated Bently Nevada 3300 XL 8mm Proximity Probe (such as the 330101-00-06-10-02-00 series) in service, which can reintroduce measurement error within weeks.

At the proximitor end, verify that the Bently Nevada 3300 XL Proximitor/Driver Module (e.g., 330180-X1-05 or equivalent) shows no signs of connector pin damage, moisture ingress, or output voltage drift. These modules are sensitive to impedance mismatches introduced by non-OEM or incorrect-length cables, making it essential to confirm the replacement cable matches the original system configuration.

Within the control cabinet, inspect the terminal blocks and field wiring connecting the proximitor output to the monitoring rack. Loose terminations or corroded DIN-rail terminal strips can introduce noise that mimics mechanical faults. If the plant uses a Bently Nevada 3500 Series Monitoring Rack, confirm that the I/O module input card is correctly configured for the cable length and probe gap voltage range — a mismatch here will cause the system to report false high-vibration alarms even after a successful cable replacement.

For plants running GE Mark V or Mark VI turbine control systems alongside Bently Nevada machinery protection, verify that the 4–20 mA or voltage output from the proximitor is correctly scaled at the DCS or PLC input card. Signal isolators or loop-powered signal conditioners installed between the proximitor and the control system should be inspected for drift, particularly in high-temperature environments. Fuse protection on the proximitor power supply rail should also be checked — a blown fuse on the 24 VDC supply will disable the entire measurement channel without triggering an obvious fault indication.

Procurement teams building annual maintenance budgets should consider stocking the 330130-075-00-05 alongside the matched probe and proximitor as a complete channel spare kit. This approach eliminates the risk of a partial replacement that leaves a degraded component in the signal path and reduces total diagnostic time during the next outage.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before disconnecting the existing cable, record the proximitor output voltage (gap voltage) at the monitoring rack. This baseline confirms the probe gap is within specification and provides a reference for post-installation verification.

Step 2 — Cable removal: Disconnect the coaxial connectors at both the probe and proximitor ends. Inspect the connector threads and centre pins for corrosion or mechanical damage. If the probe connector shows wear, replace the probe simultaneously to avoid a repeat intervention.

Step 3 — Installation of 330130-075-00-05: Route the new cable following the original cable path, avoiding sharp bends below the minimum bend radius. Secure with cable ties at the same support points. Hand-tighten coaxial connectors — do not over-torque.

Step 4 — System verification: Power up the proximitor and confirm the gap voltage at the monitoring rack matches the pre-removal baseline (±0.5 VDC). Check the 3500 rack or equivalent monitor for alarm-free status. Log the replacement in the equipment maintenance record with the new cable serial number and installation date.

Step 5 — Functional test: Where possible, perform a slow-roll or bump test to confirm the vibration channel is responding correctly before returning the machine to service. This step is particularly important on critical machinery where a false-healthy reading could mask a developing fault.

This workflow is compatible with legacy 3300 XL installations and supports a like-for-like replacement strategy that preserves system calibration and avoids the need for re-commissioning the monitoring rack.

Spare Parts Support FAQ

Q: Is the 330130-075-00-05 compatible with both older 3300 and current 3300 XL proximity systems?
A: The 330130-075-00-05 is designed for the 3300 XL series. Compatibility with earlier 3300 (non-XL) installations depends on the specific probe and proximitor model in use. Contact KNMKS with your full system configuration for a compatibility confirmation before ordering.

Q: What is included in the support terms confirmed by quotation?
A: The support terms covers manufacturing defects, connector integrity, and electrical performance (continuity and insulation resistance). It does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental ratings. KNMKS provides a replacement or documented resolution support for any unit that fails within the confirmed support period.

Q: Can KNMKS supply the 330130-075-00-05 for emergency orders with short lead times?
A: Yes. KNMKS maintains stock of the 330130-075-00-05 and can dispatch on the same business day for orders confirmed before the daily cut-off. Express international freight options are available. Contact [email protected] or call +86 18359268345 to confirm availability and arrange urgent dispatch.

Q: How should the 330130-075-00-05 be stored as a long-term spare?
A: Store in the original packaging or an equivalent sealed bag in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Protect coaxial connectors with dust caps. Inspect annually for jacket cracking or connector oxidation. Properly stored units maintain full electrical performance for a minimum of five years.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-075-00-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-075-00-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
