Bently Nevada 330130-070-00-05 Maintenance-Proven Spare Part for Factory Uptime

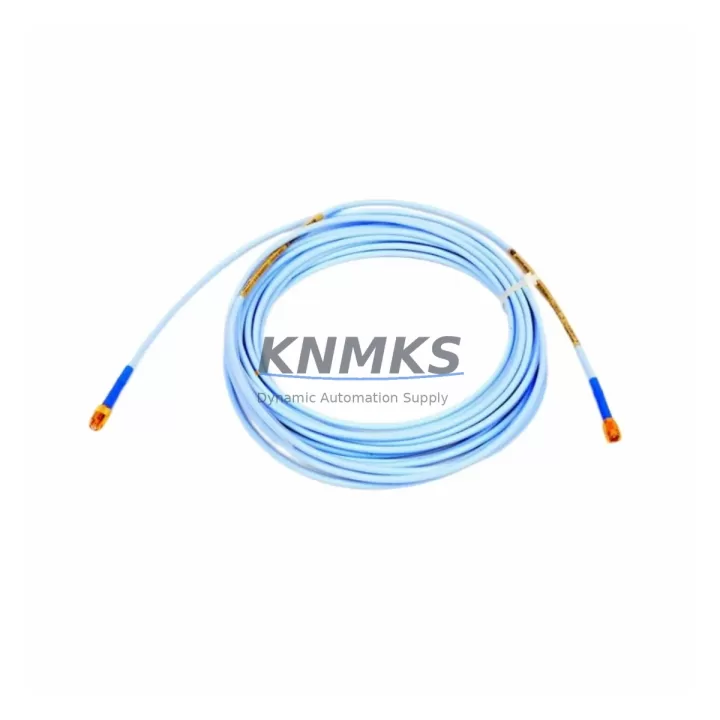

The Bently Nevada 330130-070-00-05 is a 5-metre proximity extension cable engineered for the 3300 XL Series condition monitoring platform — one of the most widely deployed vibration monitoring systems in rotating machinery protection worldwide. Designed to connect eddy-current proximity probes to signal conditioning modules, this cable is a critical link in the measurement chain for turbines, compressors, pumps, and gearboxes operating in continuous-process environments.

For maintenance engineers managing aging DCS or machinery protection systems, the 330130-070-00-05 is a direct, drop-in replacement for worn, damaged, or end-of-life extension cables in the field. Its shielded coaxial construction maintains signal integrity across the full operating temperature range, ensuring that gap voltage, vibration amplitude, and phase reference signals reach the 3300 XL Proximitor® Sensor and downstream monitoring modules without attenuation or noise injection.

Procurement engineers sourcing spare parts for long-term maintenance contracts will find this cable stocked and available for immediate dispatch. Each unit is tested prior to shipment and covered by a support terms confirmed by quotation, reducing the risk of unplanned downtime caused by cable degradation or connector failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-070-00-05 extension cable during a scheduled outage or emergency repair, maintenance teams should treat the replacement as part of a broader inspection of the complete proximity measurement loop. The extension cable is the mechanical and electrical bridge between the 330103-00-08-10-02-00 or similar 8mm proximity probe tip and the 330180-X1-05 Proximitor® sensor module mounted in the junction box or machinery protection panel.

Before installing the new cable, verify that the probe tip gap is within the linear range (typically 0.25 mm to 2.29 mm for 8mm probes) and that the 3300 XL Proximitor® Sensor output voltage reads within the calibrated window. A degraded extension cable can mask probe wear or Proximitor drift, so replacing the cable without re-gapping the probe may leave a latent fault in the measurement chain.

In the control cabinet, inspect the 3500/42M Proximitor®/Seismic Monitor or equivalent rack-mounted monitor card for any alarm or OK relay status changes after cable swap. If the system uses a 3500 Rack with a 3500/20 Rack Interface Module, confirm that the channel configuration in System 1 software still matches the new cable’s electrical length — some installations use software-compensated cable length settings that must be re-entered after hardware replacement.

For sites running Modbus RTU or Ethernet/IP communication from the 3500 rack to the DCS or SCADA, verify that the communication link remains active throughout the cable swap and that no spurious alarms are latched in the historian. If the plant uses a 3500/92 Communication Gateway, confirm that the gateway’s channel mapping is intact after the monitor card resets.

Procurement teams building annual spare parts kits for rotating machinery protection should consider stocking the 330130-070-00-05 alongside the matching probe assembly, a spare 330180 Proximitor® Sensor, and a set of 3500 rack power supply modules to cover the most common single-point failure modes in the measurement chain. Maintaining at least one spare cable per critical machine train significantly reduces mean time to repair (MTTR) during unplanned shutdowns.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a hot-work or cold-work permit as required by site safety procedures. Confirm that the machinery protection system is in bypass mode or that the affected channel is inhibited in the 3500 monitor to prevent spurious trips during cable removal.

Step 2 — Cable Removal: Disconnect the extension cable at both the probe connector and the Proximitor® sensor junction box. Inspect the connectors for corrosion, moisture ingress, or mechanical damage. If the junction box shows signs of water ingress, dry and reseal before installing the new cable.

Step 3 — New Cable Installation: Route the 330130-070-00-05 along the original cable path, maintaining the minimum bend radius and avoiding contact with hot surfaces or high-voltage conduits. Torque connectors to the manufacturer’s specification to ensure a gas-tight seal.

Step 4 — Gap Verification: With the new cable connected, measure the Proximitor® output voltage using a calibrated multimeter. Adjust the probe gap until the output falls within the calibrated linear range. Record the as-found and as-left gap voltage in the maintenance management system.

Step 5 — System Restore and Functional Test: Remove the channel inhibit or bypass in the 3500 monitor. Confirm that the OK relay is energised, that vibration readings are within normal operating range, and that no alarms are active. Verify communication to the DCS or SCADA is restored and that the historian is logging the channel correctly.

Step 6 — Documentation: Update the equipment history record with the replaced part number, installation date, as-left gap voltage, and technician sign-off. Replenish the spare parts inventory to maintain the minimum stock level.

Spare Parts Support FAQ

Q1: Is the 330130-070-00-05 compatible with both 3300 XL and earlier 3300 series proximity systems?
The 330130-070-00-05 is designed and specified for the 3300 XL series. While the connector format is physically similar to some earlier 3300 series cables, electrical performance and calibration parameters are optimised for the XL platform. For legacy 3300 (non-XL) installations, verify the Proximitor® model number before ordering to confirm compatibility.

Q2: How is each cable tested before shipment?
Every 330130-070-00-05 unit is inspected for connector integrity, shield continuity, and centre conductor resistance prior to dispatch. Units that fail any electrical parameter are quarantined and not shipped. A test record is available upon request for quality-critical installations.

Q3: What is the recommended stock quantity for a plant with multiple critical machine trains?
Industry best practice for SIL-rated or API 670-compliant machinery protection systems is to maintain a minimum of one spare extension cable per critical machine train, plus one additional unit as a floating spare. For plants with more than ten monitored machines, a dedicated spare parts kit covering the full measurement loop — probe, extension cable, and Proximitor® sensor — is recommended.

Q4: What support terms and long-term supply commitment is provided?
All units are covered by a support terms confirmed by quotation against manufacturing defects and electrical failure under normal operating conditions. Long-term supply agreements are available for customers requiring guaranteed stock allocation across multiple maintenance cycles. Contact our sales team to discuss volume pricing and reserved inventory arrangements.
