Bently Nevada 330130-070-00-00 Maintenance-Proven Spare Part

Overview

Bently Nevada 330130-070-00-00 Maintenance-Proven Spare Part for Factory Uptime

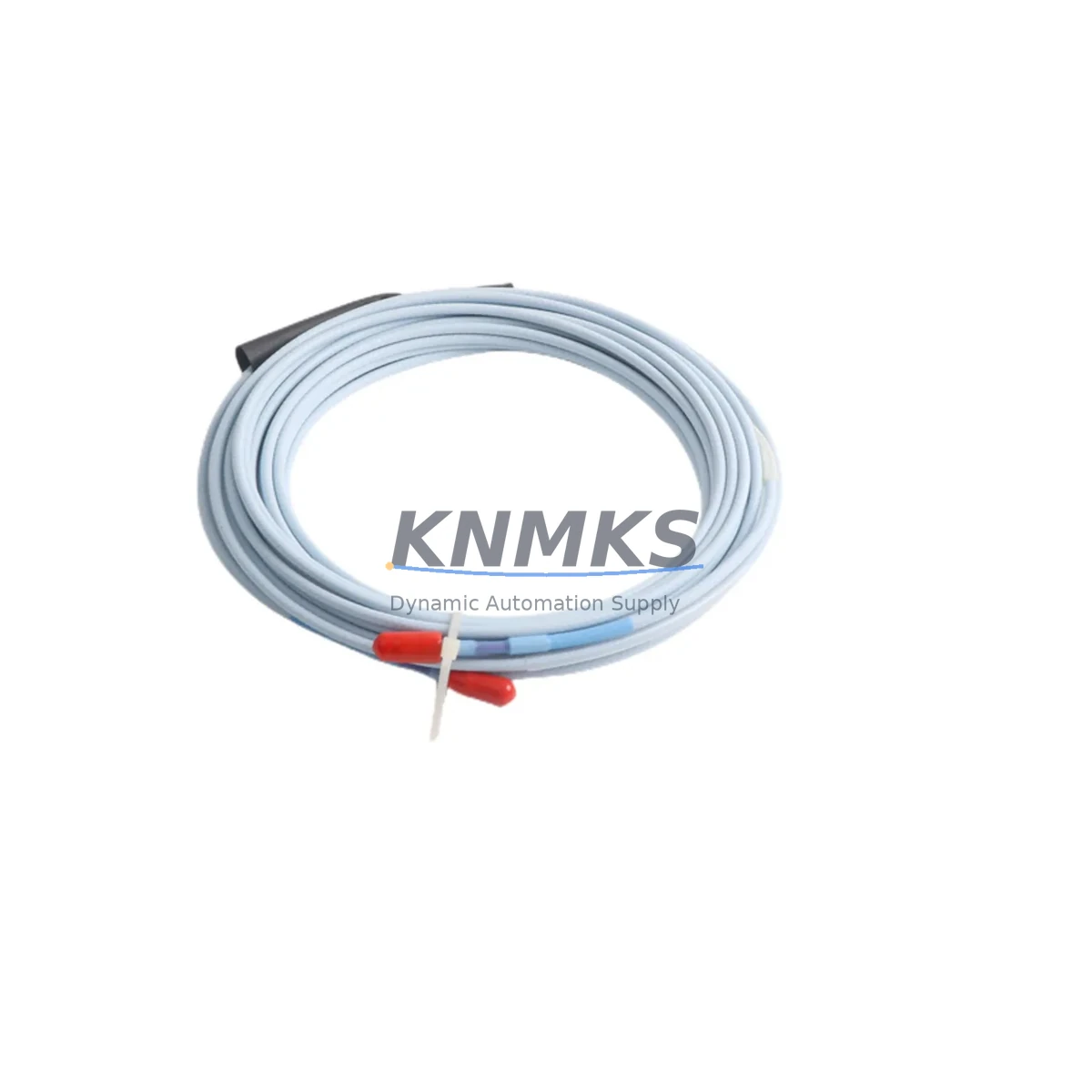

The Bently Nevada 330130-070-00-00 is a 7-metre extension cable engineered for the 3300 XL Series vibration and position monitoring system — one of the most widely deployed condition-monitoring platforms in rotating machinery applications worldwide. Designed to bridge the proximity probe and the Proximitor® sensor, this cable maintains signal integrity across the full measurement chain, ensuring accurate shaft displacement and vibration data reaches the monitor rack without attenuation or noise interference.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process plants, the 330130-070-00-00 is a critical link in the predictive maintenance loop. A degraded or failed extension cable is one of the most common root causes of spurious vibration trips and false high-vibration alarms — both of which translate directly into unplanned downtime and lost production. Stocking a verified original spare eliminates the diagnostic ambiguity that arises when cable condition is unknown, and allows rapid swap-out during a planned or emergency outage window.

This listing covers the SKU 330130-070-00-00, which specifies the 7.0 m (23 ft) cable length variant within the 330130 extension cable family. Procurement engineers should confirm the cable length code against the installed Proximitor® sensor gap voltage specification and the physical probe-to-monitor distance before ordering. Mismatched cable lengths alter the total system capacitance and will shift the calibrated output voltage, potentially causing measurement errors or system faults on the 3300 XL monitor.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-070-00-00 extension cable is scheduled for replacement — whether during a planned turnaround or an emergency callout — experienced maintenance teams treat the cable swap as an opportunity to audit the entire proximity measurement loop. The extension cable does not operate in isolation: its performance depends on the condition of every upstream and downstream component in the signal chain.

Begin with the proximity probe itself (typically a 330100 or 330105 series 8 mm probe). Check the probe tip for mechanical damage, pitting from shaft contact, or chemical attack from process fluids. A probe with a damaged tip will produce erratic gap voltage even with a new extension cable installed. Next, inspect the Proximitor® sensor — commonly a 330180 or 330185 — for moisture ingress, connector corrosion, and secure mounting. The Proximitor® converts the oscillator signal into a DC voltage proportional to gap distance; any degradation here will corrupt the measurement regardless of cable quality.

At the monitor rack, verify the 3300 XL monitor module input channel: check the barrier terminal connections, confirm the –24 VDC bias supply voltage is within specification, and review the channel’s OK relay status. If the plant uses a 3300/16 or 3300/20 rack, inspect the backplane connectors and the rack power supply module for signs of overheating or loose terminations. A failing rack power supply can introduce noise across multiple channels simultaneously, mimicking cable faults.

For plants running System 1 condition monitoring software, cross-reference the historical trend data for the affected channel before and after the cable replacement to confirm the repair has restored baseline gap voltage and vibration amplitude. If the channel was previously masked or bypassed due to a suspected cable fault, re-enable it and validate the OK status before returning the machine to service.

Procurement engineers building annual spare parts budgets should consider stocking at least one extension cable per critical machine train, alongside matched probe and Proximitor® sensor sets. Sourcing these components together — rather than individually as failures occur — reduces lead-time risk and ensures system-level compatibility. KNMKS maintains inventory of the full 330130 cable family across multiple length variants, supporting both planned procurement and emergency same-day dispatch requirements.

Site Replacement Workflow

Step 1 — Isolate and document. Before disconnecting the existing cable, record the current gap voltage on the affected channel from the 3300 XL monitor display or System 1 software. This baseline value is essential for post-installation verification. Tag the machine and follow site LOTO (Lockout/Tagout) procedures if required by plant safety rules.

Step 2 — Disconnect and inspect connectors. Unscrew the coaxial connectors at both the probe end and the Proximitor® sensor end. Inspect the connector pins and sockets for corrosion, bent pins, or contamination. Clean with isopropyl alcohol if necessary. Do not use abrasive tools on the connector contacts.

Step 3 — Route and connect the new 330130-070-00-00. Route the replacement cable following the original cable path, avoiding sharp bends, pinch points, and proximity to high-voltage conductors or variable-frequency drive (VFD) output cables. Secure with cable ties or conduit as per the original installation. Hand-tighten coaxial connectors — do not over-torque.

Step 4 — Power up and verify gap voltage. Restore the –24 VDC supply to the Proximitor® sensor and allow 30 seconds for the oscillator to stabilise. Read the gap voltage on the monitor channel and compare against the documented baseline. Acceptable deviation is typically ±0.5 V; larger deviations indicate a probe gap adjustment is required or that the probe or Proximitor® sensor also needs replacement.

Step 5 — Confirm OK relay and alarm status. Verify the channel OK relay has picked up and that no latched alarms remain active. Reset any latched alarms per the 3300 XL monitor operating procedure. Document the completed replacement in the plant maintenance management system (CMMS) and update the spare parts inventory record.

This five-step workflow is applicable whether the 330130-070-00-00 is replacing a like-for-like failed cable or substituting an older 330130 variant from a previous system revision. The 3300 XL system’s backward-compatible design means the replacement process does not require monitor reconfiguration in most standard installations.

Spare Parts Support FAQ

Q1: How long is the support terms on the 330130-070-00-00, and what does it cover?
All 330130-070-00-00 extension cables supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, connector integrity, and electrical performance under normal operating conditions. Each unit is tested for continuity and insulation resistance before dispatch. Support requests are supported by our technical team at [email protected].

Q2: Can the 330130-070-00-00 be used with proximity probes from other manufacturers?
The 330130-070-00-00 is designed and calibrated specifically for use within the Bently Nevada 3300 XL eddy-current measurement system. Using it with probes or Proximitor® sensors from other manufacturers will alter the system’s calibrated sensitivity (typically 7.87 V/mm or 200 mV/mil) and may produce inaccurate measurements or system faults. For cross-manufacturer compatibility questions, contact our engineering support team before ordering.

Q3: What is the recommended inventory strategy for this cable in a multi-machine plant?
For plants with three or more critical machine trains monitored by the 3300 XL system, we recommend maintaining a minimum of two 330130-070-00-00 cables in the on-site spare parts store, alongside at least one matched probe and one Proximitor® sensor per machine type. This buffer supports both planned annual outage replacements and unplanned emergency swaps without waiting for international shipping. KNMKS offers volume pricing for multi-unit procurement — contact [email protected] for a quotation.

Q4: How do I confirm the correct cable length variant before ordering?
The 330130 part number family uses a length code in the third segment of the SKU: 070 in 330130-070-00-00 denotes 7.0 metres. Measure the physical distance from the probe connector to the Proximitor® sensor connector along the installed cable route, adding allowance for routing bends. Cross-reference with the Bently Nevada system drawing or the existing cable label. If the installed cable length is unclear, KNMKS technical support can assist with identification based on your system drawing or a photograph of the existing installation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-070-00-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-070-00-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
