Bently Nevada 330130-070-00-0 Migration-Ready Extension Cable

Overview

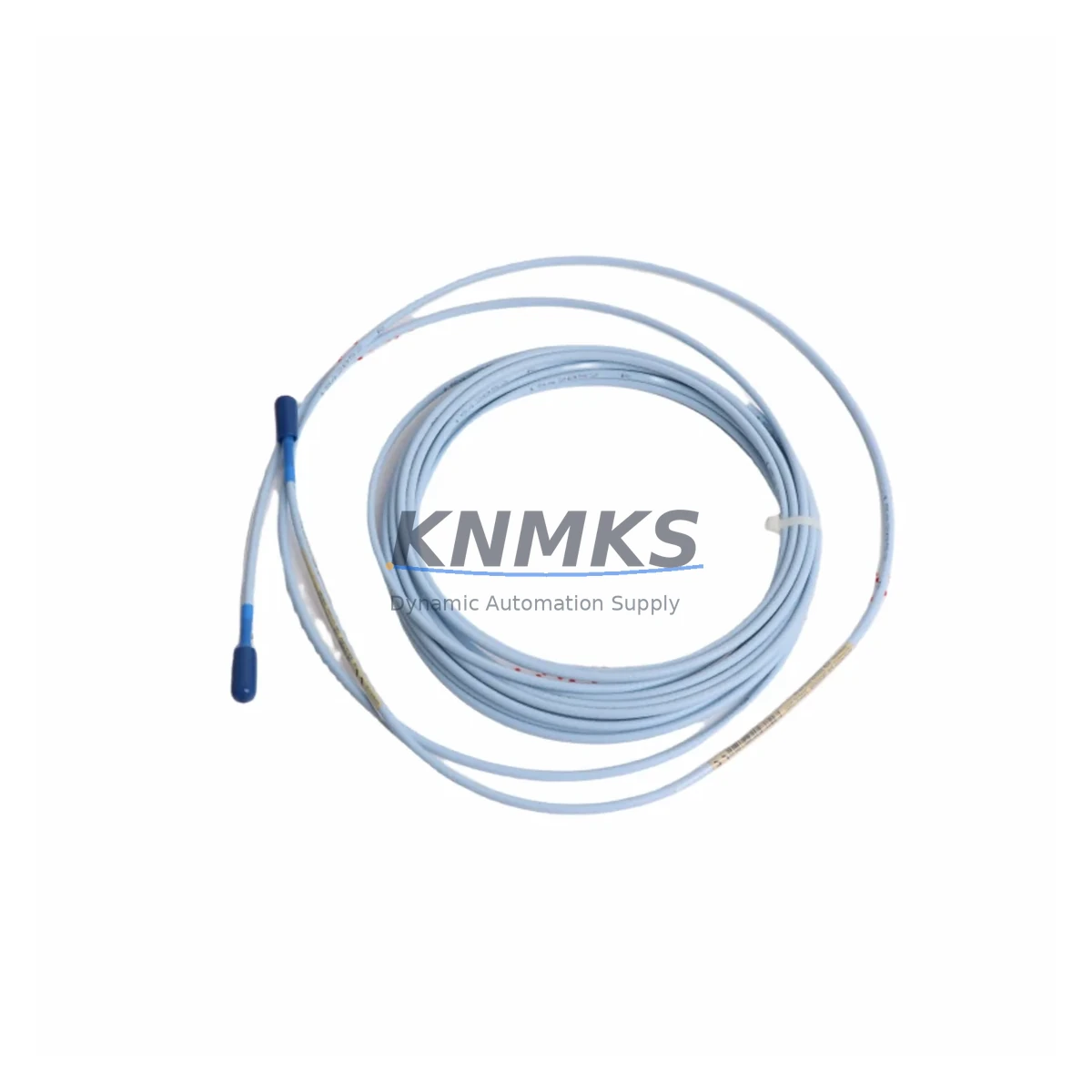

Bently Nevada 330130-070-00-0 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-070-00-0 is a 7-metre (22.9 ft) coaxial extension cable engineered for the 3300 XL proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery applications across power generation, oil & gas, petrochemical, and heavy industrial sectors. As legacy 3300 XL installations approach end-of-support milestones, this cable serves as a critical migration-ready spare that enables drop-in replacement without rewiring the transducer loop or modifying the monitor rack.

For facilities executing a phased migration from older Bently Nevada 7200 or 3300/20 series monitors to the current 3500 series rack architecture, the 330130-070-00-0 extension cable maintains signal integrity across the transducer-to-monitor chain during the transition period. Its standardized TNC connector interface and 7.9 Ω/m nominal impedance are fully compatible with the 330180 series proximity transducers and the 3300 XL 8mm and 11mm probe assemblies, allowing engineering teams to preserve existing probe installations while upgrading the monitor and I/O modules in the control cabinet.

When planning a retrofit around this extension cable, field engineers must verify several key parameters before committing to a replacement. The driver/extension cable combination must be matched to the correct gap voltage range — typically −10 VDC to −18 VDC for standard 3300 XL configurations — and the total cable system length (probe + extension) must not exceed the rated system length for the selected transducer. Confirm that the existing Bently Nevada 3300/16 or 3300/55 monitor cards accept the signal conditioning output from the 330130 driver before finalizing the cable swap. If the site is migrating to a 3500/42M or 3500/45 position monitor, verify that the new I/O module’s input impedance and bias voltage specifications align with the 330130-070-00-0 system output.

Terminal wiring at the junction box or marshalling cabinet should be inspected during replacement. The 330130-070-00-0 uses a standard coaxial-to-terminal block interface; confirm shield grounding practice matches the site’s existing EMC strategy to avoid introducing ground loops that could corrupt vibration readings on adjacent channels. Where the control cabinet also houses a Bently Nevada 3500/20 rack power supply or a 3500/15 or 3500/05 rack interface module, ensure that the cable routing maintains adequate separation from high-voltage conductors to preserve signal quality.

For sites running Bently Nevada System 1 condition monitoring software, no software reconfiguration is required when replacing a like-for-like 330130-070-00-0 cable, as the monitor channel parameters — gap, direct, 1X, 2X — remain unchanged. However, if the replacement is part of a broader migration that includes swapping the 3300 XL monitor card for a 3500 series equivalent, a full channel configuration download and gap voltage verification at the new monitor’s front-panel display or via System 1 is mandatory before returning the machine to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 330130-070-00-0 extension cable typically involves coordinating several interdependent components within the same control cabinet or monitor rack. In a standard 3300 XL rack, the extension cable connects the field-mounted proximity probe to the 330180 series driver, which in turn feeds the 3300/16 or 3300/55 vibration monitor card. When the monitor card is being upgraded to a 3500/42M position monitor as part of a broader 3500 series migration, the rack backplane and power supply module — often a 3500/15 rack interface module paired with a 3500/20 power supply — must also be confirmed as compatible with the new card’s slot and communication requirements.

For facilities that have already migrated the monitor rack but retained legacy field wiring, the 330130-070-00-0 provides a cost-effective bridge that avoids disturbing the probe installation at the machine bearing housing — a particularly valuable characteristic during planned outages where access time is limited. Engineering teams should also account for the condition of the 330130 driver unit: if the driver is original to the legacy installation, replacing it alongside the extension cable with a current-production 330180 driver ensures the full transducer system is renewed and eliminates a latent failure point.

Where the control system also includes a Bently Nevada 3500/22M transient data interface or a 3500/92 communication gateway, confirm that the channel mapping and Modbus or Ethernet/IP tag assignments are preserved after the cable swap, particularly if the site’s DCS or historian — such as a Honeywell Experion PKS or an ABB 800xA system — is polling vibration data from the 3500 rack in real time. A brief channel inhibit in System 1 during the physical cable replacement prevents nuisance alarms from propagating to the control room during the swap.

Downtime Control During System Migration

Replacing the 330130-070-00-0 extension cable is typically a low-risk, short-duration task when executed with proper preparation. The physical swap — disconnecting the TNC connectors at the driver and probe, routing the new cable, and reconnecting — can be completed within a standard maintenance window of 30 to 60 minutes per channel, provided the replacement cable is pre-staged and the junction box is accessible without scaffolding or confined-space entry.

To protect the original program logic and control continuity, inhibit the affected monitor channel in Bently Nevada System 1 or at the 3500 rack keyswitch before disconnecting the cable. This prevents the monitor from generating a danger or alert output that could trigger an automatic shutdown of the machine train. If the site’s safety instrumented system (SIS) is integrated with the vibration monitor outputs, coordinate the inhibit with the SIS engineer and document the bypass in the site’s management of change (MOC) procedure.

After reconnection, perform a gap voltage check at the monitor’s front-panel display or via System 1 to confirm the new cable is correctly seated and the transducer system is operating within the specified linear range. Compare the gap voltage reading against the pre-replacement baseline recorded in the site’s condition monitoring database. If the gap voltage is outside the expected range, inspect the TNC connector seating, verify cable length compatibility, and check for any mechanical change at the probe installation point before returning the channel to service. Once the gap voltage is confirmed, remove the channel inhibit and verify that 1X and 2X vibration readings are consistent with the machine’s normal operating signature before closing the work order.

Retrofit Support FAQ

Q1: Is the 330130-070-00-0 a direct drop-in replacement for the original Bently Nevada cable?
Yes. The 330130-070-00-0 is a current-production replacement for the same part number used in 3300 XL proximity transducer systems. No wiring modifications are required for a like-for-like swap. If you are migrating to a 3500 series monitor card at the same time, additional configuration steps at the monitor are required — contact our technical team for a migration checklist.

Q2: What pre-shipment testing is performed on each unit?
Every 330130-070-00-0 unit is tested for cable continuity, coaxial impedance, and TNC connector integrity before dispatch. A test certificate is available on request. Units are shipped in anti-static packaging with connector caps to protect the mating surfaces during transit.

Q3: Do you hold stock for emergency replacement orders?
Yes. We maintain multi-region inventory of the 330130-070-00-0 to support both emergency replacements and scheduled outage kitting. Same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off. Contact [email protected] or +86 18359268345 to confirm current stock and lead time for your region.

Q4: What is the support terms coverage?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects in materials and workmanship. In the event of a support terms claim, we will dispatch a replacement unit to minimise your downtime. Support requests are processed through [email protected] with proof of purchase and a description of the fault.
