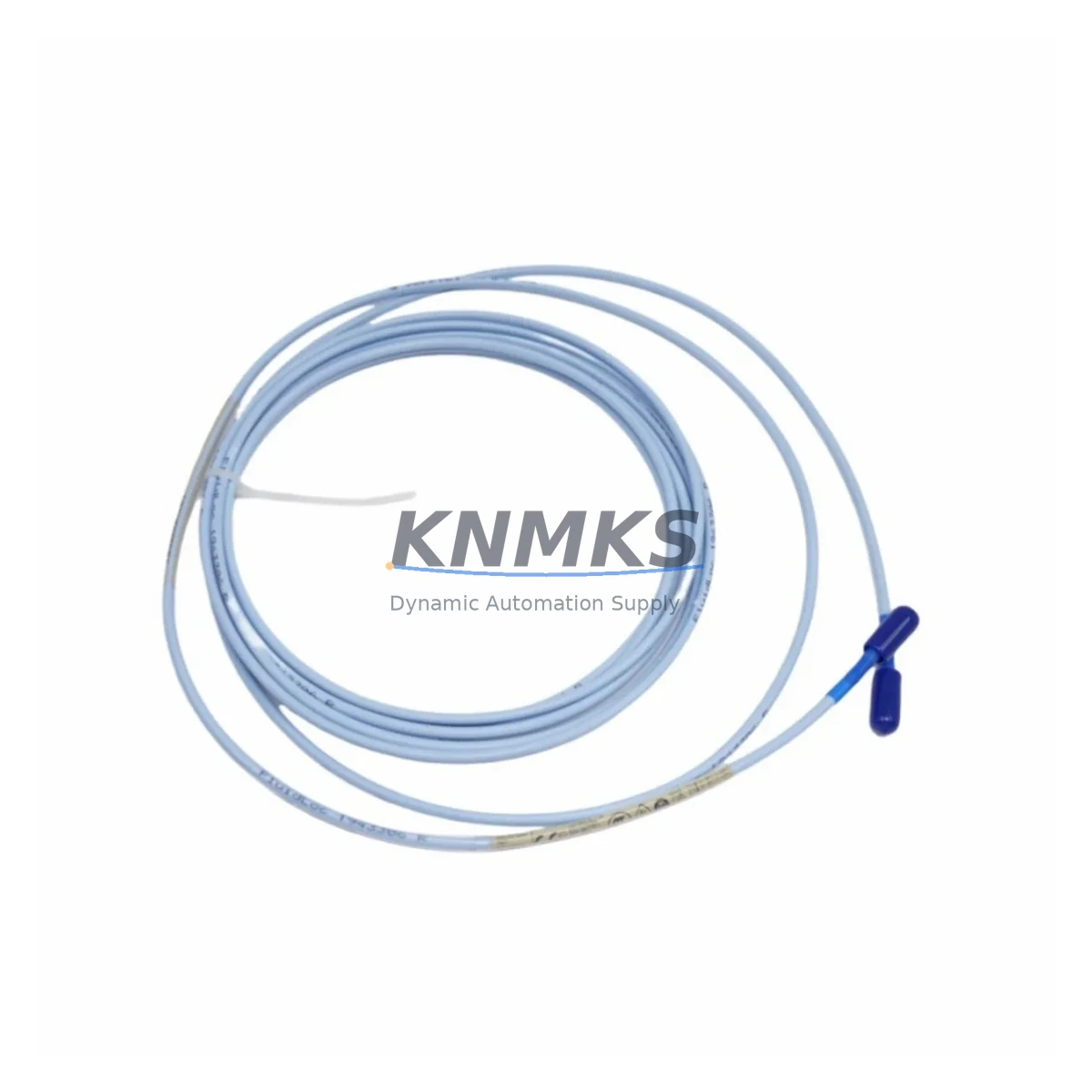

Bently Nevada 330130-060-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330130-060-02-05 Fail-Safe Proximity Transducer: Fault-Protected Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330130-060-02-05 is a high-precision eddy-current proximity transducer from the renowned 3300 XL Series, engineered specifically for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery, critical control loops, and safety-instrumented systems, this transducer is a cornerstone component for any facility where unplanned downtime carries severe operational, financial, or safety consequences.

With a 5-metre (16.4 ft) armored extension cable and a 25 mm probe tip diameter, the 330130-060-02-05 is optimized for shaft radial vibration, axial position, and differential expansion measurement on turbines, compressors, pumps, and large rotating equipment. Its eddy-current sensing principle ensures non-contact, wear-free operation — eliminating mechanical degradation as a failure mode and guaranteeing long-term measurement stability even under continuous 24/7 duty cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection system, the Bently Nevada 330130-060-02-05 proximity transducer does not operate in isolation — it is the field-sensing front end of a tightly integrated protection architecture. The transducer connects directly to a Bently Nevada 330180-X1-05 Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the monitoring system. This signal is then fed into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module, which performs real-time alarm and danger threshold evaluation, triggering protective relay outputs when vibration or position exceeds safe limits.

Within the control cabinet, signal integrity is protected by routing transducer cables away from high-voltage conductors and through dedicated cable trays. Where EMI exposure is unavoidable — such as in variable frequency drive (VFD) environments or near large motor starters — the armored construction of the 330130-060-02-05 extension cable provides a critical first line of defense against induced noise and signal drift. For additional power quality protection, the 24 VDC supply rail feeding the Proximitor® sensors should be backed by a Phoenix Contact QUINT-PS or equivalent DIN-rail power supply with integrated surge protection, ensuring that voltage transients from switching loads or lightning events do not corrupt sensor bias voltage and produce false vibration readings.

In facilities where the machinery protection system interfaces with a DCS or safety PLC, the relay outputs from the 3500 Series rack are typically wired through Pepperl+Fuchs or MTL Instruments safety barriers or galvanic isolators, preventing ground loops and ensuring that hazardous area installations remain intrinsically safe. For complete loop integrity, the system should also include a Bently Nevada 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet/IP communication, enabling real-time vibration data to be transmitted to the plant historian or condition monitoring platform without interrupting the protective relay logic.

Critical Industrial Safety Applications

The Bently Nevada 330130-060-02-05 is deployed across the full spectrum of heavy industry wherever rotating machinery reliability is non-negotiable:

Petrochemical & Refining: In crude distillation units, catalytic crackers, and compressor trains, this transducer monitors shaft radial vibration on centrifugal compressors and steam turbines. Early detection of rotor imbalance, bearing wear, or oil whirl prevents catastrophic failures that could trigger fire, explosion, or toxic release events. Integration with the plant’s Safety Instrumented System (SIS) allows automatic machine trip before damage propagates.

Power Generation: Steam and gas turbine generators in thermal power plants rely on proximity transducers for continuous shaft position monitoring. The 330130-060-02-05 provides the axial position data required to detect thrust bearing degradation — one of the leading causes of catastrophic turbine failure — giving operators the advance warning needed to execute a controlled shutdown rather than an emergency trip.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high ambient vibration, and wide temperature swings. The IP67-rated, armored construction of this transducer ensures reliable signal output even when the surrounding environment is hostile to conventional instrumentation.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities must operate continuously with minimal maintenance intervention. Proximity-based vibration monitoring enables condition-based maintenance scheduling, reducing both unplanned outages and unnecessary preventive maintenance costs.

Metallurgy & Steel: Rolling mill drives, continuous casters, and large induction furnace cooling pumps present severe EMI environments. The shielded, armored design of the 330130-060-02-05 maintains measurement accuracy even in the presence of high-frequency electrical noise from thyristor drives and induction heating systems.

Port & Marine: Ship propulsion systems, bow thrusters, and large crane drives benefit from non-contact vibration monitoring that can withstand the salt-laden, high-humidity marine environment. The wide operating temperature range and robust mechanical construction make this transducer suitable for both engine room and exposed deck installations.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the Bently Nevada 330130-060-02-05?
All units supplied by KNMKS carry a 12-month functional support terms from the date of shipment. If the unit fails to perform to Bently Nevada factory specifications within the confirmed support period under normal operating conditions, KNMKS will provide a replacement or documented resolution support. Support requests are processed within 5 business days.

Q2: How is each unit tested before shipment?
Every 330130-060-02-05 unit undergoes pre-shipment functional verification, including output voltage linearity check across the full measurement range, cable continuity and insulation resistance testing, and visual inspection for connector integrity and cable armor condition. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL systems?
Yes. The 330130-060-02-05 is a direct, drop-in compatible replacement for all Bently Nevada 3300 XL Series proximity transducer systems using 25 mm probes with 5-metre extension cables. It is fully compatible with the 330180 Proximitor® Sensor and all 3500 Series rack monitors. No recalibration of the monitoring system is required when replacing a like-for-like unit.

Q4: Can KNMKS support long-term or repeat supply requirements?
KNMKS maintains dedicated stock of Bently Nevada 3300 XL Series components to support both emergency replacement and planned maintenance programs. We can accommodate blanket purchase orders, scheduled delivery programs, and urgent same-day dispatch for critical plant shutdowns. Contact our technical sales team to discuss your site’s specific inventory and supply continuity requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-060-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-060-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
