Bently Nevada 330130-045-13-CN Migration-Ready Extension Cable

Overview

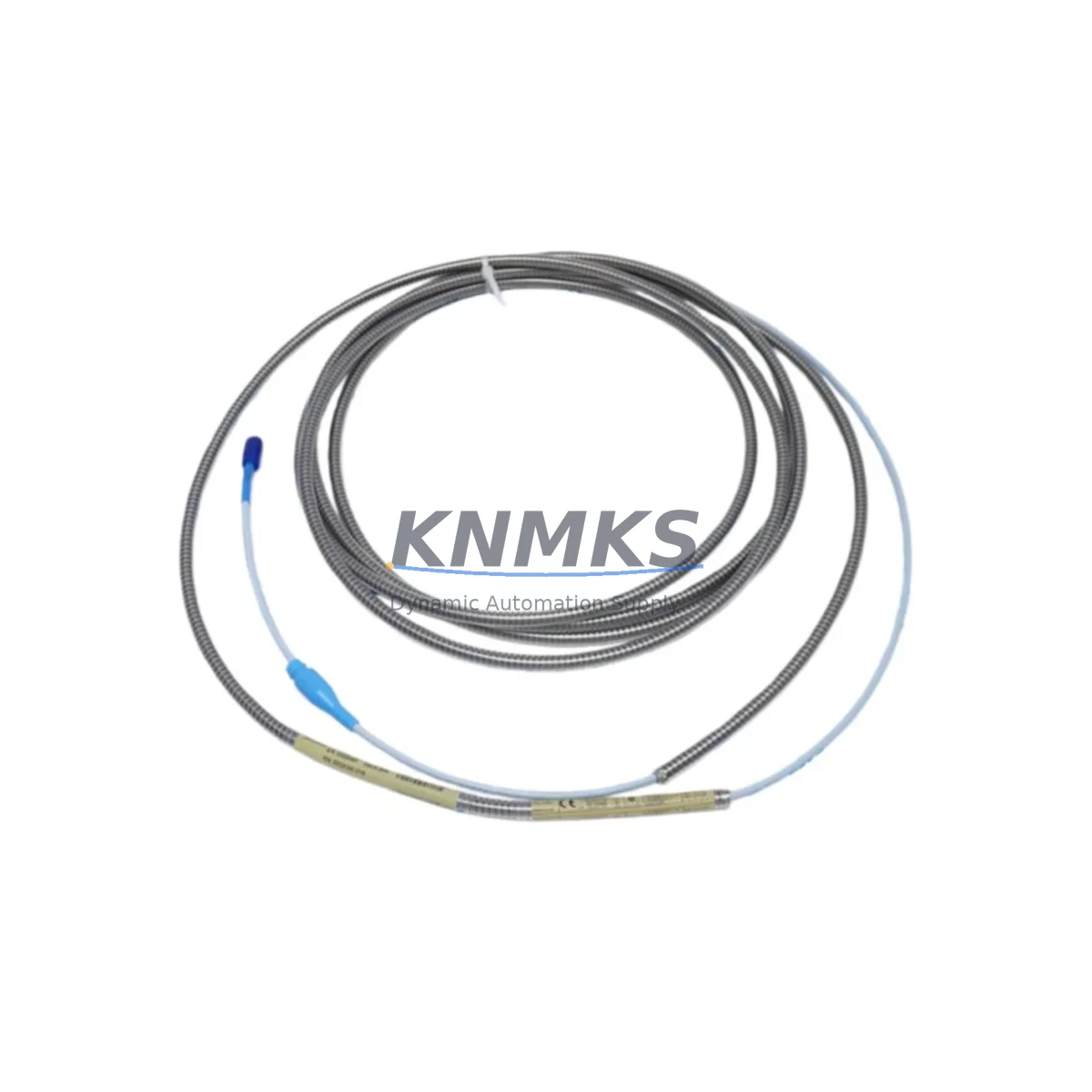

Bently Nevada 330130-045-13-CN Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-045-13-CN is a migration-ready proximity extension cable engineered for direct replacement and retrofit integration within legacy vibration monitoring and machinery protection systems. Designed to interface with the Bently Nevada 3300 XL series monitoring platform, this cable maintains full signal integrity across the transducer-to-monitor signal chain, making it the preferred choice for engineers managing planned or emergency replacement of discontinued proximity system components.

As industrial facilities extend the operational life of their rotating machinery protection infrastructure, the 330130-045-13-CN serves as a critical link between field-mounted proximity probes and rack-mounted monitor modules. Its standardized connector geometry, shielded cable construction, and verified impedance characteristics ensure that substitution does not introduce signal distortion, ground loops, or calibration drift — all of which are common failure modes when non-OEM cables are used in high-sensitivity vibration measurement loops.

This extension cable is stocked and available for immediate dispatch, with each unit subject to pre-shipment continuity and insulation resistance testing. A support terms confirmed by quotation is included as standard, covering manufacturing defects and connector integrity under normal industrial operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330130-045-13-CN into an existing machinery protection system requires a structured pre-replacement assessment. Engineers should begin by confirming the rack configuration of the installed Bently Nevada 3300 XL system, including the monitor module type, I/O terminal block wiring, and the driver/oscillator module variant — typically the 3300 XL 8mm Proximity Transducer System driver. Misidentification of the driver module is one of the most common causes of post-replacement calibration failure.

Terminal block wiring should be documented before disconnection. The extension cable carries a three-conductor coaxial signal (center conductor, shield, and drain wire), and polarity or shield continuity errors at the terminal block will result in erroneous gap voltage readings or complete signal loss. Where the existing installation uses a 3300 XL I/O Module for signal conditioning or channel isolation, verify that the module’s input impedance specification is compatible with the cable’s characteristic impedance before proceeding.

For systems where the proximity monitoring loop feeds into a Bently Nevada 3500 series rack — a common upgrade path from legacy 3300 XL installations — the 330130-045-13-CN can serve as an interim cable solution while the monitor rack is being migrated. In this scenario, the cable’s signal output is routed through a 3500/42M Proximitor / Seismic Monitor input channel, and the gap voltage setpoints must be re-entered to match the new monitor’s engineering unit scaling.

Where control cabinet space is constrained, particularly in older installations where the 3300 XL rack occupies a full 19-inch panel bay, confirm that the replacement cable’s routing path does not conflict with adjacent power supply modules or communication backplane connectors. If the facility is simultaneously upgrading its HMI layer — for example, migrating from a legacy Wonderware InTouch station to a modern SCADA platform — ensure that the vibration data tags mapped from the 3300 XL monitor are preserved in the new historian configuration before the cable swap is performed.

For sites running a Keyphasor module in the same rack, verify that the Keyphasor signal cable routing is not disturbed during the extension cable replacement, as phase reference loss will invalidate all synchronous vibration measurements until the Keyphasor signal is restored and verified.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity cable replacement requires a pre-approved maintenance window, a documented rollback procedure, and a verified spare parts inventory before work begins. The 330130-045-13-CN is a passive component with no firmware dependencies, which significantly reduces the risk profile compared to active module replacements such as monitor cards or communication processors.

Prior to disconnecting the existing cable, record the current gap voltage reading from the 3300 XL monitor display or from the System 1 software historian. This baseline value serves as the primary acceptance criterion after the new cable is installed. If the post-installation gap voltage deviates by more than ±0.5 VDC from the baseline, the probe-to-target gap must be re-adjusted before the machine is returned to service.

To protect original program logic and alarm configuration, do not modify any monitor module parameters during the cable replacement. All alarm setpoints, danger limits, and OK relay configurations stored in the 3300 XL monitor are retained in non-volatile memory and will not be affected by a cable swap. However, if the replacement is being performed as part of a broader system migration — for example, transitioning from a 3300 XL rack to a 3500 series rack — a full configuration export from the existing system should be completed and archived before any hardware is disturbed.

Field continuity testing of the 330130-045-13-CN using a calibrated LCR meter or cable tester should be completed before installation to confirm that the unit shipped matches the pre-shipment test certificate. This step eliminates the risk of installing a cable with a latent connector defect, which would otherwise only be detected after the machine is returned to service — at the cost of a second maintenance window.

Retrofit Support FAQ

Q1: Is the 330130-045-13-CN a direct replacement for the original Bently Nevada part?
Yes. The 330130-045-13-CN is manufactured to the original Bently Nevada dimensional and electrical specification. It is a direct drop-in replacement for the OEM part of the same SKU, requiring no modification to the existing probe, driver module, or monitor card. Post-installation gap voltage calibration per the 3300 XL commissioning procedure is recommended as standard practice.

Q2: What wiring checks should be performed before and after installation?
Before disconnecting the existing cable, photograph or document the terminal block wiring at both the probe junction box and the monitor rack I/O terminal. After installing the 330130-045-13-CN, verify shield continuity from end to end using a multimeter before powering the monitor. Confirm that the center conductor, shield, and drain wire are terminated to the correct pins as specified in the 3300 XL wiring diagram for your monitor card type.

Q3: How is compatibility with the 3300 XL system verified before shipment?
Each 330130-045-13-CN unit undergoes pre-shipment continuity testing, insulation resistance measurement, and connector integrity inspection. Test records are available upon request. The cable is verified to meet the electrical characteristics required for use with the Bently Nevada 3300 XL 8mm proximity transducer system, including the driver/oscillator module and associated monitor card input specifications.

Q4: What is the support terms coverage and what does it include?
A support terms confirmed by quotation is provided from the date of shipment. The support terms covers manufacturing defects in the cable assembly, connector terminations, and shielding integrity under normal industrial service conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental ratings. Support requests are processed directly through KNMKS with replacement or refund at our discretion.
