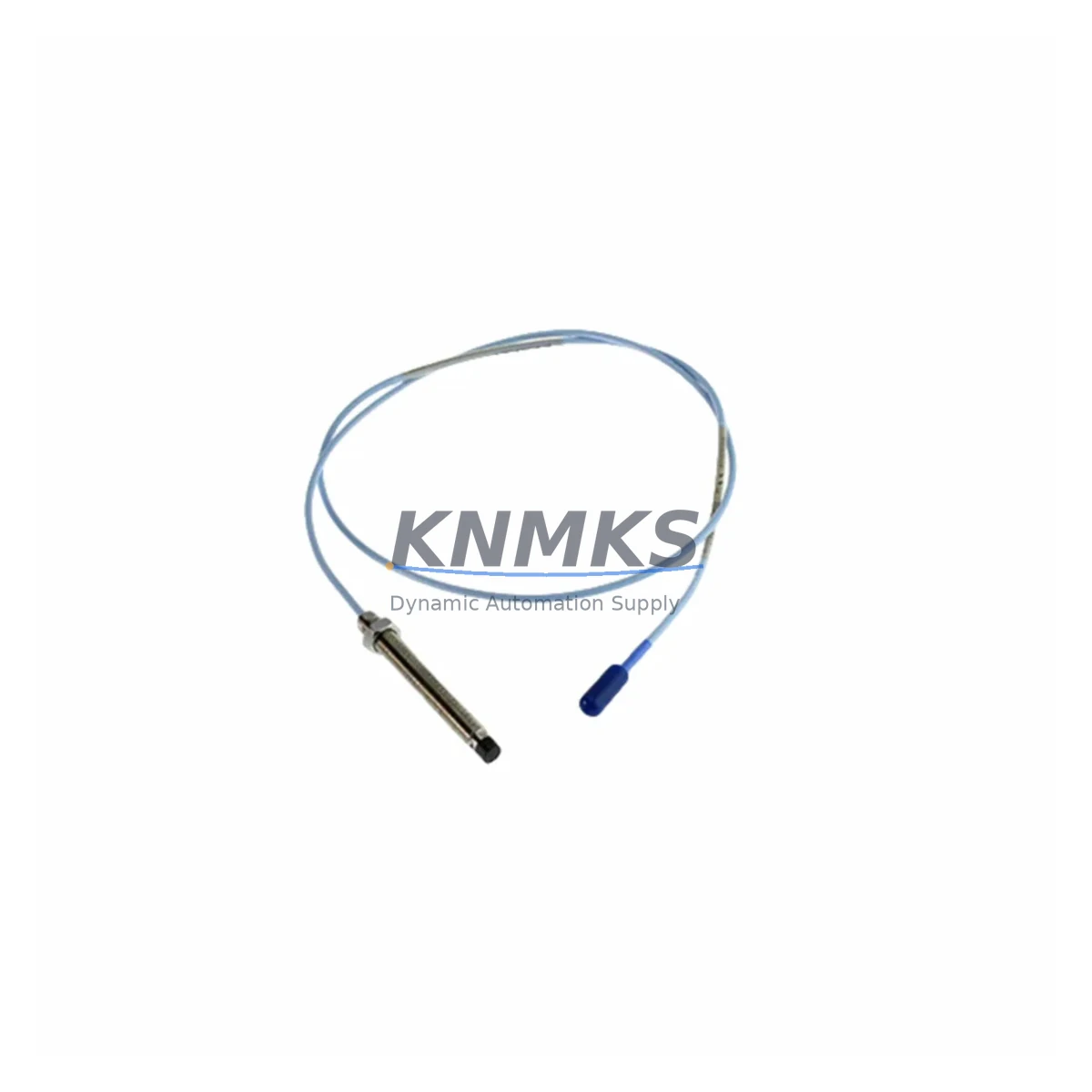

Bently Nevada 330130-045-12-00 Migration-Ready Extension Cable

Overview

Bently Nevada 330130-045-12-00 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-045-12-00 is a 45-foot (approximately 13.7 m) armored extension cable engineered for the 3300 XL proximity transducer system. As legacy vibration monitoring infrastructure reaches end-of-support, this cable serves as a direct, migration-ready replacement for aging field wiring in turbine, compressor, and rotating machinery protection systems. Whether you are executing a scheduled outage retrofit, an emergency spare replacement, or a phased control system modernization, the 330130-045-12-00 is pre-tested, stocked, and ready for fast global dispatch.

This extension cable is designed to bridge the gap between the proximity probe and the Bently Nevada 3300 XL proximitor/driver, maintaining the signal integrity required for accurate radial vibration, axial position, and differential expansion measurements. Its armored construction provides mechanical protection in harsh industrial environments including high-temperature turbine halls, offshore platforms, and petrochemical process areas.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330130-045-12-00 extension cable, engineers must account for the full signal chain from probe tip to the monitoring rack. In a typical 3300 XL installation, the proximity probe (such as the 330101-00-06-10-02-00) connects via this extension cable to a 330180 or 330185 proximitor/driver, which in turn feeds the 3500/42M Proximitor/Seismic Monitor module housed in a 3500 rack. Each element in this chain must be verified for compatibility before the retrofit is approved for execution.

Cable routing is a frequent source of delay during outage retrofits. Before ordering, confirm the conduit path length, the number of junction boxes, and whether existing conduit fill ratios allow for the new armored cable. In many legacy installations, the original cable was routed through shared conduit with power wiring — a practice that can introduce noise into the eddy-current signal. Rerouting through dedicated instrument conduit is strongly recommended during any modernization project.

Terminal block compatibility must also be confirmed. The 330130-045-12-00 terminates at the proximitor end using the standard 3300 XL connector format. If the proximitor housing has been replaced or upgraded to a newer 3500-series driver, verify that the connector pinout and impedance matching remain within specification. In some migration scenarios, a signal conditioner or impedance adapter may be required between the extension cable and the new driver module.

For systems being migrated from older Bently Nevada 7200 series or 3300 non-XL platforms, the extension cable length and connector type may differ. In these cases, the 330130-045-12-00 should be evaluated alongside the target proximitor datasheet to confirm total system sensitivity (mV/mil) and gap range remain within the alarm setpoint calibration. Recalibration of the 3500/42M monitor channel is typically required after any cable substitution.

Power supply integrity is another critical checkpoint. The proximitor/driver draws its operating power from the 3500 rack’s internal power supply — typically a 3500/15 Power Supply module. Confirm that the rack power budget accommodates all installed I/O modules, including any newly added 3500/42M channels, before completing the retrofit design. Overloaded rack power supplies are a common root cause of intermittent vibration signal faults in post-retrofit commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver behind stocking migration-ready spares such as the 330130-045-12-00. For planned outage replacements, the recommended approach is to pre-stage the replacement cable, verify connector integrity, and perform a bench-level continuity and insulation resistance test before the maintenance window opens. This eliminates the risk of discovering a defective spare during a live outage — a scenario that can extend downtime by hours or days when the next available unit is weeks away from a standard distributor.

During the replacement window, the original program logic in the 3500 rack does not require modification for a like-for-like cable swap. However, if the proximitor/driver is also being replaced as part of the same outage, the gap voltage must be re-established at the new proximitor output before the protection system is returned to service. Document the as-found and as-left gap voltage readings for each channel to support post-outage audit requirements.

For facilities operating under continuous process constraints — such as baseload power generation or offshore production platforms — a hot-standby spare strategy is advisable. Maintaining one 330130-045-12-00 per critical machine train in the site spare parts inventory ensures that a cable failure can be addressed within a single shift without waiting for international freight. Our multi-region stock model supports fast dispatch to Asia-Pacific, Middle East, Europe, and the Americas, with pre-shipment testing completed on every unit before release.

All units are shipped with a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and signal performance within the published 3300 XL system specification. Pre-shipment testing includes continuity verification, insulation resistance measurement, and connector integrity inspection to ensure the cable arrives ready for immediate installation.

Retrofit Support FAQ

Q1: Is the 330130-045-12-00 a direct replacement for the original Bently Nevada part?
Yes. The 330130-045-12-00 is a direct, like-for-like replacement for the original Bently Nevada factory part of the same SKU. It is compatible with the 3300 XL proximity transducer system and requires no modification to the existing proximitor, probe, or monitoring rack configuration. Verify total system cable length against the proximitor specification before installation.

Q2: What commissioning steps are required after installing the replacement cable?
After installation, measure the gap voltage at the proximitor output with the probe positioned at the nominal gap distance specified for your machine. Compare the reading against the as-found baseline. If the gap voltage is outside the acceptable range, adjust the probe gap and re-verify. Re-zero the 3500/42M monitor channel if required, and confirm that all alarm and trip setpoints are active before returning the machine to service.

Q3: Can this cable be used with non-Bently Nevada monitoring systems?
The 330130-045-12-00 is designed and specified for use within the Bently Nevada 3300 XL system. Use with third-party eddy-current monitoring systems is possible in principle, but requires verification of impedance matching, sensitivity (mV/mil), and connector compatibility with the target system. Consult the third-party system datasheet and confirm compatibility before ordering for non-standard applications.

Q4: What is the lead time and support terms coverage?
Units are available from multi-region stock for fast global dispatch. Pre-shipment testing is completed on every unit before release. All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and signal performance within the published 3300 XL system specification. Contact our team for current stock availability and regional dispatch timelines.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-045-12-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-045-12-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
