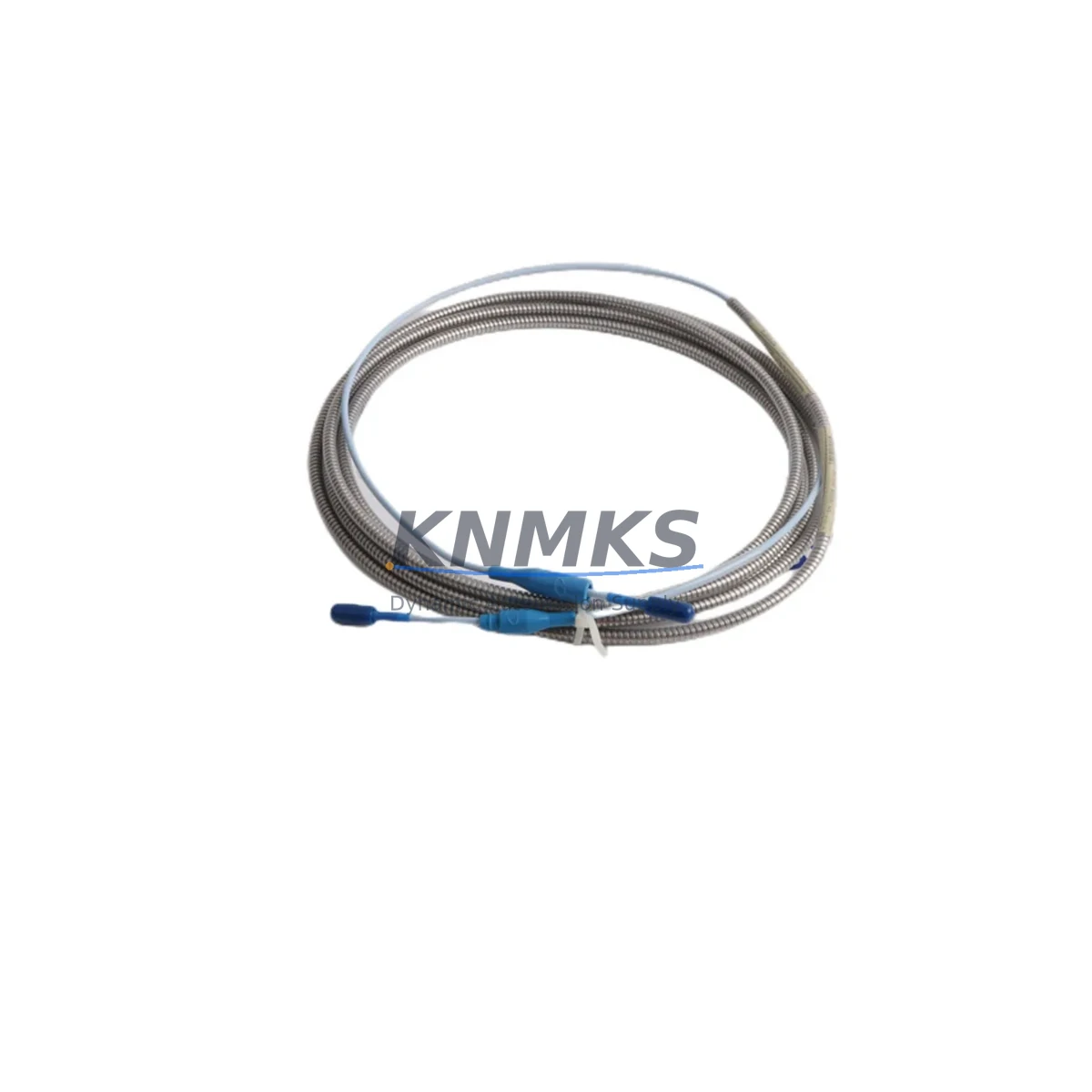

Bently Nevada 330130-045-03-05 Migration-Ready Proximity Extension Cable

Overview

Bently Nevada 330130-045-03-05 Migration-Ready Proximity Extension Cable for Legacy Control Systems

The Bently Nevada 330130-045-03-05 is a precision-engineered proximity extension cable designed for use within the 3300 XL Series vibration monitoring platform. As legacy eddy-current monitoring systems approach end-of-life or face discontinued spare part availability, this cable serves as a verified drop-in replacement that preserves signal integrity, maintains system calibration, and eliminates the need for full panel rewiring. Whether you are restoring a turbine protection loop, upgrading a compressor monitoring rack, or extending the service life of an existing 3300 XL installation, the 330130-045-03-05 provides a reliable, field-proven migration path.

In retrofit and modernization projects, the extension cable is a frequently overlooked but critical component. The 330130-045-03-05 connects the 3300 XL proximitor/sensor to the monitoring system’s signal conditioning circuitry, maintaining the precise impedance and capacitance characteristics required for accurate gap voltage measurement. When replacing a failed or aging cable in an operating plant, engineers must verify that the replacement cable matches the original length specification — in this case, 4.5 meters — to preserve the calibrated output range of the eddy-current probe system. Substituting a cable of incorrect length will shift the gap voltage curve and introduce measurement error that may not be immediately apparent during commissioning.

During system migration, it is equally important to confirm that the 330130-045-03-05 is paired with a compatible proximitor, such as the Bently Nevada 330180-X1-05 or 330180-51-05, and that the probe tip, extension cable, and proximitor are treated as a matched system. The 3300 XL platform uses a three-component measurement chain — probe, extension cable, and proximitor — and each element must be calibrated together to meet API 670 accuracy requirements. When sourcing replacement cables for a running plant, always request a factory-calibrated set or confirm that the replacement cable has been tested against the original proximitor before installation.

For control cabinet upgrades involving the Bently Nevada 3500 Series migration path, the 330130-045-03-05 remains compatible with 3300 XL proximitors that are retained in hybrid configurations where the monitoring rack is upgraded but the field-side sensor chain is preserved. In these scenarios, the existing extension cable routing, conduit fill, and terminal block assignments can typically be maintained, significantly reducing installation time and minimizing the risk of wiring errors during cutover. The Bently Nevada 3500/42M Proximitor I/O module, for example, accepts the same field wiring conventions as the legacy 3300 XL rack, making it a common target platform for phased migration projects.

When planning a retrofit that involves the 330130-045-03-05, field engineers should document the existing cable routing path, measure the installed cable length against the part number specification, and inspect the connector terminations at both the probe junction and the proximitor input for signs of corrosion, mechanical damage, or improper sealing. In high-vibration or high-temperature environments — such as gas turbine bearing pedestals or steam turbine LP casings — cable jacket integrity and connector sealing are primary failure modes. Replacement cables should be inspected for jacket continuity and connector pin engagement before installation, and a bench calibration check should be performed using a Bently Nevada 330910 calibration standard or equivalent gap simulator prior to loop commissioning.

For plants managing a large installed base of 3300 XL systems, maintaining a buffer stock of the 330130-045-03-05 alongside related components — including the 330103-00-08-10-02-00 proximity probe and the 330130-080-00-00 extension cable variant — is a standard spare parts strategy recommended under API 670 Annex D. Coordinating cable replacement with scheduled outages, rather than responding reactively to in-service failures, is the most effective way to control downtime and protect turbomachinery protection system availability. KNMKS maintains in-stock inventory of the 330130-045-03-05 with a standard lead time and provides a support terms confirmed by quotation on all supplied components.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 330130-045-03-05 begins with a complete audit of the existing sensor chain. In a typical 3300 XL installation, the measurement loop consists of the proximity probe (commonly the 330103-00-08-10-02-00 8mm probe), the extension cable, and the proximitor module mounted in the monitoring rack. Before ordering a replacement cable, confirm the installed cable length by checking the original engineering bill of materials or by physically measuring the routed cable run — do not rely solely on the part number suffix, as field modifications may have introduced non-standard lengths.

In control cabinet upgrade projects where the 3300 XL rack is being replaced with a Bently Nevada 3500 Series rack, the field-side sensor chain — including the 330130-045-03-05 extension cable — can often be retained without modification, provided the new rack’s I/O modules accept the same wiring conventions. The 3500/42M Proximitor I/O Module is designed to accept legacy 3300 XL field wiring, making it a preferred target for phased migration. In this configuration, the extension cable terminations at the junction box and the proximitor input remain unchanged, and the primary commissioning task is re-entering the calibration constants into the new rack’s configuration software.

For plants operating mixed fleets of turbomachinery with both 3300 XL and 3500 Series monitoring systems, maintaining a unified spare parts inventory that includes the 330130-045-03-05 alongside the 330130-080-00-00 (8.0m variant) and the 330130-025-00-00 (2.5m variant) provides coverage for the most common installation geometries. Signal isolators, such as the Bently Nevada 3300/20 Signal Conditioner, may also be required in retrofit configurations where the new monitoring rack is located at a greater distance from the field junction box than the original design anticipated.

During the retrofit planning phase, document the terminal block assignments at both the junction box and the rack termination panel. Confirm that the cable shield grounding scheme matches the new rack’s requirements — improper shield grounding is a leading cause of noise and signal instability in eddy-current monitoring loops after a rack replacement. If the plant uses a Bently Nevada 3300 XL Rack with a dedicated power supply module, verify that the replacement rack’s power budget accommodates the full complement of I/O modules before cutover.

Downtime Control During System Migration

Minimizing downtime during a proximity cable replacement or monitoring rack migration requires careful pre-outage preparation. Before the maintenance window opens, stage all replacement components — including the 330130-045-03-05 extension cable, spare connectors, and calibration equipment — at the work site. Perform a bench calibration of the replacement cable with the target proximitor before the outage begins, so that the calibrated gap voltage curve is available for immediate verification after installation.

To protect the original program logic and HMI display configurations during a rack migration, export all rack configuration files from the existing 3300 XL system using Bently Nevada’s System 1 software or the applicable rack configuration utility before the outage. Store these files in a version-controlled location and verify that the new rack’s configuration has been pre-loaded and validated in a bench test environment before it is brought to site. This approach eliminates the risk of configuration loss during the physical swap and allows the commissioning team to focus on field verification rather than re-entry of configuration data.

During the cutover, maintain field control continuity by sequencing the migration one measurement channel at a time where the process permits. For critical turbomachinery protection loops, coordinate with the operations team to confirm that the machine is in a safe state before any protection channel is taken out of service. After reinstalling the 330130-045-03-05 and reconnecting the sensor chain, verify the gap voltage reading at the rack against the expected value for the installed probe gap before returning the channel to service. Document the as-found and as-left gap voltage readings for the maintenance record.

Retrofit Support FAQ

Q1: Is the 330130-045-03-05 a direct drop-in replacement for the original Bently Nevada cable?
Yes. The 330130-045-03-05 is a genuine Bently Nevada part number and is a direct replacement for the same SKU in any 3300 XL installation. No wiring modifications or recalibration of the proximitor are required, provided the replacement cable is the same length as the original. All units supplied by KNMKS are function-tested prior to shipment.

Q2: Can this cable be used with a Bently Nevada 3500 Series monitoring rack?
Yes, in hybrid and phased migration configurations where the 3300 XL field sensor chain is retained and connected to a 3500 Series rack via a compatible I/O module such as the 3500/42M. Confirm the I/O module’s input specifications and wiring conventions before installation. KNMKS technical support can assist with compatibility verification.

Q3: What commissioning checks are required after installing the 330130-045-03-05?
After installation, verify the DC gap voltage at the monitoring rack against the expected value for the installed probe gap (typically –10 VDC at the calibrated center gap for a standard 3300 XL system). Use a Bently Nevada 330910 calibration standard or equivalent gap simulator to confirm the calibration curve before returning the channel to service. Document as-found and as-left readings.

Q4: What is the support terms and lead time for the 330130-045-03-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. In-stock units are available for prompt dispatch. Contact KNMKS at [email protected] or +86 18359268345 to confirm current inventory and shipping options.
