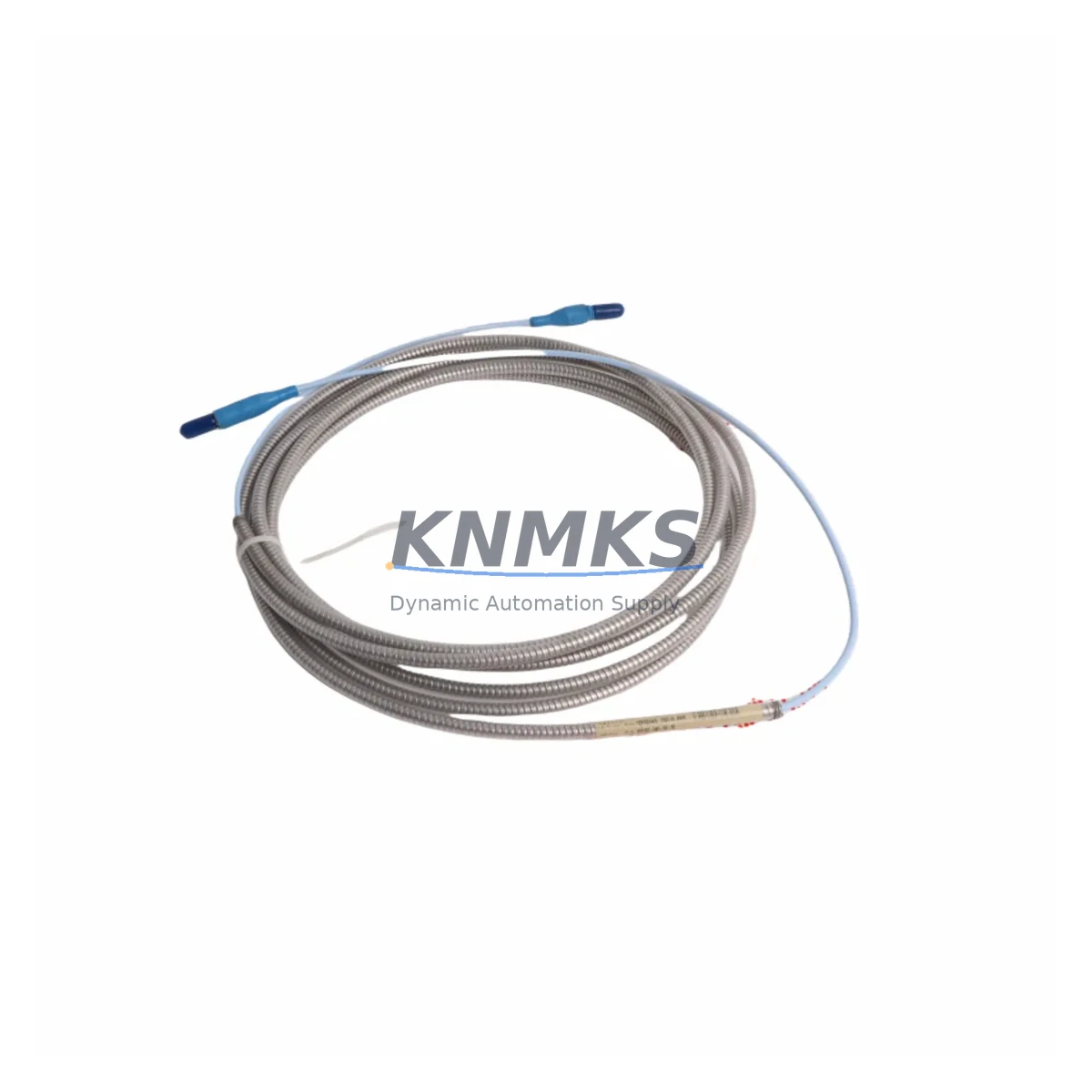

Bently Nevada 330130-045-03-00 Migration-Ready Extension Cable

Overview

Bently Nevada 330130-045-03-00 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-045-03-00 is a 5-metre (16.4 ft) extension cable engineered for the 3300 XL proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial sectors. As legacy 3300 XL installations approach end-of-support milestones, engineering teams face increasing pressure to source verified replacement cables that maintain signal integrity, connector compatibility, and dimensional fit without requiring panel redesign or re-cabling of the entire measurement loop.

This extension cable serves as a direct drop-in replacement for the original 330130-045-03-00, bridging the gap between the 3300 XL proximity probe (typically a 330101 or 330103 series tip) and the 3300 XL proximitor/driver module mounted in the monitor rack. The cable preserves the coaxial signal path required for eddy-current proximity measurement, maintaining the system’s ability to deliver accurate shaft displacement, gap voltage, and vibration amplitude data to the connected 3500 Series or 3300 Series rack monitors.

For sites executing a phased migration from legacy 3300 XL infrastructure toward modern Bently Nevada 3500 Series or System 1 condition monitoring platforms, the 330130-045-03-00 extension cable is a critical interim component. It allows engineering teams to maintain continuous vibration monitoring on critical assets — compressors, turbines, pumps, and gearboxes — while the broader migration plan is staged across planned outage windows. Replacing only the worn or damaged extension cable avoids the cost and downtime of replacing the full transducer loop prematurely.

When planning a retrofit or cable replacement, engineers must verify several key parameters before installation. The extension cable’s connector type (TNC or equivalent coaxial) must match the proximitor input and probe output. The overall cable length — in this case 45 feet (approximately 13.7 m total system cable length when combined with the armored probe cable) — must fall within the system’s calibrated range for the target gap voltage and scale factor. Deviating from the specified total cable length will shift the proximitor’s output voltage curve and introduce measurement error unless the system is recalibrated. The 3300 XL Proximitor/Seismic Monitor and associated 3300 XL I/O modules must also be confirmed as compatible with the probe-cable-proximitor combination in use.

During installation, technicians should confirm that the extension cable routing avoids high-EMI zones, sharp bend radii below the cable’s minimum bend specification, and contact with hot surfaces. Cable shield continuity must be verified end-to-end using a calibrated multimeter before the system is energized. Where the extension cable interfaces with a junction box or terminal block, terminal torque values and shield grounding practice should follow Bently Nevada field wiring guidelines to prevent ground loops that degrade signal quality.

Sites operating mixed-generation monitoring infrastructure — for example, a rack containing both 3300 XL monitor cards and newer 3500/42M or 3500/45 position monitor modules — should document the cable routing and connector assignments for each channel before beginning any swap. Mislabeled or undocumented extension cables are a leading cause of channel cross-connection errors during outage-window replacements, which can result in incorrect vibration readings and nuisance trips on restart.

For broader migration projects, the 330130-045-03-00 is commonly replaced or supplemented alongside other 3300 XL system components: the 330101-00-06-10-02-00 proximity probe, the 330180 proximitor module, the 3300 XL 16-channel monitor, and the 3500/20 rack power supply. In multi-machine installations, the 3500 Series rack with 3500/22M transient data interface is often the target migration platform, and the extension cable specification must be re-evaluated against the new system’s total cable length requirements and calibration tables.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL extension cable retrofit begins with a complete loop audit. Before ordering the 330130-045-03-00, the site engineer should document the existing probe model (e.g., 330101-00-06-10-02-00), the proximitor model (e.g., 330180-X1-CN), and the current total cable length — including both the armored probe cable and the extension cable — to confirm the replacement cable maintains the calibrated system length. If the total length changes, the 3300 XL Proximitor must be recalibrated using the appropriate calibration curve for the new length.

In control cabinet environments, the extension cable typically routes from the junction box or field terminal block to the proximitor module mounted in the 3300 XL or 3500 Series rack. Where the rack also houses a 3500/20 rack power supply and 3500/22M transient data interface, cable management must account for the additional wiring density. Shield grounding at the rack end — and only at the rack end — prevents ground loops that introduce noise into the proximity signal chain.

For sites migrating from 3300 XL to 3500 Series infrastructure, the extension cable specification may need to change to match the new system’s total cable length table. The 3500/42M machinery protection monitor, for example, uses the same eddy-current proximity measurement principle but has its own calibration tables. Engineering teams should cross-reference the 3500 Series System Specifications manual (document 141-116) before finalizing cable length selection for the target platform.

Where I/O expansion is part of the migration scope — for example, adding channels for axial position monitoring using a 3500/45 position monitor — the extension cable routing plan must be updated to reflect the new channel assignments. Mislabeled cables during a multi-channel retrofit are a common source of commissioning delays. A cable tagging and loop verification protocol, completed before the outage window closes, is strongly recommended.

Downtime Control During System Migration

Extension cable replacement on a live 3300 XL system requires careful coordination with operations to minimize unplanned downtime. The preferred approach is to complete the cable swap during a scheduled maintenance window, with the machine taken offline and the proximitor de-energized. Before disconnecting the existing cable, the technician should record the gap voltage reading for each channel — typically between -10 VDC and -18 VDC for a properly gapped 3300 XL probe — as a baseline for post-installation verification.

Once the 330130-045-03-00 replacement cable is installed and connectors are torqued to specification, the system should be re-energized and gap voltage re-measured before the machine is returned to service. If the gap voltage falls outside the expected range, the probe gap must be readjusted or the total cable length re-verified. Do not return the machine to service with an out-of-range gap voltage, as this will result in incorrect vibration amplitude readings and may mask developing machinery faults.

For critical assets where continuous monitoring is required, a temporary bypass using a portable vibration analyzer can maintain surveillance during the cable swap window. This approach preserves the site’s ability to detect developing faults — such as increasing shaft vibration on a high-speed compressor or turbine — even while the permanent monitoring loop is briefly interrupted for cable replacement.

Pre-shipment testing of the 330130-045-03-00 at our facility confirms connector integrity, cable continuity, and shield isolation before dispatch. This eliminates the risk of receiving a defective cable that is only discovered during the outage window — a scenario that can extend unplanned downtime significantly on critical rotating machinery.

Retrofit Support FAQ

Q1: Is the 330130-045-03-00 a direct replacement for the original Bently Nevada part?
Yes. The 330130-045-03-00 is a verified drop-in replacement for the original OEM part of the same number. Connector type, cable length, and coaxial impedance are matched to the 3300 XL system specification. No modification to the proximitor or probe is required, provided the total system cable length remains within the calibrated range.

Q2: Do I need to recalibrate the proximitor after replacing the extension cable?
If the replacement cable is the same length as the original (45 ft total system cable length), recalibration is not required. If the total cable length changes for any reason — including routing changes that require a different extension cable length — the 3300 XL Proximitor must be recalibrated using the appropriate calibration curve. Always verify gap voltage after installation before returning the machine to service.

Q3: What pre-shipment testing is performed on this cable?
Each 330130-045-03-00 unit is tested for connector integrity, end-to-end cable continuity, and shield isolation before dispatch. Units that fail any test parameter are rejected. A support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q4: Is stock available for immediate dispatch?
Yes. The 330130-045-03-00 is maintained in multi-region stock to support emergency replacement and scheduled outage requirements. Contact [email protected] or +86 18359268345 to confirm current availability and lead time for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-045-03-0
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-045-03-0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
