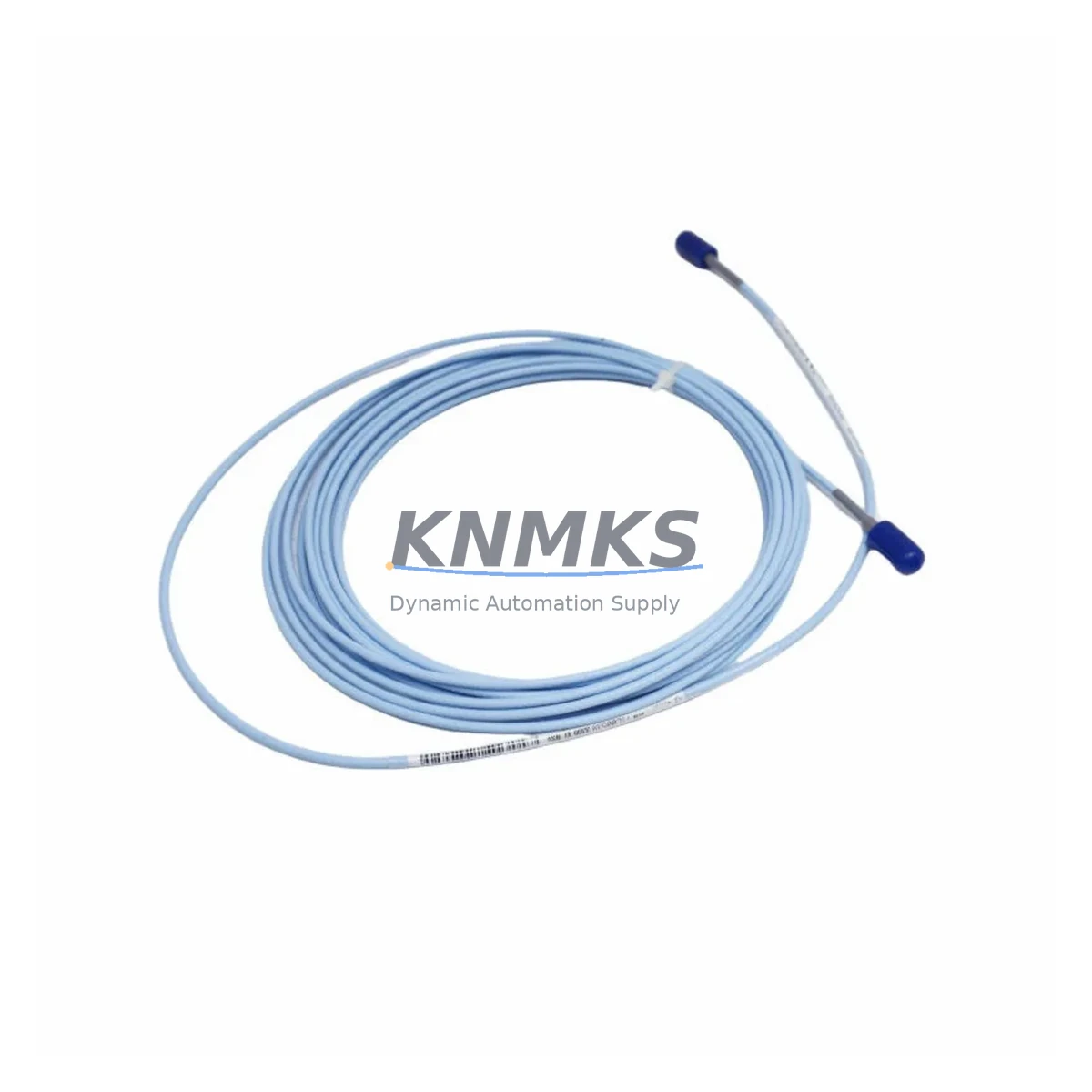

Bently Nevada 330130-045-02-CN Fail-Safe Proximity Transducer

Overview

Bently Nevada 330130-045-02-CN Fail-Safe Proximity Transducer: Industrial Fault Protection and Critical Field Reliability

The Bently Nevada 330130-045-02-CN is an 8mm eddy-current proximity transducer from the renowned 3300 XL NSv Series, engineered specifically for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers unwavering signal integrity even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and airborne contamination — conditions that routinely compromise lesser sensors and trigger unplanned shutdowns.

In critical industrial facilities — from petrochemical refineries and power generation plants to mining operations and metallurgical processing lines — control interruption is never an option. The 330130-045-02-CN is purpose-built to eliminate the risk of signal drift, false trips, and measurement dropout that can cascade into costly process upsets or, worse, safety incidents. Its non-contact eddy-current sensing principle ensures zero mechanical wear, making it the preferred choice for long-term, maintenance-free deployment in high-cycle machinery protection loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection is never the result of a single component — it depends on a carefully coordinated system of sensors, signal conditioners, power supplies, and communication modules working in concert. The 330130-045-02-CN proximity transducer is typically deployed alongside the Bently Nevada 330180-X1-05 Proximitor Sensor, which conditions the raw eddy-current signal into a clean, calibrated output suitable for direct input to the 3500/40M Proximitor Monitor rack module. Together, these components form the backbone of an API 670-compliant vibration monitoring loop.

Within the control cabinet, power supply stability is critical. Voltage fluctuations or transient surges on the 24 VDC rail can introduce measurement noise or cause nuisance trips. Pairing the monitoring system with a dedicated Bently Nevada 3500/15 Power Supply Module ensures clean, regulated power delivery to the entire 3500 Series rack, protecting signal fidelity across all connected channels. For installations in high-EMI environments — such as those near variable frequency drives, large motor starters, or arc furnaces — the shielded coaxial cable of the 330130-045-02-CN, combined with proper grounding practices and the use of 3300 XL armored extension cables, provides robust immunity against induced interference that would otherwise corrupt vibration readings.

In safety instrumented systems (SIS), the transducer output is often routed through a 3500/22M Transient Data Interface or directly into a Safety Manager logic solver for high-integrity trip functions. Complementary protection is provided by Bently Nevada 3500/42M Proximitor/Seismic Monitor modules, which can simultaneously handle radial vibration, axial position, and eccentricity measurements — consolidating multiple safety functions within a single rack and reducing the overall footprint of the protection system in space-constrained control rooms.

Critical Industrial Safety Applications

The 330130-045-02-CN proximity transducer is deployed across a wide spectrum of critical industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery environments, it monitors shaft radial vibration and axial position on compressors, turbines, and pumps that operate continuously for years between planned turnarounds. Any undetected bearing wear or rotor imbalance can escalate rapidly into a catastrophic failure; the 330130-045-02-CN provides the early-warning signal that allows operators to intervene before damage propagates.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — this transducer is integrated into the turbine supervisory instrumentation (TSI) system, providing real-time shaft position data that feeds directly into the turbine protection and control logic. A missed vibration exceedance in these applications can result in blade liberation events with severe safety and financial consequences.

In mining and mineral processing operations, where equipment operates under extreme dust loading, high ambient temperatures, and constant mechanical shock, the non-contact design of the 330130-045-02-CN eliminates the wear-related drift that plagues contact-type sensors. It is routinely specified for SAG mill pinion bearing monitoring, crusher drive shaft surveillance, and conveyor drive protection systems.

In water and wastewater treatment plants, the transducer supports reliable monitoring of large vertical pump shafts and blower units, where vibration anomalies often indicate impeller fouling or bearing degradation. In metallurgical and steel facilities, it withstands the intense electromagnetic fields generated by induction furnaces and rolling mill drives, maintaining measurement accuracy where conventional sensors fail. Port and marine applications leverage its wide temperature range and vibration tolerance for shipboard machinery monitoring and harbor crane drive protection.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330130-045-02-CN?
The support terms confirmed by quotation cover all manufacturing defects, material failures, and functional performance issues under normal operating conditions. If the transducer fails to meet its specified sensitivity, linearity, or frequency response within the confirmed support period, KNMKS will arrange replacement or repair at no additional cost. Support requests are supported by our technical team with documented failure analysis upon request.

Q2: What pre-shipment testing is performed on each unit?
Every 330130-045-02-CN unit undergoes functional verification prior to dispatch, including sensitivity calibration check, cable continuity and insulation resistance testing, and visual inspection for connector and housing integrity. Units sourced from verified supply channels are cross-referenced against original manufacturer documentation to confirm authenticity and specification compliance before shipment.

Q3: Is the 330130-045-02-CN compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330130-045-02-CN is fully compatible with the Bently Nevada 3300 XL NSv system architecture, including standard 3300 XL extension cables and 330180-series Proximitor Sensors. It integrates directly with 3500 Series rack monitors without requiring recalibration of the existing system, making it an ideal drop-in replacement for maintenance and spare parts programs.

Q4: Can long-term supply and spare parts availability be guaranteed?
KNMKS maintains dedicated inventory of the 330130-045-02-CN and related 3300 XL NSv components to support both planned maintenance schedules and emergency replacement requirements. We supply to customers across petrochemical, power, mining, and process industries globally, with fast dispatch capability and export documentation support for international shipments. Our procurement team can assist with multi-unit blanket orders for customers seeking to secure long-term spare parts availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-045-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-045-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
