Bently Nevada 330130-045-00-BR Spare Part for 3300 XL: Maintenance-Proven Extension Cable for Factory Uptime

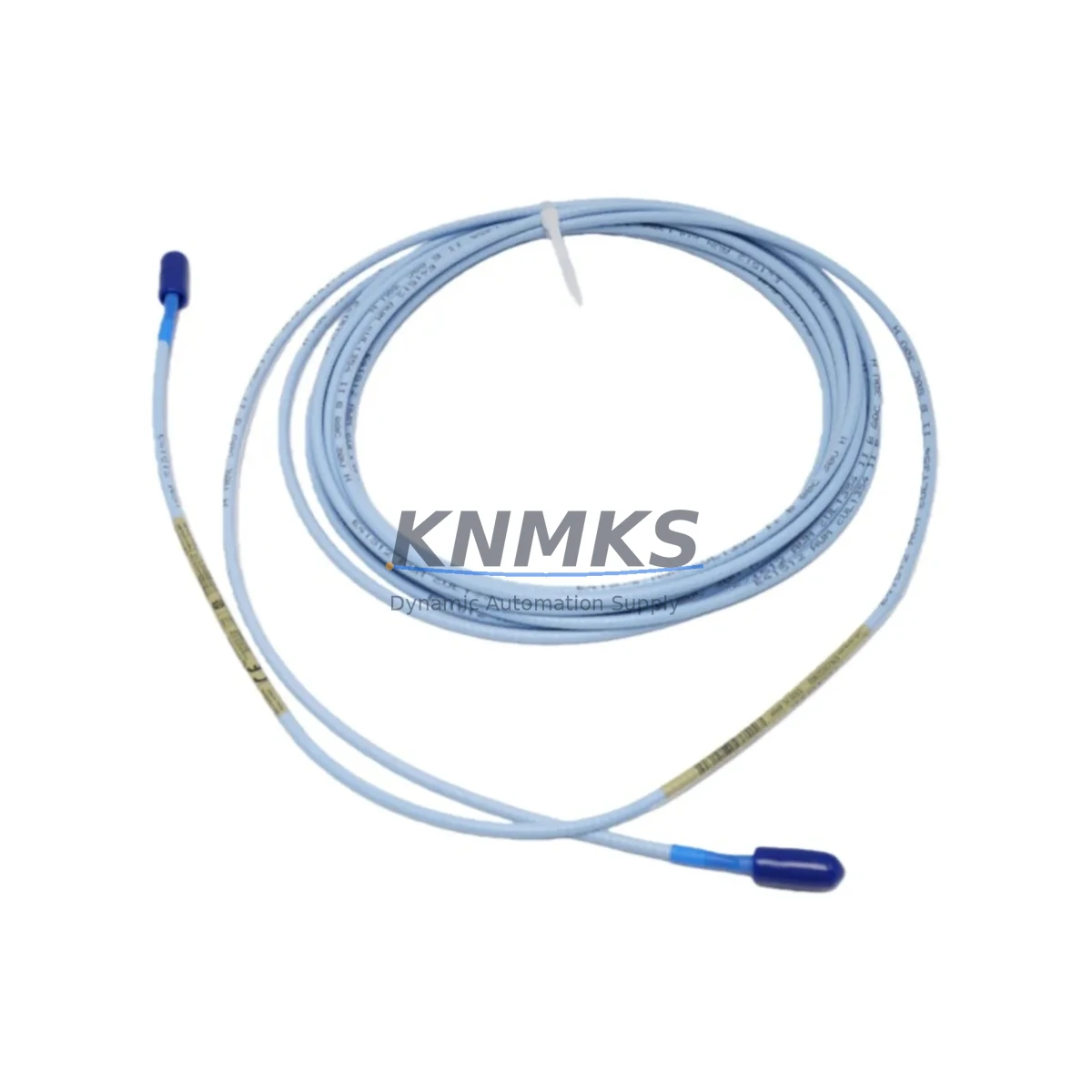

The Bently Nevada 330130-045-00-BR is an original-specification proximitor extension cable engineered for the 3300 XL Series continuous vibration monitoring system. Measuring 4.5 meters (15 feet) in length, this cable serves as the critical signal conduit between the 3300 XL proximitor sensor and the eddy-current transducer probe, maintaining the integrity of shaft displacement and vibration data in rotating machinery protection systems. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in energy, petrochemical, and heavy manufacturing environments, having a verified spare of the 330130-045-00-BR on the shelf is a non-negotiable element of any predictive maintenance strategy.

This extension cable is designed to operate within the full 3300 XL system architecture, preserving the calibrated electrical characteristics — including cable capacitance, resistance, and impedance — that the proximitor relies upon to deliver accurate gap voltage and vibration amplitude readings. Substituting non-OEM cables or mismatched lengths can introduce signal offset errors that corrupt Bode plots, cascade alarms, and trigger unnecessary shutdowns. The 330130-045-00-BR eliminates that risk by maintaining the factory-specified electrical loop parameters.

Each unit shipped from KNMKS undergoes pre-dispatch continuity and insulation resistance testing. Units are packaged in anti-static shielding with full traceability documentation. Standard lead time is 3–7 business days for in-stock inventory, with expedited options available for emergency maintenance windows. All units carry a support terms confirmed by quotation covering manufacturing defects and electrical performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-045-00-BR extension cable during a scheduled outage or emergency callout, a disciplined maintenance engineer will treat the cable swap as an opportunity to audit the entire vibration monitoring loop. The 3300 XL system’s measurement accuracy depends on the combined electrical characteristics of the probe, extension cable, and proximitor working as a matched set. Begin by verifying the 3300 XL Proximitor (e.g., 330180-X1-CN) output voltage at the gap distance specified in the calibration record — a drifted proximitor will produce erroneous readings even with a new cable installed.

Inspect the eddy-current probe (330101 or 330103 Series) tip for mechanical wear, contamination, or shaft contact damage. A worn probe tip changes the sensitivity factor and invalidates the calibration curve. If the probe has accumulated more than 18 months of service in a high-temperature or chemically aggressive environment, plan for concurrent replacement.

At the junction box or marshalling cabinet, check the terminal blocks and cable glands for corrosion, loose terminations, and moisture ingress. Vibration-induced fretting on terminal screws is a common source of intermittent signal faults that are frequently misdiagnosed as proximitor or probe failures. Torque all terminations to specification and apply anti-corrosion compound where appropriate.

Review the 3300 XL rack power supply (e.g., 3300/20 Power Supply module) output voltage under load. An aging power supply with marginal regulation can cause the proximitor bias voltage to fluctuate, producing ghost vibration spikes that trigger nuisance trips. If the power supply is beyond its recommended service interval, include it in the next planned maintenance window.

For systems integrated with a Bently Nevada 3500 Series rack or a DCS via 4–20 mA or Modbus RTU output, confirm that the signal scaling and alarm setpoints in the monitoring rack still match the physical installation after the cable replacement. A cable length change — even within the same nominal specification — can shift the system gain by a measurable margin if the proximitor has not been recalibrated to the new cable.

Finally, inspect the I/O termination module and any signal isolators in the loop. In older installations, signal isolators inserted between the proximitor output and the DCS analog input card can introduce ground loops or impedance mismatches that degrade measurement resolution. Replacing the extension cable is the right moment to verify isolator health and confirm that the overall loop impedance remains within the proximitor’s specified load range.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a hot-work or electrical isolation permit as required by site procedures. For online replacement on non-trip-critical channels, confirm with the control room that the channel can be bypassed in the monitoring rack before disconnection.

Step 2 — Document Baseline: Record the current gap voltage, vibration amplitude (µm pk-pk or mils pk-pk), and phase reference from the monitoring rack display or historian before removing the old cable. This baseline is essential for post-installation verification.

Step 3 — Cable Removal: Disconnect the BNC connectors at both the probe junction and the proximitor. Inspect the connector bodies and mating receptacles for pin damage, contamination, or corrosion. Clean with isopropyl alcohol if required.

Step 4 — Install 330130-045-00-BR: Route the new cable following the original cable path, maintaining minimum bend radius and avoiding proximity to high-voltage power cables or variable-frequency drive (VFD) output conductors. Secure with cable ties at the original support points.

Step 5 — Reconnect & Verify Gap Voltage: Reconnect both ends and confirm the proximitor gap voltage returns to within ±0.5 VDC of the baseline recorded in Step 2. If the gap voltage has shifted significantly, re-gap the probe to the target voltage specified on the calibration label.

Step 6 — Functional Check: Remove the channel bypass in the monitoring rack and confirm that vibration amplitude and phase readings are stable and consistent with pre-maintenance historical trends. Log the replacement in the equipment maintenance record with the new cable serial number and post-installation gap voltage.

Step 7 — Close Out: Return all permits, update the spare parts inventory system to reflect consumption of one 330130-045-00-BR unit, and initiate a replenishment order to restore minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 330130-045-00-BR compatible with both the 3300 XL 8mm and 11mm proximitor systems?
Yes. The 330130-045-00-BR extension cable is designed for use across the 3300 XL proximitor family, including 8mm and 11mm configurations, provided the probe, cable, and proximitor are used as a matched system calibrated to the same sensitivity factor (typically 7.87 V/mm or 200 mV/mil). Always verify the system sensitivity label on the proximitor before installation.

Q2: How do I verify the cable is functioning correctly after installation without a full recalibration?
Measure the DC gap voltage at the proximitor output with the probe positioned at the nominal gap distance (typically 1.0–1.5 mm for 8mm probes). Compare against the calibration record. A reading within ±0.5 VDC of the documented baseline confirms the cable is electrically sound. For critical machinery, a full system calibration check is recommended at the next planned outage.

Q3: What is KNMKS’s long-term supply commitment for the 330130-045-00-BR?
KNMKS maintains standing inventory of the 330130-045-00-BR and actively manages replenishment to support long-term maintenance contracts. We offer blanket purchase order arrangements for customers requiring guaranteed annual supply volumes, with fixed pricing and priority allocation. Contact [email protected] to discuss a supply agreement tailored to your maintenance schedule.

Q4: Does the support terms confirmed by quotation cover field installation damage?
The support terms confirmed by quotation cover manufacturing defects and verified electrical performance failures under normal operating conditions. Damage resulting from incorrect installation, over-bending beyond the minimum bend radius, connector pin damage during mating, or exposure to conditions outside the specified operating range is not covered. KNMKS provides pre-shipment test reports for all units; any unit that fails to meet specification upon receipt should be reported within 7 days of delivery for support terms assessment.
