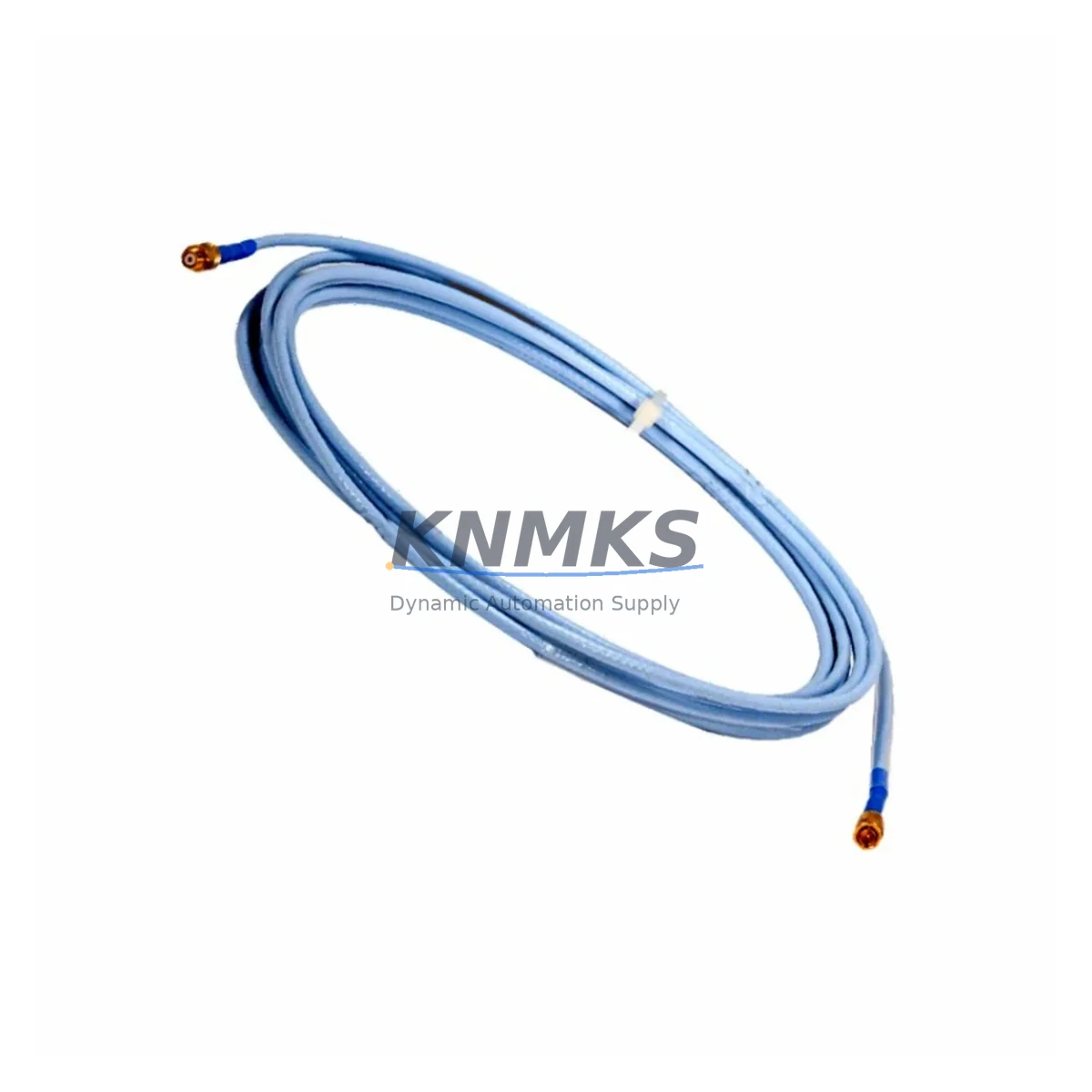

Bently Nevada 330130-045-00-00 Migration-Ready Extension Cable for Legacy Control Systems

When aging machinery monitoring infrastructure reaches end-of-life, the path forward demands precision. The Bently Nevada 330130-045-00-00 is a 4.5-metre coaxial extension cable engineered for the 3300 XL proximitor system — one of the most widely deployed eddy-current proximity measurement platforms in rotating machinery protection. Whether you are executing a planned control system upgrade, replacing a failed cable in a critical vibration monitoring loop, or extending the service life of an existing installation, this cable delivers a validated, drop-in retrofit solution that eliminates guesswork and minimises field commissioning time.

The 330130-045-00-00 connects the proximity probe to the proximitor/signal conditioner, completing the three-component measurement chain that forms the backbone of shaft displacement, radial vibration, and axial position monitoring in turbines, compressors, pumps, and gearboxes. Its 4.5-metre length suits the majority of standard control cabinet-to-field installations where the proximitor is mounted in a junction box or marshalling cabinet at moderate distance from the machine casing.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330130-045-00-00 begins well before the cable arrives on site. Engineers should first confirm that the existing proximitor — typically a Bently Nevada 330180-51-05 or 330185-02-05 — is still serviceable and that its power supply rail is delivering a stable –24 VDC bias. If the proximitor itself is suspect, it is common practice to replace both the extension cable and the proximitor simultaneously to eliminate the risk of a second unplanned outage shortly after the initial repair.

The 3300 XL system interfaces with the Bently Nevada 3500 Series rack-based monitoring system, which houses I/O modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface. When planning a retrofit, verify that the rack’s channel configuration and gap voltage setpoints remain consistent with the new cable’s electrical characteristics. No reconfiguration is typically required for a like-for-like 330130-045-00-00 replacement, but if the installation is migrating from an older 7200 Series proximitor to the 3300 XL platform, terminal wiring, shield grounding, and gap voltage calibration must all be re-validated.

For sites upgrading from legacy Bently Nevada 3300 (non-XL) installations, the transition may also involve replacing the signal conditioning cards within the 3500 rack. In these cases, the 3500/15 Power Supply Module and 3500/20 Rack Interface Module should be inspected for firmware currency before the new cable loop is commissioned. HMI screens connected via Modbus or OPC-DA to the 3500 system should be reviewed to confirm that channel tag assignments and alarm setpoints are preserved after the hardware swap.

Where the extension cable routes through areas of high electromagnetic interference — such as near variable-frequency drives, large motor starters, or bus ducts — ensure the cable’s outer armour is properly bonded to the cabinet earth bar at one end only, following Bently Nevada’s single-point grounding recommendation. This prevents ground loops that can introduce noise into the –24 VDC measurement circuit and cause false vibration alarms or nuisance trips.

Downtime Control During System Migration

Minimising unplanned downtime during a cable retrofit requires a structured pre-outage preparation plan. Before the maintenance window opens, stage the replacement 330130-045-00-00 cable alongside any associated consumables — connector grease, heat-shrink sleeves, and cable ties — so that the swap can be completed within a single shift. Photograph the existing connector orientation and cable routing before disconnection to ensure the replacement follows the same path and avoids mechanical stress on the probe body.

Where the process cannot tolerate a full shutdown, consider a hot-standby approach: if the machine has redundant measurement channels (common in API 670-compliant installations), the faulty channel can often be bypassed in the 3500 rack’s configuration software while the replacement cable is installed on the redundant channel. This keeps the protection system active throughout the maintenance activity.

After reconnection, perform a static gap voltage check at the proximitor output before returning the channel to service. A reading within the –10 VDC to –18 VDC window (for a standard 8 mm probe at nominal gap) confirms correct assembly. Log the as-found and as-left gap voltages in the site maintenance record to support future trend analysis and spare parts planning. With a pre-tested, in-stock 330130-045-00-00 from KNMKS, the entire replacement cycle — from cable receipt to channel reinstatement — can typically be completed within two to four hours.

Retrofit Support FAQ

Q1: Is the 330130-045-00-00 a direct drop-in replacement for the original Bently Nevada cable?
Yes. The 330130-045-00-00 uses the same coaxial connector specification, cable impedance, and jacket dimensions as the original factory part. No wiring modifications or recalibration of the proximitor are required for a like-for-like replacement in an existing 3300 XL installation.

Q2: How is the cable tested before shipment?
Every 330130-045-00-00 unit shipped by KNMKS undergoes pre-shipment continuity testing, insulation resistance measurement, and connector integrity inspection. A test record is available upon request. This ensures the cable is field-ready on arrival and eliminates the risk of receiving a defective unit during a time-critical maintenance window.

Q3: What support terms coverage is provided?
All units carry a support terms confirmed by quotation from the date of shipment. If the cable exhibits any manufacturing defect or connector failure within the confirmed support period, KNMKS will arrange a replacement or refund. Support requests are processed via [email protected] with a typical response within one business day.

Q4: Can KNMKS supply the matching proximity probe and proximitor for a complete loop replacement?
Yes. KNMKS maintains stock of compatible Bently Nevada 330100 Series proximity probes and 330180/330185 Series proximitors. Ordering the complete measurement chain — probe, extension cable, and proximitor — from a single source simplifies procurement, ensures electrical compatibility, and reduces the risk of mismatched components causing calibration errors in the field.
