Bently Nevada 330130-040-11-00 Maintenance-Proven Spare Part for Factory Uptime

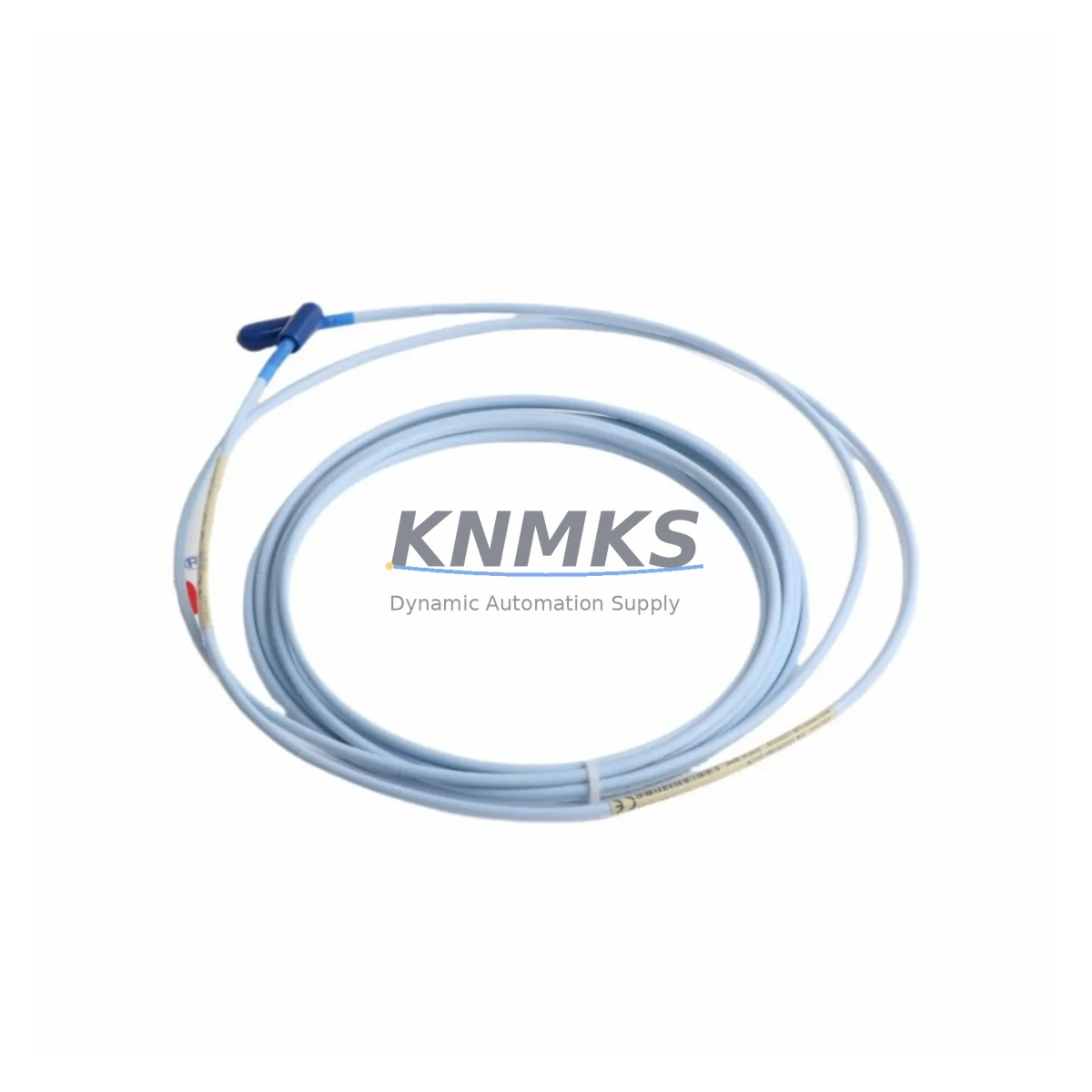

The Bently Nevada 330130-040-11-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Monitoring System platform — one of the most widely deployed continuous vibration monitoring architectures in rotating machinery protection worldwide. Designed for radial vibration, axial position, and differential expansion measurement on turbines, compressors, pumps, and motors, this transducer is a critical front-line component in any predictive maintenance and machinery protection strategy.

For maintenance engineers managing aging DCS or machinery protection systems, sourcing a verified original 330130-040-11-00 is not simply a procurement task — it is a plant reliability decision. A counterfeit or out-of-specification transducer can introduce measurement drift, false trips, or missed alarm thresholds, all of which carry serious consequences in high-value rotating equipment environments. KNMKS supplies this part as an original, tested spare with full traceability, pre-shipment functional verification, and a support terms confirmed by quotation covering manufacturing defects under normal operating conditions.

Whether you are responding to an unplanned shutdown, building a critical spare inventory ahead of a scheduled turnaround, or replacing a degraded sensor identified during routine vibration trending, the 330130-040-11-00 is available for immediate dispatch with documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330130-040-11-00 transducer does not operate in isolation. It is one node in a complete vibration measurement loop, and a thorough site replacement should always include a systematic inspection of the surrounding components to prevent repeat failures and ensure measurement integrity from sensor tip to monitor rack.

Begin with the 3300 XL extension cable (typically the 330130 series armored extension, matched to the transducer cable length). Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-temperature or high-vibration environments near bearing housings. A degraded extension cable will produce erratic gap voltage readings even with a new transducer installed.

Next, verify the 3300 XL proximitor/driver module (such as the 330180 series driver). The driver converts the transducer’s oscillator signal into a DC voltage proportional to gap distance. If the driver has been exposed to voltage transients or moisture ingress, it may produce a shifted output that mimics a transducer fault. Replacing the transducer without verifying driver output is a common source of repeat callouts.

At the monitor rack level, inspect the 3500/40M or 3500/42M proximity monitor card if the system has been migrated to the 3500 platform. Confirm that the monitor channel is configured for the correct transducer type, gap voltage range, and alarm setpoints. Misconfigured monitor cards are a frequent source of nuisance trips following transducer replacement.

For installations in hazardous areas, check the Zener barrier or galvanic isolator in the intrinsic safety circuit. A degraded barrier will limit the available drive current to the transducer loop, causing the proximitor to report an out-of-range condition. This is often misdiagnosed as a transducer failure.

Finally, review the terminal block connections and field junction box for corrosion, loose terminations, or moisture ingress. High-impedance connections in the transducer loop introduce noise that appears as elevated vibration readings, potentially triggering unnecessary shutdowns. A complete loop resistance check from the monitor card to the transducer tip is recommended as part of any transducer replacement procedure.

For plants running parallel protection on critical machines, maintaining a minimum of two 330130-040-11-00 transducers in the critical spare inventory — alongside matched extension cables and at least one spare proximitor driver — is a widely accepted best practice in turbomachinery maintenance programs.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the machine is in a safe state for maintenance access. For online replacement on non-critical channels, confirm with the control room that the monitor channel can be bypassed without triggering a plant shutdown.

Step 2 — Document Baseline: Record the existing gap voltage from the monitor display or DCS historian before disconnecting the old transducer. This baseline is essential for verifying correct installation of the replacement unit.

Step 3 — Remove Old Transducer: Disconnect the extension cable at the junction box. Unscrew the transducer from the bracket, noting the number of turns to establish approximate gap. Inspect the probe tip for physical damage, pitting, or contamination that may indicate a bearing or shaft surface issue.

Step 4 — Install 330130-040-11-00: Thread the new transducer into the bracket. Set the initial gap to the OEM-specified value (typically 1.0–1.5 mm for radial vibration applications). Reconnect the extension cable and verify connector seating and locking.

Step 5 — Verify Gap Voltage: With the system energized, read the gap voltage at the monitor or proximitor output. Compare against the expected value for the set gap distance (nominally -10.0 VDC at 1.27 mm gap for standard 3300 XL systems). Adjust gap as required.

Step 6 — Functional Check: Confirm that vibration readings are within expected baseline range for the machine at rest or at operating speed. Remove any monitor bypass and confirm alarm and trip setpoints are active.

Step 7 — Documentation: Record the replacement in the maintenance management system, including the new transducer serial number, installation date, gap voltage, and technician sign-off. Update the critical spare inventory to trigger replenishment of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 330130-040-11-00 compatible with both the 3300 XL and 3500 series monitoring systems?
The 330130-040-11-00 is natively designed for the 3300 XL 8mm Proximity Transducer System. It can be used with 3500 series monitors when paired with the appropriate 3300 XL driver/proximitor module. Direct connection to a 3500 series monitor card without the correct driver is not supported. Always verify the complete loop configuration — transducer, extension cable, driver, and monitor card — before installation.

Q2: What pre-shipment testing is performed on this spare part?
Each 330130-040-11-00 unit supplied by KNMKS undergoes functional verification prior to dispatch, including oscillator frequency check, output voltage linearity test across the specified gap range, and insulation resistance verification. A test report is available upon request. Units are packaged in anti-static, moisture-resistant packaging to maintain condition during transit.

Q3: How should I manage long-term spare inventory for the 330130-040-11-00?
For plants with multiple 3300 XL-equipped machines, a minimum stock of two transducers per critical machine train is recommended, with annual inspection of stored units for connector corrosion and cable integrity. Stored transducers should be kept in a climate-controlled environment away from strong magnetic fields. KNMKS offers long-term supply agreements to support multi-year maintenance contracts and turnaround planning.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, including oscillator failure, output signal deviation beyond specification, and physical defects present at time of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental limits. Support requests are supported with replacement unit dispatch and return logistics coordination through KNMKS.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-040-11-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-040-11-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
