Bently Nevada 330130-040-03-CN Migration-Ready Extension Cable

Overview

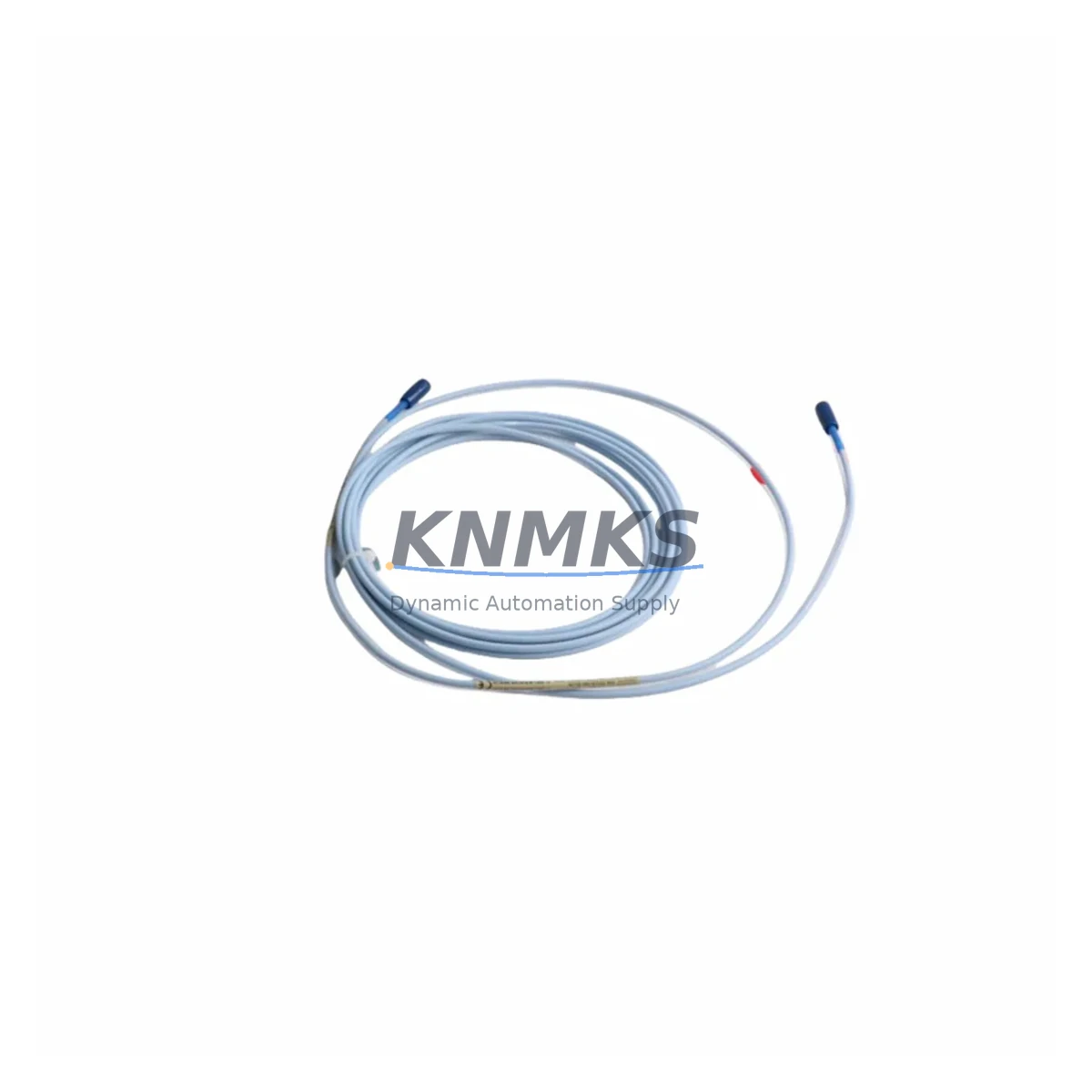

Bently Nevada 330130-040-03-CN Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-040-03-CN is a 4-metre (approximately 13-foot) extension cable engineered for use with the 3300 XL 8mm proximity probe series — one of the most widely deployed vibration monitoring platforms in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial environments. As legacy 3300 XL installations approach end-of-service milestones and OEM support windows narrow, sourcing verified, migration-ready extension cables becomes a critical element of any planned or emergency retrofit programme.

This cable serves as a direct drop-in replacement for worn, damaged, or obsolete 330130-040-03-CN units currently installed in turbine monitoring panels, compressor control cabinets, and pump protection systems. It maintains full signal integrity across the probe-to-driver signal chain, preserving the 200 mV/mil (7.87 V/mm) output sensitivity required by the 3300 XL proximitor/driver modules. No recalibration of the proximitor is required when replacing a like-for-like cable of the same length and specification.

Before installation, engineers should confirm the cable routing path within the control cabinet, verify that the existing conduit or cable tray accommodates the 330130-040-03-CN’s outer diameter, and inspect the BNC-to-BNC connector terminations at both the probe and the proximitor/driver end. Connector seating and locking collar integrity are common failure points in high-vibration environments and should be addressed during the same maintenance window. Where the proximitor driver — such as the 3300 XL 8mm Proximitor Sensor — is also approaching end-of-life, a coordinated replacement of both the extension cable and the driver module reduces total downtime and eliminates the risk of a second unplanned outage.

In retrofit scenarios where the original 3300 series (non-XL) hardware is being migrated to the 3300 XL platform, the 330130-040-03-CN is compatible with the updated proximitor driver architecture. However, engineers must verify that the total probe system length — comprising the probe itself, the extension cable, and the proximitor — matches the calibrated system length documented in the original commissioning records. Mismatched system lengths will produce offset gap voltage errors and may trigger false vibration alarms or trip signals in the DCS or safety instrumented system (SIS).

For installations where the 3300 XL rack and I/O modules are being retained but the field wiring is being renewed, the 330130-040-03-CN can be installed without changes to the rack configuration, module addressing, or DCS tag mapping. This makes it particularly valuable in partial retrofit projects where minimising programme logic changes and HMI screen updates is a priority. The existing channel configuration in the 3300 XL monitor — including gap, direct, and 1X/2X vector parameters — remains valid after cable replacement, provided the probe and proximitor are unchanged.

Where a full system migration from the 3300 XL to a newer Bently Nevada platform such as the System 1 or 3500 series is planned, the 330130-040-03-CN may serve as an interim solution to maintain monitoring continuity during the phased cutover. In this context, it is common to retain the existing proximity probes and extension cables while the 3500 rack, 3500/42M Proximitor I/O Module, and associated power supply modules are commissioned in parallel. This staged approach allows the control room to maintain live vibration data throughout the migration window and avoids the need for a full machinery shutdown during the transition.

All units are pre-shipment tested for continuity, insulation resistance, and connector integrity before dispatch. Stock is maintained across multiple regional warehouses to support emergency replacement requirements with short lead times. A support terms confirmed by quotation is provided on all units, covering manufacturing defects and connector failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330130-040-03-CN within an active vibration monitoring system requires a structured approach to field verification before the maintenance window begins. The first step is to confirm the installed probe model — typically a 330101 or 330103 series 8mm proximity probe — and cross-reference the total system length against the proximitor driver’s calibration data. If the existing proximitor driver is a 3300 XL 8mm Proximitor Sensor, the replacement cable can be installed without adjustment. If the site has already partially migrated to a 3500 series rack, the 3500/42M Proximitor I/O Module must be verified for compatibility with the existing probe and cable combination.

In control cabinets where multiple monitoring channels are routed through a common cable tray, it is advisable to replace all extension cables of the same age and service history during the same outage window. This prevents a second unplanned shutdown caused by an adjacent cable failure shortly after the first repair. At the same time, the power supply module feeding the 3300 XL rack — often a dedicated 24 VDC or 28 VDC unit — should be inspected for output voltage stability, as a degraded power supply can produce noise artefacts that mimic cable faults in the vibration signal chain.

For sites where the control system backbone is being migrated from a legacy DCS to a modern platform, the 330130-040-03-CN supports continuity of the existing proximity probe field wiring during the transition. The 3300 XL monitor rack can remain in service while the new DCS I/O cards and communication modules are commissioned, with the vibration data routed through the existing 4–20 mA or relay outputs until the new system is validated. Once the new platform is live, the field wiring — including the 330130-040-03-CN extension cables — can be transferred to the new I/O termination panels without replacement, provided the cable condition is confirmed by insulation resistance testing.

Where communication protocol migration is also in scope — for example, moving from hardwired relay outputs to Modbus RTU or PROFIBUS DP via a 3300 XL communication gateway — the extension cable replacement can be scheduled as part of the same planned outage, minimising total downtime across both workstreams. Signal isolators may be required at the interface between the 3300 XL monitor outputs and the new DCS analogue input cards to prevent ground loop interference during the transition period.

Downtime Control During System Migration

Minimising downtime during a proximity probe extension cable replacement requires pre-staging all replacement components — including the 330130-040-03-CN cable, spare BNC connectors, and any associated proximitor driver units — at the work site before the machinery is taken offline. A pre-written cable replacement procedure, reviewed and approved by the site instrumentation engineer, should be available to the technician before the outage begins.

Where the machinery cannot be fully shut down, a hot-swap approach may be possible if the monitoring system supports channel bypass or inhibit functions. The 3300 XL monitor allows individual channels to be inhibited from the front panel or via the configuration software, preventing false trip signals during the cable replacement. The inhibit status should be logged in the site maintenance management system and cleared immediately after the replacement is verified.

After installation, the gap voltage at the proximitor driver output should be measured and compared against the commissioning baseline. A gap voltage within the linear range (typically −10 VDC to −18 VDC for an 8mm probe system) confirms correct installation. The 1X and 2X vibration vectors should also be verified against the pre-outage baseline to confirm that no signal offset has been introduced by the new cable. If the readings are within tolerance, the channel inhibit can be cleared and the machinery returned to service.

All pre-shipment testing documentation for the 330130-040-03-CN is available on request, supporting the site’s incoming inspection and commissioning records. The support terms confirmed by quotation provides coverage for the post-installation period, reducing the financial risk associated with early cable failure in demanding operating environments.

Retrofit Support FAQ

Q1: Is the 330130-040-03-CN a direct replacement for the original Bently Nevada cable of the same part number?
Yes. The 330130-040-03-CN is a direct, like-for-like replacement. It maintains the same cable length, connector type, and signal characteristics as the original OEM unit. No recalibration of the proximitor driver or changes to the DCS configuration are required for a like-for-like swap.

Q2: Can this cable be used with a 3500 series proximitor I/O module during a platform migration?
In most cases, yes — provided the total probe system length (probe + extension cable + proximitor) matches the calibrated system length for the 3500/42M Proximitor I/O Module. Confirm the system length and gap voltage range with the 3500 series configuration documentation before installation.

Q3: What pre-shipment testing is performed on each unit?
Each 330130-040-03-CN unit undergoes continuity testing, insulation resistance measurement, and connector integrity inspection before dispatch. Test documentation is available on request to support incoming inspection and site commissioning records.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and connector failure under normal operating conditions from the date of dispatch. It does not cover damage resulting from incorrect installation, mechanical impact, or exposure to conditions outside the cable’s rated environmental specification. Support requests are supported by the pre-shipment test records issued at the time of dispatch.

—
