Bently Nevada 330130-040-03-05 Migration-Ready Proximitor Cable

Overview

Bently Nevada 330130-040-03-05 Migration-Ready Proximitor Cable for Legacy Control Systems

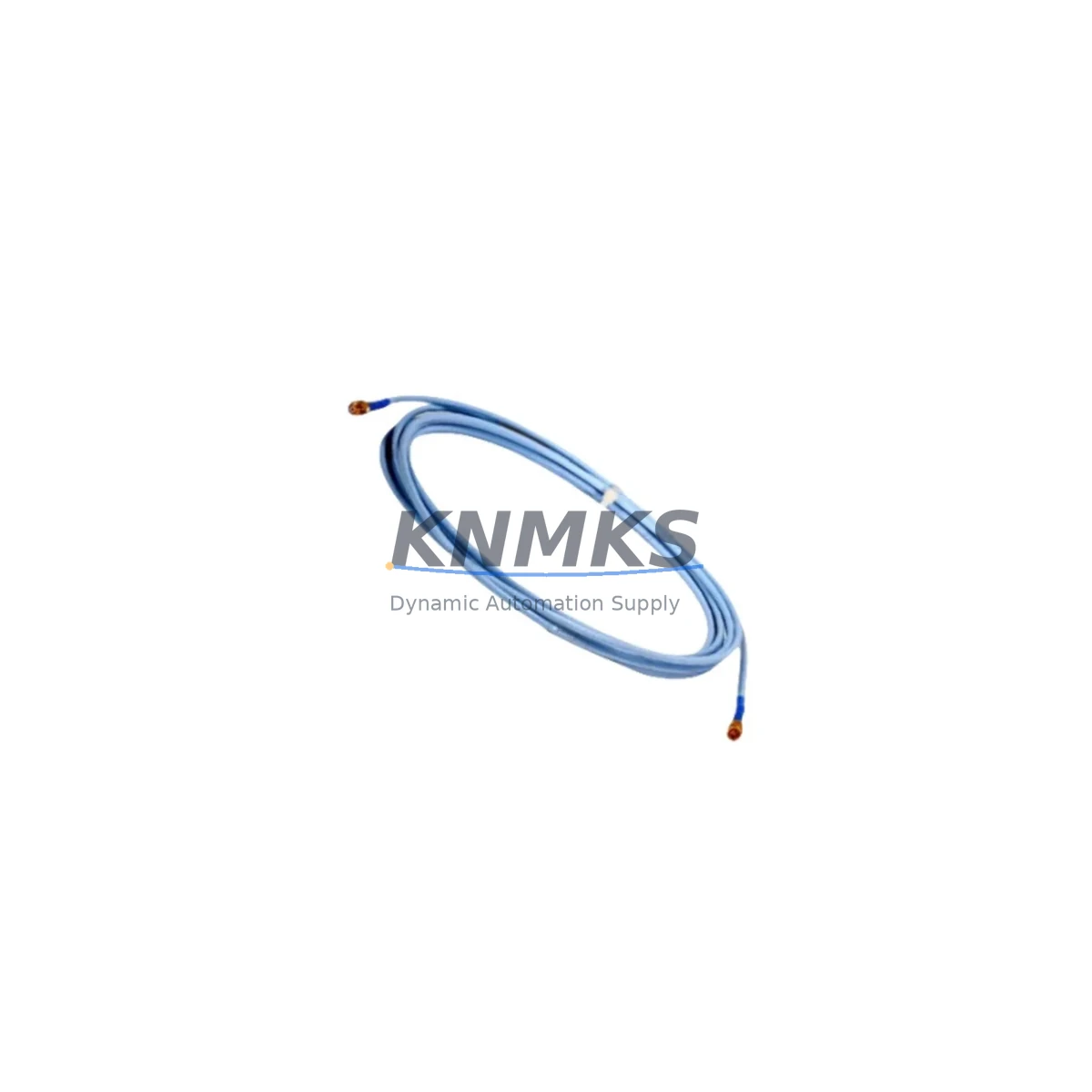

The Bently Nevada 330130-040-03-05 is a Proximitor Extension Cable engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems approach end-of-support milestones, maintenance engineers and reliability teams increasingly rely on verified replacement cables to sustain continuous monitoring without triggering full system overhauls. This cable serves as a direct, wiring-compatible replacement for obsolete or damaged extension cables in existing 3300 XL installations, enabling field teams to restore sensor signal integrity with minimal downtime and without reprogramming the host monitor.

The 330130-040-03-05 is a 5-metre (approximately 16.4 ft) coaxial extension cable designed to connect the 3300 XL Proximitor Sensor to the monitor module mounted in the rack. It maintains the precise signal conditioning characteristics required by the 3300 XL system, including the correct impedance, shielding, and connector termination standard. When replacing a failed or degraded cable in the field, engineers must verify that the replacement cable length matches the original specification, as cable length directly affects the gap voltage calibration range of the eddy-current proximity system. Substituting a cable of a different length — for example, swapping a 330130-040-03-05 (5 m) for a 330130-040-01-00 (1 m) or a 330130-040-05-00 (9 m) — without recalibrating the Proximitor will result in incorrect gap voltage readings and potential false trip conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

In a typical 3300 XL machinery protection rack, the Proximitor Extension Cable is one of several interdependent components that must be evaluated together during a retrofit or spare-parts replacement cycle. The 3300 XL monitor module — such as the 3300/16 Dual Voting Logic Monitor or the 3300/25 Keyphasor Module — receives its proximity signal exclusively through the extension cable, making cable integrity a prerequisite for accurate vibration and position measurement. When planning a cable replacement, field engineers should simultaneously audit the condition of the Proximitor Sensor itself (e.g., 330180-91-05 or 330180-91-00 for 8 mm probes), as a degraded probe tip or contaminated probe body can produce erratic gap voltages even with a new cable installed.

The 3300 XL rack power supply — typically the 3300/15 Power Supply Module — should also be verified during any cable swap. A power supply operating near its output current limit may cause intermittent Proximitor bias voltage fluctuations, which can be misdiagnosed as cable faults. Confirming that the power supply output is within specification before replacing the cable prevents unnecessary repeat maintenance visits. Similarly, if the installation includes a 3300/55 Dual Relay Module for alarm and trip output, the relay setpoints and time delays should be reviewed after cable replacement to ensure that the new cable’s signal characteristics have not shifted the effective trip threshold.

For sites migrating from the older 3300 Series (non-XL) to the 3300 XL platform, the extension cable pinout and connector standard differ between generations. The 330130-040-03-05 is specific to the 3300 XL Proximitor system and is not interchangeable with cables from the earlier 3300 Series without verifying connector compatibility. In multi-machine installations where both generations coexist in the same control cabinet, cable labelling and colour-coding are essential to prevent cross-connection errors during maintenance. Where the installation also includes a 3500 Series rack for more advanced condition monitoring, a 3500/42M Proximitor/Seismic Monitor may accept the same Proximitor probe but requires its own dedicated extension cable routed to the 3500 rack — the 330130-040-03-05 cannot be shared between racks.

If the retrofit scope extends to the HMI layer, operators using System 1 Evolution or GE Bently Nevada System 1 software should confirm that the channel configuration in the software matches the physical cable length and probe type after replacement. Incorrect cable length entries in the software database will cause the displayed gap value to deviate from the actual mechanical clearance, potentially masking real machinery faults. For sites using a Modbus or FOUNDATION Fieldbus gateway to transmit 3300 XL data to a DCS or SCADA system, no communication reconfiguration is required after a cable-only replacement, as the monitor’s output signal format is unchanged.

Downtime Control During System Migration

Replacing the 330130-040-03-05 Proximitor Extension Cable is one of the lower-risk maintenance interventions in a 3300 XL system, but it still requires a structured approach to avoid unplanned trips or data gaps. The recommended procedure is to schedule the cable replacement during a planned maintenance window when the monitored machine is offline or in a reduced-load state. Before disconnecting the existing cable, record the current gap voltage displayed on the 3300 XL monitor front panel or in the System 1 historian — this baseline value is essential for post-installation verification.

During the cable swap, the monitor channel will enter a Not OK state, which may trigger an alarm or trip output depending on the relay configuration. To prevent a spurious machine trip, the relevant relay output should be inhibited at the 3300/55 Dual Relay Module or at the DCS input before the cable is disconnected. After the new 330130-040-03-05 is installed and the Proximitor is reconnected, allow a minimum of 30 seconds for the Proximitor bias voltage to stabilise before reading the gap voltage. If the gap voltage is within the expected range (typically –10.0 VDC ± 0.5 V for a correctly gapped probe), the relay inhibit can be removed and the channel returned to normal monitoring service.

For sites where continuous monitoring is contractually required, a temporary bypass using a portable vibration analyser connected directly to the Proximitor output can maintain data continuity during the cable replacement interval. This approach is particularly valuable in turbomachinery applications where bearing clearance trending is used to predict maintenance intervals. All replacement cables supplied by KNMKS are pre-tested at the factory to verify signal continuity, shield integrity, and connector seating before shipment, reducing the risk of receiving a defective cable that would extend the maintenance window.

Retrofit Support FAQ

Q1: Is the 330130-040-03-05 a direct replacement for the original Bently Nevada cable, or are there wiring modifications required?
The 330130-040-03-05 is a direct drop-in replacement for the original OEM cable of the same part number. No wiring modifications, adapter connectors, or re-termination are required. The connector type, cable length, and impedance characteristics are identical to the original specification. The only field action required after installation is to verify the gap voltage at the monitor and confirm the OK status indicator.

Q2: Can this cable be used with the Bently Nevada 3500 Series monitors?
The 330130-040-03-05 is designed and rated for the 3300 XL Proximitor system. While the 3500 Series uses the same eddy-current proximity principle, the 3500 rack uses its own dedicated extension cable part numbers routed to the 3500/42M or 3500/40M monitor modules. Using a 3300 XL cable in a 3500 installation without verifying connector and impedance compatibility is not recommended. Please confirm the target monitor series before ordering.

Q3: How do I confirm the correct cable length for my installation?
The cable length is encoded in the part number: 330130-040-03-05 indicates a 5-metre cable (the “03” segment denotes the length code in the Bently Nevada 330130 series). Check the existing cable label or the as-built documentation for your machinery protection system to confirm the installed length. If the original cable label is missing, measure the installed cable run from the Proximitor body to the monitor rack entry point and select the nearest standard length.

Q4: What support terms and pre-shipment testing does KNMKS provide for this cable?
All 330130-040-03-05 cables supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and signal performance. Each unit undergoes pre-shipment testing to verify electrical continuity, shield isolation, and connector integrity before dispatch. In-stock units are typically available for same-day or next-business-day shipment. For bulk orders or long-term spare-parts agreements, please contact our sales team to discuss inventory reservation and extended supply commitments.
