Bently Nevada 330130-040-03-00 Fail-Safe Extension Cable

Overview

Bently Nevada 330130-040-03-00 Fail-Safe Extension Cable: Fault-Protected Signal Integrity for Critical Industrial Monitoring

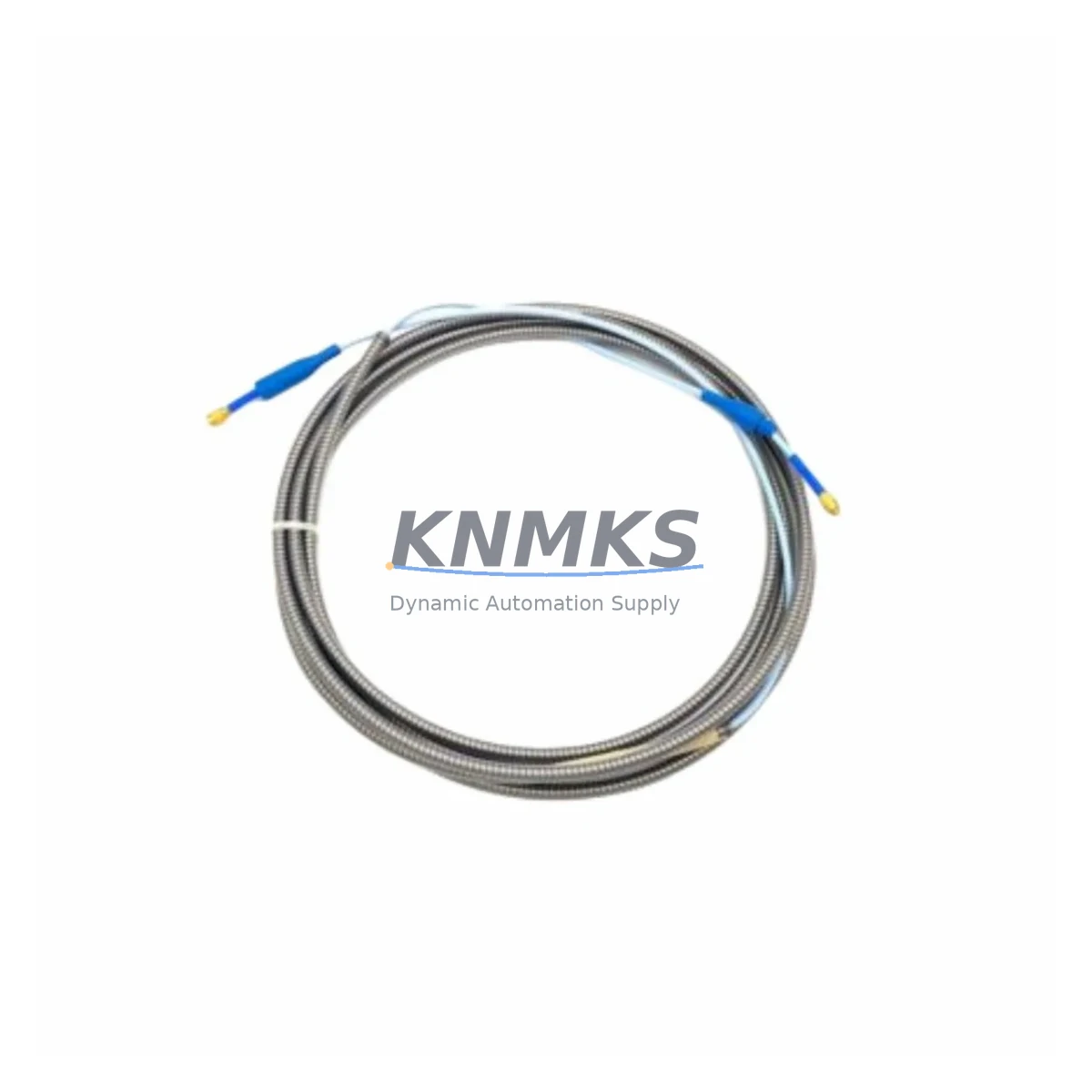

The Bently Nevada 330130-040-03-00 is a 40-foot (approximately 12.2 m) armored extension cable engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed eddy-current sensing platforms in rotating machinery protection worldwide. In continuous production environments where an undetected shaft displacement event can escalate into catastrophic equipment failure, the signal path between the proximity probe and the monitor rack must be treated as a safety-critical element. This cable is purpose-built to fulfill that role.

Unlike generic instrumentation cables, the 330130-040-03-00 is manufactured to Bently Nevada’s exacting specifications for impedance matching, shielding continuity, and connector integrity. It maintains the calibrated electrical characteristics required by the 3300 XL monitor to deliver accurate gap voltage, direct vibration (1X, 2X), and axial position readings — parameters that feed directly into turbine trip logic, compressor surge protection, and pump bearing alarm systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330130-040-03-00 extension cable is never an isolated component — it is one link in a carefully coordinated signal chain. The cable connects the field-mounted Bently Nevada 330101 or 330103 proximity probe to the Bently Nevada 3300 XL Proximitor sensor, which conditions the raw eddy-current signal before it reaches the monitor rack. Any impedance mismatch, shield break, or connector degradation in this chain introduces gap voltage error that can cause nuisance trips or, more dangerously, mask a genuine shaft excursion event.

Within the same control cabinet, the Bently Nevada 3500/42M Proximitor / Seismic Monitor processes the conditioned signals and enforces the trip setpoints that protect the machine. To maintain the integrity of the DC power supply feeding the Proximitor, many engineers pair the system with a dedicated Bently Nevada 3500/15 Power Supply module, which provides regulated, isolated 24 VDC with surge protection — critical in substations and motor control centers where voltage transients are common.

For installations in high-EMI environments — such as those adjacent to large variable-frequency drives, arc furnaces, or high-current bus bars — the armored construction of the 330130-040-03-00 works in concert with proper cable tray segregation and ferrite suppression on the 3300 XL Proximitor output leads. In hazardous-area installations classified as Zone 1 or Division 1, the cable is typically used alongside Bently Nevada 3300 XL Intrinsically Safe barriers to ensure the entire signal loop remains within safe energy limits. Communication between the monitor rack and the plant DCS is commonly handled via the Bently Nevada 3500/92 Communication Gateway, which translates vibration and position data into Modbus, Profibus, or OPC formats for integration with the plant historian and safety instrumented system.

Critical Industrial Safety Applications

Petrochemical and Refinery Rotating Equipment: In crude distillation units, catalytic crackers, and ethylene plants, centrifugal compressors and steam turbines run continuously for 3–5 year turnaround cycles. The 330130-040-03-00 supports the proximity measurement loops that monitor shaft radial vibration and rotor position on these machines. A cable failure that causes a false trip costs hundreds of thousands of dollars per hour in lost production; a cable failure that causes a missed alarm can result in a destructive bearing failure or seal loss with fire and explosion risk. The armored, double-shielded construction of this cable minimizes both failure modes.

Power Generation — Gas and Steam Turbines: Utility and industrial power plants rely on Bently Nevada 3300 XL systems to protect turbine-generator sets. The extension cable routes through turbine pedestals and cable trays exposed to high temperatures, oil mist, and intense mechanical vibration. The 40-foot length of the 330130-040-03-00 accommodates the typical distance between the bearing housing probe mount and the local junction box, maintaining signal fidelity across the full operating temperature range.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations present extreme challenges: high dust loading, water ingress, and severe vibration. The oil- and moisture-resistant jacket of the 330130-040-03-00 protects the cable in these conditions, while the armored construction resists mechanical damage from cable tray abrasion and maintenance traffic.

Water and Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water facilities require continuous vibration monitoring to prevent unplanned outages that affect public water supply. The 330130-040-03-00 provides a reliable signal path in humid, chemically aggressive pump station environments.

Metallurgy and Steel Production: Rolling mills, continuous casters, and induction furnace drives generate extreme electromagnetic interference. The high-coverage shielding of this cable maintains signal integrity in environments where lesser cables introduce noise that corrupts vibration trend data and triggers nuisance alarms.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330130-040-03-00?
The support terms covers manufacturing defects including connector failure, shield discontinuity, jacket cracking, and impedance non-conformance. Each cable undergoes outgoing continuity and shield integrity testing before shipment. If a defect is identified within 12 months of delivery, we provide replacement or full credit — no deductible, no restocking fee.

Q2: Is this cable compatible with all Bently Nevada 3300 XL Proximitor sensors and monitors?
Yes. The 330130-040-03-00 is designed to the 3300 XL system electrical specification and is compatible with the full range of 3300 XL Proximitor sensors (including 330180 and 330185 series) and 3300 XL monitors. It maintains the required cable capacitance and impedance characteristics for accurate scale factor calibration.

Q3: How is the cable tested before shipment to ensure field safety?
Each unit is tested for end-to-end conductor continuity, center conductor-to-shield isolation resistance, and physical connector seating. Cables that fail any parameter are quarantined and not shipped. Test records are retained and available upon request for critical-service applications.

Q4: Can you support long-term supply for planned maintenance and turnaround projects?
Yes. We maintain standing inventory of the 330130-040-03-00 and can support both spot orders for emergency replacements and scheduled bulk orders for planned turnarounds. Lead times and available stock quantities are confirmed at order placement. For critical-service sites requiring guaranteed availability, contact our sales team to discuss a consignment or blanket order arrangement.
