Bently Nevada 330130-040-02-05 Migration-Ready Proximity Extension Cable

Overview

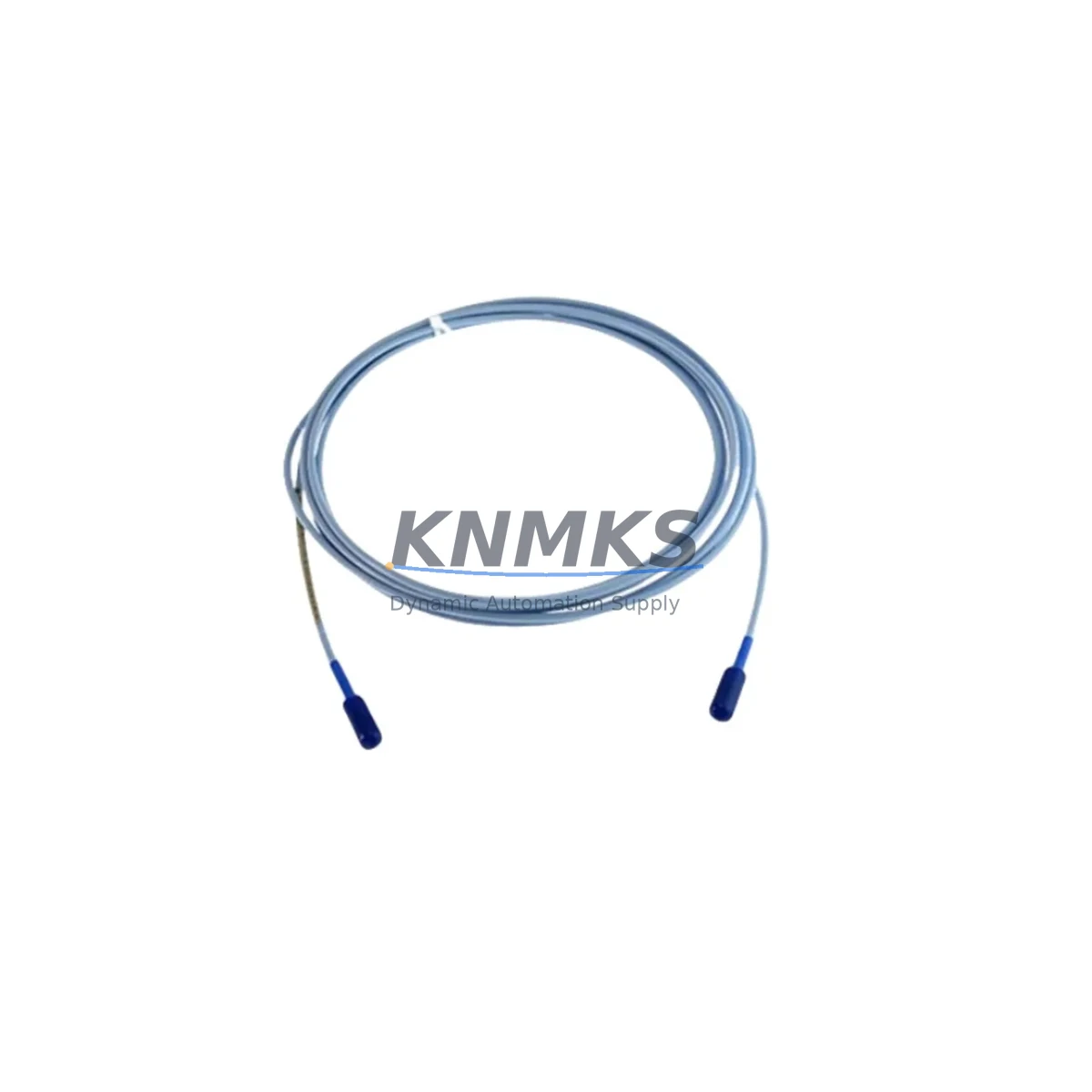

Bently Nevada 330130-040-02-05 Migration-Ready Proximity Extension Cable for Legacy Control Systems

The Bently Nevada 330130-040-02-05 is a precision-engineered proximity extension cable designed for use within the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems approach end-of-life or require infrastructure modernization, this cable serves as a critical link between the 3300 XL proximity transducer and its associated signal conditioning module. Whether you are executing a planned retrofit, responding to an unplanned failure, or consolidating spare parts inventory ahead of a scheduled outage, the 330130-040-02-05 provides a verified drop-in replacement path with no signal recalibration required under standard installation conditions.

This extension cable is rated for the standard Bently Nevada 3300 XL driver/transducer system, supporting the 5-metre armored cable configuration (040 = 40 inches driver cable, 02 = 2-metre extension, 05 = 5-metre total system length). It is compatible with the full range of 3300 XL proximity transducers including the 330100, 330101, and 330103 series probes, and interfaces directly with 3300 XL signal conditioning modules mounted in the 3500 rack system. Before installation, engineers should confirm the existing cable routing path, connector termination type (TNC or integral), and the driver gap voltage specification to ensure the replacement cable maintains the original system sensitivity of 7.87 V/mm.

Each unit is pre-shipment tested against Bently Nevada OEM electrical specifications, including impedance continuity, shield integrity, and connector torque verification. Stock is maintained across multiple regional warehouses to support emergency dispatch requirements. A support terms confirmed by quotation cover manufacturing defects and electrical performance under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330130-040-02-05 into an active machinery protection retrofit, the scope of work typically extends beyond the cable itself. In a 3500 rack environment, the proximity extension cable connects the field-mounted probe to the 3500/42M or 3500/40M position monitor module. Engineers replacing aging cable assemblies should simultaneously audit the condition of the 3300 XL driver (part of the 330100 or 330103 transducer assembly), as cable degradation is frequently accompanied by driver housing corrosion or connector wear that can introduce measurement drift.

For installations where the 3500 rack is being migrated from an older 3300 Series (non-XL) platform, the signal conditioning module pinout and power supply requirements differ. The 3500 rack accepts a 24 VDC backplane supply, and the associated power supply module — typically a 3500/15 or 3500/05 — must be verified for adequate current headroom when adding or replacing transducer channels. If the retrofit involves expanding I/O capacity, the 3500/20 or 3500/22M communication gateway module may require firmware updates to maintain Modbus or FOUNDATION Fieldbus compatibility with the plant DCS.

Cable routing is a frequently underestimated constraint during retrofit planning. The 330130-040-02-05 armored cable requires a minimum bend radius of 50 mm and must be routed away from high-voltage conduit runs to prevent electromagnetic interference with the low-level proximity signal. In turbine or compressor train applications where the control cabinet is remote from the machine, the 5-metre total system length may require a junction box or intermediate termination panel — a factor that should be confirmed during the pre-outage site survey. Proper shield grounding at a single point (typically at the monitor end) is essential to prevent ground loop noise that can mask real vibration events.

Where the retrofit also involves HMI screen updates — for example, migrating from a legacy Bently Nevada Data Manager 2000 display to a modern System 1 Evolution software platform — the channel tag assignments and alarm setpoints stored in the 3500 rack configuration must be exported and validated before the new cable assembly is commissioned. This prevents inadvertent alarm suppression or setpoint loss during the changeover window.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity cable replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330130-040-02-05 should be bench-tested for continuity and connector integrity, and the existing driver gap voltage should be recorded as a baseline reference. During the swap, the original probe tip-to-target gap setting should be preserved using a feeler gauge or gap voltage meter — this eliminates the need for a full re-gapping procedure and significantly reduces commissioning time.

To protect the original program logic and alarm configuration in the 3500 rack, a full rack configuration backup should be exported via the Rack Configuration Software (RCS) before any hardware is disturbed. This backup captures module addresses, channel assignments, alarm setpoints, and communication parameters, and can be reloaded in minutes if a module swap or firmware update introduces unexpected behavior. For plants running continuous processes where even brief interruptions carry significant cost, a hot-standby spare cable assembly staged at the control room ensures that the physical replacement can be completed within a single shift.

Post-installation verification should include a live gap voltage check (target: -10 VDC ± 0.5 V at nominal gap), a vibration signal noise floor check, and a confirmation that the 3500 rack is reporting the channel as healthy with no fault flags. If the retrofit is part of a broader control system upgrade — for example, integrating the 3500 rack with a new Emerson DeltaV or Honeywell Experion PKS DCS — the communication link between the 3500/20 gateway and the DCS I/O card should be validated under live process conditions before the machine is returned to service.

Retrofit Support FAQ

Q1: Is the 330130-040-02-05 a direct replacement for older 330130 series cables?
Yes. The 330130-040-02-05 is dimensionally and electrically compatible with earlier 330130 series cable assemblies of the same length configuration. The TNC connector interface and 7.87 V/mm sensitivity specification are unchanged. No probe re-gapping is required if the original gap setting is preserved during the swap.

Q2: What commissioning checks are required after installation?
After seating the cable connectors, verify the driver gap voltage at the 3500 monitor module (target: -10 VDC ± 0.5 V at nominal gap). Confirm the channel status in the 3500 rack configuration software shows no fault flags. Check the vibration signal noise floor against the pre-replacement baseline to confirm the shield grounding is effective.

Q3: Can this cable be used with non-Bently Nevada signal conditioning modules?
The 330130-040-02-05 is designed and tested for use with Bently Nevada 3300 XL drivers and 3500 Series signal conditioning modules. Use with third-party eddy-current signal conditioners is possible if the conditioner accepts a standard TNC input and is calibrated for 7.87 V/mm sensitivity, but compatibility must be verified by the end user’s instrumentation engineer before installation.

Q4: What is the support terms and supply lead time?
All units carry a support terms confirmed by quotation covering manufacturing defects and electrical performance under normal operating conditions. Stock is maintained across multiple regional warehouses. Standard dispatch is within 1–3 business days. Emergency same-day dispatch is available for critical plant applications — contact the sales team to confirm availability before raising a purchase order.
