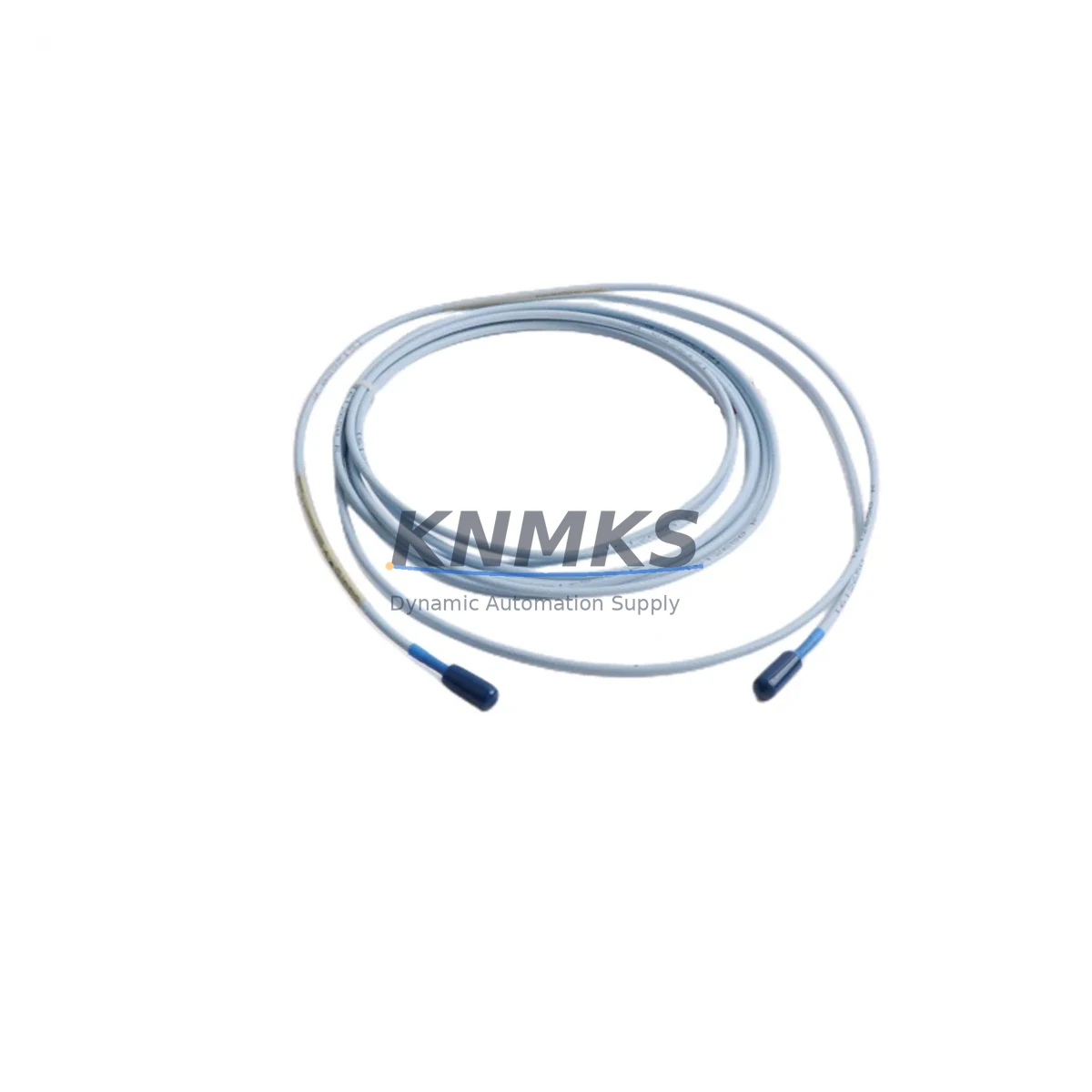

Bently Nevada 330130-040-00-CN Migration-Ready Proximity Extension Cable

Overview

Bently Nevada 330130-040-00-CN Migration-Ready Proximity Extension Cable: Legacy System Retrofit and Compatibility Upgrade

The Bently Nevada 330130-040-00-CN is a 4-meter (approximately 13-foot) armored coaxial extension cable engineered for the 3300 XL proximity transducer system — one of the most widely deployed eddy-current vibration monitoring platforms in rotating machinery and turbomachinery applications worldwide. As original equipment manufacturers phase out legacy 3300 series components and plant engineers face increasing pressure to sustain aging condition monitoring infrastructure, the 330130-040-00-CN has become a critical retrofit and replacement part for facilities seeking to extend system life without committing to a full platform migration.

This extension cable serves as the signal-carrying link between the 3300 XL proximity probe and its paired proximitor/oscillator driver, typically the 3300 XL 8mm proximitor (such as the 330180-X1-05 or 330180-X1-CN series). The cable’s characteristic impedance, capacitance per unit length, and connector termination are factory-matched to the 3300 XL system’s signal conditioning requirements. Substituting a non-OEM or mismatched cable can introduce measurement offset errors, gap voltage drift, and false vibration alarms — making verified replacement stock essential for maintenance teams managing critical rotating assets.

For facilities currently operating legacy Bently Nevada 3300 or 3500 series monitoring racks, the 330130-040-00-CN is a direct drop-in replacement that requires no firmware changes, no re-ranging of the proximitor, and no modification to existing DCS or safety system inputs. Engineers migrating from older 7200 series proximity systems to the 3300 XL platform should verify cable length compatibility and connector type (TNC vs. BNC) before installation, as connector adapters may be required at the proximitor input terminal.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330130-040-00-CN into an existing condition monitoring system requires a structured pre-installation review. Maintenance engineers should begin by auditing the current cable routing from the probe tip to the proximitor input, confirming that the total system cable length — probe integral cable plus extension cable — falls within the calibrated range specified on the proximitor’s calibration certificate. For most 3300 XL 8mm systems, the total cable length must match the calibration standard (typically 5 meters or 9 meters) to within ±0.1 meters to maintain measurement accuracy.

At the proximitor end, verify that the 3300 XL proximitor module (330180 series) is seated correctly in the 3300 XL monitor rack and that the rack’s power supply module — commonly the 3300 XL Power Supply (part of the 3300/20 or 3300/25 rack assembly) — is delivering stable -24 VDC to the proximitor channel. A degraded rack power supply is a frequent root cause of false gap voltage alarms during cable replacement, and should be inspected or replaced concurrently with the extension cable to avoid repeat maintenance events.

For facilities upgrading from legacy 3300 series monitors to the newer 3500 series rack-based monitoring system, the 330130-040-00-CN extension cable remains compatible with 3500/42M and 3500/44M proximity monitor modules, provided the total system cable length and probe model are within the 3500 series calibration range. Engineers should also confirm that the 3500 series I/O module terminal assignments match the existing DCS wiring, as terminal block pinouts differ between 3300 and 3500 rack generations.

Where the existing installation uses a Bently Nevada 3300 XL 16mm proximity system rather than the 8mm variant, a different extension cable family (330130-080 series) is required. Do not substitute 8mm and 16mm system cables, as the calibration curves and output sensitivities are not interchangeable. Similarly, if the plant’s condition monitoring data is aggregated through a Bently Nevada System 1 software platform or a third-party historian via Modbus or OPC-DA/UA, no software reconfiguration is needed for a like-for-like cable replacement — the proximitor’s analog output signal to the 3500 monitor or standalone DCS input card remains unchanged.

For installations where the extension cable passes through a hazardous area (Zone 1 or Zone 2 classified), confirm that the 330130-040-00-CN’s armored jacket and connector sealing meet the applicable IECEx or ATEX requirements for the installation zone. In some legacy installations, a Bently Nevada signal conditioner or intrinsic safety barrier may be installed in the cable path; these devices must be re-verified for compatibility after cable replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity cable replacement is a primary concern for operations teams managing continuous-process rotating equipment — compressors, turbines, pumps, and fans where even brief monitoring gaps can trigger safety system trips or regulatory non-compliance events.

The recommended approach is to pre-stage the replacement 330130-040-00-CN cable alongside a verified spare 3300 XL 8mm proximitor and confirm the gap voltage reading on the bench before the planned maintenance window. This allows the field technician to complete the cable swap, reconnect the proximitor, and verify the gap voltage at the proximitor output terminal (typically -10 VDC ±1 VDC for a correctly gapped 8mm probe) within a single shift, without waiting for parts or troubleshooting connector issues under time pressure.

During the cable swap, the original program logic in the plant’s DCS or safety instrumented system (SIS) does not require modification. The 3300 XL system’s analog output to the DCS input card — typically a 4–20 mA or ±10 VDC signal representing shaft vibration in mils peak-to-peak — is preserved without re-scaling, provided the replacement cable is the same length and model as the original. Technicians should document the pre- and post-replacement gap voltage, direct vibration, and 1X amplitude readings in the plant’s maintenance management system to establish a post-retrofit baseline.

For facilities that cannot tolerate any monitoring gap, a temporary bypass of the affected channel in the 3500 series monitor (using the monitor’s channel inhibit function) allows the cable swap to proceed without triggering a machinery protection trip. The inhibit should be applied only for the duration of the physical replacement and immediately removed after gap voltage verification to restore full protection coverage.

Retrofit Support FAQ

Q: Is the 330130-040-00-CN a direct replacement for the 330130-040-00 (without the -CN suffix)?
A: Yes. The -CN suffix designates the country-of-origin documentation variant for customs and import compliance purposes. The electrical specifications, connector type, cable length, and calibration compatibility are identical to the standard 330130-040-00. No recalibration or system adjustment is required when substituting one for the other.

Q: What pre-shipment testing is performed on the 330130-040-00-CN?
A: Each unit undergoes continuity testing, connector integrity inspection, and impedance verification prior to shipment. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects identified during installation or normal operation within the rated environmental conditions.

Q: Can this cable be used with a 3300 XL 5mm proximity probe system?
A: No. The 330130-040-00-CN is calibrated for the 3300 XL 8mm probe and proximitor system. Using it with a 5mm probe system will result in incorrect gap voltage and sensitivity, producing inaccurate vibration measurements. The correct extension cable for 3300 XL 5mm systems is from the 330130-020 series.

Q: What is the lead time and inventory availability?
A: Stock is maintained for immediate dispatch. Orders confirmed before the daily cut-off are typically shipped within 1–2 business days. For urgent plant maintenance requirements, contact our sales team directly to confirm current inventory levels and expedited shipping options. All units are covered by a support terms confirmed by quotation from the date of shipment.
