Bently Nevada 330130-040-00-00/CN Maintenance-Proven Spare

Overview

Bently Nevada 330130-040-00-00/CN Maintenance-Proven Spare Part for Factory Uptime

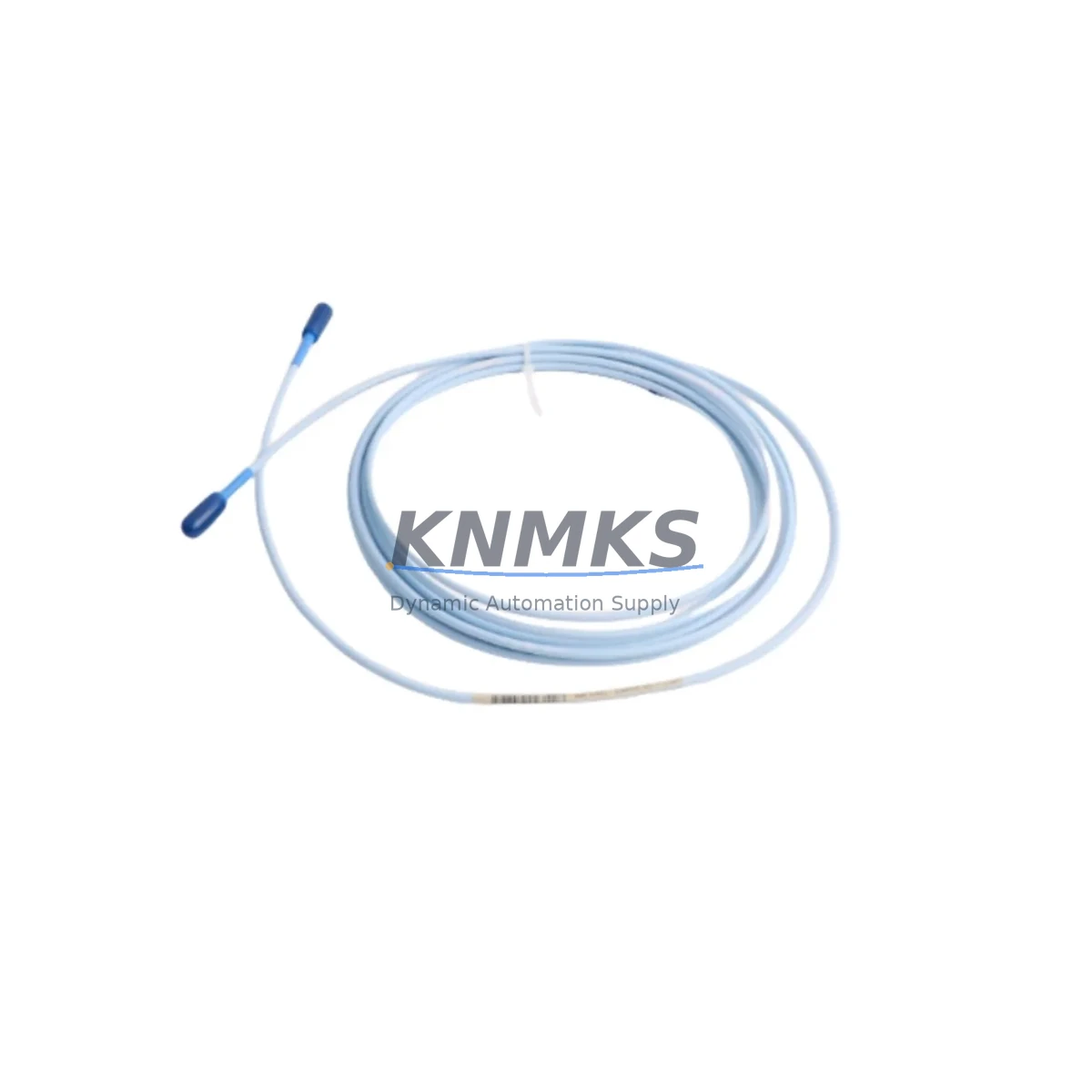

The Bently Nevada 330130-040-00-00/CN is a 40-foot (approximately 12.2 m) proximity extension cable engineered for the 3300 XL continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this cable forms the critical signal path between the 3300 XL proximitor/sensor and the monitoring rack. Signal integrity across this cable directly determines the accuracy of shaft displacement readings, gap voltage stability, and ultimately the reliability of your machinery protection trip logic.

For maintenance engineers managing aging turbomachinery or DCS-integrated vibration monitoring panels, holding a verified spare of the 330130-040-00-00/CN is not optional — it is a fundamental element of any credible spare parts strategy. Cable degradation, connector corrosion, mechanical damage from vibration fatigue, or chemical exposure in harsh plant environments can cause intermittent signal faults that are notoriously difficult to diagnose under load. A pre-tested, OEM-compatible replacement on the shelf eliminates diagnostic ambiguity and compresses mean time to repair (MTTR) from hours to minutes.

This unit is sourced as an original Bently Nevada component, inspected and pre-shipment tested to confirm continuity, insulation resistance, and connector integrity before dispatch. It ships with a support terms confirmed by quotation covering manufacturing defects and functional performance, supporting both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-040-00-00/CN extension cable in the field, a disciplined maintenance engineer will treat the cable swap as an opportunity to audit the entire signal chain. The 3300 XL proximitor — typically a 330180-X1-05 or equivalent series proximitor — should be inspected for housing cracks, connector corrosion, and correct gap voltage output. If the proximitor has been in service for more than five years in a high-vibration or high-temperature zone, scheduling a concurrent proximitor replacement alongside the cable is a sound risk-reduction strategy.

The 3300 XL monitor rack itself warrants attention during any cable replacement outage. Rack-mounted I/O modules, power supply cards, and the backplane connectors should be visually inspected for oxidation or loose seating. The 3300/20-02-01-00 power supply module, for example, is a common companion spare for sites running extended 3300 XL installations, as power supply degradation can manifest as false gap voltage readings that are easily misattributed to cable or proximitor faults.

Signal conditioning and isolation also deserve review. Where 3300 XL outputs feed into a DCS or safety instrumented system (SIS), the signal isolators or barriers in the loop — such as Bently Nevada 3500/22M transient data interface cards or third-party DIN-rail signal isolators — should be confirmed functional. A degraded isolator can introduce noise that mimics cable signal loss, leading to unnecessary cable replacements and extended diagnostic time.

For sites using junction boxes to route multiple proximity channels, the terminal blocks and fuse holders within the junction enclosure should be checked for tightness and corrosion. Blown or degraded fuse elements in the proximitor power circuit are a frequently overlooked cause of signal loss. Maintaining a small stock of compatible fuse elements alongside the 330130-040-00-00/CN cable ensures that a single-visit repair is achievable without a second parts run.

Finally, procurement engineers should note that the 330130-040-00-00/CN is part of a broader 3300 XL cable family differentiated by length suffix. Sites with multiple cable runs of varying lengths — such as the 330130-020-00-00/CN (20 ft) or 330130-080-00-00/CN (80 ft) variants — benefit from a consolidated spare parts agreement that covers the full length range, reducing the risk of holding the wrong cable length during an emergency callout.

Site Replacement Workflow

Step 1 — Isolate and document: Before disconnecting the existing cable, record the current gap voltage reading from the 3300 XL monitor display or DCS historian. This baseline value is essential for post-replacement verification and confirms whether the cable was the root cause of any prior signal anomaly.

Step 2 — De-energize the proximitor circuit: Follow your site LOTO procedure. The 3300 XL proximitor operates on a negative DC bias supply (typically -24 VDC from the monitor rack). Confirm power is isolated at the rack before disconnecting the extension cable at either end.

Step 3 — Remove and inspect the old cable: Examine the removed cable for jacket damage, connector pin corrosion, or evidence of mechanical fatigue at the bend points near the proximitor mount. Document findings for your maintenance record. If the connector shows significant corrosion, inspect the mating connector on the proximitor and junction box for corresponding damage.

Step 4 — Install the 330130-040-00-00/CN replacement: Route the new cable following the original cable path. Maintain the manufacturer’s minimum bend radius. Hand-tighten connectors to the specified torque — over-tightening coaxial connectors is a common installation error that damages the center pin and degrades signal quality.

Step 5 — Re-energize and verify gap voltage: Restore power and allow the proximitor to stabilize (typically 30–60 seconds). Confirm gap voltage is within the acceptable window (nominally -10 VDC ± 1 V for standard 3300 XL setups). If gap voltage is outside range, adjust the proximitor mounting position before returning the channel to service.

Step 6 — Clear alarms and return to service: Reset any latched alarms in the 3300 XL monitor or DCS. Confirm the channel is active and trending correctly in the vibration monitoring historian before signing off the work order.

This workflow is applicable whether replacing a failed cable on an emergency basis or executing a planned cable replacement during a scheduled outage. The same procedure supports legacy 3300 XL installations being maintained in service beyond original design life, where cable replacement is a cost-effective alternative to full system migration.

Spare Parts Support FAQ

Q1: Is the 330130-040-00-00/CN compatible with both older 3300 and current 3300 XL monitor racks?
The 330130-040-00-00/CN is designed for the 3300 XL proximitor/sensor system. Compatibility with earlier 3300 series (non-XL) racks depends on the specific monitor card and connector configuration at your site. We recommend confirming the proximitor model number and rack card type before ordering if you are maintaining a mixed-generation installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 330130-040-00-00/CN unit undergoes continuity testing across the full cable length, insulation resistance measurement, and physical inspection of both connectors before dispatch. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement requirements.

Q3: Can you support long-term supply agreements for this part number?
Yes. We support 12–36 month blanket supply agreements for the 330130-040-00-00/CN and related 3300 XL spare parts. Long-term agreements provide price stability, priority allocation, and scheduled delivery to align with your annual maintenance calendar. Contact [email protected] to discuss volume and delivery terms.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and confirmed functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, over-torqued connectors, chemical exposure beyond the cable’s rated environment, or mechanical damage from improper cable routing. Support requests are processed with a replacement unit dispatched after fault confirmation — no extended RMA delays.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-040-00-00/CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-040-00-00/CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
