Bently Nevada 330130-030-02-05 Migration-Ready Extension Cable

Overview

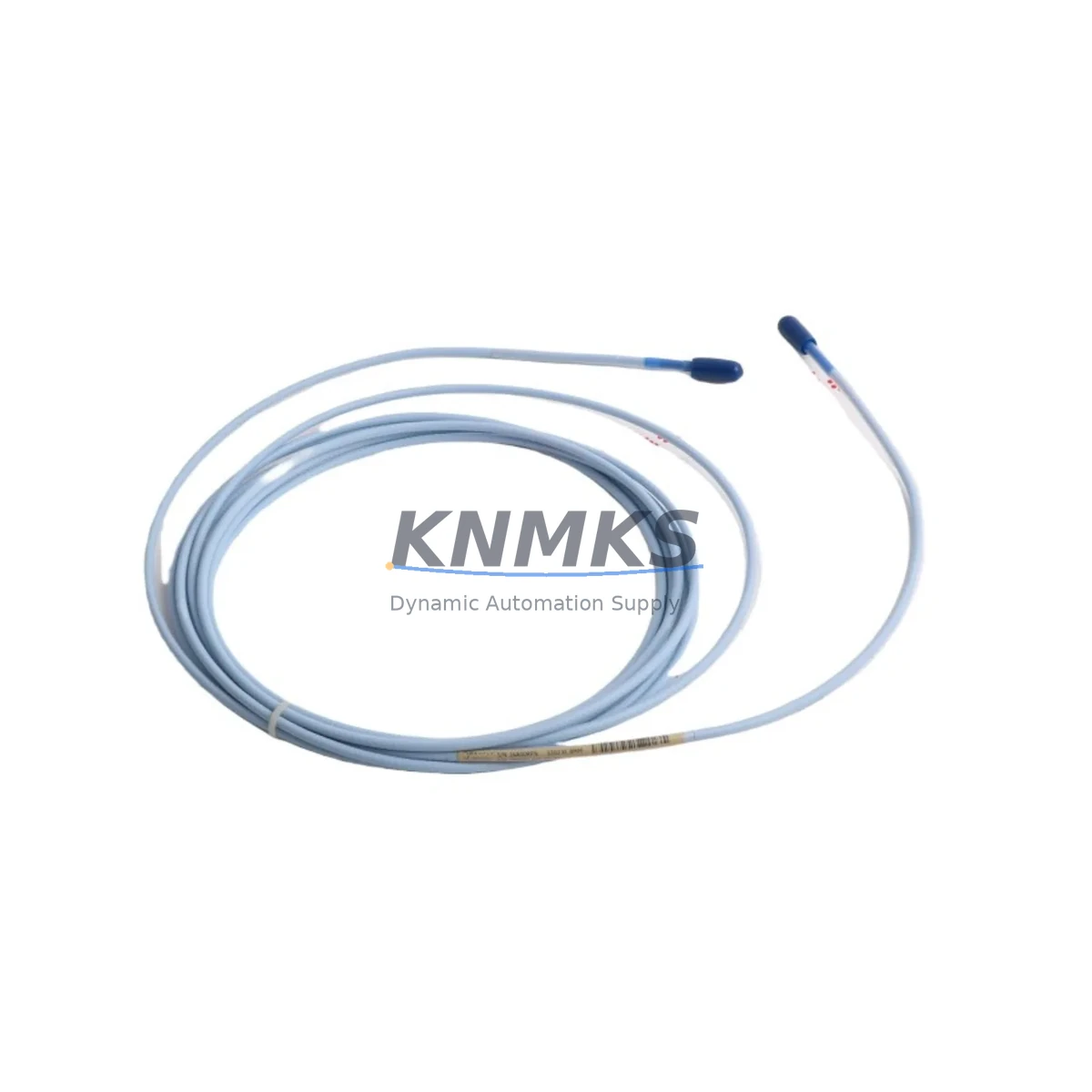

Bently Nevada 330130-030-02-05 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-030-02-05 is a 30-foot (9-metre) armoured extension cable engineered for the 3300 XL proximity transducer system. As legacy vibration monitoring installations age and OEM support windows close, this cable serves as a verified, drop-in replacement that preserves signal integrity across the full measurement chain — from the probe tip through to the 3300 XL monitor rack. Whether you are executing a planned outage retrofit, responding to an unplanned cable failure, or building a strategic spare-parts inventory ahead of a plant-wide DCS migration, the 330130-030-02-05 delivers the dimensional and electrical compatibility required to restore continuous machinery protection without rewriting monitor configuration or recalibrating transducer chains.

In rotating machinery protection applications — compressors, turbines, pumps, and gearboxes — the extension cable is the critical link between the 3300 XL proximity probe (typically an 8mm or 5mm tip diameter probe from the 330101 or 330103 series) and the proximitor sensor. The 330130-030-02-05 maintains the system’s nominal –24 VDC bias voltage range and the linear output sensitivity of 200 mV/mil (7.87 V/mm), ensuring that the 3300 XL monitor module receives a clean, calibrated signal without requiring gap voltage re-adjustment at the proximitor housing. This is a decisive advantage during time-critical replacements where re-calibration would extend downtime beyond acceptable maintenance windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330130-030-02-05 extension cable begins well before the maintenance window opens. The first step is a full audit of the existing transducer chain: confirm the probe model (typically a 330101-00-30-10-02-00 or 330103-00-30-10-02-00 8mm probe), the proximitor sensor part number (commonly a 330180-91-00 or 330180-51-00 proximitor), and the monitor module slot assignment within the 3300 XL rack. The 3300 XL rack itself — whether a 3300/16 or 3300/20 chassis — determines the available I/O terminal block layout and the power distribution architecture that feeds the proximitor bias supply.

During the audit, engineers should document the existing cable routing path, conduit fill ratio, and any junction boxes or bulkhead fittings along the run. The 330130-030-02-05 armoured jacket is dimensionally consistent with the original factory cable, but conduit fill calculations must be re-verified if additional cables have been added to the same conduit since the original installation. Where conduit space is constrained, the non-armoured variant 330130-030-01-05 may be considered, provided that the conduit itself offers adequate mechanical protection.

Terminal wiring at the 3300 XL monitor module’s I/O terminal block must be mapped before disconnecting the old cable. The two-conductor shielded cable carries the –24 VDC supply to the proximitor and returns the analogue vibration signal to the monitor input. Shield grounding practice — single-point grounding at the monitor end — must be maintained to prevent ground loop interference that would corrupt the vibration measurement. If the plant is simultaneously upgrading from a legacy DCS platform (such as a Honeywell TDC 3000 or an Emerson PROVOX system) to a modern DCS, the 3300 XL monitor rack’s serial communication output (RS-232 or RS-485 Modbus, depending on the installed 3300/20 communication option card) must be re-mapped to the new DCS I/O marshalling cabinet. This communication re-mapping is independent of the extension cable replacement but should be scheduled in the same outage window to minimise total downtime.

Where the plant is migrating to a Bently Nevada 3500 series rack as part of a broader machinery protection upgrade, it is important to note that the 3500 series uses a different transducer system architecture. The 3500/42M monitor module accepts the same proximity probe signal but requires the 330130 extension cable to terminate at a 3500-series compatible proximitor (such as the 330180-X1-00 series). In this scenario, the 330130-030-02-05 cable remains usable at the field end, but the proximitor sensor and monitor module must be updated as part of the migration bill of materials. Planning teams should also account for the 3500 rack’s I/O module addressing scheme, which differs from the 3300 XL slot-based addressing, and update the System 1 machinery management software configuration accordingly.

For plants running Emerson AMS Machinery Manager or a third-party CMMS integrated with the 3300 XL via OPC, the extension cable replacement itself requires no software change. However, if the replacement is part of a broader sensor upgrade — for example, moving from a 5mm probe to an 8mm probe to extend the linear measurement range — the monitor module’s full-scale range and alert/danger setpoints must be reconfigured in the 3300 XL monitor module and reflected in the AMS database. Spare parts planning should include not only the 330130-030-02-05 extension cable but also the associated proximitor sensor, probe, and a set of 3300 XL monitor module fuses, to ensure that a single-source procurement covers the complete transducer chain.

Downtime Control During System Migration

Minimising downtime during a 330130-030-02-05 extension cable replacement requires a structured pre-outage preparation protocol. Before the maintenance window begins, the replacement cable should be pre-tested on the bench: measure end-to-end conductor continuity, insulation resistance (minimum 100 MΩ at 500 VDC), and shield continuity. Pre-label both ends of the new cable with the machine tag, channel number, and monitor slot address to eliminate wiring errors under time pressure in the field.

During the outage, the sequence should follow a defined lock-out/tag-out procedure: isolate the 3300 XL monitor channel, bypass the machinery protection trip logic in the DCS (or place the monitor in bypass mode via the 3300 XL front-panel keypad), and then disconnect the old cable at both the probe/proximitor end and the monitor terminal block. The new 330130-030-02-05 cable should be pulled through the existing conduit without disturbing adjacent cables. Re-terminate at the monitor I/O terminal block using the documented wire map, restore shield grounding, and reconnect the proximitor sensor.

After reconnection, verify the proximitor gap voltage (target: –10.0 VDC ±0.5 VDC for a standard 8mm probe at nominal gap) before releasing the monitor channel from bypass. Confirm that the 3300 XL monitor module displays a valid vibration reading within the expected baseline range for the machine at rest. If the plant’s DCS historian (whether a Honeywell Experion PKS, an Emerson DeltaV, or an ABB 800xA system) is configured to alarm on signal loss, verify that the historian tag resumes normal data acquisition before closing the work order. Document the as-found and as-left gap voltage readings, the insulation resistance test result, and the cable serial number in the plant CMMS to support future maintenance planning and support requests.

For critical machines where even a brief loss of vibration monitoring is unacceptable, a temporary portable vibration analyser (such as a CSI 2140 or equivalent) can be connected to the proximitor output during the cable swap to maintain continuous monitoring. This approach extends the outage window slightly but eliminates the risk of an undetected machinery event during the replacement interval.

Retrofit Support FAQ

Q1: Is the 330130-030-02-05 a direct replacement for the original Bently Nevada cable, and will it work without recalibration?
Yes. The 330130-030-02-05 is a like-for-like replacement for the original factory-installed extension cable of the same part number. Because the cable is a passive component, it does not alter the system’s calibrated sensitivity or bias voltage. After installation, only a gap voltage verification at the proximitor is required — no monitor module recalibration is needed provided the probe and proximitor sensor are unchanged.

Q2: What pre-shipment testing is performed, and what documentation is provided?
Each 330130-030-02-05 cable undergoes continuity testing, insulation resistance testing, and connector integrity inspection before shipment. A test report confirming pass status is included with the shipment. The support terms confirmed by quotation cover manufacturing defects identified during installation or operation within the confirmed support period.

Q3: Can this cable be used in a migration from a 3300 XL system to a Bently Nevada 3500 series rack?
The 330130-030-02-05 cable can be retained at the field (probe-to-proximitor) end of the transducer chain during a 3300 XL to 3500 series migration, provided the proximitor sensor is updated to a 3500-compatible model. The monitor end of the cable must be re-terminated to suit the 3500 rack’s I/O terminal block layout. Full compatibility verification against the 3500/42M monitor module specification is recommended before finalising the migration bill of materials.

Q4: What is the typical lead time, and do you maintain stock for emergency replacement orders?
We maintain warehouse stock of the 330130-030-02-05 to support emergency replacement requirements. Standard orders are processed and shipped within 1–3 business days. For critical plant shutdowns requiring same-day dispatch, please contact our sales team directly to confirm real-time stock availability and expedited shipping options.
