Bently Nevada 330130-030-01-CN Spare Part for Factory Uptime

Overview

Bently Nevada 330130-030-01-CN Spare Part for Factory Uptime

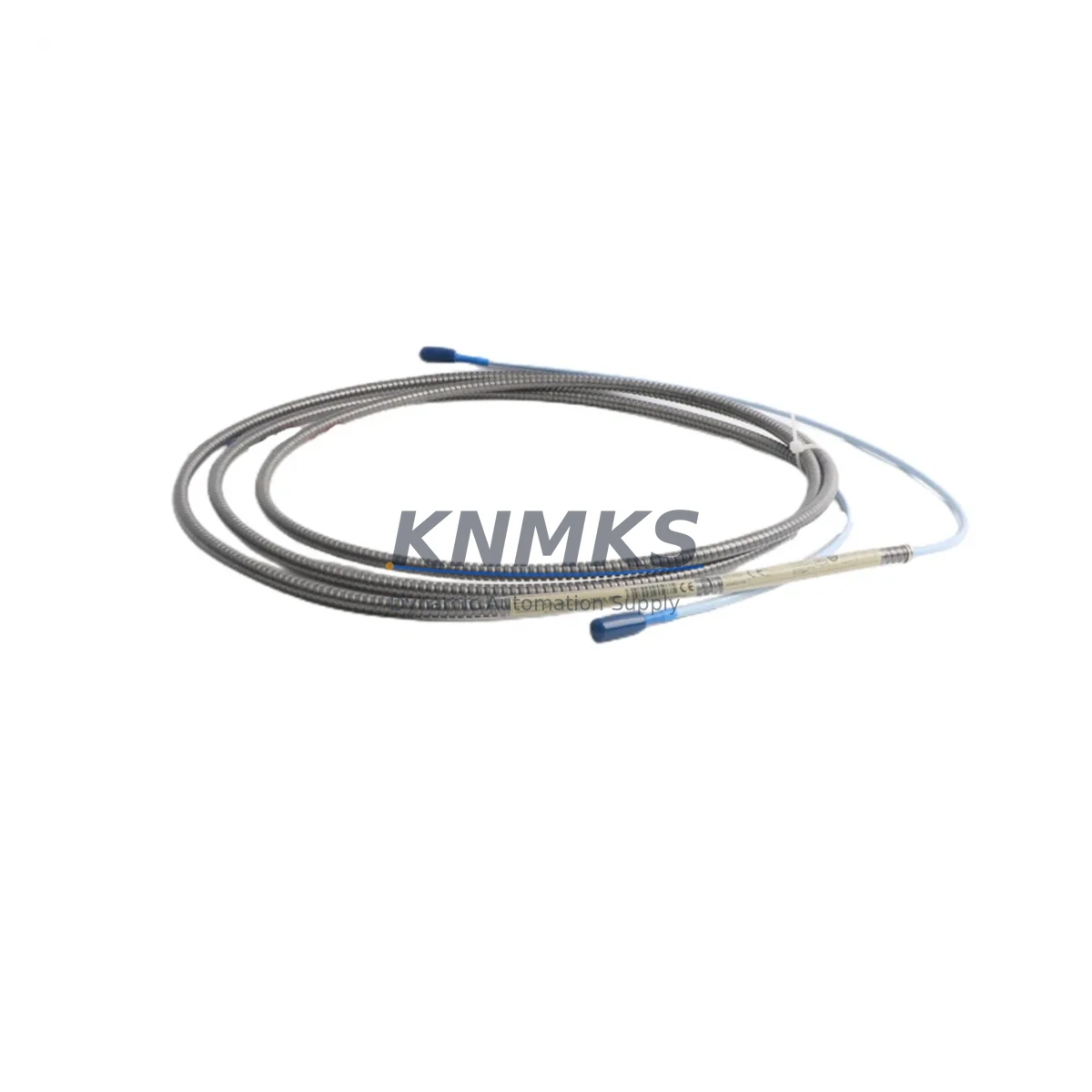

The Bently Nevada 330130-030-01-CN is a 3-metre Proximity Probe Extension Cable engineered for the 3300 XL Series vibration and position monitoring system. Designed to transmit eddy-current signals with minimal attenuation between the proximity probe and the Proximitor® sensor, this cable is a precision-matched, OEM-specified component that directly affects measurement accuracy, alarm reliability, and machinery protection integrity.

In rotating machinery environments — gas turbines, steam turbines, compressors, pumps, and gearboxes — the extension cable is a critical link in the vibration monitoring chain. Signal degradation caused by a worn, kinked, or contaminated cable can trigger false alarms, mask genuine fault conditions, or cause the protection system to trip unexpectedly. Maintaining a verified spare of the 330130-030-01-CN in your MRO inventory is a standard practice for any facility operating Bently Nevada 3300 XL systems.

Every unit shipped from KNMKS undergoes pre-shipment electrical continuity and impedance verification. Packaging is anti-static and moisture-sealed for long-term storage. A support terms confirmed by quotation covers all units against manufacturing defects and electrical failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330130-030-01-CN extension cable, the outage window should be used to inspect the entire vibration monitoring loop. The Bently Nevada 330180 Series Proximity Probe at the machine end should be checked for tip damage, thread condition, and gap voltage; a probe with a worn tip or cracked housing will compromise readings even with a new cable installed. At the Proximitor® end, verify that the Bently Nevada 3300 XL Proximitor® Sensor (typically a 3300/16 or 3300/20 series module) shows correct bias voltage — typically −10 VDC to −18 VDC — before declaring the loop healthy.

Inside the control cabinet or junction box, inspect the terminal blocks and field wiring connecting the Proximitor output to the monitor rack. Corroded or loose terminals are a common source of intermittent alarms that are incorrectly attributed to the probe or cable. If the facility uses a Bently Nevada 3500 Series Rack for machinery protection, confirm that the I/O module firmware and channel configuration match the replacement cable’s system impedance.

For sites running older installations, the power supply module feeding the Proximitor sensor deserves attention: a supply drifting outside its rated output will shift the probe gap voltage and produce false vibration readings. Similarly, any signal isolator or barrier installed between the Proximitor and the DCS or safety system should be tested for correct transfer function after the cable swap.

Procurement engineers sourcing the 330130-030-01-CN should also consider stocking the companion 330130-045-01-CN (4.5 m) and 330130-060-01-CN (6 m) extension cables to cover different machine configurations across the plant. Maintaining at least one spare per critical machine train — and a buffer for non-critical assets — reduces emergency procurement lead times and supports a predictive maintenance strategy rather than a reactive one.

Site Replacement Workflow

1. Isolate and document: Record the existing gap voltage, direct (DC) output, and 1× / 2× vibration amplitude before disconnecting the old cable. This baseline confirms the new cable restores the loop to its previous calibrated state.
2. Disconnect safely: De-energise the Proximitor sensor supply. Disconnect the extension cable at both the probe and Proximitor ends. Inspect connectors for corrosion, bent pins, or damaged threads.
3. Install 330130-030-01-CN: Route the new cable through the existing conduit or cable tray. Maintain a minimum bend radius of 50 mm. Hand-tighten connectors; do not use tools on the coaxial coupling nut.
4. Re-energise and verify gap voltage: Restore power and measure the Proximitor output voltage. Adjust probe gap if necessary to return to the system’s calibrated gap voltage (typically −10 VDC ± 0.5 VDC for standard 5 mm probes).
5. Confirm alarm and trip setpoints: Check that the monitor rack registers correct vibration levels and that alarm/trip setpoints are active. Log the post-replacement readings in the maintenance management system.
6. Return old cable for failure analysis: Retain the removed cable for root-cause inspection. Jacket cracking, connector corrosion, or internal shield breaks indicate environmental or installation issues that should be corrected to prevent recurrence.

This workflow applies equally to planned annual outages, emergency replacements following a trip event, and proactive swaps identified during routine control cabinet inspections. The goal is to restore the vibration monitoring loop to full calibrated accuracy with minimum downtime.

Spare Parts Support FAQ

Q1: Is the 330130-030-01-CN compatible with both the 3300 XL and older 3300 Series Proximitor sensors?
The 330130-030-01-CN is specified for the 3300 XL system. While the connector format is physically similar to some earlier 3300 Series components, system impedance and calibration constants differ between generations. Confirm your Proximitor sensor model number before ordering. KNMKS technical support can assist with compatibility verification.

Q2: How should the 330130-030-01-CN be stored as a long-term spare?
Store in the original anti-static, moisture-sealed packaging in a clean, dry environment between −20°C and +60°C. Avoid coiling tightly or placing heavy objects on the cable. Inspect connectors annually for oxidation. Properly stored units remain serviceable well beyond the support terms confirmed by quotation period.

Q3: What pre-shipment testing does KNMKS perform on this cable?
Each 330130-030-01-CN undergoes electrical continuity testing across the full cable length, coaxial impedance verification, and physical inspection of both connectors before shipment. A test record is available on request. Units that do not meet specification are not shipped.

Q4: Can KNMKS support long-term or blanket-order supply of the 330130-030-01-CN?
Yes. KNMKS maintains standing inventory of the 330130-030-01-CN and related 3300 XL extension cable variants. Blanket purchase orders, scheduled releases, and consignment arrangements are available for facilities with ongoing MRO requirements. Contact [email protected] to discuss volume pricing and supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-030-01-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-030-01-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
