Bently Nevada 330130-030-01-00 3300 XL Extension Cable Spare: Maintenance-Proven Spare Part for Factory Uptime

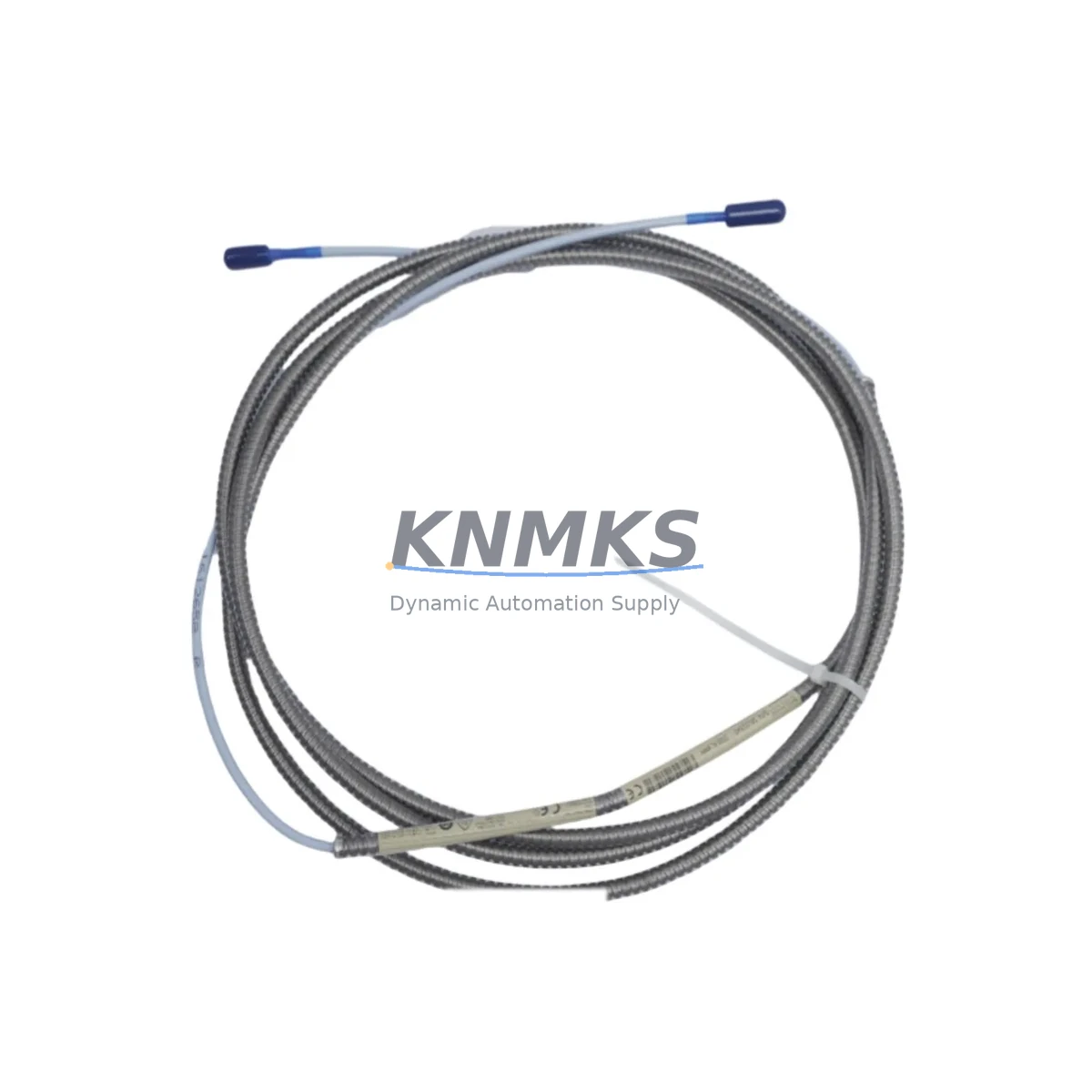

The Bently Nevada 330130-030-01-00 is an original proximity probe extension cable engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. This cable serves as the critical signal transmission link between the proximity probe tip and the Proximitor® sensor, carrying the raw eddy-current signal that your 3300 XL monitor relies on to detect shaft vibration, eccentricity, and radial position in real time. Maintaining a verified spare of the 330130-030-01-00 in your parts inventory is not optional for facilities running turbines, compressors, pumps, or gearboxes under continuous protection — it is a fundamental requirement of any credible machinery protection maintenance strategy.

At KNMKS, every 330130-030-01-00 unit is sourced from verified supply channels, individually inspected, and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and signal integrity performance. Our global logistics network supports urgent dispatch to minimize your unplanned downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-030-01-00 extension cable fails or degrades, the fault rarely exists in isolation. Maintenance engineers performing a cable replacement should treat the event as a trigger for a broader transducer loop inspection. The 3300 XL proximity transducer system is a three-component chain — probe, extension cable, and Proximitor® sensor — and signal anomalies in one component often mask or accelerate wear in the others.

Begin by inspecting the 3300 XL proximity probe (typically a 330101 or 330103 series tip) for physical damage, thread wear, or contamination at the probe tip. A degraded probe will continue to produce erroneous readings even after a cable swap. Next, verify the Bently Nevada Proximitor® sensor (such as the 330180 series) for correct gap voltage output — typically –10 VDC at the calibrated gap — using a calibrated oscillator or the monitor’s built-in diagnostic channel.

At the 3300 XL monitor rack, check the input card for correct channel configuration, alarm setpoints, and any latched fault flags that may have been triggered during the cable fault event. If your facility uses a 3500 Series rack for integration or redundancy, confirm that the transducer system’s signal range and scale factor remain compatible after the cable replacement. For installations where the extension cable runs through a junction box or field terminal assembly, inspect all terminal connections for corrosion, loose crimps, or moisture ingress — these are common secondary failure points that are frequently overlooked during a cable-only replacement.

Facilities running older 3300 XL installations should also audit the power supply module feeding the Proximitor® sensor. An under-voltage or ripple-affected supply can cause the sensor to output a noisy or offset gap signal that mimics a cable fault. Similarly, if your control cabinet includes signal isolators or barriers between the Proximitor® output and the DCS or safety system input, verify that these devices are within calibration and that their output ranges match the downstream system’s input card expectations.

For facilities maintaining a structured spare parts inventory, the 330130-030-01-00 should be stocked alongside its companion components: at minimum, one spare probe tip per monitored bearing, one spare Proximitor® sensor per critical machine train, and a set of coaxial connector tools and torque specifications to ensure correct field assembly. Procurement engineers should note that the “-030-” length designation in the SKU is critical — substituting a cable of incorrect length will shift the system’s operating gap voltage and invalidate the calibration, potentially causing nuisance trips or missed alarms.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the failed cable, record the current gap voltage reading from the monitor channel. This baseline confirms whether the fault is in the cable or elsewhere in the transducer loop, and provides a reference for post-replacement verification.

Step 2 — De-energize and disconnect: Follow your facility’s LOTO procedure. Disconnect the extension cable at both the probe tip connector and the Proximitor® sensor input. Inspect both connectors for bent pins, corrosion, or damaged threads before installing the replacement 330130-030-01-00.

Step 3 — Install and torque: Route the new cable through the existing conduit path. Connect to the probe tip first, then to the Proximitor® sensor, torquing each connector to the manufacturer’s specification (typically 0.9 N·m / 8 in-lb for 3300 XL coaxial connectors). Do not over-torque — connector damage is a leading cause of premature cable failure in field installations.

Step 4 — Re-energize and verify: Restore power and allow the Proximitor® sensor a 30-second warm-up period. Confirm the gap voltage reading on the monitor channel matches the pre-fault baseline (±0.5 VDC tolerance is acceptable for most applications). Clear any latched alarms and verify that the channel returns to normal (OK) status.

Step 5 — Update maintenance records: Log the replacement in your CMMS with the new cable’s serial number, installation date, and post-replacement gap voltage. Schedule the next inspection interval per your facility’s predictive maintenance program — typically 12 months or at the next planned outage.

This workflow applies equally to legacy 3300 XL installations and to facilities that have partially migrated to 3500 Series racks, where 3300 XL transducer systems are often retained on non-critical or auxiliary machine trains to extend system life and defer capital expenditure.

Spare Parts Support FAQ

Q1: Is the 330130-030-01-00 compatible with both 3300 XL and 3500 Series monitors?
The 330130-030-01-00 is designed and calibrated for the 3300 XL proximity transducer system. It can be used with 3500 Series monitors in applications where the 3300 XL transducer system is retained, provided the scale factor and gap voltage range are verified against the 3500 monitor’s input card configuration. Always confirm compatibility with your system documentation before installation.

Q2: How do I verify the cable before installation to avoid introducing a second fault?
Each 330130-030-01-00 shipped by KNMKS has been pre-tested for continuity, coaxial impedance, and connector integrity. Upon receipt, perform a visual inspection of both connectors and the cable jacket. If a Proximitor® simulator or calibrated oscillator is available on site, a bench verification of the full transducer loop (probe + cable + sensor) before installation is best practice for critical machine trains.

Q3: What is your lead time and can you support urgent orders?
KNMKS maintains stock of the 330130-030-01-00 for immediate dispatch. Standard orders ship within 1–2 business days. For emergency breakdown situations, contact our team directly at [email protected] or +86 18359268345 to arrange priority handling and expedited freight. We support global shipping to all major industrial regions.

Q4: What does the support terms confirmed by quotation cover, and what is the process for a support terms claim?
The support terms confirmed by quotation cover manufacturing defects, signal integrity failures, and connector assembly faults under normal operating conditions. It does not cover damage resulting from incorrect installation, over-torquing, chemical exposure, or use outside the specified operating temperature range. To initiate a support terms claim, contact [email protected] with your order number, installation date, and a description of the fault. KNMKS will arrange return logistics and ship a replacement unit upon fault verification.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-030-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-030-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
