Bently Nevada 330130-030-00-05 Maintenance-Proven Spare Part for Factory Uptime

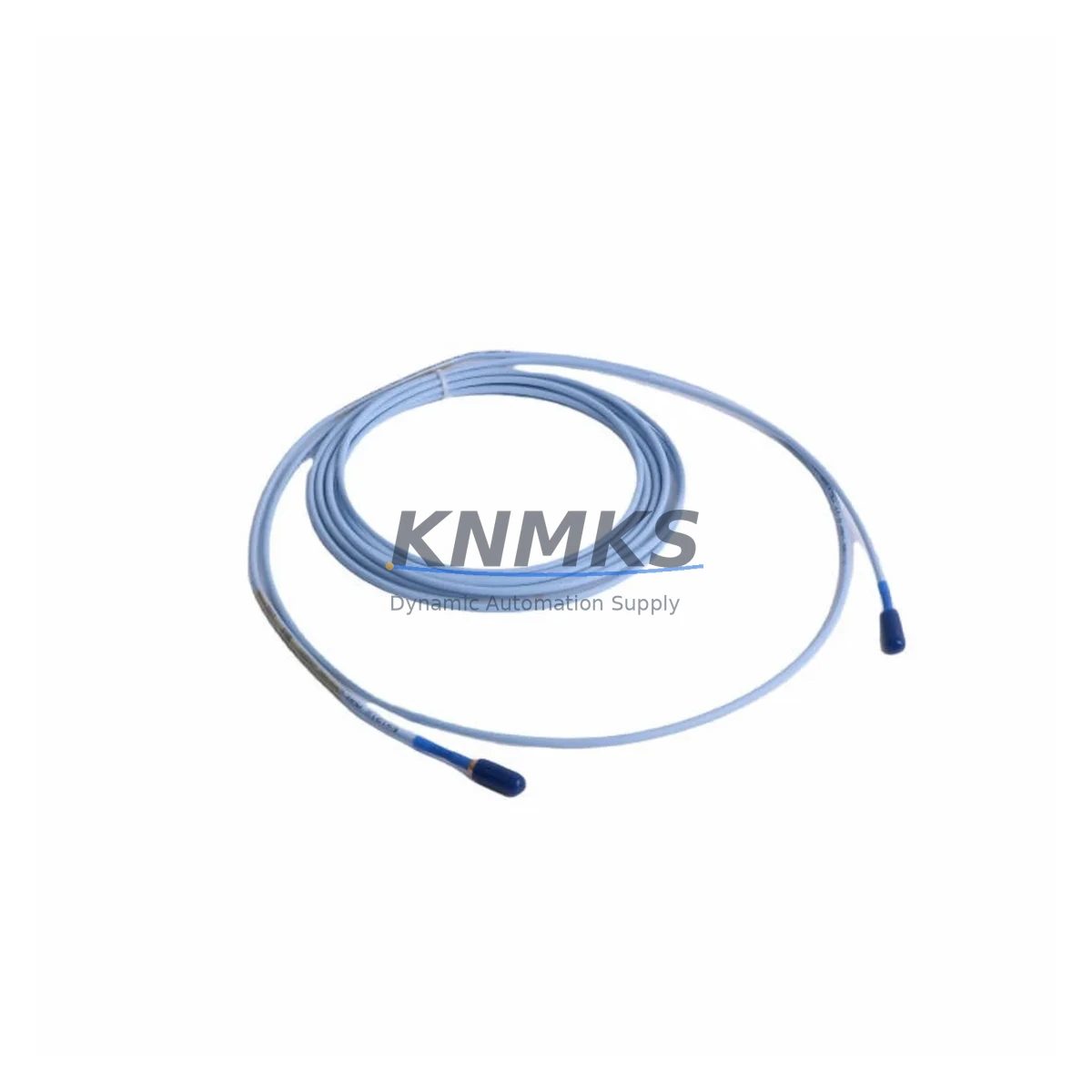

The Bently Nevada 330130-030-00-05 is an eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned annual overhaul, responding to an unscheduled trip, or building a strategic spare parts inventory for your control room, this transducer is a critical component that directly determines the reliability of your vibration measurement chain.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, compressors, pumps, and gearboxes depend on the 3300 XL system to provide continuous shaft displacement and vibration data. When the 330130-030-00-05 transducer degrades or fails — whether due to cable damage, connector corrosion, probe tip wear, or signal drift — the entire measurement loop is compromised. Keeping a verified, tested replacement on the shelf is the single most effective way to minimize mean time to repair (MTTR) and protect production continuity.

This unit is supplied as an original spare, fully compatible with the Bently Nevada 3300 XL proximitor/extension cable system. Each unit undergoes functional testing prior to shipment, and is backed by a support terms confirmed by quotation covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330130-030-00-05 transducer does not operate in isolation. It is one node in a complete vibration measurement chain, and experienced maintenance engineers know that replacing the probe alone — without inspecting the surrounding components — is a common source of repeat failures and nuisance trips.

When replacing or inspecting the 330130-030-00-05, the following components should be evaluated as part of the same work order:

Extension Cable (330130 Series compatible): The armored extension cable connecting the probe to the proximitor is subject to mechanical fatigue, connector oxidation, and insulation breakdown over time. A degraded cable will produce erratic gap voltage readings even with a new probe installed. Always perform a continuity and insulation resistance check on the extension cable before closing out the replacement.

Bently Nevada 3300 XL Proximitor (e.g., 330180-X1-05): The proximitor converts the probe’s eddy-current signal into a calibrated DC voltage. If the proximitor’s internal oscillator or signal conditioning circuitry has drifted, a new transducer will not restore measurement accuracy. Verify the proximitor output voltage at the known gap distance using a calibration fixture or a certified gap simulator.

3300 XL Monitor Module: The rack-mounted monitor card processes the proximitor output and generates alarm and trip signals. Inspect the monitor for blown fuses, relay contact wear, and firmware version compatibility. A monitor with degraded input impedance can load the proximitor circuit and cause false readings.

Power Supply Module (e.g., 3300 XL System Power Supply): The –24 VDC supply rail that powers the proximitor must be within specification. Measure the supply voltage at the proximitor terminal block under load. A sagging or noisy supply is a frequent root cause of intermittent vibration alarms that are misdiagnosed as transducer failures.

Terminal Blocks and Field Wiring: Inspect the terminal block connections in the junction box and the control cabinet for loose screws, corrosion, and moisture ingress. High-resistance connections in the signal loop introduce offset errors and noise that are indistinguishable from probe degradation.

Barrier or Signal Isolator (for hazardous area installations): If the transducer is installed in a Zone 1 or Zone 2 classified area, the associated Zener barrier or galvanic isolator must be verified for correct voltage clamping and current limiting. A failed barrier can damage a new transducer within hours of installation.

Addressing all of these components during a single planned maintenance window is far more cost-effective than responding to repeat failures on an emergency basis.

Site Replacement Workflow

Replacing the 330130-030-00-05 in the field follows a structured sequence that minimizes downtime and ensures the new transducer is correctly commissioned before the machine is returned to service.

Step 1 — Pre-Shutdown Verification: Before isolating the machine, record the current gap voltage, vibration amplitude, and phase readings from the 3300 XL monitor. These baseline values will be used to verify the new transducer after installation. If the monitor is already in alarm or trip, document the fault code and timestamp.

Step 2 — Isolation and Lockout/Tagout: Follow your site LOTO procedure. De-energize the proximitor supply at the monitor rack. Do not simply disconnect the probe cable — the proximitor must be de-powered to avoid damaging the new transducer during installation.

Step 3 — Probe Removal and Target Inspection: Remove the probe from the bearing housing bracket. Inspect the probe tip for physical damage and the target area on the shaft for scoring, rust, or surface irregularities. A damaged target surface will prevent accurate gap calibration regardless of probe condition.

Step 4 — New Probe Installation and Gap Setting: Install the 330130-030-00-05 into the bracket and set the initial gap using a feeler gauge or the manufacturer’s recommended gap voltage method (typically –10.0 VDC ± 0.2 VDC at the nominal gap for a 5 mm probe). Secure the locknut to the specified torque.

Step 5 — System Re-energization and Functional Check: Re-energize the proximitor and verify the gap voltage at the monitor. Compare the vibration readings against the pre-shutdown baseline. Confirm that alarm and trip setpoints are active and that the monitor is in the OK state before releasing the machine for restart.

Step 6 — Documentation: Record the replacement in your CMMS with the new probe serial number, installation date, gap voltage, and technician sign-off. This record supports support requests and provides the baseline for the next inspection interval.

This workflow is compatible with both hot-standby changeover scenarios and full planned outage replacements, and it applies equally to legacy 3300 systems being maintained alongside newer Bently Nevada System 1 installations.

Spare Parts Support FAQ

Q1: Is the 330130-030-00-05 a direct drop-in replacement for older 3300 Series probes?
The 330130-030-00-05 is designed for the 3300 XL system and is mechanically and electrically compatible with standard 3300 XL proximitor and extension cable assemblies. If you are replacing a probe from an earlier 3300 (non-XL) system, verify the proximitor model number and cable termination type before installation. In most cases, the XL-series probe is backward-compatible, but gap calibration must always be performed after any probe substitution.

Q2: How should I manage inventory levels for this transducer in a multi-machine facility?
Industry best practice for critical rotating equipment is to maintain a minimum of one spare transducer per monitored machine, plus one additional unit per ten machines as a buffer. For facilities with more than five monitored shafts, consider stocking matched sets of probe, extension cable, and proximitor to enable complete loop replacement without waiting for individual components. KNMKS supports blanket purchase orders and scheduled delivery programs for high-volume spare parts requirements.

Q3: What testing is performed before shipment, and how is the support terms confirmed by quotation applied?
Each 330130-030-00-05 unit is functionally tested for output linearity, gap voltage accuracy, and cable continuity before dispatch. The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. Support requests require the original purchase documentation and a description of the failure mode. Units that show evidence of mechanical damage, incorrect installation, or operation outside the specified temperature range are evaluated on a case-by-case basis.

Q4: Can KNMKS support long-term supply for discontinued or hard-to-source Bently Nevada parts?
Yes. KNMKS maintains sourcing relationships for both current-production and legacy Bently Nevada components, including 3300 XL series transducers, proximitors, monitor cards, and power supply modules. If your facility is managing an aging machinery protection system and requires a reliable long-term supply partner, contact our technical sales team to discuss a dedicated inventory agreement. We ship globally with full export documentation and support customs clearance for international orders.
