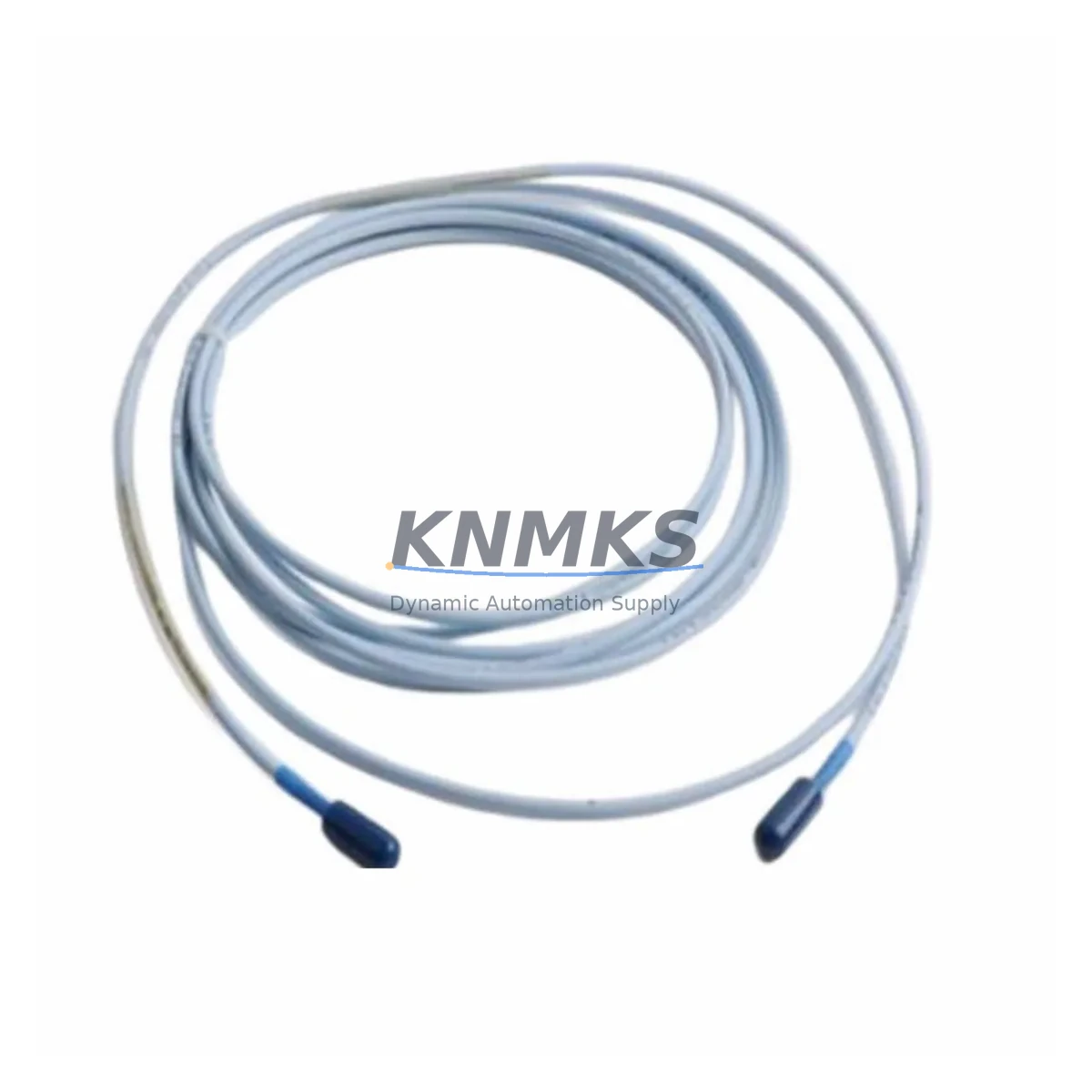

Bently Nevada 330106-XX-XX-10-02-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330106-XX-XX-10-02-00 Spare Part for Factory Uptime

The Bently Nevada 330106-XX-XX-10-02-00 (MOD:145628-01) is an 8mm eddy-current proximity probe engineered for the 3300 XL Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating machinery environments worldwide. Designed for radial shaft vibration, axial position, and differential expansion measurement, this probe is a critical front-line sensor in turbines, compressors, pumps, fans, and gearboxes operating across petrochemical, power generation, oil & gas, and heavy manufacturing facilities.

Maintaining a verified stock of the 330106-XX-XX-10-02-00 is a cornerstone of any proactive maintenance strategy. Proximity probe failures are among the most common causes of unplanned machinery trips and false shutdowns. When a probe degrades — due to cable fatigue, connector corrosion, tip contamination, or gap drift — the entire protection channel becomes unreliable. Having a tested, ready-to-install replacement on the shelf eliminates the procurement lead time that can extend an unplanned outage from hours to days.

This spare is supplied as an original-specification component, fully compatible with the Bently Nevada 3300 XL proximitor/seismic monitor and the broader 3300 series rack infrastructure. It integrates directly with the 3300 XL 8mm Proximitor® Extension Cable and the standard 3300 XL I/O module without requiring recalibration of the monitoring rack, provided the gap voltage is set correctly during installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330106-XX-XX-10-02-00 during a planned outage or emergency shutdown, maintenance engineers should treat the probe replacement as part of a broader channel integrity check. The 3300 XL protection channel is a system — and the probe is only one element of a signal path that must be verified end-to-end.

Begin by inspecting the 3300 XL Extension Cable (typically 330130-XX-XX or 330180-XX-XX series) for jacket cracking, connector pin corrosion, or continuity loss. Extension cable degradation is frequently misdiagnosed as probe failure, and replacing the probe without inspecting the cable will not resolve intermittent gap voltage drift. Next, verify the 3300 XL Proximitor® Sensor (e.g., 330180-X1-05 or equivalent) for correct bias voltage output — typically –10.0 VDC at the calibrated gap. A proximitor with a drifting internal oscillator will produce erratic readings even with a new probe installed.

At the rack level, inspect the 3300/16 I/O Module and the associated 3300 XL Monitor card for alarm setpoint integrity and channel enable status. Confirm that the 3300 XL Power Supply Module is delivering stable ±24 VDC to the rack backplane — power supply ripple is a known source of false vibration alarms in high-sensitivity monitoring applications. If the machine is equipped with a Keyphasor® transducer (such as the 330980 series), verify its gap and signal output simultaneously, as phase reference data is essential for balancing and orbit analysis during post-maintenance commissioning.

For facilities running integrated condition monitoring, confirm that the probe replacement is reflected in the System 1® Evolution or equivalent historian configuration, and that the channel tag, engineering units, and full-scale range are correctly mapped. Procurement engineers should note that the 330106-XX-XX-10-02-00 is a long-lifecycle component — maintaining a minimum of two units per critical machine train in the site spare parts inventory is recommended to cover both planned annual inspection cycles and unplanned emergency replacements.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL rack channel associated with the probe being replaced. Confirm the machine is at rest or in a safe maintenance window.

Step 2 — Probe Removal: Disconnect the extension cable at the probe connector. Remove the probe from the bearing housing using the appropriate probe wrench. Note the existing gap setting (typically 1.0–1.5 mm / 40–60 mil for 8mm probes on steel targets).

Step 3 — New Probe Installation: Install the 330106-XX-XX-10-02-00 into the probe holder. Set the gap to the machine-specific calibrated value using a digital gap meter or oscilloscope. Reconnect the extension cable and verify connector seating.

Step 4 — Channel Verification: Re-energize the rack channel. Confirm bias voltage at the proximitor output is within the –10 VDC ±0.5 VDC acceptance band. Verify that the monitor displays a valid, stable gap reading with no active alarms.

Step 5 — Documentation: Record the replacement in the site maintenance management system (CMMS). Log the new probe serial number, installation date, gap voltage, and technician ID. Update the spare parts inventory to trigger replenishment of the consumed unit.

This workflow is compatible with both hot-standby redundant systems and single-channel configurations. The 330106-XX-XX-10-02-00 is a direct form-fit-function replacement for the original installed probe, requiring no firmware changes, rack reconfiguration, or monitor card replacement in standard 3300 XL installations.

Spare Parts Support FAQ

Q1: Is the 330106-XX-XX-10-02-00 compatible with both the 3300 XL and earlier 3300 series monitors?
The 330106-XX-XX-10-02-00 is optimized for the 3300 XL system. Compatibility with earlier 3300 series monitors depends on the specific monitor card and proximitor version installed. We recommend confirming the proximitor model and rack configuration before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What testing is performed before shipment?
Each unit undergoes functional testing including bias voltage output verification, sensitivity check, and physical inspection of the probe tip, body, and connector. Units that do not meet original specification are not shipped. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. We support scheduled delivery agreements and blanket POs for facilities requiring guaranteed annual supply of critical spare parts. Long-term supply arrangements help procurement engineers lock in pricing, reduce emergency sourcing risk, and maintain site inventory targets without tying up capital in excess stock.

Q4: What is the recommended spare parts inventory strategy for the 330106-XX-XX-10-02-00?
For critical rotating machinery (turbines, compressors, large pumps), a minimum of two probes per monitored shaft position is recommended — one installed, one on-shelf. For facilities with multiple identical machine trains, a pooled inventory of 4–6 units per site is a common best practice. Annual inspection cycles should include probe gap verification and cable continuity checks to identify degrading units before failure occurs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330106-XX-XX-10-02-00 MOD:145628-01
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
