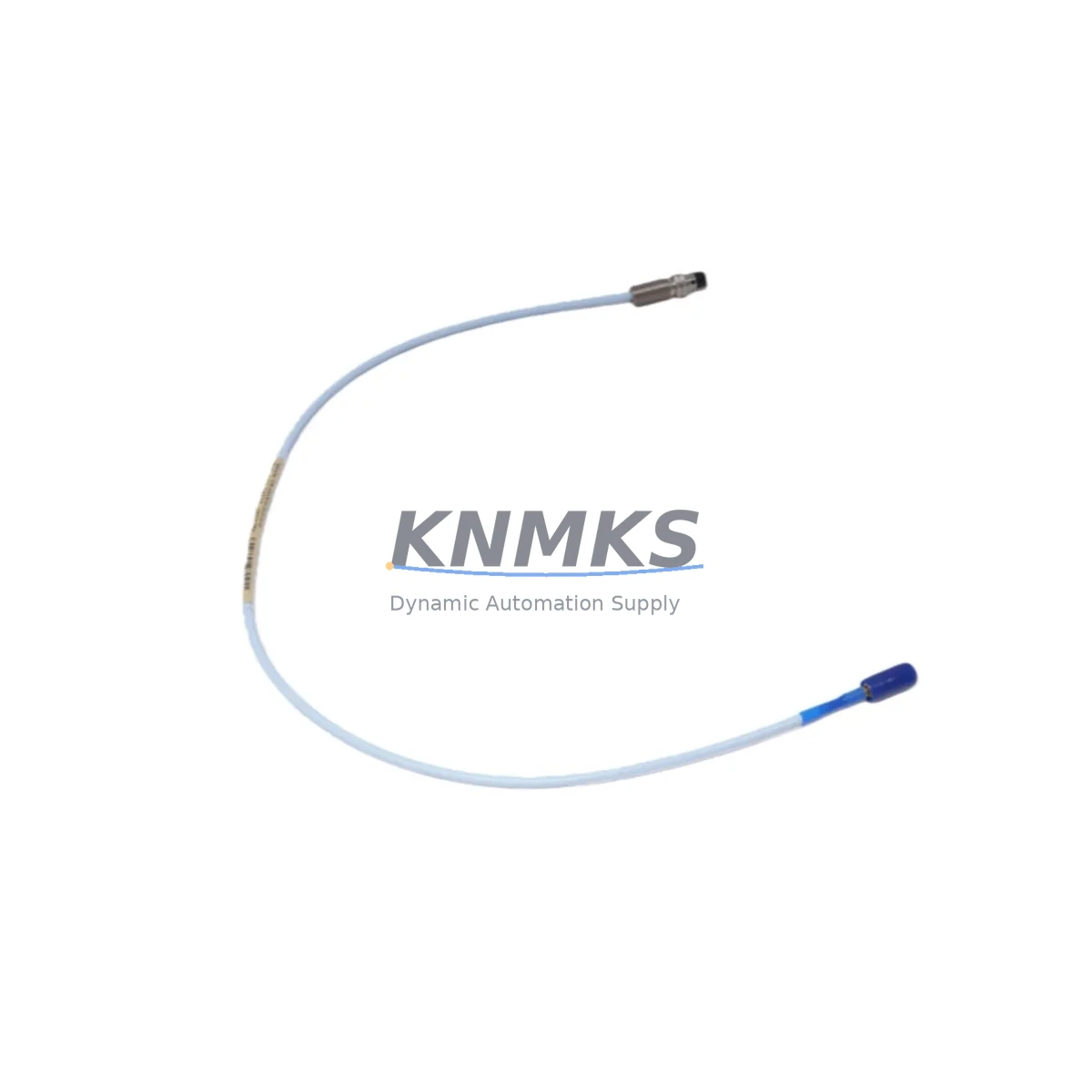

Bently Nevada 330106-05-30-90-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330106-05-30-90-02-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330106-05-30-90-02-00 is an 8mm eddy-current proximity probe from the renowned 3300 XL Series, engineered to deliver fail-safe, uninterrupted vibration and position monitoring in the most demanding industrial environments. Designed for continuous production facilities where control interruption is not an option, this probe provides the measurement accuracy and signal integrity required to protect rotating machinery, critical interlocks, and high-value assets across petrochemical, power generation, mining, water treatment, metallurgical, port, marine, and continuous manufacturing operations.

In high-electromagnetic-interference (EMI) environments — such as those found near large variable-frequency drives, high-voltage switchgear, or heavy motor control centers — signal drift and false trips are among the most dangerous failure modes in a vibration monitoring loop. The 330106-05-30-90-02-00 probe is built with robust shielded coaxial cable construction and precision-wound sensing coil geometry that minimizes susceptibility to radiated and conducted interference, ensuring that the signal reaching the Bently Nevada 3300 XL Proximitor® Sensor remains stable and accurate even under severe EMI loading. This directly reduces the risk of spurious shutdowns, missed alarms, and unplanned downtime.

Dusty, humid, and high-temperature environments present additional challenges for proximity measurement systems. The 330106-05-30-90-02-00 features a rugged stainless-steel housing and chemically resistant cable jacket rated for continuous operation across a wide temperature range, making it suitable for installation in cement plants, steel mills, offshore platforms, and tropical process facilities where condensation, particulate contamination, and thermal cycling would degrade lesser sensors. When paired with the Bently Nevada 3300 XL Extension Cable and properly sealed conduit entries, the complete measurement chain maintains its calibrated gap voltage output without recalibration drift — a critical requirement for safety instrumented systems (SIS) and machinery protection systems operating under IEC 61511 or API 670 guidelines.

Surge and transient protection is another key reliability factor in industrial control cabinets. Proximity probe loops that share cabinet space with high-current contactors, solenoid valves, or relay coils are vulnerable to inductive kickback and fast transient bursts. The 330106-05-30-90-02-00, when installed with appropriate Bently Nevada barrier or isolator modules in the signal conditioning chain, provides a protected measurement path that resists surge-induced signal corruption. This is especially important in hazardous area installations where intrinsic safety barriers or Zener barriers are used to limit energy in the probe circuit, and where any signal anomaly could trigger a false emergency shutdown or, worse, mask a genuine machinery fault.

Cabinet thermal management is a frequently overlooked factor in probe system reliability. In control rooms and marshalling cabinets where Bently Nevada 3500 Series rack-mounted monitors or System 1® condition monitoring software interfaces are installed, excessive heat can degrade connector integrity and accelerate insulation breakdown in probe cables routed through cable trays. The 330106-05-30-90-02-00’s high-temperature-rated cable construction provides an additional margin of safety in thermally stressed installations, reducing the frequency of cable replacement and the associated maintenance downtime.

For facilities operating under planned predictive maintenance programs, the 330106-05-30-90-02-00 supports seamless integration with existing Bently Nevada ADRE® data acquisition systems and third-party DCS or PLC platforms via standard 4–20 mA or voltage output conditioning. Its direct form-fit-function compatibility with the 3300 XL Proximitor® Sensor means that replacement during a planned outage or emergency spare swap requires no recalibration of the monitoring system — a significant advantage in minimizing mean time to repair (MTTR) and restoring machinery protection coverage as quickly as possible.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330106-05-30-90-02-00 extends well beyond the probe itself. In a typical critical rotating machinery protection cabinet, the probe feeds its signal to a Bently Nevada 3300 XL Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance. This conditioned signal is then routed to a Bently Nevada 3500/40M Proximitor®/Seismic Monitor or equivalent rack card, where alarm and danger setpoints are enforced in hardware — ensuring that even a DCS or PLC communication failure cannot prevent a machinery trip from executing.

To protect the signal path from power quality events, the monitoring rack is typically powered through a Bently Nevada 3500/15 Power Supply Module with redundant input capability, isolating the protection system from plant power disturbances that could otherwise cause nuisance resets or data loss during grid transients. In hazardous classified areas, MTL or P+F Zener barriers are installed in the field junction box to limit probe circuit energy to intrinsically safe levels, while simultaneously providing a degree of surge attenuation that protects the Proximitor® input from field-induced transients.

For facilities that have migrated to networked condition monitoring, the probe data is aggregated through a Bently Nevada 3500 Communication Gateway Module or directly into System 1® Evolution software, enabling real-time trending, alarm management, and predictive maintenance scheduling from a centralized operations center. This architecture ensures that the 330106-05-30-90-02-00 probe’s measurement data contributes not only to immediate machinery protection but also to long-term asset health management — reducing both unplanned failures and unnecessary preventive maintenance intervals.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 330106-05-30-90-02-00 is deployed on compressor trains, turbine expanders, and boiler feed pumps where continuous radial vibration and axial position monitoring is mandated by API 670 and process safety management (PSM) regulations. A probe failure or signal dropout in these applications can trigger a full unit shutdown, making the availability of a pre-tested, in-stock replacement critical to minimizing production loss.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe monitors shaft eccentricity and bearing clearance on turbine-generator sets operating at speeds up to 3600 RPM. The high-temperature cable rating of the 330106-05-30-90-02-00 is particularly valuable in steam turbine bearing pedestals where ambient temperatures routinely exceed 80°C.

In mining and mineral processing plants, the probe is installed on SAG mills, ball mills, and large slurry pump drives where vibration excursions caused by unbalanced loads or bearing wear must be detected before catastrophic mechanical failure occurs. The probe’s resistance to dust ingress and chemical contamination from process fluids makes it well suited to these harsh environments.

In water and wastewater treatment facilities, the 330106-05-30-90-02-00 monitors large vertical turbine pumps and blower units in high-humidity, corrosive-atmosphere pump stations. Its stainless-steel construction resists the chlorine and hydrogen sulfide atmospheres common in these installations, providing long service life without accelerated corrosion-related degradation.

In metallurgical and steel mill environments, the probe is used on rolling mill drive motors, continuous caster pinch roll drives, and blast furnace blower trains — all applications characterized by extreme vibration, high ambient temperature, and heavy electromagnetic interference from large DC drives and arc furnaces. The 330106-05-30-90-02-00’s shielded construction and robust mechanical design provide the measurement stability required to distinguish genuine machinery faults from environmental noise in these challenging conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330106-05-30-90-02-00?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. If a unit exhibits any functional defect within the confirmed support period under normal operating conditions, we will arrange replacement or repair at no additional cost. Our support terms commitment reflects our confidence in the quality of every unit we dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every 330106-05-30-90-02-00 probe undergoes a full functional inspection prior to dispatch, including dimensional verification of the probe tip, cable continuity and insulation resistance testing, and connector integrity checks. Units that do not meet Bently Nevada OEM specifications are quarantined and not shipped. A test report is available upon request for critical safety applications.

Q3: Is the 330106-05-30-90-02-00 a direct replacement for existing 3300 XL probes in my monitoring system?
Yes. The 330106-05-30-90-02-00 is a direct form-fit-function replacement for other probes in the Bently Nevada 330106 series used with 3300 XL Proximitor® Sensors. No recalibration of the Proximitor® or monitor is required when replacing a like-for-like probe, provided the gap is reset to the manufacturer’s recommended value during installation. This minimizes downtime during planned or emergency replacement.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated stock of the 330106-05-30-90-02-00 and other high-demand Bently Nevada 3300 XL series components to support customers with ongoing maintenance and spare parts programs. We offer blanket order arrangements and priority allocation for customers with critical fleet requirements, ensuring that supply chain disruptions do not compromise your machinery protection coverage. Contact our team at [email protected] or +86 18359268345 to discuss your long-term supply needs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330106-05-30-90-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330106-05-30-90-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
