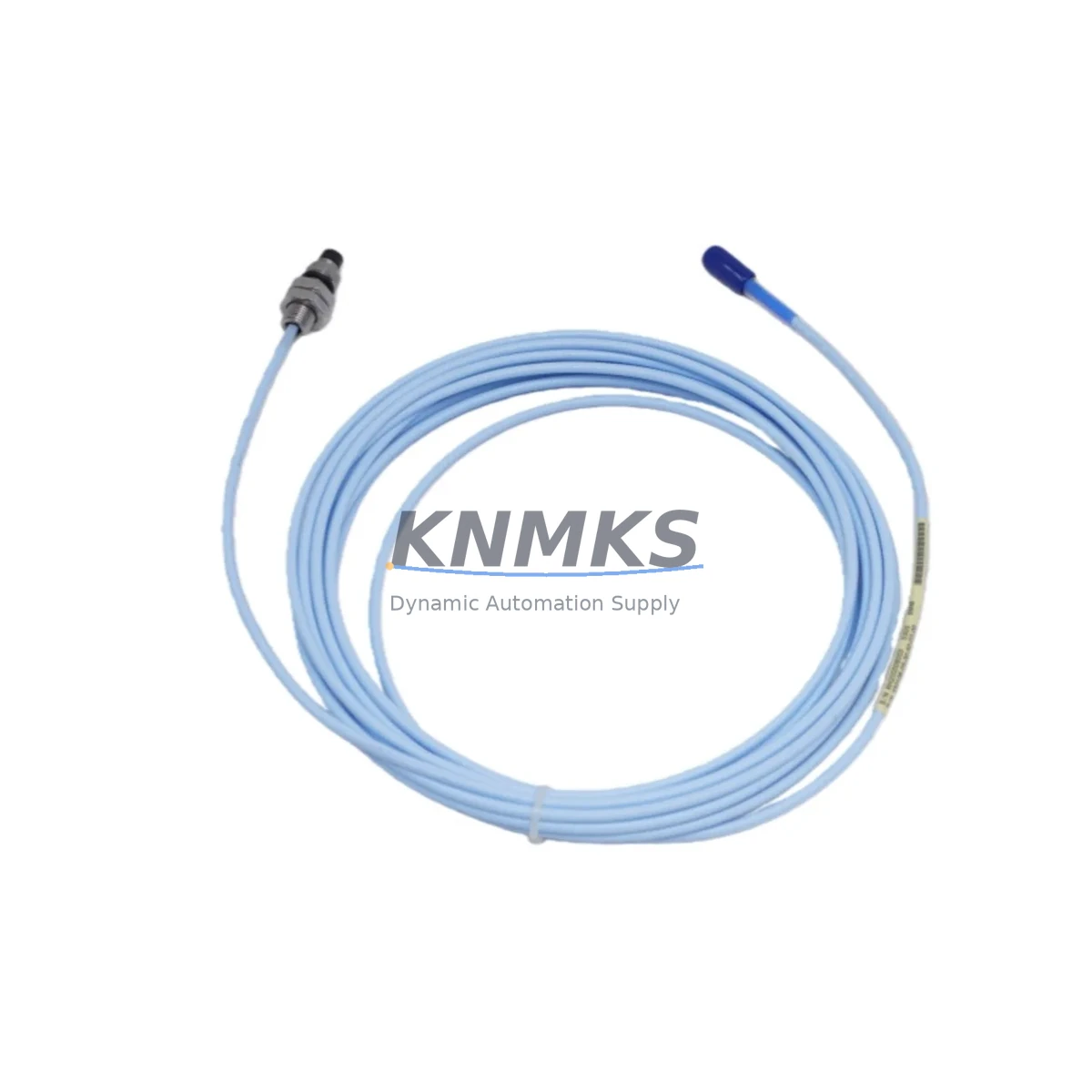

Bently Nevada 330106-05-30-50-12-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330106-05-30-50-12-CN is a reverse-mount eddy current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations approach end-of-life or face discontinued spare parts availability, this probe serves as a verified drop-in replacement that preserves original signal chain integrity without requiring modifications to the existing Proximitor® sensor, extension cable, or monitor rack. Engineers managing aging turbomachinery protection systems — including steam turbines, gas compressors, and centrifugal pumps — will find this probe critical to sustaining continuous operation while planning a phased migration to modern platforms.

Before installing the 330106-05-30-50-12-CN as a replacement, field engineers should confirm several key parameters. Power supply compatibility with the paired Proximitor® sensor (typically the 3300 XL 8mm Proximitor® Sensor) must be verified, as the probe operates within a defined gap voltage range of -2 VDC to -18 VDC. Terminal wiring at the junction box or field wiring terminal should be inspected for correct polarity and shielding continuity. The probe’s 5-meter (16.4 ft) armored extension cable must be routed without sharp bends that could affect signal linearity. Backplane slot assignments in the 3300 Series rack — including the 3300/16 or 3300/20 monitor cards — should remain unchanged to avoid re-addressing channel configurations in the System 1® software or equivalent condition monitoring platform.

Program logic compatibility is another critical checkpoint. If the existing control system uses a GE Speedtronic™ or Emerson Ovation™ DCS interface, the 4–20 mA output scaling from the Proximitor® must be re-validated after probe swap. HMI display calibration in the operator workstation should reflect the new probe’s sensitivity factor (typically 7.87 V/mm for 8mm probes), and any alarm setpoints stored in the vibration monitor must be confirmed against the original baseline data. Communication links between the 3300 XL rack and the plant DCS via Modbus RTU or FOUNDATION Fieldbus should be tested for continuity before returning the machine to service.

Installation space confirmation is essential in retrofit scenarios. The 330106-05-30-50-12-CN uses a standard M10 x 1 thread mount with a 50 mil (1.27 mm) nominal gap, making it compatible with most existing bearing housing probe bosses without machining. However, engineers should verify that the probe holder and locknut (such as the Bently Nevada 21747-03-00 or equivalent) are in serviceable condition. Firmware version compatibility in the 3300 XL monitor should also be checked — monitors running firmware below revision 3.x may require an update to correctly interpret the probe’s output under high-vibration transient conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330106-05-30-50-12-CN typically begins with a full audit of the existing vibration monitoring loop. The probe pairs with the 3300 XL 8mm Proximitor® Sensor, which should be inspected for housing damage, connector corrosion, and output drift before reuse. If the Proximitor® is also due for replacement, the 330105-02-12-10-02-00 or equivalent current-generation sensor can be substituted simultaneously to minimize future downtime. The extension cable — often a 3300 XL Series armored cable in 5m or 9m configurations — must be tested for continuity and insulation resistance before the new probe is commissioned.

Within the control cabinet, the 3300/16 Dual Voting Logic Monitor or 3300/20 Dual Channel Monitor card handles signal conditioning and trip logic. Engineers should document the existing channel configuration, including OK relay states, danger setpoints, and time-delay settings, before any hardware swap. If the plant is migrating from a legacy 3300 Series rack to a newer System 1® Evolution platform, the I/O mapping exercise will also involve re-terminating field wiring at the new I/O terminal blocks and verifying that the System 1® database correctly reflects the new probe’s tag name, engineering units, and full-scale range.

For facilities running mixed-vendor control architectures — for example, a Bently Nevada vibration system feeding trip signals into an Allen-Bradley ControlLogix or Siemens S7-400 safety PLC — the discrete relay outputs from the 3300 XL monitor must be re-verified for contact rating and logic polarity after the probe swap. Signal isolators may be required at the interface boundary to prevent ground loops, particularly in older installations where the field wiring shield grounding scheme was not originally documented. A 24 VDC DIN-rail power supply dedicated to the Proximitor® circuit is recommended to eliminate noise coupling from adjacent variable frequency drives or motor starters sharing the same panel.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a proximity probe on a running machine train. The 330106-05-30-50-12-CN is designed to allow a cold-swap replacement during a scheduled maintenance window, typically achievable within two to four hours when all preparatory steps are completed in advance. Before the maintenance window opens, engineers should pre-configure the replacement probe gap using a calibrated gap tool and verify the output voltage at the Proximitor® terminal strip with a digital multimeter — targeting the nominal -10 VDC ± 0.5 VDC at the design air gap.

To protect the original program logic, a full backup of the System 1® database or the legacy 3300 Series monitor configuration should be exported and stored offline before any hardware is disturbed. If the monitor uses non-volatile memory for setpoint storage, a configuration printout serves as a manual fallback. During the swap, the machine should be confirmed in a safe, de-energized state with the appropriate lockout/tagout procedure applied. After installation, the probe gap should be re-verified in situ, and the Proximitor® output should be confirmed within specification before the monitor’s OK relay is allowed to reset.

Field commissioning should include a slow-roll vibration check at minimum operating speed to confirm that the probe is reading correctly and that no mechanical runout or electrical noise is present in the signal. The System 1® trend display or the monitor’s front-panel meter should show a stable, low-noise signal before the machine is brought to full operating speed. All alarm and danger setpoints should be re-confirmed active, and a test trip should be performed if the plant safety procedure permits. Documenting the as-left gap voltage, vibration baseline, and OK relay status in the maintenance management system closes the retrofit record and supports future spare parts planning.

Retrofit Support FAQ

Q: Is the 330106-05-30-50-12-CN a direct replacement for other 330106 series probes?
A: Yes. The 330106-05-30-50-12-CN is dimensionally and electrically compatible with other 330106 series reverse-mount proximity probes. The key differentiators are cable length (5m), connector type (12-pin), and the CN suffix indicating a specific regional certification variant. Always verify the connector and cable length match your existing installation before ordering.

Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to the nominal design value (typically 50 mil / 1.27 mm), verify the Proximitor® output voltage at the terminal strip, confirm the OK relay has reset, and perform a slow-roll vibration baseline check. Update the System 1® or DCS tag database if the probe tag name or channel assignment has changed.

Q: How do I confirm wiring compatibility with my existing 3300 XL rack?
A: The 330106-05-30-50-12-CN uses the standard Bently Nevada three-wire connection (shield, center conductor, and outer conductor) compatible with all 3300 XL Series Proximitor® sensors and monitor cards. Verify terminal block labeling at the field junction box and confirm shield grounding at one end only to prevent ground loops.

Q: What does the support terms confirmed by quotation cover, and is pre-shipment testing performed?
A: Every 330106-05-30-50-12-CN unit undergoes functional output testing and gap calibration verification before shipment. The support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions from the date of shipment. DOA (dead-on-arrival) units are replaced at no charge. In-stock units typically ship within 1–3 business days with full traceability documentation.

—
