Bently Nevada 330106-05-30-20-02-CN Proximity Probe

Overview

Bently Nevada 330106-05-30-20-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

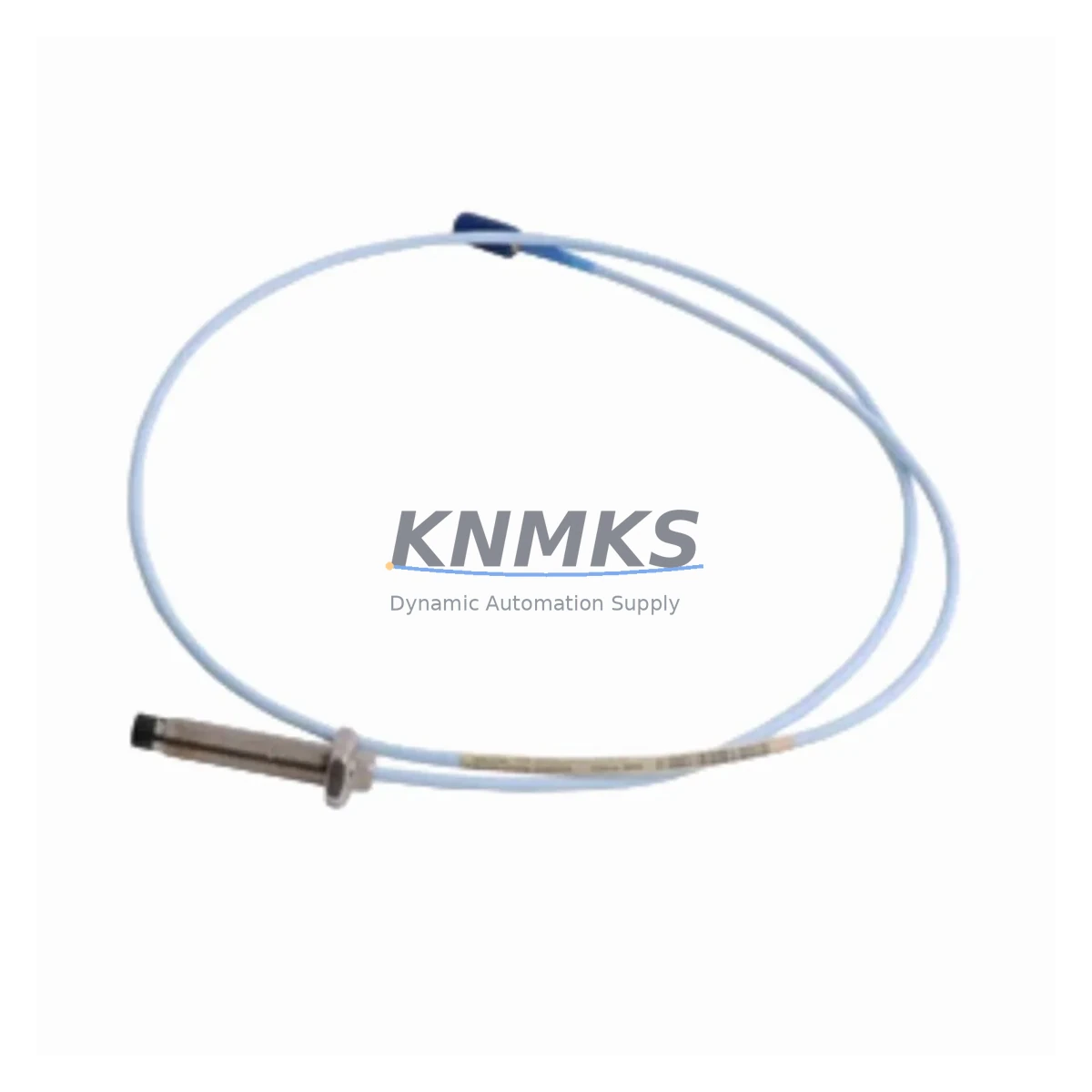

The Bently Nevada 330106-05-30-20-02-CN is a high-precision eddy-current proximity probe engineered for direct drop-in replacement within legacy 3300 XL Series vibration monitoring systems. As original Bently Nevada 3300 XL hardware approaches end-of-life and spare parts become increasingly scarce, this migration-ready probe provides a verified, field-tested upgrade path that preserves existing wiring infrastructure, signal conditioning architecture, and machinery protection logic without requiring a full system overhaul.

Designed for continuous operation in rotating machinery environments — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the 330106-05-30-20-02-CN delivers stable gap voltage output, consistent sensitivity, and reliable signal transmission across the full operating temperature range. Its 5 mm tip diameter, 30 cm armored extension cable, and standard M8 × 1.0 thread engagement are dimensionally compatible with existing probe holders, conduit runs, and proximity driver housings already installed in the field.

Before installation, engineers should verify the following critical parameters against the existing system configuration: driver module compatibility (typically the 3300 XL 8mm Proximity Transducer System driver), gap voltage calibration range (typically −10 VDC at 2.0 mm gap), cable length matching with the paired extension cable to maintain system sensitivity, and terminal block wiring polarity at the I/O module. The probe integrates directly with the Bently Nevada 3300/16 I/O Module and 3500/42M Proximitor I/O Module, both of which remain in active use across legacy turbine protection panels.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330106-05-30-20-02-CN into an existing 3300 XL machinery protection system requires a structured pre-installation audit. Begin by documenting the current probe gap setting, driver output voltage, and alarm/danger setpoints stored in the Bently Nevada 3500 Series Rack — particularly the 3500/42M Proximitor Monitor — to ensure all setpoints are preserved after the probe swap. If the existing system uses a 3300 XL 8mm Extension Cable (such as the 330130-045-00-00), confirm that the total cable system length (probe body + extension) matches the driver’s calibrated sensitivity curve before placing your order.

For control cabinets integrating both vibration monitoring and process control, the probe signal typically feeds into a Bently Nevada 3500/20 Rack Interface Module or a DCS analog input card via a signal conditioner or signal isolator. During the retrofit window, isolate the probe channel at the terminal block — do not disconnect the driver module power supply, as this may trigger spurious alarms or initiate a machinery protection trip. Use a Bently Nevada TK-3 Calibration Cable or equivalent gap voltage simulator to maintain signal continuity at the monitor during the physical probe swap, preventing false alarm activation on adjacent channels.

In multi-probe installations — such as X-Y radial vibration configurations on large rotating equipment — replace probes one axis at a time and verify gap voltage and phase reference signal integrity before proceeding to the next channel. If the system also monitors axial position using a Bently Nevada 330500 Series Thrust Position Probe, confirm that the axial channel remains undisturbed during radial probe replacement. For installations where the proximity probe interfaces with a Bently Nevada 3500/53 Overspeed Detection Module, verify that the keyphasor signal remains stable throughout the retrofit process to avoid false overspeed trips during the maintenance window.

All replacement probes are pre-tested for sensitivity, linearity, and gap voltage output prior to shipment. Each unit ships with a calibration data sheet traceable to the manufacturing lot, supporting your incoming inspection and quality control procedures. Units are maintained in verified stock to minimize procurement lead time for critical spare parts requirements.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires careful sequencing of isolation, replacement, and recommissioning steps. The 330106-05-30-20-02-CN is designed to be installed without removing the driver module from the rack, which eliminates the need to power down the entire 3500 Series monitoring rack during a single-channel probe replacement. This approach preserves the protection status of all other monitored channels throughout the maintenance window and avoids the risk of inadvertently altering setpoints or rack configuration during a full power cycle.

Prior to probe removal, place the affected channel in bypass mode at the 3500/42M Proximitor Monitor to suppress alarms without disabling the protection system for the entire machine train. Document the existing gap measurement using a calibrated digital voltmeter at the driver output terminals — record this value as your baseline for post-installation verification. After installing the 330106-05-30-20-02-CN, adjust the probe gap to achieve the target gap voltage (typically −10 VDC ± 0.5 VDC at the nominal 2.0 mm gap), then restore the channel from bypass and verify that the monitor displays the correct vibration amplitude and DC gap values before returning the machine to service.

For facilities operating under continuous production schedules, pre-stage the replacement probe, extension cable, and all required tools — including a spanner wrench, lock nut, and calibration reference — before the maintenance window opens. This preparation reduces the active replacement time to under 30 minutes in most standard installations. All units are shipped from verified stock with a support terms confirmed by quotation, supporting your spare parts lifecycle management program and reducing procurement lead time risk for critical rotating equipment applications.

Retrofit Support FAQ

Q1: Is the 330106-05-30-20-02-CN a direct replacement for the original Bently Nevada 330106 series without any wiring changes?
Yes. The probe is dimensionally and electrically identical to the original 330106 specification. No wiring changes are required at the terminal block or driver module. Verify gap voltage after installation to confirm correct positioning within the existing probe holder and lock nut assembly.

Q2: Does this probe require a firmware update on the 3500 Series monitor after installation?
No. The 330106-05-30-20-02-CN is a passive eddy-current transducer with no embedded firmware. The 3500 Series monitor configuration, alarm setpoints, and protection logic remain unchanged after probe replacement. No rack reconfiguration is required.

Q3: What pre-shipment testing is performed on each unit?
Each 330106-05-30-20-02-CN undergoes sensitivity verification, gap voltage linearity testing, and cable continuity checks prior to shipment. A calibration data sheet is included with each unit, traceable to the manufacturing lot. All units are covered by a support terms confirmed by quotation against manufacturing defects and signal performance deviations under specified operating conditions.

Q4: What is the typical lead time and inventory availability for urgent spare parts requirements?
Units are maintained in verified stock to support urgent maintenance and spare parts requirements. Standard lead time is 3–7 business days for in-stock units. Contact our team at [email protected] to confirm current inventory levels and expedited shipping options for critical maintenance windows and planned shutdown schedules.
