Bently Nevada 330106-05-30-15-02-CN Migration-Ready Proximity Probe

Overview

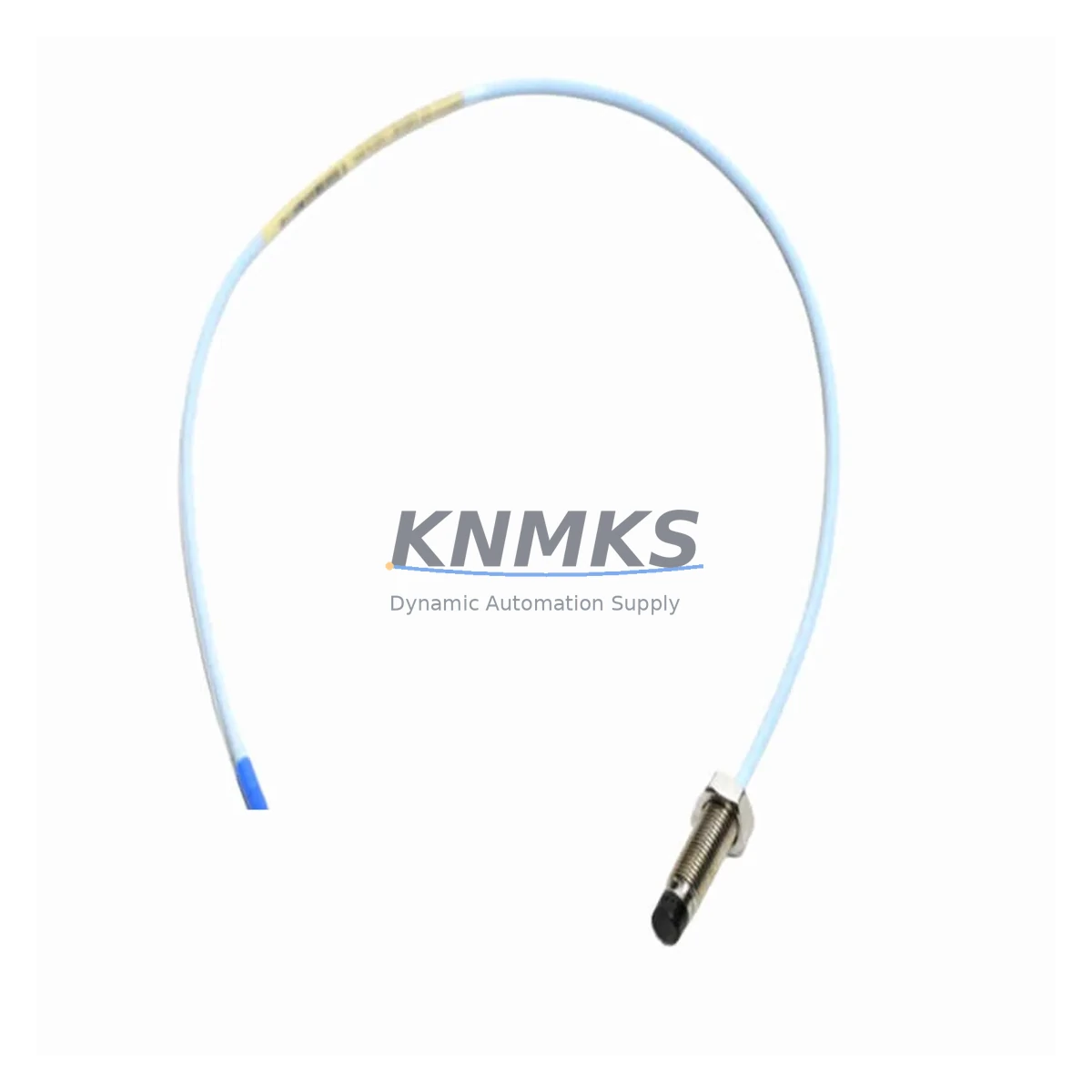

Bently Nevada 330106-05-30-15-02-CN Migration-Ready Proximity Probe: Legacy System Migration and Compatible Upgrade

The Bently Nevada 330106-05-30-15-02-CN is a 3300 XL Series eddy-current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. As original equipment reaches end-of-life or becomes discontinued, plant engineers and reliability teams face increasing pressure to source verified replacement components that preserve existing wiring, signal conditioning, and system logic without triggering a full platform overhaul. This probe addresses that challenge with full dimensional, electrical, and signal compatibility with the Bently Nevada 3300 XL monitoring architecture.

The 330106-05-30-15-02-CN features a 5 mm tip diameter, 30-inch (762 mm) probe cable, 15-foot (4.5 m) extension cable, and a standard 2-pin MIL-spec connector. It operates within the standard Bently Nevada driver voltage range and delivers a linear output of approximately -7.87 V/mm (-200 mV/mil) when paired with a compatible 3300 XL driver module such as the 330180 or 330130 series. These electrical parameters are critical to confirm before installation, as mismatched sensitivity factors will produce erroneous vibration readings and may trigger false shutdowns in turbine, compressor, or pump protection systems.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330106-05-30-15-02-CN into an existing machinery protection system requires a structured pre-installation audit. Begin by documenting the current probe serial number, cable routing path, and target material (typically 4140 steel or equivalent). The eddy-current sensing principle is sensitive to target conductivity and surface finish, so any change in shaft material during a mechanical retrofit must be factored into the gap calibration procedure.

In systems where the 3300 XL monitor rack is also being refreshed, engineers frequently replace the 330180-51-05 driver module alongside the probe to ensure matched sensitivity across the full signal chain. If the monitor rack includes a 3300/16 or 3300/20 monitor card, verify that the channel input range is configured for the -200 mV/mil sensitivity of this probe series. Mismatched configurations are a leading cause of post-installation alarm nuisance trips.

For control cabinets undergoing broader modernization — such as migration from a legacy DCS to a current-generation safety PLC — the proximity probe signal is typically routed through a signal isolator or barrier before entering the new I/O module. In these scenarios, a DIN-rail-mounted signal conditioner compatible with the -24 VDC probe supply and the analog voltage output range of the 330106 series should be selected and verified before the cutover window. The 3300 XL power supply module (such as the 3300/05 or equivalent) must also be confirmed operational, as probe bias voltage is supplied through the driver, which in turn depends on a stable rack power source.

Where HMI screens display vibration trend data sourced from the 3300 XL system, the engineering team should confirm that tag names, engineering unit scaling, and alarm setpoints are preserved after the probe swap. In many legacy SCADA integrations, the vibration channel tag is hardcoded to a specific monitor card slot address — any rack reconfiguration that changes slot assignments will require corresponding HMI and historian tag updates. This is particularly relevant when the retrofit involves replacing a failed monitor card alongside the probe, as the 3300/25 or 3300/46 monitor modules may occupy different slot positions than their predecessors.

Programming cable access for driver module configuration (where applicable) and a calibrated gap tool for final probe positioning are standard requirements for field commissioning. All units are pre-shipment tested against Bently Nevada OEM electrical specifications to reduce on-site debugging time and support a controlled, low-risk installation window.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is a primary concern for rotating equipment reliability teams. The 330106-05-30-15-02-CN is stocked and available for immediate dispatch, supporting planned maintenance windows and emergency spare scenarios alike. Pre-shipment functional testing ensures that each unit arrives ready for installation without requiring bench verification on-site.

To protect existing program logic and alarm configurations during the swap, it is strongly recommended to export and archive the current monitor configuration before disconnecting the old probe. For 3300 XL systems with configurable monitor cards, this includes saving channel sensitivity settings, alarm thresholds, time-delay parameters, and any OK relay logic. If the monitor card is also being replaced as part of the retrofit, the saved configuration file can be reloaded after the new card is seated and powered, significantly reducing recommissioning time.

Field teams should plan the physical probe removal and reinstallation during a scheduled equipment outage rather than a running-machine hot-swap. The target gap must be set using a calibrated gap voltage measurement — typically -10.0 VDC ± 0.5 VDC at the nominal gap for this probe series — before the machine is returned to service. Confirming the OK output status on the driver module and verifying the vibration reading against a known baseline (such as a historical trend from the historian or DCS) completes the functional acceptance check. This structured approach keeps the total installation and verification window within a typical 2–4 hour planned maintenance slot, preserving control system continuity and reducing retrofit risk.

Retrofit Support FAQ

Q1: Is the 330106-05-30-15-02-CN a direct replacement for other 330106 variants?
The 330106 series uses a standardized suffix structure where the digits encode cable length, extension length, connector type, and housing material. The -05-30-15-02-CN variant specifies a 5 mm tip, 30-inch probe cable, 15-foot extension, standard connector, and CN housing. Variants with different cable lengths (e.g., -05-30-10-02-CN or -05-30-25-02-CN) are not direct drop-in replacements without adjusting the total system cable length to match the driver calibration. Always verify the full part number before ordering.

Q2: What pre-shipment testing is performed on each unit?
Each 330106-05-30-15-02-CN unit undergoes electrical continuity verification, output sensitivity measurement, and connector integrity inspection prior to dispatch. Test results confirm compliance with Bently Nevada OEM electrical specifications. A support terms confirmed by quotation cover manufacturing defects from the date of shipment.

Q3: Can this probe be used with a 3500 series monitor rack?
The 3300 XL and 3500 series use different driver modules and sensitivity calibration ranges. Direct substitution without recalibration is not recommended. If your facility is migrating from a 3300 XL rack to a 3500/42M or 3500/40M monitor, the probe itself may be physically compatible, but the driver module, gap voltage, and monitor card configuration must all be re-verified by a qualified instrumentation engineer before the system is returned to service.

Q4: What is the lead time and stock availability?
The 330106-05-30-15-02-CN is maintained availability confirmed by RFQ to support both planned maintenance and emergency replacement scenarios. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact the sales team to confirm current inventory levels and expedited shipping options for critical plant situations.
