Bently Nevada 330106-05-30-10-12-CN 3300 XL Spare Probe

Overview

Bently Nevada 330106-05-30-10-12-CN 3300 XL Spare Probe: Maintenance-Proven Spare Part for Factory Uptime

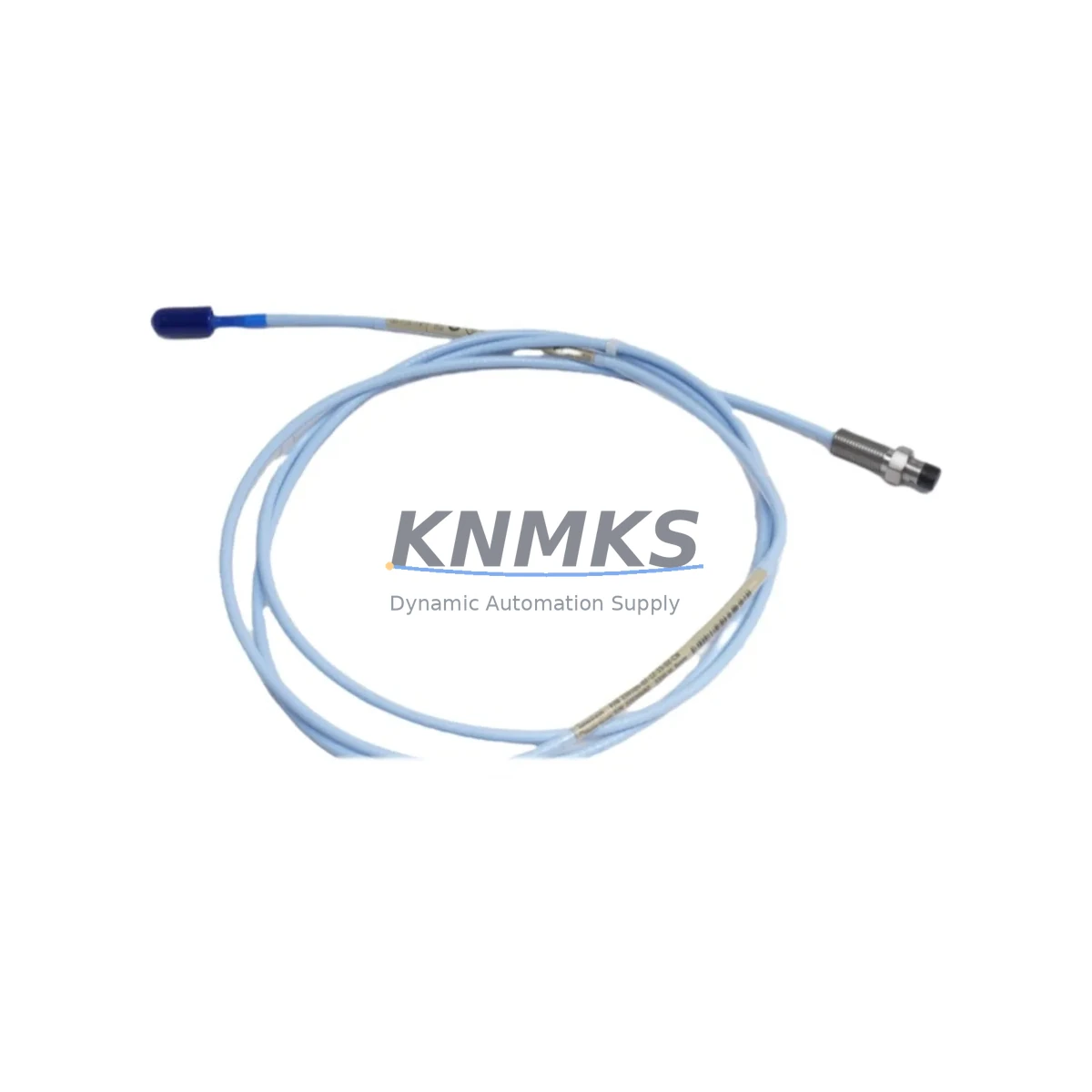

The Bently Nevada 330106-05-30-10-12-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. In rotating equipment protection — turbines, compressors, pumps, and gearboxes — this probe is the primary sensing element for radial shaft vibration and position measurement. When this component degrades or fails, the entire protection loop is compromised, leaving critical rotating assets unprotected and exposing the facility to unplanned shutdown risk. Stocking a verified replacement is not optional; it is a fundamental element of any serious predictive maintenance program.

KNMKS supplies the 330106-05-30-10-12-CN as an original-specification spare, fully tested prior to shipment, with a support terms confirmed by quotation covering manufacturing defects. Each unit is inspected for tip condition, cable integrity, connector seating, and sensitivity conformance before dispatch. Our global inventory position supports both emergency same-day quotation and long-term blanket order arrangements, ensuring your maintenance team is never caught without a critical spare at the moment of need.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When a maintenance engineer identifies a degraded or failed 330106-05-30-10-12-CN during a routine vibration check or alarm investigation, the correct protocol is to treat the entire measurement chain as suspect until each element is verified. The 3300 XL measurement loop consists of three interdependent components: the probe itself, the extension cable (typically a 330130-series armored cable matched to the probe cable length), and the Proximitor sensor driver module (commonly the 330180-series). A probe that reads correctly in isolation may still produce erroneous output if the extension cable has developed a micro-fracture from vibration fatigue or if the Proximitor module’s internal oscillator has drifted out of calibration range. All three should be verified — and ideally replaced as a matched set — during any planned outage.

Beyond the measurement chain, the maintenance team should inspect the rack-level infrastructure that powers and processes the probe signal. The 3300 XL monitor rack typically includes a power supply module (such as the 3300/20 or equivalent rack power conditioner) that provides the regulated −24 VDC bias. A marginal power supply can introduce noise into the probe gap voltage, causing false high-vibration trips or masking real shaft movement. Simultaneously, the I/O terminal blocks and field wiring barriers connecting the Proximitor output to the monitor card should be checked for corrosion, loose terminations, and correct shielding continuity — particularly in high-vibration or high-temperature environments where terminal creep is common.

For facilities running integrated turbine control and protection architectures, the 3300 XL monitor cards feed vibration data to the plant DCS or safety PLC via hardwired relay outputs or communication backplanes. During a probe replacement outage, it is prudent to verify the relay output modules (such as the 3300/55 or 3300/65 relay output cards) for contact integrity, and to confirm that the communication interface — whether a 3500/92 Ethernet I/O module or a legacy serial gateway — is correctly transmitting trip and alarm states to the control room historian and operator HMI. A probe replacement that is not followed by a full loop check from sensor to control room display is an incomplete maintenance action.

For annual overhaul planning, procurement engineers should consider stocking the 330106-05-30-10-12-CN alongside its matched extension cable and Proximitor module as a complete measurement chain kit. This approach eliminates the risk of a single-component stockout delaying a turbine return-to-service after a major inspection. KNMKS supports blanket order arrangements with staged delivery schedules, allowing facilities to maintain lean on-site inventory while guaranteeing supply availability across a 12-month maintenance cycle.

Site Replacement Workflow

Replacing the 330106-05-30-10-12-CN in the field follows a structured sequence to minimize downtime and ensure measurement integrity is fully restored before the machine is returned to service.

Step 1 — Isolation and documentation: Before removing the probe, record the existing gap voltage (typically −10 VDC ±0.5 V for a correctly installed 8mm probe at nominal gap) from the Proximitor output terminal. This baseline confirms the original installation gap and provides a reference for the replacement setup.

Step 2 — Probe removal: Loosen the probe locknut and back the probe out of the bracket. Inspect the probe tip for impact damage, oil contamination, or corrosion. Inspect the bracket bore for wear or eccentricity that could affect the new probe’s gap setting.

Step 3 — Extension cable inspection: Disconnect the extension cable at both the probe connector and the Proximitor input. Perform a continuity and insulation resistance check. Replace the extension cable if resistance is outside specification or if the cable jacket shows mechanical damage.

Step 4 — New probe installation: Thread the replacement 330106-05-30-10-12-CN into the bracket and adjust the gap to achieve the target gap voltage (−10 VDC ±0.2 V recommended for initial setup). Torque the locknut to the manufacturer’s specification. Reconnect the extension cable and verify connector seating.

Step 5 — Loop verification: With the machine on turning gear or at rest, confirm the gap voltage at the Proximitor output, verify that the monitor card is displaying a valid vibration reading (near zero with no shaft movement), and confirm that no spurious alarms or trips are active. Document the as-left gap voltage in the maintenance record.

Step 6 — Return to service: Clear any maintenance bypass applied to the protection channel, confirm the relay output is armed, and notify the control room that the vibration channel is restored to normal monitoring status.

This workflow is compatible with both hot-standby redundant probe installations and single-probe configurations. For redundant installations, the replacement can be performed with the machine online if the protection system is configured for single-channel voting during maintenance — always confirm the safety logic with the control system engineer before bypassing any protection channel.

Spare Parts Support FAQ

Q1: How do I confirm the 330106-05-30-10-12-CN is compatible with my existing 3300 XL Proximitor and monitor rack?
The 330106-05-30-10-12-CN is designed for use with the 3300 XL Proximitor sensor family and is compatible with all standard 3300 XL monitor cards that accept 8mm probe inputs. Compatibility is determined by the probe diameter (8mm), the connector type (CN coaxial), and the cable length (5m integral). If your installation uses a different extension cable length, verify that the total system cable length (probe cable + extension cable) falls within the Proximitor’s specified range. KNMKS can provide a compatibility confirmation based on your Proximitor model number and rack configuration before shipment.

Q2: What is included in the support terms confirmed by quotation, and what does the pre-shipment test cover?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. Each 330106-05-30-10-12-CN unit undergoes a pre-shipment functional test that verifies gap voltage output, scale factor conformance, cable continuity, and connector integrity. A test report is available upon request. Units that fail any test parameter are quarantined and not shipped. The support terms does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits.

Q3: Can KNMKS support long-term supply for multi-year maintenance contracts or fleet-wide turbine programs?
Yes. KNMKS maintains a dedicated inventory position for the 330106-05-30-10-12-CN and related 3300 XL series components to support blanket order and annual supply agreements. For facilities managing multiple turbine or compressor trains, we offer staged delivery scheduling, reserved stock allocation, and priority dispatch for emergency requirements. Contact our technical sales team to discuss a supply agreement tailored to your maintenance cycle and fleet size.

Q4: What is the recommended spare parts strategy for the 3300 XL proximity measurement system?
The industry-standard approach for API 670-compliant machinery protection systems is to stock a minimum of one complete measurement chain per critical machine train: one probe (330106-05-30-10-12-CN), one matched extension cable (330130 series), and one Proximitor sensor module (330180 series). For facilities with multiple identical trains, a shared pool of two to three complete sets is typically sufficient to cover both planned outage replacements and emergency failures. Proximitor modules and monitor cards have longer service lives than probes and cables, but should be included in the 5-year capital spares review. KNMKS can assist with a full 3300 XL spares list review on request.
