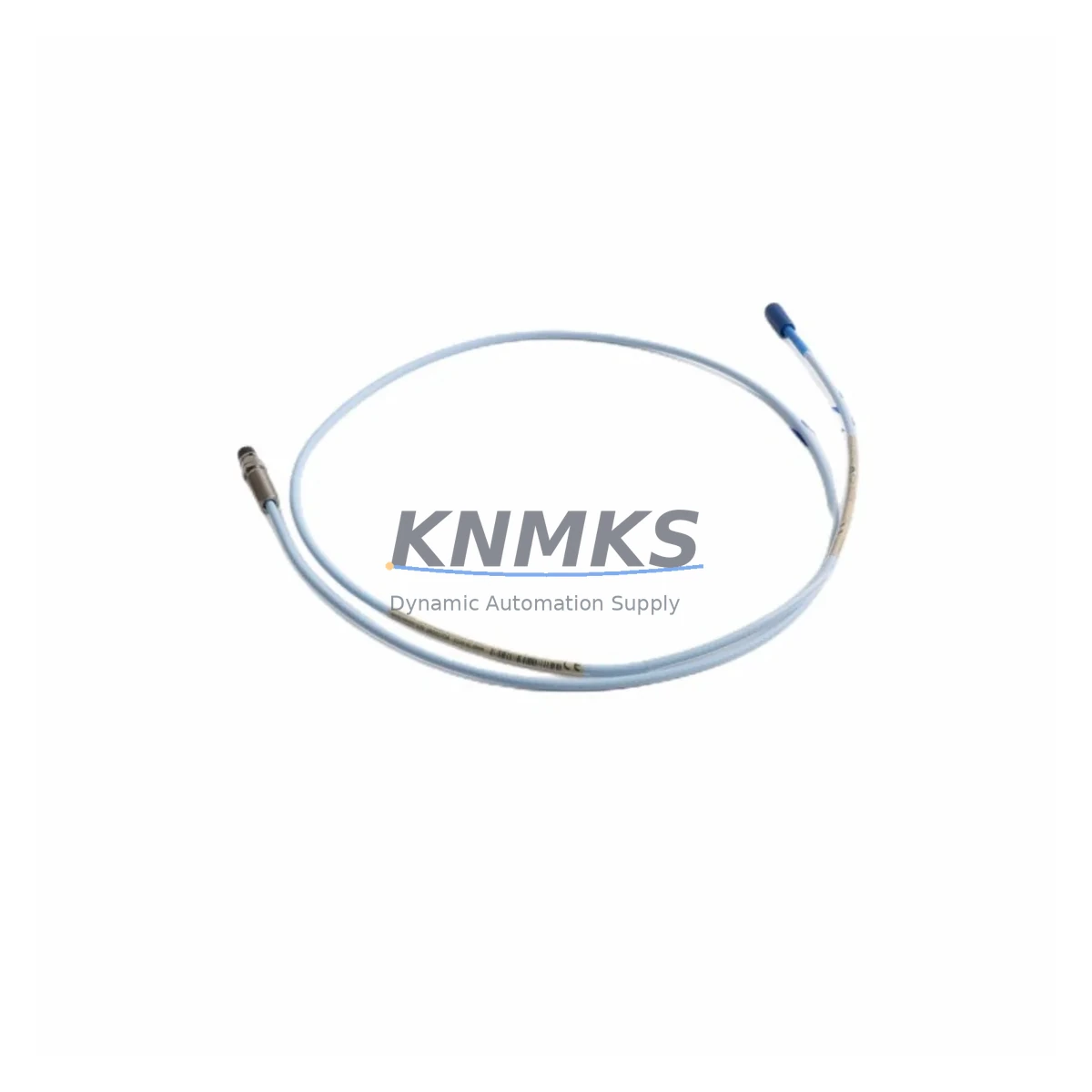

Bently Nevada 330106-05-30-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330106-05-30-10-02-CN Fail-Safe Proximity Probe: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330106-05-30-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to API 670 standards, this probe delivers uninterrupted shaft displacement measurement in rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — where any undetected vibration anomaly can escalate into catastrophic mechanical failure or unplanned production shutdown.

In safety-critical control cabinets and field junction boxes, signal integrity is non-negotiable. The 330106-05-30-10-02-CN is rated for harsh-site deployment, offering robust resistance to electromagnetic interference (EMI), radio-frequency interference (RFI), moisture ingress, and mechanical vibration. Its armored cable construction and precision-machined probe tip maintain stable gap voltage output across wide temperature ranges, preventing signal drift that could trigger false trips or, worse, mask genuine fault conditions in a safety instrumented system (SIS).

When integrated with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05) and the System 1 condition monitoring platform, the 330106-05-30-10-02-CN forms a complete, validated vibration monitoring loop. The Proximitor converts the probe’s raw eddy-current signal into a calibrated DC voltage proportional to shaft gap, feeding clean, drift-free data to the monitor rack. Paired with the Bently Nevada 3500/42M Proximitor I/O Module, this signal chain supports both continuous online monitoring and trip/alarm relay outputs — essential for interlock logic in petrochemical reactors, power generation turbines, and LNG compressor trains.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a high-integrity control cabinet serving a rotating machinery protection system, the 330106-05-30-10-02-CN operates as the primary sensing element in a multi-layer fault-detection architecture. The probe’s coaxial signal is routed through the Bently Nevada 330130-045-00-CN extension cable to the 3300 XL Proximitor Sensor, which conditions the signal before it enters the 3500 monitor rack. Within the rack, the 3500/42M Proximitor I/O Module processes radial vibration, axial position, and differential expansion channels simultaneously, providing redundant trip outputs to the plant’s Emergency Shutdown System (ESD).

To protect the monitor rack from power-line transients and voltage surges — a common threat in heavy industrial environments with large motor starts and variable-frequency drives — the cabinet design should incorporate a dedicated 24 VDC regulated power supply with surge suppression, such as the Phoenix Contact QUINT series or equivalent DIN-rail power supply. Upstream, a Bently Nevada 3500/15 Power Supply Module provides isolated, conditioned power to the monitor cards, ensuring that grid disturbances do not propagate into the vibration measurement chain.

For installations in hazardous areas (Zone 1 / Zone 2 or Class I Div 1 / Div 2), the probe system can be paired with a Bently Nevada 3300 XL Intrinsically Safe Barrier to maintain ATEX / IECEx compliance while preserving signal fidelity. In high-EMI environments — such as those near large transformers, arc furnaces, or VFD motor drives — the armored cable of the 330106-05-30-10-02-CN provides a critical first line of defense against induced noise that could corrupt vibration readings or cause nuisance trips in the safety relay logic.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330106-05-30-10-02-CN is widely deployed on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors in refineries and petrochemical complexes. API 670 mandates continuous shaft vibration monitoring on these machines, and the 3300 XL probe system provides the validated, drift-free measurement required for SIL-rated interlock loops. In the event of a bearing failure or rotor imbalance, the probe’s fast frequency response (DC to 10 kHz) ensures the 3500 monitor can issue a trip signal before mechanical damage propagates to adjacent equipment.

Power Generation: Steam turbine-generators in coal, gas, and nuclear power plants rely on Bently Nevada proximity probe systems for continuous shaft eccentricity, differential expansion, and thrust position monitoring. The 330106-05-30-10-02-CN, installed at the turbine bearing pedestals, feeds real-time displacement data to the 3500/42M module, enabling operators to detect rotor bow during startup, monitor bearing wear trends, and initiate controlled shutdowns before catastrophic failure occurs.

Mining & Minerals Processing: Large ball mills, SAG mills, and slurry pumps in mining operations subject proximity probes to extreme dust loading, high ambient temperatures, and continuous mechanical shock. The harsh-site rating and armored construction of the 330106-05-30-10-02-CN make it the preferred choice for mill trunnion bearing monitoring and crusher drive shaft surveillance, where probe replacement in an unplanned shutdown scenario carries significant production cost.

Water Treatment & Municipal Utilities: High-speed centrifugal blowers and booster pump stations in water treatment plants benefit from continuous vibration monitoring to prevent bearing failures that could interrupt water supply. The 330106-05-30-10-02-CN’s wide operating temperature range and moisture-resistant construction ensure reliable operation in humid, chemically aggressive pump house environments.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains in steel plants operate under extreme thermal cycling and vibration loads. The 3300 XL probe system’s robust calibration stability across temperature extremes makes it a trusted spare parts choice for metallurgical plant maintenance teams managing long-cycle equipment overhaul schedules.

Safety and Quality FAQ

Q1: Does the 330106-05-30-10-02-CN come with a support terms confirmed by quotation?
Yes. Every unit shipped by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional performance. Each probe undergoes full functional verification — including gap voltage linearity, sensitivity calibration, and cable continuity — prior to shipment. A test report is available upon request.

Q2: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and 3500 monitor racks?
Yes. The 330106-05-30-10-02-CN is a direct OEM-equivalent replacement for the standard 3300 XL 8mm probe system. It is fully compatible with the 330180-series Proximitor Sensors and all 3500/40M and 3500/42M Proximitor I/O Modules. No recalibration of the monitor rack is required when replacing a like-for-like probe and extension cable assembly.

Q3: Can this probe be used in hazardous area (ATEX / IECEx) installations?
The 330106-05-30-10-02-CN is designed for use with the Bently Nevada 3300 XL intrinsically safe barrier system for hazardous area compliance. For Zone 1 / Zone 2 or Class I Div 1 / Div 2 installations, the complete probe-barrier-Proximitor assembly must be certified as a system. Please contact our technical team to confirm the appropriate barrier model for your specific hazardous area classification.

Q4: What is the long-term spare parts availability for the 330106-05-30-10-02-CN?
KNMKS maintains dedicated stock of the 330106-05-30-10-02-CN and related 3300 XL series components to support long-cycle maintenance planning horizons of 12 to 36 months. We supply to petrochemical, power, mining, and water treatment facilities globally, with express shipping available for critical breakdown situations. Contact our team to discuss consignment stock or scheduled supply agreements for multi-site operations.
