Bently Nevada 330106-05-30-10-02-05 Maintenance-Proven Spare Part for Factory Uptime

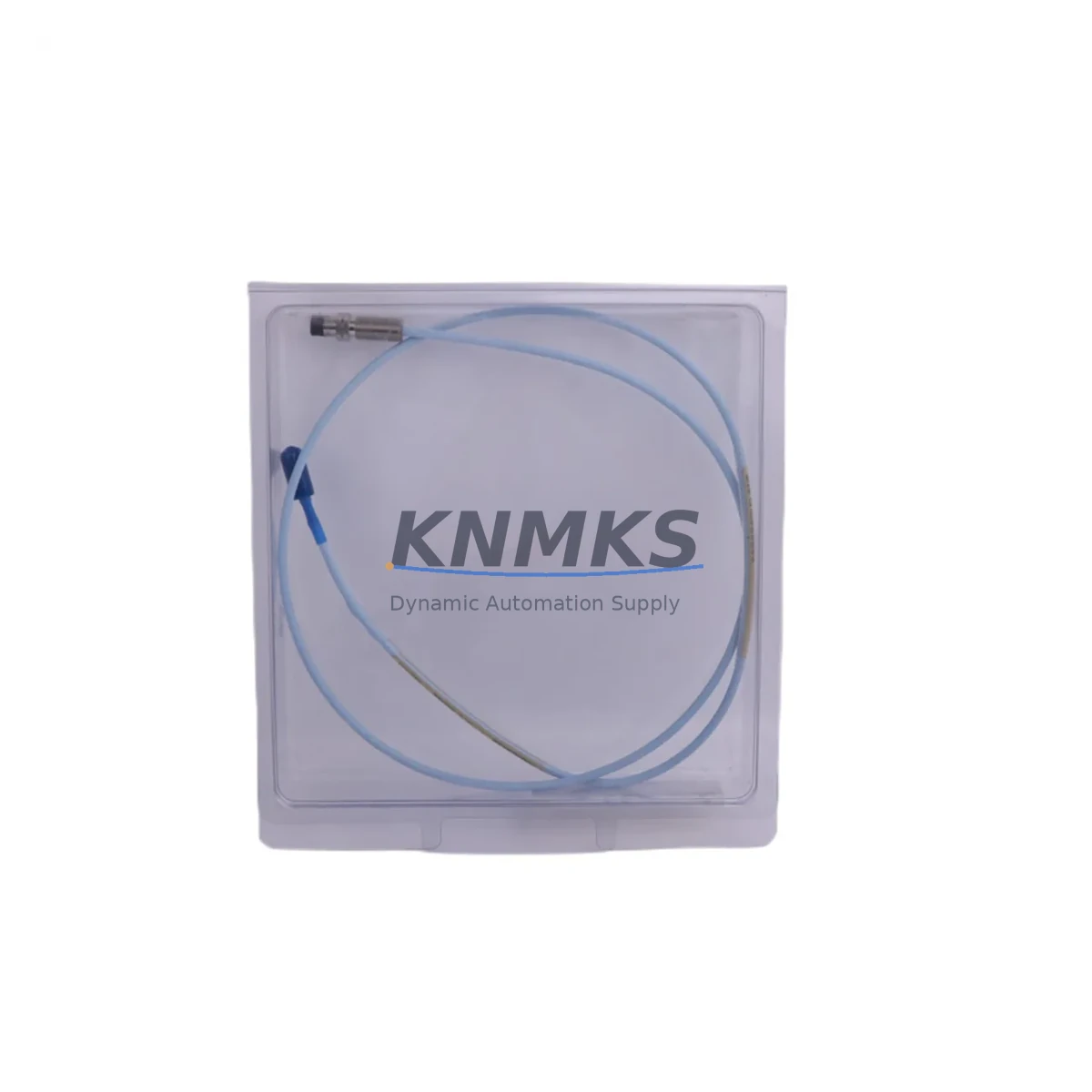

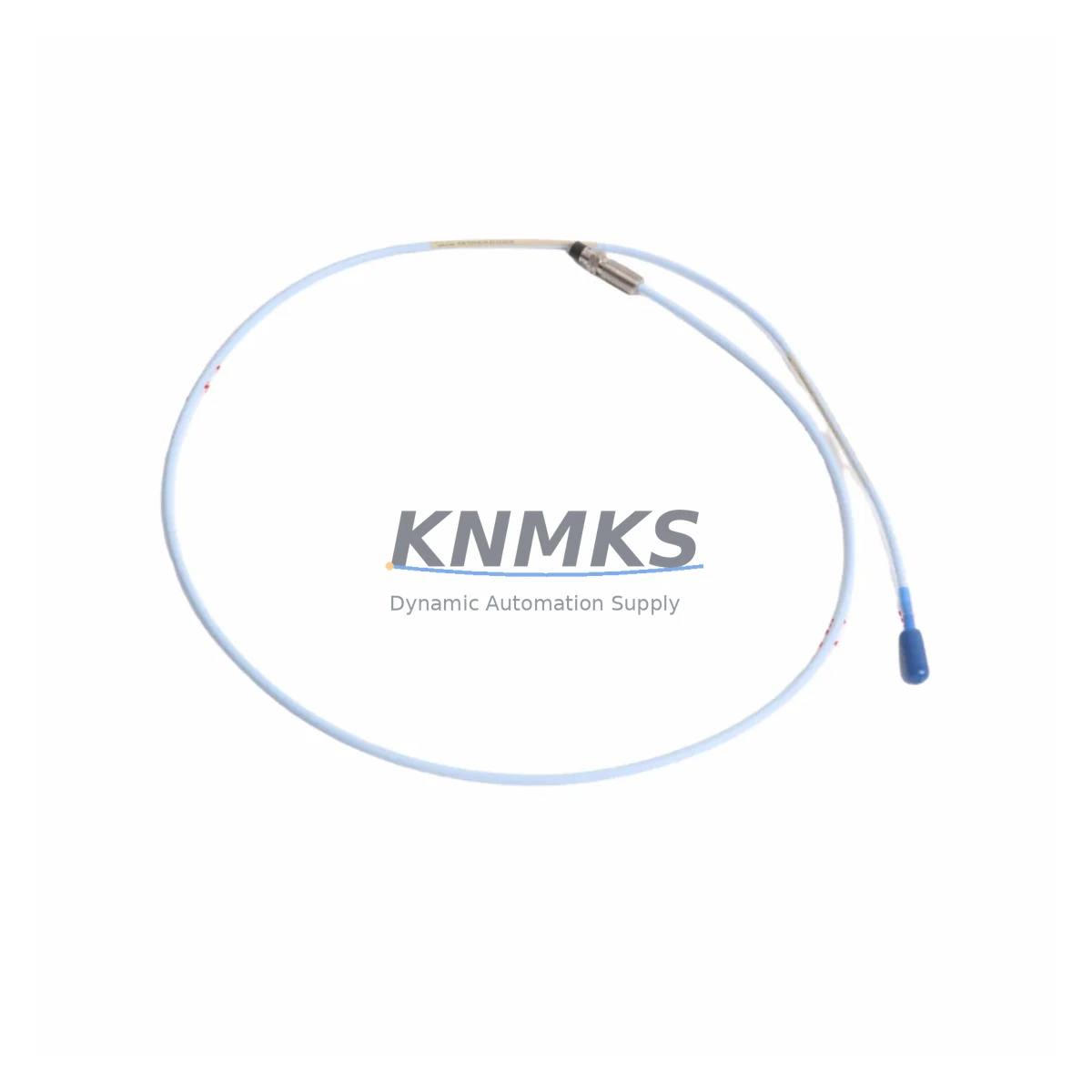

The Bently Nevada 330106-05-30-10-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed for continuous-duty industrial environments, this probe delivers precise non-contact displacement and vibration measurements critical to rotating machinery protection — including turbines, compressors, pumps, and motors. Sourced as an original spare, each unit undergoes pre-shipment functional testing and ships with a support terms confirmed by quotation, ensuring your maintenance team receives a verified, drop-in replacement ready for immediate installation.

For maintenance engineers managing aging machinery protection systems, the 330106-05-30-10-02-05 represents a proven, low-risk path to restoring full vibration monitoring capability without system redesign. Its compatibility with the 3300 XL monitor rack means no firmware changes, no recalibration of the full loop, and no extended commissioning time — just a direct swap that gets your protection system back online.

Procurement engineers sourcing this probe for long-term spare parts inventory will find it well-suited to 12–36 month stocking strategies. The 3300 XL platform remains widely deployed across global petrochemical, power generation, and heavy manufacturing facilities, making this probe a high-priority line item in any rotating equipment spare parts plan.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330106-05-30-10-02-05 in the field, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure signal integrity. Begin by verifying the condition of the 330130 or 330180 Series Proximitor Sensor (driver/oscillator unit) — probe and driver are a matched system, and a degraded driver will produce erratic output even with a new probe installed. Check the 3300 XL monitor rack for any active fault codes, channel alarms, or power supply irregularities before energizing the new probe.

Inspect the extension cable assembly (typically a 330130-series armored cable) for jacket damage, connector corrosion, or continuity breaks — cable faults are a leading cause of premature probe failure in high-vibration environments. At the terminal strip or junction box, verify that all signal wiring terminations are secure and free of oxidation, particularly the –24 VDC supply, signal output, and shield drain connections.

For facilities running the 3500 Series machinery protection system alongside legacy 3300 XL racks, confirm that probe sensitivity factors and gap voltage settings are correctly entered in the monitor configuration — cross-system parameter mismatches are a common source of nuisance trips after probe replacement. If the control cabinet houses a Bently Nevada 3300/55 or 3300/16 I/O module, inspect the module’s channel card for signs of moisture ingress or connector wear that could affect the newly installed probe’s readings.

During annual overhaul cycles, it is best practice to replace the proximity probe, extension cable, and Proximitor Sensor as a complete matched set. Stocking a spare 330130-080-00-00 Proximitor Sensor alongside the 330106-05-30-10-02-05 probe ensures your team can restore full loop functionality in a single maintenance window, eliminating the risk of a second unplanned outage caused by a marginal driver unit.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Remove the –24 VDC supply to the Proximitor Sensor at the monitor rack terminal. Confirm zero voltage at the probe connector before proceeding.

Step 2 — Remove the old probe: Unthread the 330106-05-30-10-02-05 from its mounting boss. Note the installed gap distance (typically 1.0–1.5mm from shaft surface) using a feeler gauge or the original commissioning record.

Step 3 — Inspect the mounting boss and shaft: Check for thread damage, corrosion, or shaft surface irregularities (scratches, plating wear) that could affect the new probe’s linear range and sensitivity.

Step 4 — Install the replacement probe: Thread the new 330106-05-30-10-02-05 to the same gap distance. Torque to manufacturer specification. Reconnect the extension cable and verify connector seating.

Step 5 — Restore power and verify output: Re-energize the Proximitor Sensor. Measure the DC bias voltage at the monitor input — a reading of approximately –10 VDC at the nominal gap confirms correct installation. Clear any latched alarms at the 3300 XL monitor.

Step 6 — Functional check: Confirm vibration and position readings are within expected baseline values. Document the new probe serial number, installation date, and gap voltage in the equipment maintenance record.

This workflow minimizes downtime to under two hours for a trained technician and maintains full compatibility with the existing 3300 XL system architecture — no software changes, no recalibration of adjacent channels.

Spare Parts Support FAQ

Q1: Is the 330106-05-30-10-02-05 a direct drop-in replacement for older 3300 XL probes?
Yes. The 330106-05-30-10-02-05 is fully compatible with the 3300 XL monitor series and uses the same –24 VDC supply, sensitivity curve, and connector standard as earlier 3300 XL probes. No monitor reconfiguration is required for a like-for-like replacement.

Q2: What pre-shipment testing is performed before dispatch?
Each unit is functionally tested for output linearity, bias voltage, and connector integrity prior to shipment. A test report is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can I stock this probe for 12–36 months without degradation?
Yes. When stored in original packaging in a dry, temperature-controlled environment (15–30°C, <70% RH), the 330106-05-30-10-02-05 maintains full functional integrity for extended storage periods. We recommend annual visual inspection of stored units and connector protection caps.

Q4: What is the lead time and long-term supply availability?
Stock units ship within 3–5 business days. For facilities requiring guaranteed long-term supply (12–36 months), blanket order arrangements are available. Contact our team to discuss volume pricing, reserved stock agreements, and scheduled delivery programs tailored to your planned maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330106-05-30-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330106-05-30-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
