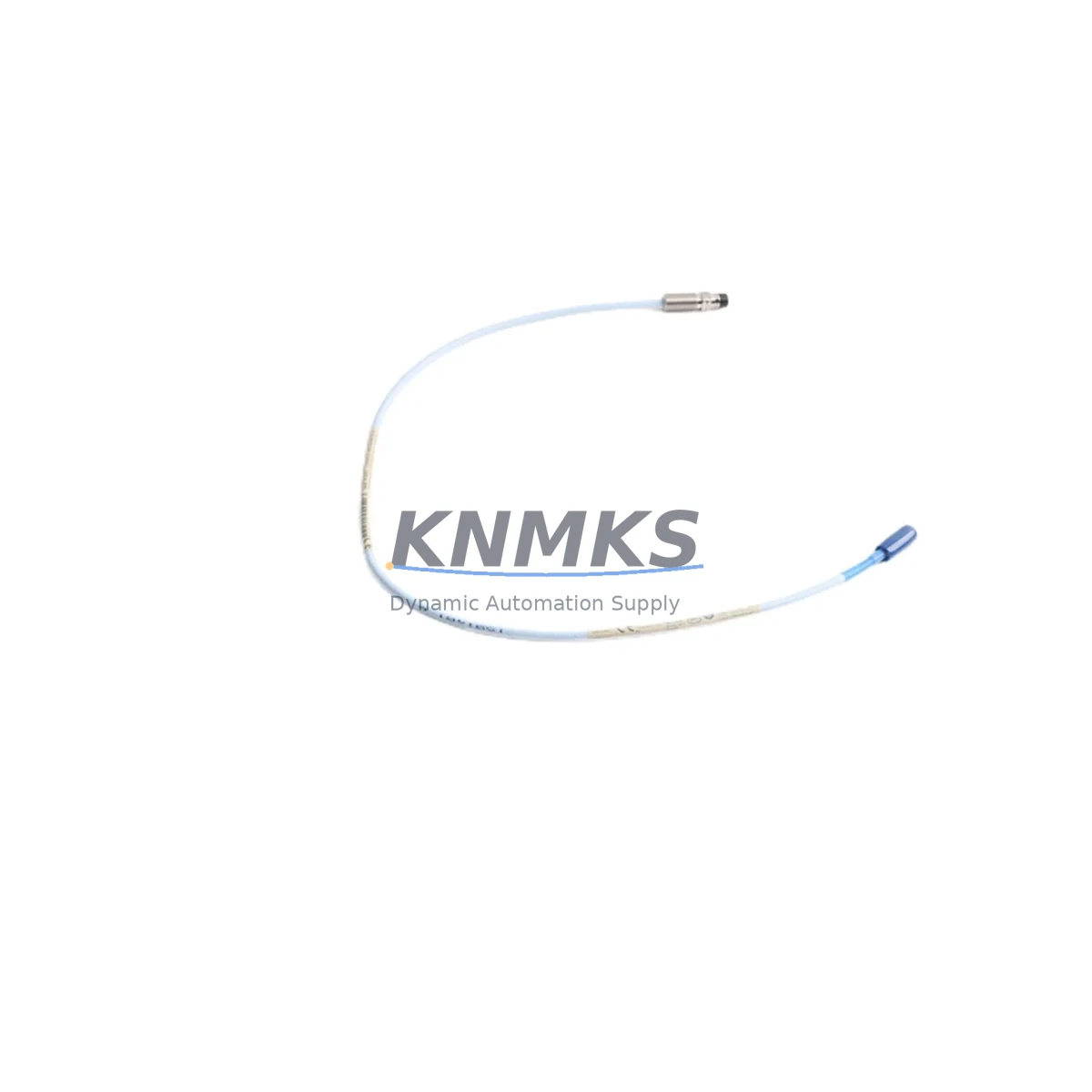

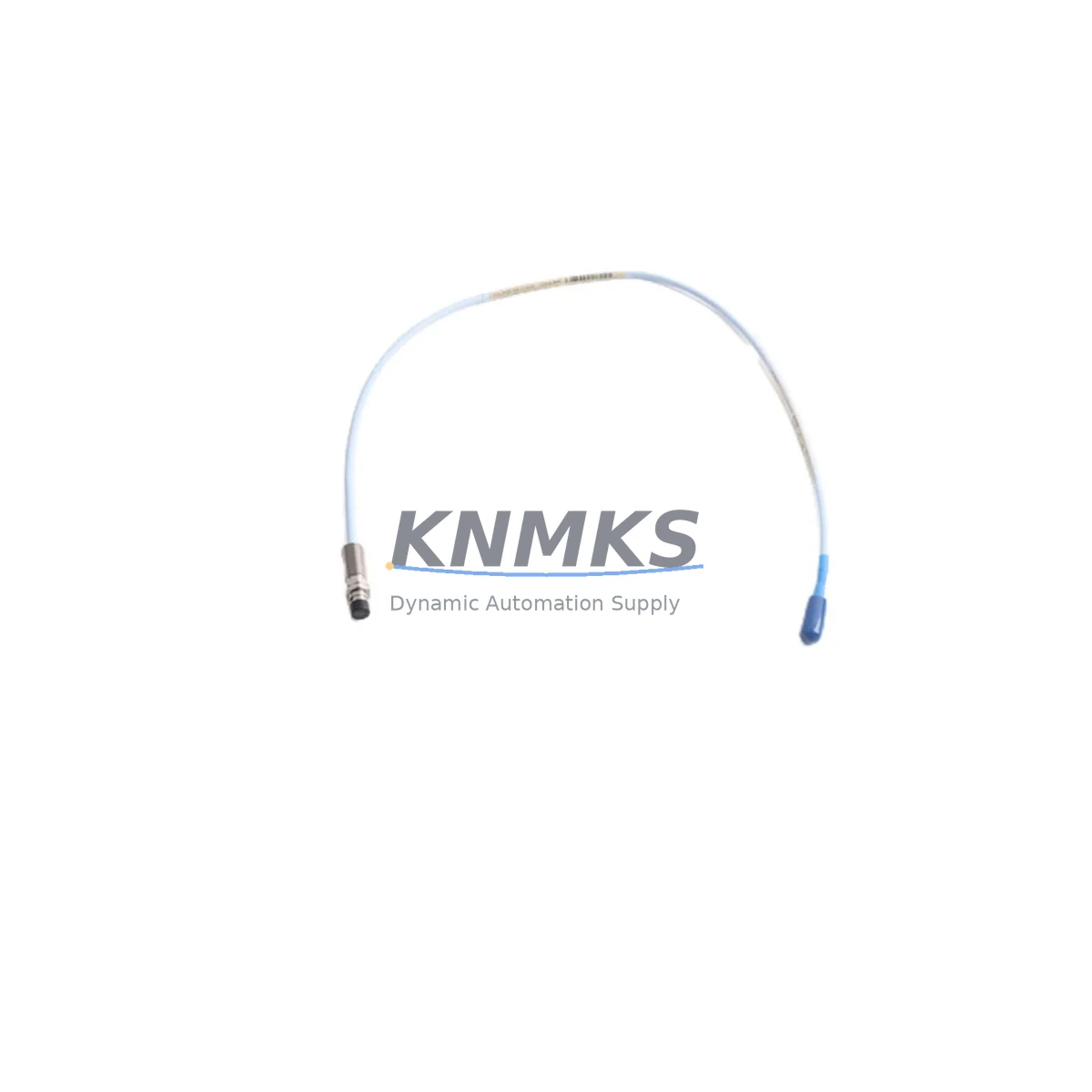

Bently Nevada 330106-05-30-05-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330106-05-30-05-02-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Reliability

The Bently Nevada 330106-05-30-05-02-05 is a 5mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in critical rotating machinery applications. Designed as a core component of the Bently Nevada 3300 XL Series machinery protection system, this probe delivers stable, high-resolution shaft displacement measurements in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port equipment, and continuous manufacturing systems.

In high-stakes control environments where an unplanned shutdown can cost tens of thousands of dollars per hour, the 330106-05-30-05-02-05 provides the measurement integrity that safety-critical interlock systems depend on. Its eddy-current sensing principle is inherently immune to contamination from oil mist, dust, moisture, and non-conductive process fluids — making it the preferred choice for turbine bearing housings, compressor shaft monitoring, pump seal gap measurement, and gearbox radial vibration detection.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on the integrity of the entire signal chain back to the control cabinet. When deploying the 330106-05-30-05-02-05 in a critical protection loop, engineers must verify compatibility with the associated Bently Nevada 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the raw probe signal into a calibrated -24 VDC output suitable for the monitoring rack. This Proximitor must be mounted within the specified cable length range — typically 5m probe plus 5m extension — to maintain system sensitivity within API 670 tolerances.

Within the monitoring rack, the conditioned signal feeds into a Bently Nevada 3500/42M Proximitor Monitor or equivalent 3500 Series I/O module, which performs real-time gap, 1X, and 2X vector analysis and triggers relay outputs to the safety interlock system. In plants running legacy Bently Nevada 3300 Series racks alongside newer 3500 infrastructure, the 330106-05-30-05-02-05 probe can serve both platforms, provided the Proximitor model is matched accordingly.

For control cabinets in high-EMI environments — such as those adjacent to variable frequency drives, large motor starters, or arc furnace controls — the shielded coaxial cable construction of the 330106-05-30-05-02-05 provides critical noise rejection. Supplementing the probe installation with a signal isolator or barrier module at the cabinet entry point further protects the monitoring system from ground loops and surge events. In hazardous area installations (Zone 1 / Zone 2), a certified Zener barrier or galvanic isolator must be installed between the Proximitor and the monitoring rack to maintain intrinsic safety ratings.

Power supply stability is equally critical. The 3300 XL Proximitor requires a clean -24 VDC supply; fluctuations beyond ±1 VDC can shift the probe gap voltage and trigger false alarms. A dedicated Bently Nevada or equivalent DIN-rail power supply module with surge protection and redundant output is recommended for all safety-critical monitoring cabinets. Where the control cabinet also houses a Bently Nevada 3500/01 Power Supply, ensure the load budget accounts for all active I/O and communication modules to prevent brownout conditions during peak demand.

Critical Industrial Safety Applications

The 330106-05-30-05-02-05 is deployed across a wide range of critical industrial sectors where machinery failure carries severe safety and financial consequences:

Petrochemical and Refining: Installed on centrifugal compressors, steam turbines, and boiler feed pumps in API 670-compliant protection systems. The probe’s resistance to hydrocarbon vapors and high-temperature bearing housings makes it the standard choice for continuous monitoring in ATEX and NEC hazardous area classifications.

Power Generation: Used on gas turbine generator sets, steam turbine LP/HP shafts, and boiler circulating pumps. In combined-cycle plants, the probe feeds real-time shaft eccentricity data to the plant DCS, enabling predictive maintenance scheduling without unplanned outages.

Mining and Mineral Processing: Applied to SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes. The probe’s sealed construction withstands the high dust loading and vibration levels typical of underground and open-pit mining environments.

Water and Wastewater Treatment: Monitors vertical turbine pumps and blower shaft positions in municipal water infrastructure. Continuous gap monitoring detects bearing wear before catastrophic failure, protecting both equipment and water supply continuity.

Metallurgy and Steel: Deployed on rolling mill drive shafts, continuous caster pinch rolls, and blast furnace blower trains. The probe operates reliably in the high-temperature, high-vibration, and high-EMI conditions characteristic of steel plant environments.

Port and Marine: Used on ship propulsion shaft monitoring systems and port crane hoist motor bearings, where saltwater corrosion resistance and vibration immunity are essential for uninterrupted operations.

Safety and Quality FAQ

Q1: Does the 330106-05-30-05-02-05 come with a support terms, and what does it cover?
Yes. Every unit ships with a support terms confirmed by quotation covering manufacturing defects, sensitivity drift beyond API 670 tolerances, and connector integrity. Support requests are supported with replacement or documented resolution support, subject to inspection. Contact admin@knmks.com for support terms service.

Q2: What pre-shipment testing is performed on each probe?
Each 330106-05-30-05-02-05 undergoes full functional verification before dispatch, including gap voltage output check at standard -24 VDC excitation, sensitivity confirmation against the 3300 XL calibration curve, cable continuity and shield integrity test, and connector pin-out verification. A test report is available upon request.

Q3: Is this probe a direct replacement for existing 330106 series probes in my 3300 XL system?
Yes. The 330106-05-30-05-02-05 is a direct form-fit-function replacement for other 330106 series variants with matching cable length and connector configuration. When replacing in a live system, verify the Proximitor gap voltage is within the -10 VDC ±0.5 VDC nominal range after installation and re-confirm alarm and danger setpoints in the 3500 monitor before returning the machine to service.

Q4: What is your stock availability and lead time?
The 330106-05-30-05-02-05 is maintained availability confirmed by RFQ for immediate dispatch. Standard orders ship within 1–3 business days. For urgent plant breakdown situations, contact admin@knmks.com or call +86 18359268345 to confirm same-day dispatch availability.
